BenQ MW516 Manuel utilisateur

Digital Projector

MS513/MX514/MW516

Table of contents2

Ta b l e o f c o n t e n t s

Important safety

instructions ................... 3

Introduction.................. 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view...........................9

Positioning your

projector ..................... 15

Choosing a location................................15

Obtaining a preferred projected image

size..............................................................16

Connection ................. 19

Connecting a computer or monitor...20

Connecting Video source devices.......21

Operation ................... 25

Starting up the projector ......................25

Adjusting the projected image .............26

Using the menus......................................29

Securing the projector...........................30

Switching input signal .............................33

Magnifying and searching for details ...34

Selecting the aspect ratio ......................34

Optimizing the image .............................36

Creating your own startup screen......39

Setting the presentation timer.............40

Remote paging operations ....................41

Hiding the image......................................42

Freezing the image ..................................42

Operating in a high altitude environment

.....................................................................43

Adjusting the sound................................43

Use Teaching Template .........................44

Personalizing the projector menu display

.................................................................... 45

Select the lamp saver mode................. 45

Shutting down the projector ............... 46

Menu operation ...................................... 47

Maintenance ............... 59

Care of the projector............................ 59

Lamp information ................................... 60

Troubleshooting......... 66

Specifications.............. 67

Dimensions .............................................. 68

Ceiling mount installation..................... 68

Timing chart............................................. 69

Warranty and Copyright

information................. 72

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire.

Important safety instructions4

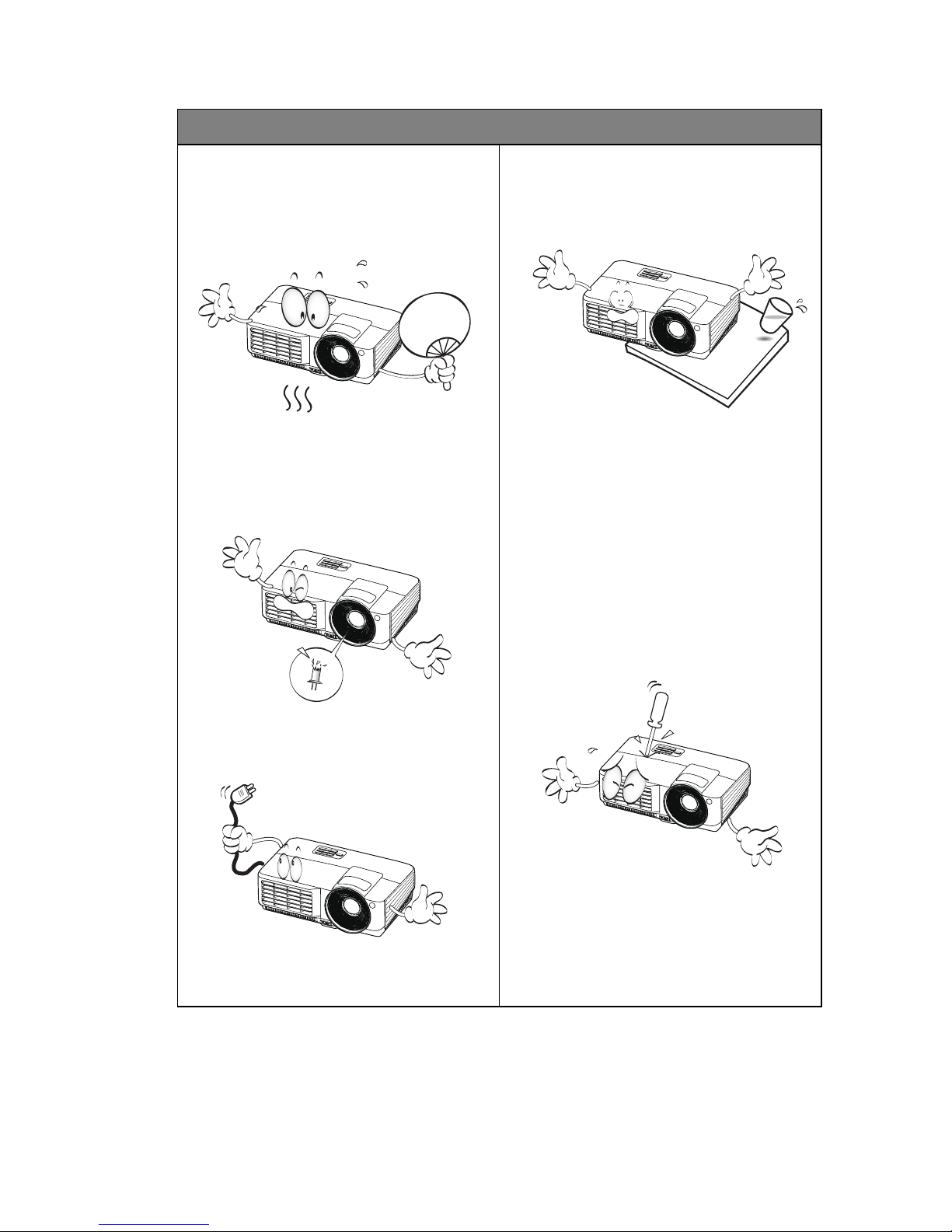

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. The only

user serviceable part is the lamp

which has its own removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around

the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span and

darkening the image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector,

doing so may result in accidents and

possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

wall socket and call BenQ to have the

projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

Introduction 7

Introduction

Projector features

The model MS513, MX514, MW516 are projectors with the feature of high-performance

projection, power- saving and user-friendly design to deliver the user benefit of high

reliability, environment-friendly and ease of use.

•Eco Blank - With Philips ImageCare® technology,the Eco Blank function will save up

to 70% of your lamp power at the same time your image is hiding.

•Smart Eco mode - With Philips ImageCare® technology, lamp power consumption

will save from 30% to 100% dynamically by detecting the content brightness level when

Smart Eco mode is selected.

•Instant restart - Turn on the power to have the image back immediately within a

short time after turning it off .

•HDMI - Connecting a variety of audio/video components from digital signal.

•Long lamp life - low ownership with up to 6500 hours lamp life.

•High brightness projection - Suitable for conference meeting and classroom used.

•<1W standby mode - Less than 1 W power consumption in standby mode

•2W speaker - Built-in speaker providing mixed mono audio.

•Multi-language - 28 languages On-Screen Display (OSD) menus

•Quick auto search - speeding up the signal detecting process.

•One-key auto-adjustment - Automatically determines the best picture timings for

the displayed image.

•Wall color correction - Allowing projection on surfaces of several predefined colors

•Color balance control - Adjustable for data/video display

•3D color management - allowing color adjustments to your liking

•Quick cooling - Selectable to makes the projector cool in a shorter time

•Presentation timer - For better control of time during presentations

• Selectable password protected function

• Component HDTV compatibility (YPbPr)

• The apparent brightness of the projected image will vary depending on the ambient lighting

conditions, selected input signal contrast/brightness settings, and is proportional to

projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Optional accessories

Projector Power cord VGA cable

Quick start guide User manual CD Warranty card*

Remote control with battery

Digital Projector

uick Start Guideuick Start Guide

1. Spare lamp kit

2. Ceiling mount kit

3. Carry bag

4. RS232 cable

5. Presentation plus

Introduction 9

Projector exterior view

1. External control panel

(See "Projector" on page 10 for

details.)

2. Lamp cover

3. Zoom ring

4. Focus ring

5. Vent (heated air exhaust)

6. Front IR remote sensor

7. Projection lens

8. Quick-release button

9. USB input jack

10. HDMI input jack

11. S-Video input jack

12. RGB (PC)/Component video

(YPbPr/ YCbCr) signal input jack

13. RS-232 control port

14. Audio input jack

15. Kensington anti-theft lock slot

16. AC power cord inlet

17. Video input jack

18. RGB signal output jack

19. Audio output jack

20. Ceiling mount holes

21. Rear adjuster foot

Front/upper side

Rear/lower side

12911 13

168

Introduction10

Controls and functions

Projector

7. Volume /Arrow keys ( / Left,

/ Right)

Adjusts the sound level.

When the On-Screen Display (OSD)

menu is activated, the #7 and #9 keys are

used as directional arrows to select the

desired menu items and to make

adjustments. See "Using the menus" on

page 29 for details.

8. ECO BLANK

Used to hide the screen picture. See

"Hiding the image" on page 42 for details.

9. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection. See

"Correcting keystone" on page 28 for

details.

10. LAMP indicator light

Indicates the status of the lamp. Lights up

or flashes when the lamp has developed a

problem. See "Indicators" on page 65 for

details.

11. AUTO

Automatically determines the best

picture timings for the displayed image.

See "Auto-adjusting the image" on page

26 for details.

12. SOURCE

Displays the source selection bar. See

"Switching input signal" on page 33 for

details.

13. MODE/ENTER

Selects an available picture setup mode.

See "Selecting a picture mode" on page

36 for details.

Activates the selected On-Screen Display

(OSD) menu item. See "Using the menus"

on page 29 for details.

1. Focus ring

Adjusts the focus of the projected image.

See "Fine-tuning the image size and clarity"

on page 27 for details.

2. Zoom ring

Adjusts the size of the image. See "Fine-

tuning the image size and clarity" on page

27 for details.

3. POWER indicator light

Lights up or flashes when the projector is

under operation. See "Indicators" on page

65 for detail.

4. TEMP(temperature) warning light

Lights up red if the projector's

temperature becomes too high. See

"Indicators" on page 65 for details.

5. MENU/EXIT

Turns on the On-Screen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings.

6. POWER

Toggles the projector between standby

mode and on.See "Starting up the

projector" on page 25 and "Shutting down

the projector" on page 46 for details.

Autres manuels pour MW516

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BenQ Projecteur

BenQ

BenQ Commuter CP120 Manuel utilisateur

BenQ

BenQ L720 Series Manuel utilisateur

BenQ

BenQ Commuter CP120 Manuel utilisateur

BenQ

BenQ LU960UST Manuel utilisateur

BenQ

BenQ W1600UST Manuel utilisateur

BenQ

BenQ MS517 Manuel utilisateur

BenQ

BenQ W1000 Manuel utilisateur

BenQ

BenQ MX613ST Manuel utilisateur

BenQ

BenQ MP782 ST Manuel utilisateur

BenQ

BenQ PW9500 Manuel utilisateur

BenQ

BenQ LX890UST Manuel utilisateur

BenQ

BenQ PB7230 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ Portable Entertainment Series Manuel utilisateur

BenQ

BenQ SP830 - WXGA DLP Projector Manuel utilisateur

BenQ

BenQ TW526E Manuel utilisateur

BenQ

BenQ V5000i Manuel utilisateur

BenQ

BenQ PB8260 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ LU9750 Manuel utilisateur

BenQ

BenQ Mainstream MP620 Manuel utilisateur

BenQ

BenQ PU9730 Manuel utilisateur

BenQ

BenQ MS524 Manuel utilisateur

BenQ

BenQ MS560 Manuel utilisateur

BenQ

BenQ Mainstream Series Manuel utilisateur

BenQ

BenQ x3100i Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
