BenQ PX9210 Manuel utilisateur

PX9210 / PU9220 / PU9220+

Digital Projector

Installation Guide

English

Table of Contents

Product information ............................................................................. 3

Lens information ................................................................................... 3

Notice (when edge blending) ............................................................... 3

Product information ............................................................................. 4

Lens shift range ..................................................................................... 6

Projector dimensions............................................................................ 8

Clearance around the exhaust vent .................................................... 9

Lens dimensions .................................................................................... 10

Ceiling mount dimensions.................................................................... 12

IO panel.................................................................................................. 13

RS232 command ................................................................................... 14

2015/ 8/ 3

English

Product information

Type: DLP™ Technology

Dimensions (W x H x D): 431 x 167 x 320.5 mm

Weight: 8.5 kg (18.7 lbs)

Specications PX9210 PU9220/PU9220+

DMD size 0.7˝ 0.67˝

Native resolution XGA (1024 x 768) WUXGA (1920 x 1200)

Aspect ratio 4:3 16:10

Brightness 6000 Lumens 5000 Lumens

Lamp Wattage 370W

Power consumption(Max) 480W

Lens information

Model Name Lens Type BenQ Part Number Optical Spec Screen Size

LS2ST3 Wide x 5J.JDH37.001 F=2.5, f=11.5mm 80˝~180˝

LS2ST1 Wide zoom 5J.JDH37.011 F=2.05~2.27, f=16.64~19.5 mm 80˝~350˝

LS2SD Standard 5J.JDH37.021 F=2.46~2.56, f=22.8~28.5mm 80˝~210˝

LS2LT1 Semi Long 5J.JDH37.031 F=2.5~3.1, f=28.5~42.75mm 80˝~480˝

LS2LT2 Long zoom 1 5J.JDH37.041 F=2.2~2.5, f=44.5~74.19mm 80˝~300˝

Notice (when edge blending)

• To avoid the image shaking or some pixels in the display may be misaligned, do not use the projector in the

following location:

• In a building close to a construction site.

• In a room where an air conditioner unit is working and it vibrates.

• In a place where the temperature changes dramatically that may cause thermal contraction.

• Before making any adjustment, leave the projector lit for at least 45 minutes after its lamp is turned on. This allows

the internal temperature of the projector to stabilize.

English

Product information

PX9210 Formulas:

Denitions:

W = Image Width

H = Image Height (size)

C = Throw distance

4:3 Screen Formulas:

W = H x 4/3

H = W x 3/4

Diagonal = W x 5/4

PX9210

Part Number 5J.JDH37.001 5J.JDH37.011 5J.JDH37.021 5J.JDH37.031

Throw Ratio

LS2ST3

(Wide Fix Lens)

LS2ST1

(Wide Zoom Lens)

LS2SD

(Standard Lens)

LS2LT1

(Semi Long Lens)

0.8 1.14-1.35 1.6-2.0 2.0-3.0

Diagonal Width Height (B) N/A Wide Tele Wide Tele Wide Tele

(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)

80 2.03 64 1.63 48 1.22 51 1.3 73 1.85 86 2.18 102 2.6 128 3.25 128 3.25 192 4.88

100 2.54 80 2.03 60 1.52 64 1.63 91 2.32 107 2.72 128 3.25 160 4.06 160 4.06 240 6.1

120 3.05 96 2.44 72 1.83 77 1.95 109 2.78 129 3.27 154 3.9 192 4.88 192 4.88 288 7.32

150 3.81 120 3.05 90 2.29 96 2.44 137 3.47 161 4.08 192 4.88 240 6.1 240 6.1 360 9.14

200 5.08 160 4.06 120 3.05 - - 182 4.63 214 5.45 256 6.5 320 8.13 320 8.13 480 12.19

300 7.62 240 6.1 180 4.57 - - 274 6.95 322 8.17 - - - - 480 12.19 720 18.29

400 10.16 320 8.13 240 6.1 - - - - - - - - - - 640 16.26 960 24.38

500 12.7 400 10.16 300 7.62 - - - - - - - - - - - - - -

Part Number 5J.JDH37.041

Throw Ratio

LS2LT2

(Long Zoom Lens)

3.11-5.18

Diagonal Width Height (B) Wide Tele

(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)

80 2.03 64 1.63 48 1.22 199 5.06 332 8.42

100 2.54 80 2.03 60 1.52 249 6.32 414 10.53

120 3.05 96 2.44 72 1.83 299 7.58 497 12.63

150 3.81 120 3.05 90 2.29 373 9.48 622 15.79

200 5.08 160 4.06 120 3.05 498 12.64 829 21.05

300 7.62 240 6.1 180 4.57 746 18.96 1243 31.58

400 10.16 320 8.13 240 6.1 - - - -

500 12.7 400 10.16 300 7.62 - - - -

English

PU9220/PU9220+ Formulas:

Denitions:

W = Image Width

H = Image Height (size)

C = Throw distance

16:10 Screen Formulas:

W = H x 16/10

H = W x 10/16

Screen Diagonal = W x 18.868/16

PU9220/PU9220+

Part Number 5J.JDH37.001 5J.JDH37.011 5J.JDH37.021 5J.JDH37.031

Throw Ratio

LS2ST3

(Wide Fix Lens)

LS2ST1

(Wide Zoom Lens)

LS2SD

(Standard Lens)

LS2LT1

(Semi Long Lens)

0.77ST 1.1~1.3 1.54~1.93 1.93~2.9

Diagonal Width Height (B) N/A Wide Tele Wide Tele Wide Tele

(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)

80 2.03 68 1.72 42 1.08 52 1.33 75 1.9 88 2.24 104 2.65 131 3.33 131 3.33 197 5

100 2.54 85 2.15 53 1.35 65 1.66 93 2.37 110 2.8 131 3.32 164 4.16 164 4.16 246 6.25

120 3.05 102 2.58 64 1.62 78 1.99 112 2.84 132 3.36 157 3.98 196 4.99 196 4.99 295 7.5

150 3.81 127 3.23 79 2.02 98 2.49 140 3.55 165 4.2 196 4.98 245 6.24 245 6.24 369 9.37

200 5.08 170 4.31 106 2.69 - - 187 4.74 220 5.6 261 6.63 327 8.31 327 8.31 492 12.49

300 7.62 254 6.46 159 4.04 - - 280 7.11 331 8.4 - - - - 491 12.47 738 18.74

400 10.16 339 8.62 212 5.38 - - - - - - - - - - 655 16.63 984 24.99

500 12.7 424 10.77 265 6.73 - - - - - - - - - - - - - -

Part Number 5J.JDH37.041

Throw Ratio

LS2LT2

(Long Zoom Lens)

3~5

Diagonal Width Height (B) Wide Tele

(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)

80 2.03 68 1.72 42 1.08 204 5.17 339 8.62

100 2.54 85 2.15 53 1.35 254 6.46 424 10.77

120 3.05 102 2.58 64 1.62 305 7.75 509 12.92

150 3.81 127 3.23 79 2.02 382 9.69 636 16.15

200 5.08 170 4.31 106 2.69 509 12.92 848 21.54

300 7.62 254 6.46 159 4.04 763 19.39 1272 32.31

400 10.16 339 8.62 212 5.38 - - - -

500 12.7 424 10.77 265 6.73 - - - -

Note:

• Ceiling installation must be done by a qualied professional. Contact your dealer for more information. It is not

recommended you install the projector yourself.

• Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector is dropped.

• Do not use the projector in an environment where extreme temperature occurs.The projector must be used at

temperatures between 41 degrees Fahrenheit (5 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).

• Screen damage will occur if the projector is exposed to moisture, dust or smoke.

• Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to the projector

will occur if the vents are covered.

English

Lens shift range

Lens shift adjustable range

The adjustable range for lens shift is tabulated below and subject to the conditions listed.

Note:

The drawings below apply to the standard lens only.

XGA

Desk-Front Projection

Vertical Shift

Normal projection position

Max 0.1V

0.05H

Shift to Left Shift to Right

0.05H

Max

0.5V

Height of projected image

Width of projected image

Vertical Shift

Ceiling Mount-Front Projection

Vertical Shift

Max 0.5V

English

WUXGA

Desk-Front Projection

Vertical Shift

Normal projection position

Max 0.15V

0.05H

Shift to Left Shift to Right

0.05H

Max

0.55V

Height of projected image

Width of projected image

Vertical Shift

Ceiling Mount-Front Projection

Vertical Shift

Max 0.55V

Ceiling Mount Installation

Screen Top

0.1H

No Offset from Mount Pipe

X = Distance from lens to mount center

C = Distance from lens to screen

Only for Lenses:

LS2ST3: X = 176.3

LS2ST1: X = 255.8

LS2SD: X = 190.9

LS2LT1: X = 205.5

LS2LT2: X = 235.5

Shift Range

Screen Center

English

Projector dimensions

431.9

220.0

110.0

321.0 55.5

216.0

174.5

83.0

56.0

82.5

221.0

316.9

AIR INLET

AIR EXHAUST

M4X12L

260.0

54.0192.0

283.0

English

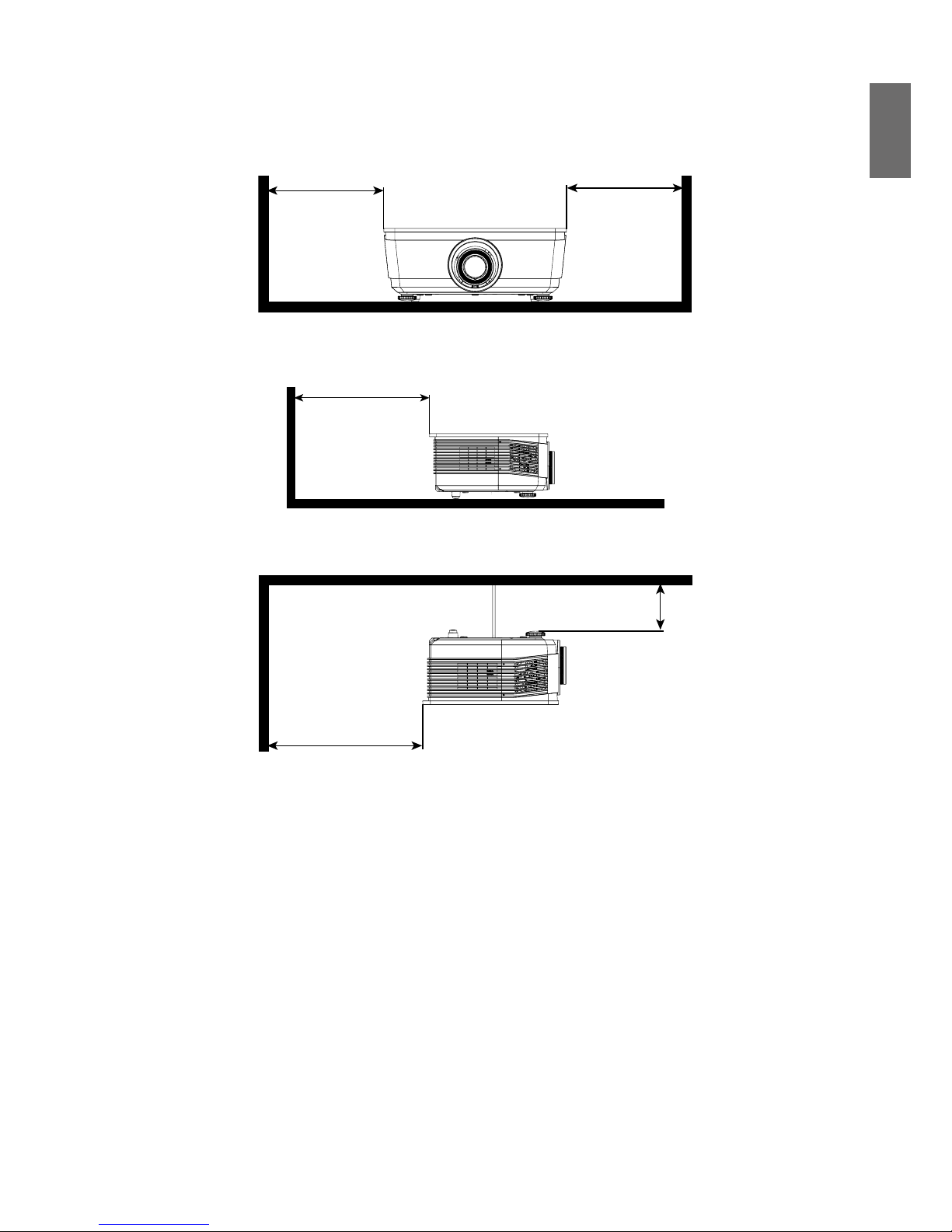

Clearance around the exhaust vent

For proper ventilation of the projector, make sure to leave some space around the projector as

shown in the illustration below:

Min. 500mm Min. 500mm

Min. 500mm

Min. 300mm

English

Lens dimensions

Optional Lens (Wide Fix: LS2ST3)

LS2ST3,Wide Fix lens

316.9

334.4

Optional Lens (Wide Zoom: LS2ST1)

LS2ST1,Wide Zoom lens

316.9

413.9

Optional Lens (Standard: LS2SD)

LS2SD, Standard lens

316.9

349.0
