3Important safety instructions

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

5. Do not block the projection lens

with any objects when the projector

is under operation as this could

cause the objects to become heated

and deformed or even cause a fire.

To temporarily turn off the lamp, use

the BLANK function.

CH100_EN.book Page 3 Wednesday, March 2, 2016 11:54 AM

4 Important safety instructions

6. Never replace any electronic

components unless the projector is

unplugged.

7. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

8. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. Refer

servicing only to suitably qualified

professional service personnel.

9. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a

cloth or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

10. Always place the projector on a

level, horizontal surface during

operation.

CH100_EN.book Page 4 Wednesday, March 2, 2016 11:54 AM

5Important safety instructions

11. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury

or resulting in damage to the

projector.

12. Do not step on the projector or

place any objects upon it. Besides

probable physical damage to the

projector, doing so may result in

accidents and possible injury.

13. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

14. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power outlet

and call BenQ to have the projector

serviced.

15. This projector is capable of displaying

inverted images for ceiling mount

installation. Use only BenQ

Projector Mounting Kit for

mounting. See "Ceiling mounting the

projector" on page 6 for details.

16. This apparatus must be earthed.

CH100_EN.book Page 5 Wednesday, March 2, 2016 11:54 AM

6 Important safety instructions

Ceiling mounting the projector

If you intend to mount your projector on the ceiling, we strongly recommend that you use

a proper fitting BenQ Projector Mounting Kit and ensure it is securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the

projector may fall from the ceiling due to an improper attachment through the use of the

wrong gauge or length screws.

You can purchase a BenQ Projector Mounting Kit from the place you purchased your BenQ

projector. BenQ recommends that you also purchase a separate Kensington lock

compatible security cable and attach it securely to both the Kensington lock slot on the

projector and the base of the ceiling mount bracket. This will perform the secondary role of

restraining the projector should its attachment to the mounting bracket become loose.

Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See

www.lamprecycle.org.

Risk Group 2

1. According to the classification of photobiological safety of

lamps and lamp systems, this product is Risk Group 2,

IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this

product.

3. Do not stare at operating lamp. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

17. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled

up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector’s life span

and darkening the image.

- Locations near fire alarms.

- Locations with an ambient

temperature above 40°C/104°F.

- Locations where the altitudes are

higher than 3000 m (10000 feet).

3000 m

(10000 feet)

0 m

(0 feet)

CH100_EN.book Page 6 Wednesday, March 2, 2016 11:54 AM

7Overview

Overview

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• Advanced LED light source

Long lasting LED light source provides a longer life span than traditional lamps.

• Optical engine with DLP technologies

Full HD resolution and a bright picture.

• Various useful features

Supports iPhone/iPad, Android devices, multimedia players, and computers.

•Easytocarry

The projector is small and light, making it useful for business trips and leisure activities.

• Multiple input ports

Multiple input ports, including PC, HDMI, HDMI/MHL, and HDMI/MICRO-B, provide

flexible connectivity with peripheral devices.

• Audio input & output

Equipped with 5W x 2 speakers, Audio Input (Mini-Jack φ3.5 mm), and Audio

Headphone Output (Phone-Jack φ3.5 mm)

•DualOSD

Two types of OSD menus are designed for different usage scenarios: the Basic OSD is

intuitive and easy, while the Advanced OSD offers full range of advanced adjustments.

• The apparent brightness of the projected image will vary depending on the ambient lighting

conditions, selected input signal contrast/brightness settings, and is proportional to

projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

• When the LED indicator lights up in red or a message appears suggesting it is time to replace

the lamp, please contact your local BenQ customer service center for help.

CH100_EN.book Page 7 Wednesday, March 2, 2016 11:54 AM

8Overview

Shipping contents

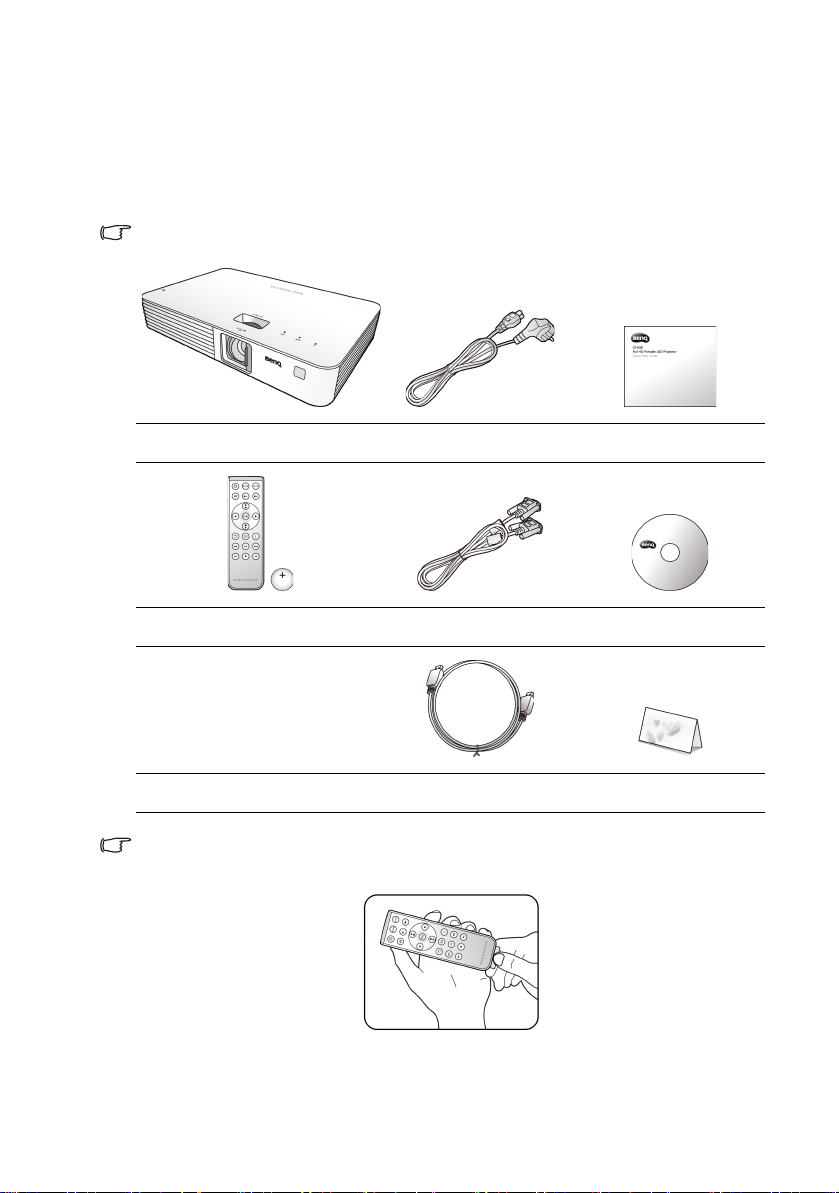

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

• * The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

• Pull the tab before using the remote control.

Projector Power cord Quick start guide

Remote control with battery VGA cable User manual CD

HDMI cable Warranty card*

CH100_EN.book Page 8 Wednesday, March 2, 2016 11:54 AM

9Overview

Projector exterior view

• Do not block the ventilation openings. Blocking the ventilation openings can cause your

projector to overheat and may cause it to fail.

• Make sure the lens cover is always open when the projector lamp is on.

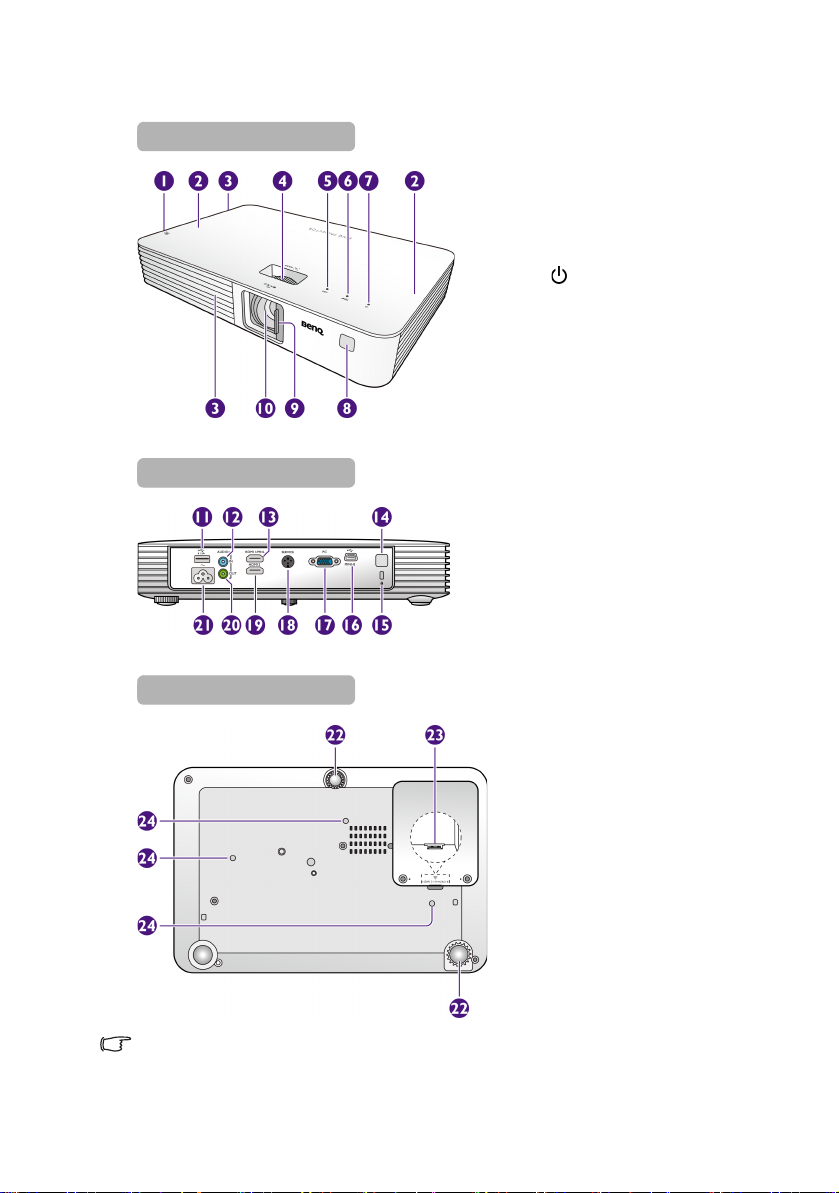

1. Vent (heated air exhaust)

2. Built-in speakers

3. Vents (cold air intake)

4. Focus ring

5. LED indicator

6. TEMP (Temperature) indicator

7. POWER button/POWER

indicator

8. Front IR remote sensor

9. Lens cover

10. Projection lens

11. USB Type-A port

- Provides power for charging

an HDMI/MHL dongle, such

as BenQ QCast (purchased

separately). See page 22 for

details.

12. Audio input jack

13. HDMI 1/MHL input port

14. Rear IR remote sensor

15. Kensington anti-theft lock slot

16. Mini-B USB port

- Used for service.

17. RGB (PC)/Component Video

(YPbPr/YCbCr) signal input

jack

18. SERVICE port

- Used for service.

19. HDMI 2 input port

20. Audio output jack

21. AC power jack

22. Adjuster feet

23. HDMI 3/MICRO-B input port

- See page 23 for details.

24. Ceiling mount holes

Front/top view

Rear view

Bottom view

CH100_EN.book Page 9 Wednesday, March 2, 2016 11:54 AM

10 Overview

Controls and functions

Projector

For more information, see "Indicators" on page 61.

1. POWER button/POWER

indicator

• Toggles the projector between

standby mode and on. See

"Starting up the projector" on

page 26 and "Shutting down the

projector" on page 28 for details.

• Lights up or flashes when the

projector is under operation.

2. TEMP (Temperature) indicator

Lights up in red if the projector’s

temperature becomes too high.

3. LED indicator

Indicates the status of the lamp.

Lights up or flashes when the lamp

has developed a problem.

CH100_EN.book Page 10 Wednesday, March 2, 2016 11:54 AM

Autres manuels pour CH100

Table des matières

Autres manuels BenQ Projecteur

BenQ

BenQ W710ST Manuel utilisateur

BenQ

BenQ Home Cinema Series Manuel utilisateur

BenQ

BenQ MX852UST Manuel utilisateur

BenQ

BenQ MP670 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ LU9245 Manuel utilisateur

BenQ

BenQ V5000i Manuel utilisateur

BenQ

BenQ HT2050 Manuel utilisateur

BenQ

BenQ MX810 ST Manuel utilisateur

BenQ

BenQ MS500 Manuel utilisateur

BenQ

BenQ TH585 Manuel utilisateur

BenQ

BenQ MX618ST Manuel utilisateur

BenQ

BenQ SH963 Manuel utilisateur

BenQ

BenQ CinePrime W2700 Manuel utilisateur

BenQ

BenQ MS619ST Manuel utilisateur

BenQ

BenQ MX766, MW767, MX822ST Manuel utilisateur

BenQ

BenQ SL 705X/S Manuel utilisateur

BenQ

BenQ MW855UST Manuel utilisateur

BenQ

BenQ MX613ST Manuel utilisateur

BenQ

BenQ PB8220 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MP721 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ Commuter CP120 Manuel utilisateur

BenQ

BenQ W7000 Manuel utilisateur

BenQ

BenQ W1200 Manuel utilisateur

BenQ

BenQ Home Cinema PE8720 Manuel d'instructions d'installation

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
