Beninca DA.96AE Manuel utilisateur

DA.96AE

CENTRALINA A MICROPROCESSORE

CONTROL UNIT WITH MICROCONTROLLER

MIKROCONTROLLER-STEUERUNG

CENTRALE A MICROCONTRÔLEUR

CENTRALITA A MICROPROCESADOR

L8542608

Rev. 07/02/02

Libro istruzioni

Operating instructions

Betriebsanleitung

Livret d’instructions

Libro de instrucciones

UNIONE NAZIONALE COSTRUTTORI

AUTOMATISMI PER CANCELLI, PORTE,

SERRANDE ED AFFINI

UNI

EN ISO

9001

Dichiarazione CE di conformità Déclaration CE de conformité

EC declaration of confirmity Declaracion CE de conformidad

EG-Konformitatserklarung

Con la presente dichiariamo che il nostro prodotto

We hereby declare that our product

Hiermit erklaren wir, dass unser Produkt

Nous déclarons par la présente que notre produit

Por la presente declaramos que nuestro producto

DA.96AE

è conforme alle seguenti disposizioni pertinenti:

complies with the following relevant provisions:

folgenden einschlagigen Bestimmungen entspricht:

correspond aux dispositions pertinentes suivantes:

satisface las disposiciones pertinentes siguientes:

Direttiva sulla compatibilità elettromagnetica (89/336/

CCE, 93/68/CEE)

EMC guidelines (89/336/EEC, 93/68/EEC)

EMV-Richtlinie (89/336/EWG, 93/68/EWG)

Directive EMV (89/336/CCE, 93/68/CEE) (Compatibilité

électromagnétique)

Reglamento de compatibilidad electromagnética (89/336/

MCE, 93/68/MCE)

Norme armonizzate applicate in particolare:

Applied harmonized standards, in particular:

Angewendete harmonisierte Normen, insbesondere:

Normes harmonisée utilisées, notamment:

Normas armonizadas utilzadas particularmente:

EN 55022, EN 61000-3-2, EN 61000-3-3, EN 50082-1

Norme e specifiche tecniche nazionali applicate in

particolare:

Applied national technical standards and specifications, in

particular:

Angewendete nationale Normen und technische

Spezifikationen, insbesondere:

Normes et specifications techniques nationales qui ont été

utilisées, notamment:

Normas y especificaciones técnicas nacionales que se

utilizaron particularmente:

UNI 8612

Data/Firma

Direttiva sulla bassa tensione (73/23/CEE, 93/68/CEE)

Low voltage guidelines (73/23/EEC, 93/68/EEC)

Tiefe Spannung Richtlinie (73/23/EWG, 93/68/EWG)

Directive bas voltage (73/23/CEE, 93/68/CEE)

Reglamento de bajo Voltaje (73/23/MCE, 93/68/MCE)

Norme armonizzate applicate in particolare:

Applied harmonized standards, in particular:

Angewendete harmonisierte Normen, insbesondere:

Normes harmonisée utilisées, notamment:

Normas armonizadas utilzadas particularmente:

EN 60204-1, EN 60335-1

Data/Firma

Automatismi Benincà Srl

Via Capitello, 45

36066 Sandrigo (VI)

ITALIA

R22

R21

R20

R24

R23

R18

R17

R11

R12

R13

C10

C4 C3

C13

2 CH.

RTX

FCA2

FCA1

P.P.

STOP

FTCC

GND

26 25

ANT. SCA

OUT

24VAC 230VAC

CHIUDE

APRE COM. CHIUDE

APRE

INPUT

230VAC 50Hz

COM.

24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6

F6F8

I_PP

I_STOP

I_FTC C

R25

C12 C11

VDR2

VDR3

VDR4

FUSE FUSE

C17

120 SW1

140

170

190

220

FF1

FF2

FF3

FF4

FF5

TRF1

POWER

SW2

C15

R7 R9

C16

R14

R15

R16

R19

R10

C14

RTX

DA.96AE

v1.0

TL TCA TRAC

SELECT

543

VDR1

VDR5VDR7VDR6VDR8

0.5A

6.3A

FUSEFUSE

N F

2 1

COMUNE

RL1

APRE1

RL3

CHIUDE1

RL5

APRE2

RL4

CHIUDE2

RL6

SCA

RL8

MIN.

MOTOR POWER

MAX.

DA.96AE Control unit with microcontroller

The ”DA.96AE” control unit with microcontroller is suitable for 2 motors with up to 750W total power.

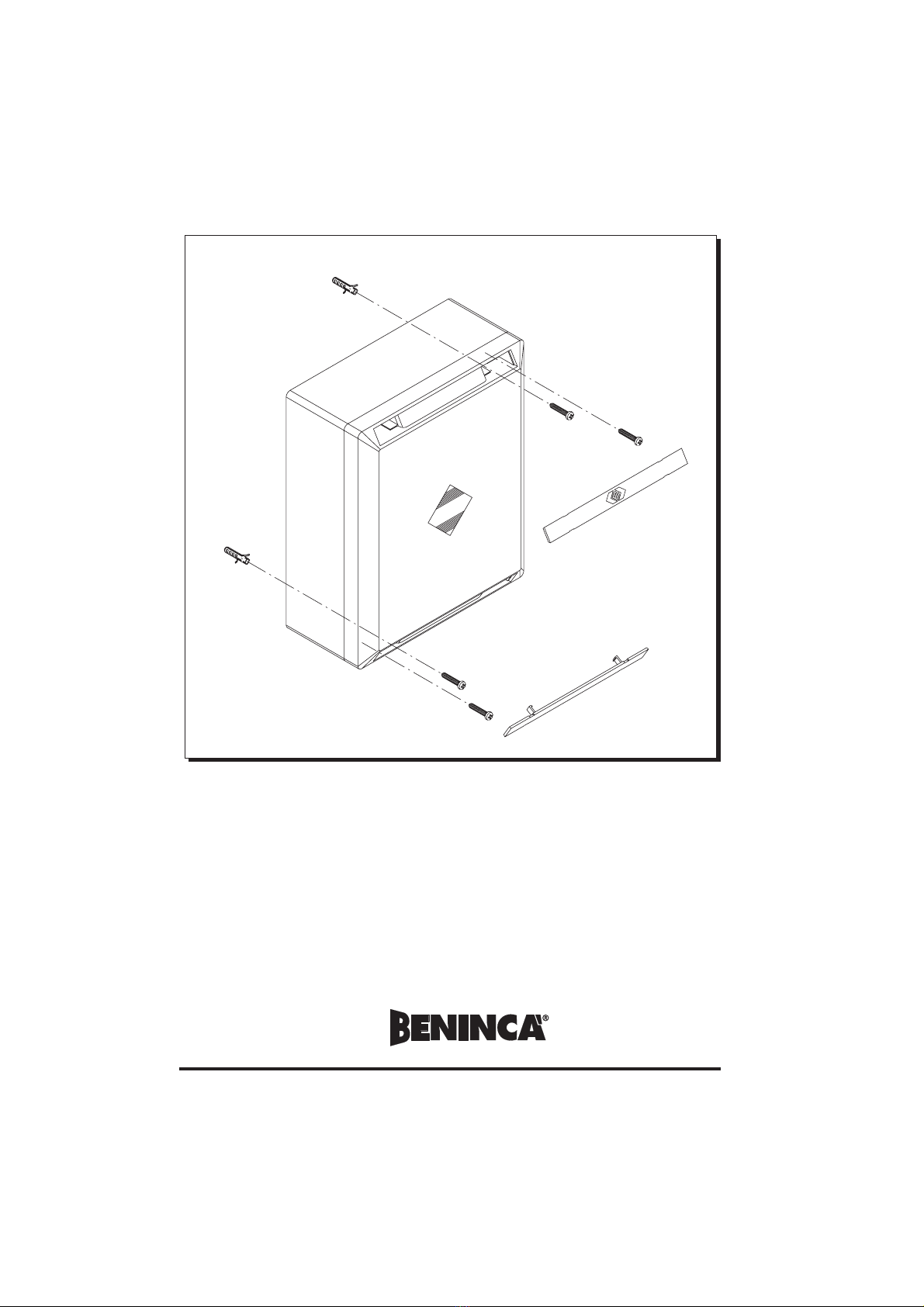

Installation instructions.

a) The electrical installation and functioning logic must comply with current standards.

b) Keep the power cables (for the motor and power supply) away from the control cables (buttons,

photocells, radio). To avoid interference use two separate sheaths (see EN 60204-1 15.1.3).

c) Check all the connections again before supplying voltage.

d) Check that the Dip-Switch settings are as required.

e) When voltage is supplied, the ”POWER” led should light up. If this is not the case, check the state

of the fuses and whether 230VAC 50 Hz power is present between terminals 1 and 2 (INPUT 230VAC

- respect phase/neutral wire position).

f) The N.C. inputs not used must be connected to the common ”+V”.

Input/Output functions

(1,2) INPUT 230VAC= Control unit 230VAC 50 Hz power supply (respect phase/neutral wire position).

(3,4,5) COM/APRE/CHIUDE M1= Connection to the corresponding 230VAC 50 Hz motor terminals

(delayed in closing) (the earth wire (green/yellow) must be connected).

(6,7,8) COM/APRE/CHIUDE M2= Connection to the corresponding 230VAC 50 Hz motor terminals

(delayed in opening) (the earth wire (green/yellow) must be connected).

(9,10) LAMP230= Connection to the 230VAC blinker.

(11,12) OUT 24VAC= 24VAC auxiliary power supply output (1A max.).

(13,14) Spare.

(15,16) SCA= 24VDC ”Gate open warning light” contact (250mA).

Function for the ”Gate open warning light” contact.

• If the gate is closed, the warning light is turned off.

• If the gate is opening, the warning light flashes slow (about 1Hz).

• If the gate is closing, the warning light flashes fast (about 2Hz).

• If the gate is open, or the race is interrupted manually (PP - STOP), the warning light remains turned

on.

N.B.: The led is driven by a relay, thus the commutation can be normally heard during the normal

function of the control board.

(17) +V= Common connection to all the control inputs.

(18) FTCC= Closing photocell receiver input (n.c. contact).

(19) STOP= STOP button input (n.c. contact).

(20) P.P.= STEP-by-STEP button input (n.o. contact).

While the STEP-by-STEP button is pressed (closed contact), the automatic closure is inhibited.

(21) FCA1= Limit switch input - M1 motor opening (n.c. contact).

(22) FCA2= Limit switch input - M2 motor opening (n.c. contact) - opening delay.

(23,24) ANT.= Input of radio board antenna

(25,26) RX 2CH.= Radio board 2nd channel contact (n.o. contact).

Dip-switch functions

N.B.: Every change of functions have to be done without electricity.

DSW1= This selects the type of functioning of the P.P. button and Remote control.

Off= ”OPEN” - ”STOP” - ”CLOSE” functioning

On= ”OPEN” - ”CLOSE” - ”OPEN” functioning.

DSW2= This enables or disables the pre-blinking function (4 sec.).

Off= Pre-blinking disabled.

On= Pre-blinking enabled.

DSW3= With this Dip-Switch the electric lock (1.5 sec) + recoil is enabled or inhibited.

Off= Electric lock + recoil are inhibited

On= Electric lock + recoil are enabled

DSW4= It selects the type of intervention of the “Photocell FTCC” input in the opening phase.

Off= No intervention

On= Temporary stop

DSW5= This enables or disables the automatic re-closing with the time set using the ”TCA TRIMMER”

Off= Automatic re-closing enabled.

On= Automatic re-closing disabled.

DSW6= It enables or inhibits the multiple-user function for blocks of flats of the “P.P. push-button” and

the Remote control.

Off= Multiple-user function inhibited

On= Multiple-user function enabled

Trimmer functions

TCA= This allows the automatic re-closing time to be adjusted when this is enabled by positioning the

DSW5 Dip-switch on OFF.

Adjustment can be from a minimum of 7 to a maximum of 160 seconds.

The minimum time is obtained by rotating the trimmer completely clockwise.

TL= This allows the working time of the automation to be adjusted. The software protection will inter-

vene after this time has elapsed.

Adjustment can be from a minimum of 6 to a maximum of 90 seconds.

The minimum time is obtained by rotating the trimmer completely clockwise.

TRAC= This allows the gate leaf closing delay to be adjusted.

Adjustment can be from a minimum of 1 to a maximum of 15 seconds.

The minimum time is obtained by rotating the trimmer completely clockwise.
