Bend-Pak MDS-6EXT Manuel utilisateur

BendPak, Inc. Corporate Oce

1645 Lemonwood Drive

Santa Paula, CA 93060 USA

Toll Free US/Canada: 1-800-253-2363

Fax: 1-805-933-9160

[email protected]om

Customer Service Desk / Warranty

Customer Service Representatives

Oce Tel: 1-805-933-9970

Toll Free US/Canada: 1-800-253-2363

Fax: 1-805-933-9160

customerservic[email protected]

Parts Orders

Customer Service Representatives

Oce Tel: 1-805-933-9970

Toll Free US/Canada: 1-800-253-2363

Fax: 1-805-933-9160

[email protected]om

Domestic Sales & Service

USA Sales Representatives

Oce Tel: 1-805-933-9970

Toll Free US/Canada: 1-800-253-2363

Fax: 1-805-933-9160

[email protected]om

International Sales & Service

Oce Tel: 1-805-933-9970

Exports Dept: 1-805-933-9970 EXT. 192

Ext. Toll Free US/Canada: 1-800-253-2363

Fax: 1-805-933-9160

bpkex[email protected]om

Service Manual

SERVICE PARTS & DIAGRAMS

This guide is a troubleshooting reference used for maintaining and

servicing your Bend Pak product. It provides comprehensive information

on identifying serviceable parts and components and assists in

troubleshooting problems and performing assembly /disassembly

procedures.

BENDPAK

MDS-6EXT

PRODUCT SKU

5175192

DRAWING Nº

5260675

CATEGORY

Mid-Rise Scissor Li

REV

Version A

DATE

04.28.2022

DIMENSIONS ARE IN MM

☺

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5245045

XPR-10AXLS LIFT SUPERSTRUCTURE

2 5250236

XPR-10AXLS EXTENDED PARTS BOX

3 5215278

XPR-10AS-LP LONG ARM ASSEMBLY, R.H.

4 5215277

XPR-10AS-LP LONG ARM ASSEMBLY, L.H.

5 5215276

XPR-10AS-LP SHORT ARM ASSEMBLY

6 5210269

XPR-10 POST EXTENSION WELDMENT

5905109

WARNING ALI/WL 101

5905131

2 POST DECAL KIT, LESS ALI

5905403

MAX CAPACITY 10K DANGER LABEL, ENGLISH-FRENCH

5905465

MANUFACTURER LABEL

5905940

PRODUCT DATA LABEL

5905951

SERIAL TAG B

5905653

LABEL; ALI-ALCTV-2017 GOLD LABEL, US; MET LABS

5905414

GP/XPR LOCK-RELEASE LABEL

5905285

SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL

5905655

MAX CAPACITY NTRL 10K LABEL, ENGLISH-FRENCH

5905377

NOTICE LABEL, ALI/WLSIA01

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

11/03/2020

01226

UPDATED BOM REVISION

03/29/2021

01291

UPDATED BOM REVISION

06/23/2021

01310

SHEET 1 OF 3

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5260245

XPR-10AXLS-181-LP

PRODUCTION LIFT VER F

09/28/2018

DO NOT SCALE DRAWING

1:35

SCALE:

THIRD ANGLE PROJECTION

07/07/2021

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

2700.0-

2903

[106.299-114.280in]

4589.0mm

180.669in

[5.295-80.295in]

134.5-2039.5mm

[9.941-84.941in]

252.5-2157.5mm

WITH 63mm [2.5in] ADAPTER

AND MAX ADJUSTMENT

[133.307-141.343in]

3386.0-3590.1mm

B B

2382.0-

2585.0

DRIVE THRU

[93.780-101.772in]

3480.0-

3683.9

[137.008-145.035in]

[23.835-38.315in]

605.4-973.2mm

[34.882-54.134in]

886-1375mm

SECTION B-B

SCALE 1 : 35

SHEET 2 OF 3

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5260245

XPR-10AXLS-181-LP

PRODUCTION LIFT VER F

1:45

SCALE:

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

NEXT ASSEMBLY

5260120

5260234

5260244

5260245

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5215442

XPR-10XLS/AXLS POWER SIDE POST ASSEMBLY

2 5215440

XPR-10XLS/AXLS OFF SIDE POST ASSEMBLY

3 5210211

XPR-10A TOP TROUGH ASSEMBLY

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

02/21/2020

01107

UPDATED BOM REVISION

11/03/2020

01226

UPDATED BOM REVISION

03/29/2021

01291

WHERE USED

XPR-10AXLS

XPR-10AXLS-181

XPR-10AXLS-LP

XPR-10AXLS-181-LP

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5245045

XPR-10AXLS LIFT

SUPERSTRUCTURE

10/07/2015

DO NOT SCALE DRAWING

1:35

SCALE:

THIRD ANGLE PROJECTION

03/31/2021

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

DETAIL E

SCALE 2 : 5

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5600922

XPR-10XLS/AXLS OFF SIDE POST WELDMENT

2 5575111

XPR-9S/10 SHEAVE ASSEMBLY

3 5620141

XPR-9/10 CABLE SHEAVE PIN WELDMENT

4 5575112

D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE

5 5565350

D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE

SPACER

6 5535357

NUT M6 x 1.0 NL

7 5530756

HHB M6 x 1 x 25

8 5530030

HHB M6 x 1 x 8

9 5215441

XPR-10XLS/AXLS LIFT HEAD ASSEMBLY

10 5502013

CYLINDER ASSEMBLY Ø2.0 X 75"

11 5701242

CYLINDER CLAMP ASSY

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

05/14/2019

01086

UPDATED BOM REVISION

02/21/2020

01107

UPDATED BOM REVISION

11/03/2020

01226

NEXT ASSEMBLY

5245045

5245049

WHERE USED

XPR-10XLS SERIES

XPR-10AXLS SERIES

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215440

XPR-10XLS/AXLS OFF

SIDE POST ASSEMBLY

10/08/2015

DO NOT SCALE DRAWING

1:25

SCALE:

THIRD ANGLE PROJECTION

11/04/2020

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

100.0

NEXT ASSEMBLY

5215440

5215442

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

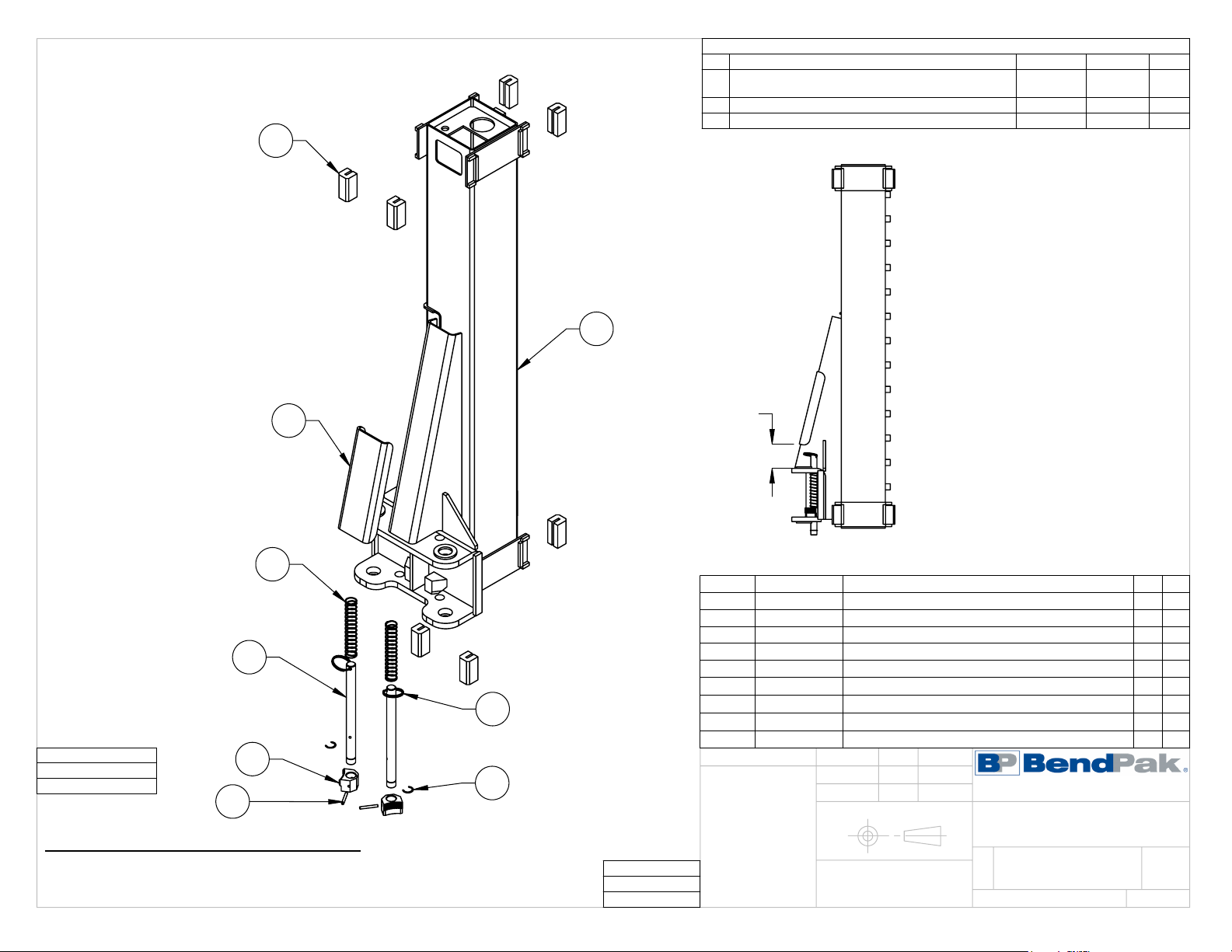

1 5601040

XPR-10XLS/AXLS LIFT HEAD WELDMENT

2 5716001

2 POST GUIDE BLOCK

3 5746098

GP/XPR-9/10 Ø25mm GEAR SHAFT

4 5701052

GP/XPR ARM INTERNAL GEAR STOP

5 5540133

GP-7, XPR-9/10 LIFT HEAD SPRING

6 5505106

SPRING PIN M6 x 50

7 5540006

SNAP RING TRUARC 5103-100

8 5580219

KEYRING 56mm x 3mm

9 5930183

XPR-9/10 LIFT HEAD GUSSET COVER

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED TITLE TO REFLECT WHERE USED,

UPDATED BOM REVISIONS

05/11/2018

00946

UPDATED BOM REVISION

05/14/2019

01086

UPDATED BOM REVISION

02/21/2020

01107

WHERE USED

XPR-10XLS SERIES

XPR-10AXL SERIES

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215441

XPR-10XLS/AXLS LIFT

HEAD ASSEMBLY

10/09/2015

DO NOT SCALE DRAWING

1:12

SCALE:

THIRD ANGLE PROJECTION

04/15/2020

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

DETAIL C

SCALE 1 : 5

NEXT ASSEMBLY

5245045

5245049

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5601041

XPR-10XLS/AXLS POWER SIDE POST WELDMENT

2 5575111

XPR-9S/10 SHEAVE ASSEMBLY

3 5620141

XPR-9/10 CABLE SHEAVE PIN WELDMENT

4 5575112

D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE

5 5565350

D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE

SPACER

6 5535357

NUT M6 x 1.0 NL

7 5530756

HHB M6 x 1 x 25

8 5530030

HHB M6 x 1 x 8

9 5520001

RUBBER GROMMET, 3/4 I.D.

10 5215441

XPR-10XLS/AXLS LIFT HEAD ASSEMBLY

11 5502013

CYLINDER ASSEMBLY Ø2.0 X 75"

12 5701242

CYLINDER CLAMP ASSY

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

05/14/2019

01086

UPDATED BOM REVISION

02/21/2020

01107

UPDATED BOM REVISION

11/03/2020

01226

WHERE USED

XPR-10XLS SERIES

XPR-10AXLS SERIES

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215442

XPR-10XLS/AXLS POWER

SIDE POST ASSEMBLY

10/08/2015

DO NOT SCALE DRAWING

1:25

SCALE:

THIRD ANGLE PROJECTION

11/04/2020

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

DETAIL A

SCALE 1 : 6

ISOMETRIC VIEW

FOR REFERENCE ONLY

DO NOT SCALE

ITEM

PART NUMBER

DESCRIPTION

QTY

REV

1 5600926

XPR-10A INNER TOP TROUGH WELDMENT

2 5600925

XPR-10A OUTER TOP TROUGH WELDMENT

3 5565350

D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE SPACER

4 5575112

D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE

5 5575111

D2-8F, XPR-9/10 SHEAVE ASSEMBLY

6 5620141

XPR-9/10 CABLE SHEAVE PIN WELDMENT

7 5530030

HHB M6 x 1 x 8

8 5530756

HHB M6 x 1 x 25

9 5530738

HHB M10 x 1.5 x 25

10 5535013

NUT M10 x 1.5 NL

11 5535357

NUT M6 x 1.0 NL

12 5545341

WASHER M10 x Ø20 FLAT

13 5580211

STEEL HOLE PLUG 1 1/4"

14 5620445

XPR TRIP STOP BAR SLIDER WELDMENT

15 5300815

10AP/D2/XPR STOP BAR CUSHION

16 5530055

SSS M6x1x10

17 5545200

WASHER M10 x Ø18 SL

18 5535998

NUT M10 x 1.5

19 5600501

XPR-10/10A MICROSWITCH STOP BAR WELDMENT

NEXT ASSEMBLY

5245044

5245045

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED TITLE TO REFLECT MARKETING,

UPDATED BOM REVISION

11/23/2015

00738

UPDATED BOM REVISION

11/02/2017

00900

UPDATED BOM REVISION

03/29/2021

01291

WHERE USED

XPR-10A

SERIES

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5210211

XPR-10A TOP TROUGH

ASSEMBLY

10/07/2014

DO NOT SCALE DRAWING

1:18

SCALE:

THIRD ANGLE PROJECTION

03/31/2021

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

3368

3571

EXTENDED

COLLAPSED

SHEET 2 OF 2

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5210211

XPR-10A TOP

TROUGH ASSEMBLY

1:15

SCALE:

DIMENSIONS ARE IN MM

☺

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5600989

XPR-10S-LP SHORT ARM WELDMENT

2 5545341

WASHER M10 x Ø20 FLAT

3 5545200

WASHER M10 x Ø18 SL

4 5530302

HHB M10 x 1.5 x 40 FULLY THREAD

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

04/02/2018

00930

UPDATED BOM REVISION

05/30/2018

00953

UPDATED BOM REVISION

02/20/2020

01107

NEXT ASSEMBLY

5260444

5260445

5260559

5260560

WHERE USED

XPR-10AS-168-LP

XPR-10AS-LP

XPR-10AXLS-181-LP

XPR-10AXLS-LP

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215276

XPR-10AS-LP SHORT

ARM ASSEMBLY

06/22/2015

DO NOT SCALE DRAWING

1:5

SCALE:

THIRD ANGLE PROJECTION

04/15/2020

REFER TO MODEL FOR ADDITIONAL INFORMATION

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

Autres manuels pour MDS-6EXT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bend-Pak Système de levage

Bend-Pak

Bend-Pak HD-7PXW Manuel utilisateur

Bend-Pak

Bend-Pak HD-7MZ Manuel utilisateur

Bend-Pak

Bend-Pak HD-75BXT Manuel utilisateur

Bend-Pak

Bend-Pak PL-6KDT Manuel utilisateur

Bend-Pak

Bend-Pak RBJ4500 Manuel utilisateur

Bend-Pak

Bend-Pak XPR-7TR Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9 Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10 Series Manuel utilisateur

Bend-Pak

Bend-Pak HD-9XL Manuel utilisateur

Bend-Pak

Bend-Pak HD-973P Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10S Manuel utilisateur

Bend-Pak

Bend-Pak HDS-40X Manuel utilisateur

Bend-Pak

Bend-Pak HD-9STX Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9FS Manuel utilisateur

Bend-Pak

Bend-Pak HD-12LS Manuel utilisateur

Bend-Pak

Bend-Pak LR-10000 Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10AXLS Manuel utilisateur

Bend-Pak

Bend-Pak HDS-14X Manuel utilisateur

Bend-Pak

Bend-Pak HDS-35 Manuel utilisateur

Bend-Pak

Bend-Pak PL-14000 Manuel utilisateur

Bend-Pak

Bend-Pak HDS-18EA Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10T Manuel utilisateur

Bend-Pak

Bend-Pak Quatra XR-12000L Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10-168 Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
