Service Manual

SERVICE PARTS & DIAGRAMS

This guide is a troubleshooting reference used for maintaining and

servicing your Bend Pak product. It provides comprehensive information

on identifying serviceable parts and components and assists in

troubleshooting problems and performing assembly /disassembly

procedures.

BENDPAK

HDS-35X

PRODUCT SKU

5175168

DRAWING Nº

5260073

CATEGORY

Four Post Li

REV

Version K

DATE

12.09.2022

DIMENSIONS ARE IN MM

☺

910

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5245019

HDS-35X LIFT SUPERSTRUCTURE

2 5250179

PARTS BOX HDS-35X

3 5905103

WARNING ALI/WL 200

4 5905200

4 POST DECAL KIT, LESS ALI

5 5905408

MAX CAP DANGER 35K

6 5905465

MANUFACTURER LABEL

7 5905940

PRODUCT DATA LABEL

8 5905953

5905953-2015_SERIAL_TAG-D

9 5905685

MAX CAP NRTL DANGER 35K

10 5905652

LABEL; ALCTV GOLD LABEL, CANADA; MET LABS

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

ADDED 5905685, UPDATED BOM REVISIONS

05/11/2017

00829

UPDATED BOM REVISIONS

01/03/2018

00909

ADDED 5905652, UPDATED BOM REVISION

02/14/2018

00927

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5260073

HDS-35X PRODUCTION

LIFT VER C (CE CERT)

09/23/2014

DO NOT SCALE DRAWING

1:60

SCALE:

THIRD ANGLE PROJECTION

4/6/2018

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

SEE ATTACHED LABEL PLACEMENT SHEET

2318

1524 1764

240

3899

8052

7867

9358

905

- 1199

106

3391

SHEET 2 OF 2

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5260073

HDS-35X PRODUCTION

LIFT VER C (CE CERT)

1:45

SCALE:

DIMENSIONS ARE IN MM

☺

DETAIL A

SCALE 1 : 5

DETAIL B

SCALE 1 : 5

20 18

DETAIL C

SCALE 1 : 5

DETAIL D

SCALE 1 : 10

DETAIL E

SCALE 1 : 5

DETAIL F

SCALE 1 : 2

14 15

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

REPLACED 5550004 WITH 5550089, 5550489

WITH 5550395, UPDATED NEXT ASSEMBLIES

10/29/2013

00593

D-001

UPDATED TITLE TO REFLECT WHERE USED AND

NEXT ASSEMBLY

UPDATED NEXT ASSEMBLIES

05/02/2014

06/04/2015

00646

00683

UPDATED TITLE TO REFLECT WHERE USED,

UPDATED NEXT ASSEMBLIES

09/17/2015

00724

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5550550

FTG ELB -06 JIC -06 NPT

2 5505032

ROTOR CLIP 18mm SS

3 5535001

NUT M8 x 1.25 NL

4 5530743

HHB M20 x 2.5 x 80

5 5530200

HHB M18 x 2.5 x 150mm

6 5530010

HHB M8 x 1.25 x 25

7 5550183

FTG ELB -06 JIC -06L ORB

8 5545342

WASHER M18 FLAT

9 5545350

WASHER M18 x 28 SL

10 5545340

WASHER M8 x24 FLAT

11 5535017

NUT M20 x 2.5 NL

12 5535106

HEX NUT M18 x 2.5

13 5535010

Nut, M4 X 0.7

14 5530008

SHCS M4 x 0.7 x 12 BOC

15 5545009

WASHER, Ø4.3 x Ø9mm x 0.8mm

16 5550395

FTG TEE -04 COMP x -04 COMP x -04 COMP

17 5550089

FTG ELB -04 COMP x -06 NPT

18 5545341

WASHER M10 x Ø20 FLAT

19 5530738

HHB M10 x 1.5 x 25

20 5535013

NUT M10 x 1.5 NL

21 5545343

WASHER, M20 FLAT

22 5545535

C WASHER SHIM FOR LIFTS

NEXT ASSEMBLY

5250159

5250172

5250175

5250177

5250179

5250364

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

5174600

HDS-27/35 SERIES

PARTS BAG

05/06/2009

DO NOT SCALE DRAWING

1:50

SCALE:

THIRD ANGLE PROJECTION

08/01/2016

NOTE: UNLESS OTHERWISE SPECIFIED

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

REPLACED 5550481 WITH 5550087

10/29/2013

00593

REPLACED 5590240 WITH 5590175, UPDATED

NEXT ASSEMBLIES

05/05/2015

00683

SWITCHED POSITIONS OF 5550087 AND

5550486, UPDATED NEXT ASSEMBLY

06/16/2016

00765

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5700031

ZERO ANGLE MTG BRACKET

2 5590175

PUSH BUTTON AIR VALVE

3 5530043

SHCS M3 x 0.5 x 30

4 5545024

WASHER M3 x 9mm

5 5535020

NUT M3 x 0.5 NL

6 5550087

FTG ELB -04 COMP x -02 NPT

7 5550486

FTG NPL -02 NPT x -04 F NPT

NEXT ASSEMBLY

HD/HDS/HDSO

SERIES

5250118

5250249

5250364

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

5215096

PUSH BUTTON AIR ASSEMBLY

3/14/2008

DO NOT SCALE DRAWING

2:3

SCALE:

THIRD ANGLE PROJECTION

09/02/2015

DIMENSIONS ARE IN MM

☺

1 10

911

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISIONS

05/11/2017

00829

UPDATED BOM REVISIONS

01/02/2018

00909

UPDATED BOM REVISION

03/15/2018

00927

NEXT ASSEMBLY

5245019

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5600050

HDS-35X POWER SIDE RAMP WELDMENT

2 5215148

HDS-35 SERIES RAMP SHEAVE ROLLER ASSEMBLY

3 5620241

HDS-35 SHAFT WELDMENT, 2 SHEAVE END

4 5620179

HDS-35 SERIES SHAFT WELDMENT, 4 SHEAVE END

5 5716013

HDS-35 SERIES SHEAVE SPACER

6 5746089

HDS-18/27/35 SERIES SHEAVE SHAFT PIN

7 5505335

HAIR PIN #203, Ø0.093” X 1 5/8”

8 5755114

HDS-35 SPACER, RAMP SHEAVE

9 5215152

HDS-35 SERIES CYLINDER FLANGE ARM

ASSEMBLY

10 5502162

PULL CYLINDER ASSEMBLY Ø5.5 x 60

11 5736147

HDS-35 SERIES CABLE RETAINER PLATE

SHEET 1 OF 2

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

GJZ

5215149

HDS-35X POWER SIDE

RAMP ASSEMBLY

10/13/2008

DO NOT SCALE DRAWING

1:35

SCALE:

THIRD ANGLE PROJECTION

4/6/2018

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

VERIFY CYLINDER PORTS ARE CAPPED OFF WITH 3/8" NPT STEEL PLUG

PORTS MUST BE

ON THIS SIDE

SHEET 2 OF 2

REV

DWG. NO.

SIZE

TITLE:

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

5215149

HDS-35X POWER SIDE

RAMP ASSEMBLY

1:25

SCALE:

DIMENSIONS ARE IN MM

☺

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

C-001

UPDATED TITLE, UPDATED BOM REVISION

UPDATED NEXT ASSEMBLY

05/17/2010

08/17/2010

00358

00388

UPDATED NEXT ASSEMBLIES AND BOM

REVISION

09/24/2015

00724

UPDATED BOM REVISION

01/02/2018

00909

ITEM NO

PART NUMBER

DESCRIPTION

QTY

REV

1 5620186

HD-35 SERIES CYLINDER FLANGE ARM WELDMENT

2 5716153

HDS-18/27/35 SERIES ALIGNMENT BLOCK

3 5530701

BHPS M6 x 1 x 35mmL

4 5535357

NUT M6 x 1.0 NL

NEXT ASSEMBLY

5215149

5215240

5215385

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

GJZ

5215152

HDS-35 SERIES CYLINDER

FLANGE ARM ASSEMBLY

10/14/2008

DO NOT SCALE DRAWING

1:4

SCALE:

THIRD ANGLE PROJECTION

1/17/2018

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISION

09/09/2014

00666

PREA

UPDATED BOM REVISIONS

10/05/2015

00724

UPDATED BOM REVISIONS AND NEXT

ASSEMBLIES

03/05/2018

00927

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5600266

HDS-35 SERIES EXTENDED DRIVE UP RAMP WELDMENT

2 5575663

HDS-18/27/35 DRIVE UP RAMP WHEEL

3 5535012

NUT M12x1.75 NL

4 5530035

HHB M12 x 1.75 x 130

NEXT ASSEMBLY

5245015

5245019

5245034

5245037

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215162

HDS-35 SERIES

EXTENDED DRIVE UP

RAMP ASSEMBLY

05/06/2009

DO NOT SCALE DRAWING

1:10

SCALE:

THIRD ANGLE PROJECTION

4/6/2018

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

DIMENSIONS ARE IN MM

☺

DETAIL A

SCALE 1 : 8

11 2

ITEM

PART

NUMBER

DESCRIPTION

QTY

REV

1 5600279

HDS-18/27 SERIES LARGE WINDOW CROSSTUBE

WELDMENT

2 5215139

HDS-35 SERIES CROSSTUBE SHEAVE ASSEMBLY

3 5215143 HD/HDS-35 SERIES SAFETY ROLLER ASSEMBLY 2

4 5505124

HDS-18/27/35 SERIES CROSS TUBE SHEAVE SHAFT

5 5505125

HDS-18/27/35 SAFETY PIN

6 5716152

HDS-18/27/35 SERIES PLASTIC SLIDE BLOCK

7 5210359

HDS-18/27/35 SERIES SAFETY WELDMENT #1

8 5210358

HDS-18/27/35 SERIES SAFETY WELDMENT #2

9 5502335

AIR CYLINDER, Ø.75 x 4.0" STROKE

10 5505030

ROTOR CLIP 10mm SS

11 5505031

ROTOR CLIP 12mm SS

12 5505033

ROTOR CLIP 16mm SS

13 5540002

E RING Ø1.375" OD TRUARC X5133-137

14 5540060

SPRING Ø29 x 178mm, SLACK SAFETY

15 5540055

SPRING Ø19 x 241mm, AIR CYLINDER

16 5540112

SNAP RING; TRUARC 5103-175

17 5535101

3/8-16 HEX NUT JAM

18 5550376

HDS-18/27/35 SERIES ADAPTER, 1" AIR CYLINDER

19 5550087

FTG ELB -04 COMP x -02 NPT

20 5545108

WASHER M45 x 80 FLAT

21 5530317

HHB M6 x 1 x 136

22 5535357

NUT M6 x 1.0 NL

23 5755158

HD-18/27/35 SERIES CROSSTUBE SPACER Ø16 x Ø10 x 102

NEXT ASSEMBLY

5210153

5245015

5245019

5245034

5245037

REVISION

REV

DESCRIPTION

DATE

EDITED BY

ECO#

UPDATED BOM REVISIONS

05/11/2017

00829

UPDATED BOM REVISION

01/02/2018

00909

UPDATED BOM REVISION

03/12/2018

00927

SHEET 1 OF 1

REV

DWG. NO.

SIZE

TITLE:

NAME

DATE

CHECKED

DRAWN

1645 LEMONWOOD DR.

SANTA PAULA, CA 93060

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS

THE SOLE PROPERTY OF

BENDPAK INC.

ANY

REPRODUCTION IN PART OR AS A WHOLE WITHOUT

THE WRITTEN PERMISSION OF

BENDPAK INC.

PROHIBITED.

NOTE: UNLESS OTHERWISE SPECIFIED

5215598

HDS-35 SERIES LARGE

WINDOW CROSSTUBE

ASSEMBLY

04/16/2013

DO NOT SCALE DRAWING

1:20

SCALE:

THIRD ANGLE PROJECTION

4/6/2018

SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING

ASSEMBLE ITEMS AS SHOWN

Ce manuel convient aux modèles suivants

Autres manuels Bend-Pak Système de levage

Bend-Pak

Bend-Pak XP Series Manuel utilisateur

Bend-Pak

Bend-Pak XPR-12CL Manuel utilisateur

Bend-Pak

Bend-Pak MDS-6EXT Manuel utilisateur

Bend-Pak

Bend-Pak HDS-18 Manuel utilisateur

Bend-Pak

Bend-Pak HD-7ZM Manuel utilisateur

Bend-Pak

Bend-Pak HD-9STX Manuel utilisateur

Bend-Pak

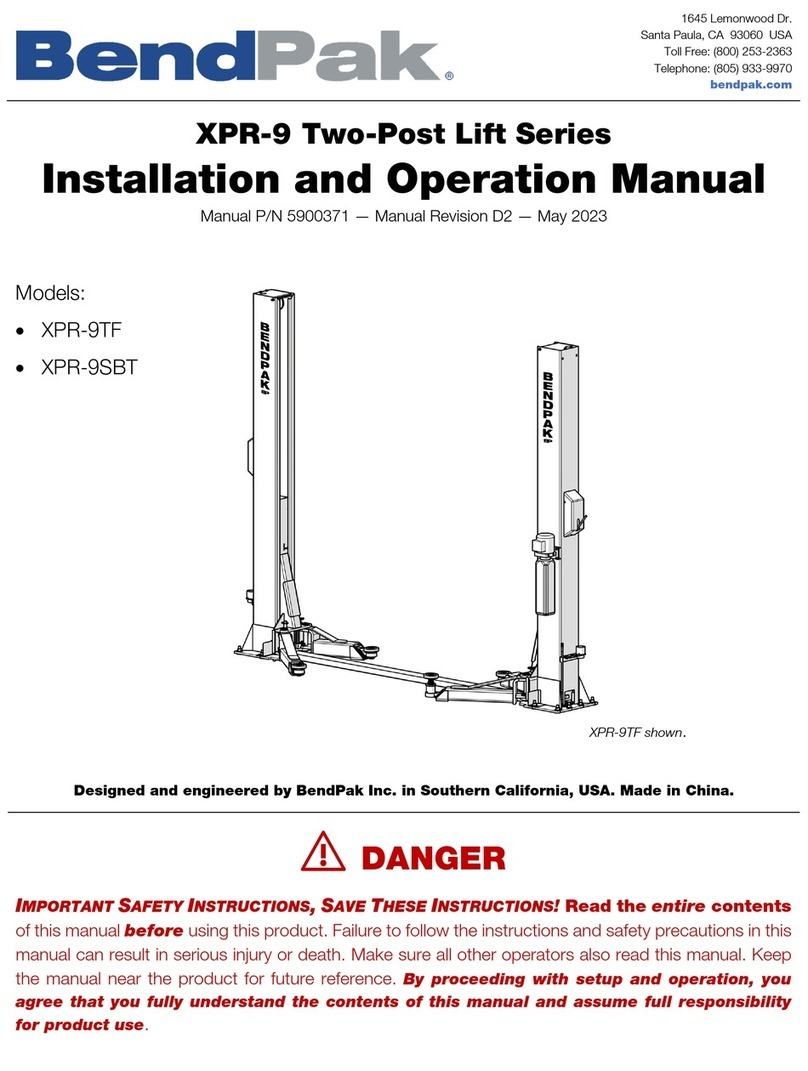

Bend-Pak XPR-9 Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9DT Manuel utilisateur

Bend-Pak

Bend-Pak HD-12SS-B Manuel utilisateur

Bend-Pak

Bend-Pak XP-10CX Manuel utilisateur

Bend-Pak

Bend-Pak HD-9ST Manuel utilisateur

Bend-Pak

Bend-Pak Clearfloor 10APX Manuel utilisateur

Bend-Pak

Bend-Pak XPR-12CL Manuel utilisateur

Bend-Pak

Bend-Pak HDSO-14P Manuel utilisateur

Bend-Pak

Bend-Pak XPR-12FDL Manuel utilisateur

Bend-Pak

Bend-Pak HDS-40X Manuel utilisateur

Bend-Pak

Bend-Pak GP-7 Manuel utilisateur

Bend-Pak

Bend-Pak PCL-18B Manuel utilisateur

Bend-Pak

Bend-Pak XPR-10AS-168 Manuel utilisateur

Bend-Pak

Bend-Pak LR-10000 Manuel utilisateur

Bend-Pak

Bend-Pak XPR-9S Manuel utilisateur

Bend-Pak

Bend-Pak PL-14000 Manuel utilisateur

Bend-Pak

Bend-Pak Clearfloor 10AP Manuel utilisateur

Bend-Pak

Bend-Pak LR-5T Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
