KVM Switch

User Guide F1DK102U

KVM Switch

Package Contents

• 2-Port KVM Switch with Cabling (USB)

• Switching Software CD

• User Guide

Introduction

Congratulations and thank you for purchasing the Belkin 2-Port KVM

Switch with Cabling. The Switch is easy to set up and use, and comes

with everything you need to share one monitor, keyboard, and mouse

between your two computers. No additional cables are required.

The diagram below shows a typical KVM Switch setup. Your monitor,

keyboard, and mouse connect to the Switch. The Switch is connected

to your two computers using the included cables.

Package Contents/Introduction

System Requirements

Monitor

The Switch supports LCD and CRT monitors with VGA connections.

You can also use your DVI-I monitor with the Switch by connecting a

VGA adapter to the DVI cable. The Switch does not support direct DVI

connections from monitors.

Keyboard/Mouse

The Switch fully supports any PC or Mac® keyboard and mouse with a

USB connection, including all special-function keys.

Computers

The Switch can be used with desktop or notebook computers that

support USB keyboard and mouse connections, and that run on one

of these operating systems:

• Windows® 2000, XP, 2003, or VistaTM

• Mac OS® X v10.3 and above

• Linux®

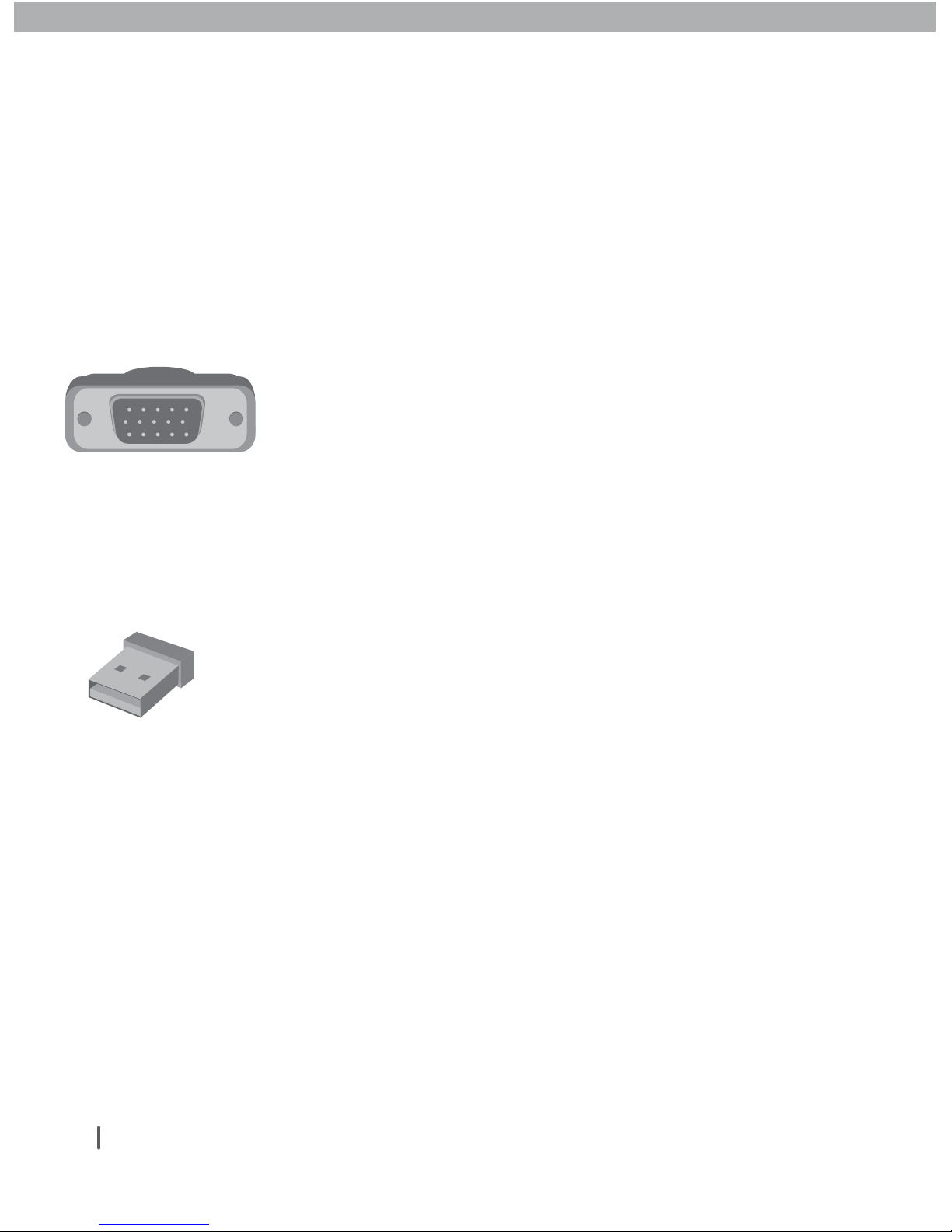

System Requirements

USB connection

VGA connection

Installing your Switch

Before you begin, make sure that your USB keyboard and mouse

work properly with both computers, and that both computers are

powered on.

1. Connect your monitor, keyboard, and mouse to your first computer.

2. Insert the included software CD into your first computer, and

double-click on the “KVM” file. A small icon of the Switch will

appear in the lower-right corner of your screen.

3. Connect your monitor, keyboard, and mouse to your

second computer.

4. Insert the software CD into your second

computer and double-click on the “KVM” ﬁle.

5. Make sure both computers are still powered on.

6. Connect your monitor, keyboard, and mouse to the Switch.

Installing your Switch

7. Connect one set of cables to the monitor and USB ports on your

ﬁrst computer. Wait for your computer to recognize the new USB

device (the Switch). Then connect the other set of cables to the

monitor and USB ports on your second computer.

You are now ready to use your Switch.

Installing your Switch

Using your Switch

When you power up your computers, your first computer’s desktop will

appear on your monitor. You are now ready to use that computer as if

it were directly connected to your monitor, keyboard, and mouse. You

can switch access to your other computer using a desktop icon or a

keyboard hot-key sequence.

Windows users:

To switch computers using the desktop icon, right-click on the

icon in the taskbar in the lower-right corner of your screen and select

“Switch All”.

To enable hot keys for your computers, right-click on the icon

in the taskbar, select “Options”, and then select “Enable Hotkey

Switching”. To switch computers using hot keys, press the “Ctrl”

button on your keyboard twice in rapid succession. This is the default

hot-key sequence. To change the hot-key sequence, right-click on the

icon, select “Options”, and then choose a new switching key.

Mac OS users:

To switch computers using the desktop icon, click once on the

icon in the menu bar in the upper-right corner of your screen and

select “Switch All”.

To enable hot keys for your computers, click on the icon in

the menu bar, select “Options”, and then select “Enable Hotkey

Switching”. To switch computers using hot keys, press the “Ctrl”

button on your keyboard twice in rapid succession. This is the default

hot-key sequence. To change the hot-key sequence, click on the

icon, select “Options”, and then choose a new switching key.

Using your Switch

FAQs

What operating systems does the Switch support?

The Switch supports Windows 2000, XP, 2003, and Vista; Mac OS X

v10.3 and higher; and Linux.

What type of mice and keyboards does the Switch support?

The Switch provides full enumeration of USB peripherals, allowing

it to support all USB-based keyboards and mice, including all

special-function keys.

What is the maximum video resolution the Switch supports?

The advanced video circuit in the Switch supports a maximum

resolution of 2048x1536@65Hz.

Can I use my DVI-I monitor with the Switch?

Yes, you can use a DVI-I monitor with the Switch by attaching a VGA

adapter to the monitor’s DVI connector.

Does the Switch allow me to transfer files from one computer

to another?

No, the Switch allows you to share peripherals between computers

(monitor, keyboard, and mouse). To share or transfer files between

computers, you will need a networking switch.

Does the Switch require an AC adapter?

No, no additional power supply is required for the Switch to

function properly.

FAQs

Troubleshooting

Monitor Support

I am getting ghosting, shadowing, or fuzzy images on my monitor.

• Check that all video cables are inserted properly.

• Check that the monitor you are using supports the resolution and

refresh-rate setting on your computer.

• Check that the graphics card you are using supports the resolution

and refresh-rate setting on your computer.

• Connect the monitor directly into the computer with which you are

having trouble to see if the problem still appears.

I am getting a black screen on my monitor.

• Check that all video cables are inserted properly.

• Connect your monitor directly to the computer to verify that your

monitor is functioning properly.

• Take your computer off standby mode.

• Check that the power supply is properly connected.

Keyboard Support

My computer does not detect my keyboard and I get a keyboard

error reported at boot up.

• Check that your keyboard cable is connected properly to the Switch.

Tighten any loose connections.

Troubleshooting
