Belkin F1DN104a Manuel utilisateur

Secure Audio and Microphone 4-Port Switch

User Manual

F1DN104A

8820-01080 Rev. A00

Secure Audio and Microphone 4-Port Switch

TABLE OF CONTENTS

SECTIONSTable of Contents 12345

Secure Audio and Microphone 4-Port Switch

SECTIONSTable of Contents 1SECTIONS 1Table of Contents

Introduction ............................................. 1

Package Contents ..................................... 1

Overview................................................ 2

Features ............................................. 2

Equipment Requirements ............................... 3

System Requirements .................................. 4

Unit Display Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Specifications......................................... 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Pre-Configuration ..................................... 8

Connection and Installation.............................. 8

Color Code Chip Installation ............................. 9

Operating the Audio and Microphone Switch ............... 10

Information............................................. 11

Secure Audio and Microphone 4-Port Switch

SECTIONSTable of Contents SECTIONSTable of Contents 123451

Thank you for purchasing this Belkin Secure Audio and Microphone

Switch (the Switch). The Switch offers centralized control, and is

designed to reduce the possibility of analog cross-talk of the audio

signals between computers running at different security levels.

This User Manual provides all the details you’ll need to install and

operate your new Switch.

Package Contents

• Belkin Secure Audio and Microphone Switch

• 5V, 0.5A DC Power Supply and Power Cord

• 10 Interchangeable Port Color Chips (multiple colors)

• User Manual

Important: This Switch is equipped with tamper-evident labels.

The labels will provide a visual indication if the Switch has

been opened or compromised. If the unit’s enclosure appears

disrupted, please call Belkin Technical Support at

(800) 282-2355.

INTRODUCTION

Secure Audio and Microphone 4-Port Switch

OVERVIEW

SECTIONSTable of Contents 1

Features

The Belkin Secure Audio and Microphone Switch was designed with

the user in mind for today’s VoIP environments. Below is a summary

of some features incorporated into the Switch.

Dedicated Boards

The Switch features a dedicated printed circuit board for audio and

microphone signals. This keeps the audio signals physically separated

from the microphone signals to reduce the possibility of leakage

between both signals.

No Memory Buffer

The Switch does not have a memory buffer and does not have the

ability to store data. This prevents any keystrokes or other data

input from being unintentionally transferred as you switch between

computers, ensuring the integrity of your data.

Non-Reprogrammable Firmware

The Switch features custom firmware that is not reprogrammable,

preventing the ability to tamper with the Switch logic.

Metal-Plate Firewall

A metal firewall is placed between the audio and microphone PCBs

(printed circuit boards) to reduce the potential of EMI (electromagnetic

interference) leakage.

Tamper-Evident Tape

A holographic security tamper-evident label is placed on the

enclosure to provide a visual indication if the Switch has been opened

or compromised.

Secure Packaging

“Tear away” packaging ensures secure delivery of the Switch as it is

routed to the end user.

Audio and Microphone Switching

The Switch supports both stereo audio and microphone analog

signals. Analog signals are passed through. This allows you to share

headsets, speakers and microphones between computers or

IP phones.

Microphone-Mute Button

The Switch incorporates a microphone-mute button to shut-off the

microphone when the Switch is not in use or while handling calls

where the microphone is not required.

Port Coloring

The included color chips can be inserted into each port-selector

button. Colors can be associated with an established network to

facilitate port identification and reduce user switching error.

12345

Secure Audio and Microphone 4-Port Switch

OVERVIEW

SECTIONSTable of Contents 1234

Equipment Requirements

Cables

Belkin highly recommends you use Belkin Audio/Mic Cable Kits for

your Switch to help ensure superior performance. These cables offer

the highest quality possible to ensure optimal signal transmission.

One Cable Kit is required per connected computer or IP phone.

Belkin Shielded Audio/Mic Cable Kits:

F1D9016b06 – 6 ft. (1.8m)

F1D9016b10 – 10 ft. (3m)

12345

Secure Audio and Microphone 4-Port Switch

OVERVIEW

SECTIONSTable of Contents 1234

System Requirements

The Switch is compatible with computers and IP phones.

Headsets, Speakers, and Microphones

The Switch is compatible with analog headsets, speakers, and

microphones. Headset compatibility includes but is not limited to:

• Plantronics HW261N with 3.5mm PC Cable Adapter

• PC Headsets, 3.5mm

• PC Microphones, 3.5mm

12345

Secure Audio and Microphone 4-Port Switch

OVERVIEW

SECTIONSTable of Contents 1234

Unit Display Diagram, Front View

IMPORTANT

NOTICE:

If for any reason

the tamper-evident

seal is missing,

appears disrupted,

or looks different

than the example

shown here,

please call Belkin

Technical Support

at (800) 282-2355.

12345

Tamper-Evident Seal

Microphone-Mute

Button

Port 3

Selector

Port 4

Selector

Port 2

Selector

Port 1

Selector

Color Chip Color Chip Color Chip Color Chip

LED

Indicator

LED

Indicator

LED

Indicator

LED

Indicator

Secure Audio and Microphone 4-Port Switch

OVERVIEW

SECTIONSTable of Contents 1234

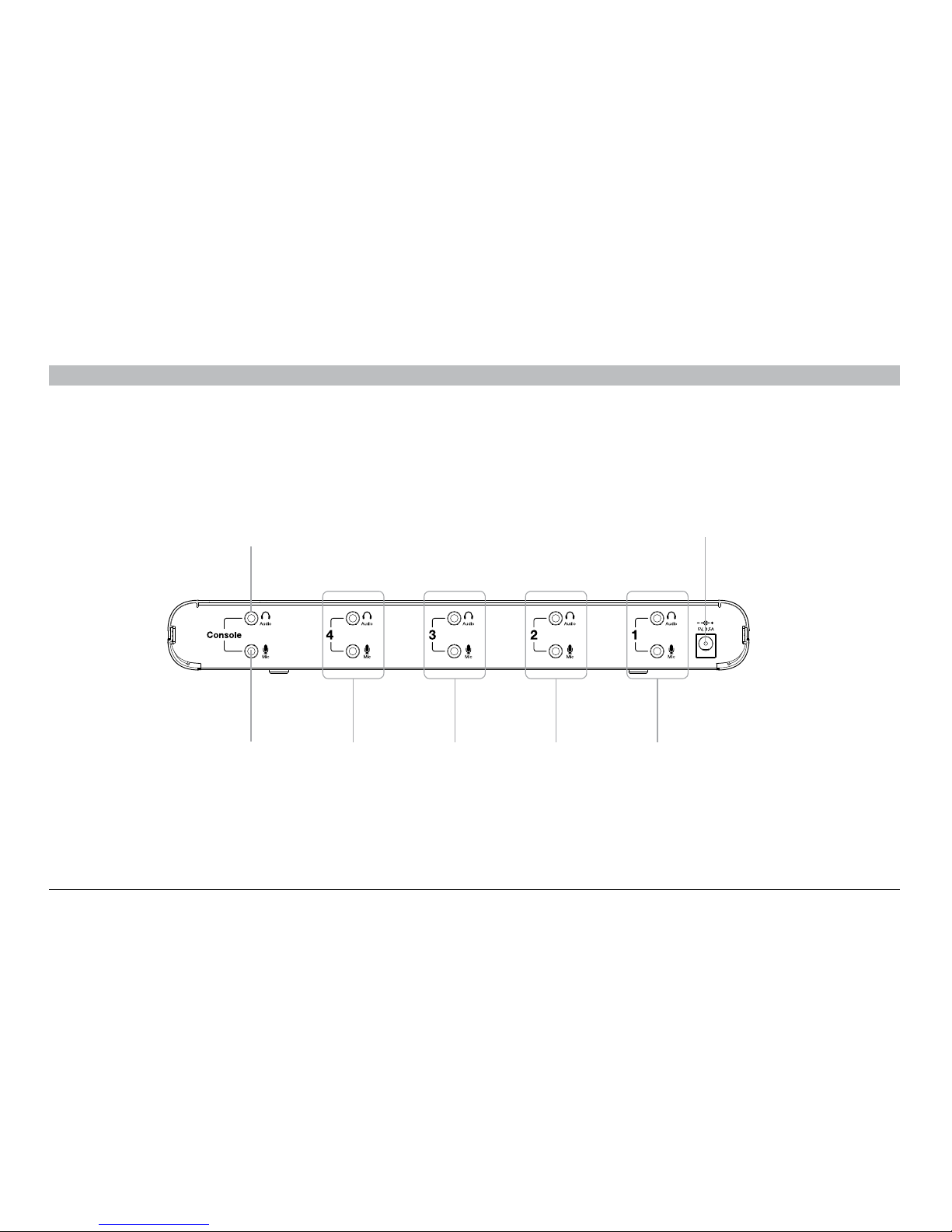

Unit Display Diagram, Back View

12345

Port 4

Audio and

Microphone

Console

Microphone

Port

Port 3

Audio and

Microphone

Port 2

Audio and

Microphone

Port 1

Audio and

Microphone

DC Power Jack

Console

Audio Port

Secure Audio and Microphone 4-Port Switch

OVERVIEW

SECTIONSTable of Contents 1234

Part No.: F1DN104A

Enclosure: Metal enclosure with high-impact

plastic faceplate

Power Requirements: 5V DC, 0.5A (minimum) power adapter

with center-pin-positive polarity

AC Input: 100 to 240VAC

No. of Users Supported: 1

No. of Computers Supported: 4

Console Audio Output: 3.5mm, female

Console Microphone Input: 3.5mm, female

Audio Port Inputs: 3.5mm, female

Microphone Port Outputs: 3.5mm, female

Port Selectors: 4

Port LED Indicators: 4

Microphone-Mute Button: 1

Mute LED Indicator: 1

Operating Temp: 32° to 104° F (0° to 40° C)

Storage Temp: -4° to 140° F (-20° to 60° C)

Humidity: 0-80% RH, non-condensing

Warranty: 3 years

Dimensions: 10.9 (W) x 3.4 (D) x 1.3 (H) inches

Weight: 1.65 lbs.

Made in the USA

Specifications

12345

Secure Audio and Microphone 4-Port Switch

INSTALLATION

SECTIONSTable of Contents 1234 5

Pre-Configuration

Where to place the Switch:

The enclosure of the Switch is designed for desktop configuration.

Consider the following when deciding where to place the Switch:

• your proximity to the port selectors on the front of the Switch

• the lengths of the cables you use to connect your computers/phones

to the Switch

Connection and Installation

Step 1 Connecting the Console to the Switch

Connect your headset, speaker, and microphone to the rear of the

Switch in the “Console” section. (Refer to diagram on page 6.)

Step 2 Power Up

Power up the Switch by connecting the power. The LED for Port 1

should light up solid white a second after power up.

Step 3 Connecting Computers to the Switch

Using the Belkin Shielded Audio/Mic Cable Kit, connect the computers

to a port on the rear of the Switch. Other devices may be connected

with appropriate adapter cables. (Refer to diagram on page 6.)
