Belkin F1DJ102PeaB Manuel utilisateur
OmniView®2- & 4-Port
PS/2 KVM Switch
User Manual
F1DJ102PeaB
F1DJ104PeaB
P74529ea_F1DJ10xP_uk.indd 1 10/01/2008 10:37:37
Table of Contents
1. Introduction.......................................................................................1
Package Contents ......................................................................1
2. Overview ...........................................................................................2
Feature Overview........................................................................2
Equipment Requirements ............................................................3
System Requirements .................................................................4
Unit Display Diagrams ................................................................5
Specifications.............................................................................6
3. Installation........................................................................................7
Pre-Configuration .......................................................................7
Installation Guide........................................................................8
Powering Up the Systems.........................................................10
4. Using your PS/2 KVM Switch............................................................11
Selecting a Computer Using the Selector Button .......................11
Selecting a Computer Using Hot-Key Commands ......................11
Selecting a Computer Using the Port-Selector Button ...............12
LED Display..............................................................................12
AutoScan Mode ........................................................................12
Keyboard Hot-Key-Command Shortcut Reference .....................13
5. Frequently Asked Questions ............................................................14
6. Troubleshooting ..............................................................................15
7. Glossary ..........................................................................................17
8. Information .....................................................................................18
P74529ea_F1DJ10xP_uk.indd 2 10/01/2008 10:37:38
1
1
2
3
4
5
6
7
8
section
Congratulations on your purchase of this Belkin OmniView KVM Switch (the KVM
Switch). Our diverse line of KVM solutions exemplifies the Belkin commitment
to delivering high-quality, durable products at an affordable price. Designed to
give you control over multiple computers from one console, Belkin KVM switches
come in a variety of capacities suitable for all configurations, large or small. This
compact, affordable KVM switch is backed by a Belkin 3-Year Warranty and free
technical support.
This User Manual will provide details about your new PS/2 KVM Switch, from
installation and operation to troubleshooting—in the unlikely event of a problem.
Thank you for purchasing the Belkin OmniView PS/2 KVM Switch. We appreciate
your business and have confidence that you will soon see for yourself why Belkin
is the number-one-selling brand in KVM switches worldwide.
Introduction

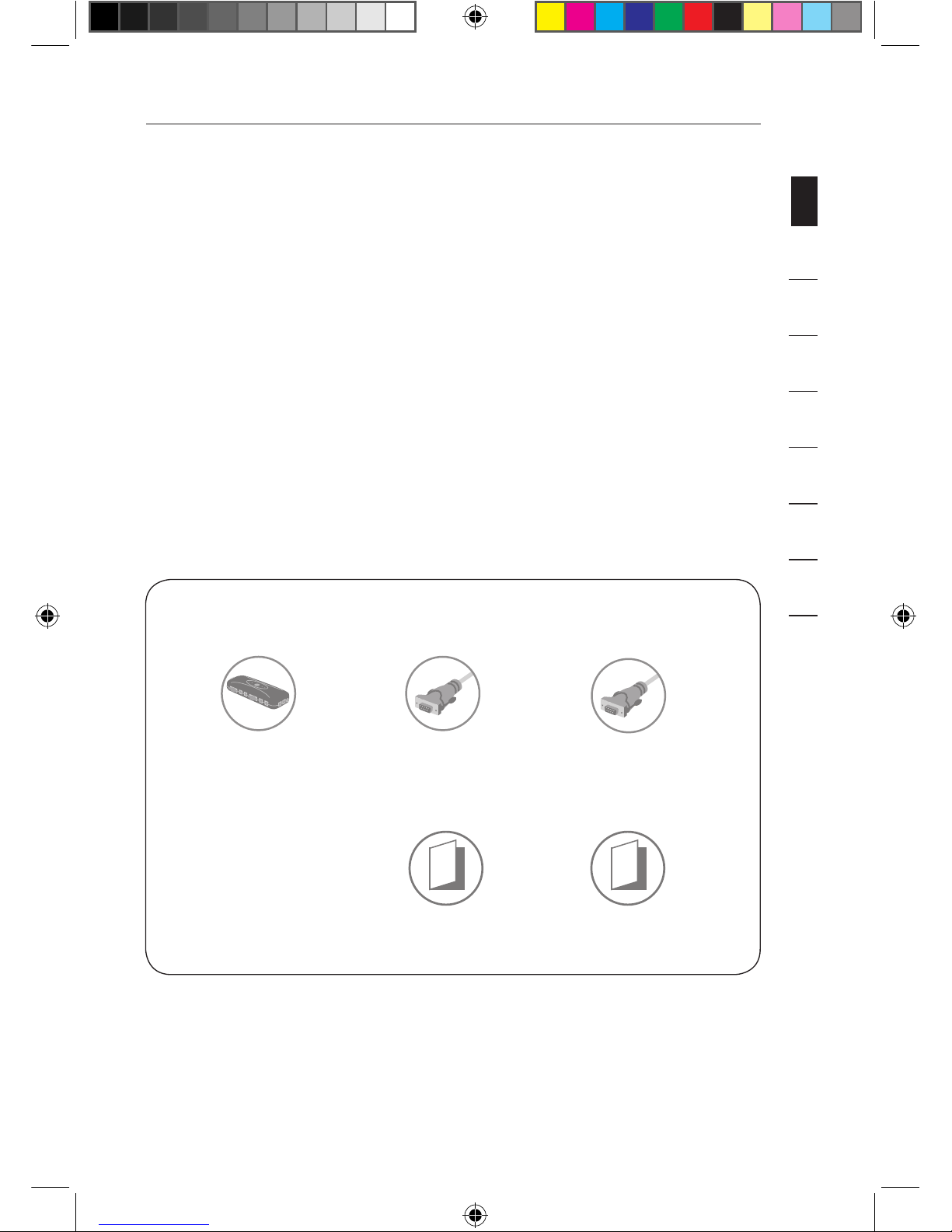

Package Contents
+6-#ABLE+ITS
&$*0"/NLY
+6-#ABLE+ITS
&$*0"/NLY
/MNI6IEW03
+6-3WITCH
5SER-ANUAL 1)'
OmniView PS/2 KVM
Switch
2 KVM Cable Kits
(F1DJ102PeaB Only) 4 KVM Cable Kits
(F1DJ104PeaB Only)
User Manual QIG
P74529ea_F1DJ10xP_uk.indd 1 10/01/2008 10:37:38
2
Feature Overview
• HotKeys
Hot-key functionality allows you to select a desired port using designated key
commands. Control up to four computers, depending on the model, using
simple hot-key sequences on your keyboard. Full hot-key instructions and
commands are listed in this manual, on page 11.
• AutoScan
The AutoScan feature allows you to automatically scan and monitor the
activities of all connected computers, one by one.
• VideoResolution
The PS/2 KVM Switch supports video resolutions of up to 1920x1440 @ 75Hz.
• PushButton
A push button, conveniently located on the top panel of the PS/2 KVM Switch,
allows for simple, manual port selection.
• LEDDisplay
An LED display on the front panel of the PS/2 KVM Switch serves as a status
monitor. An LED illuminates to indicate the console that currently controls the
corresponding computer.
Overview
P74529ea_F1DJ10xP_uk.indd 2 10/01/2008 10:37:38
section
3
1
2
3
4
5
6
7
8
Overview

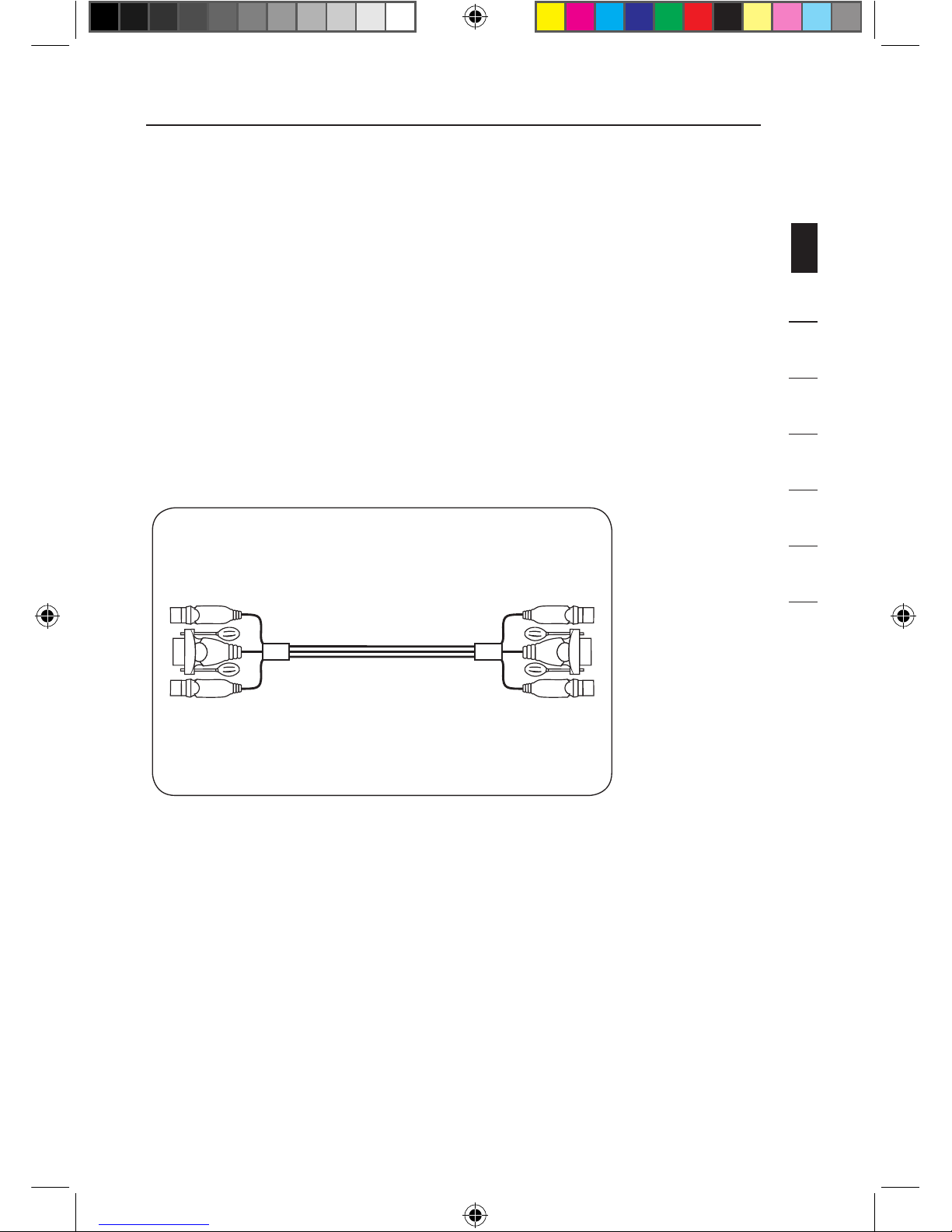

EquipmentRequirements
Cables:
Connecting the PS/2 KVM Switch to a computer requires a Belkin Cable Kit.
Belkin PS/2 Cable Kits:
F1D9000-XX (PS/2-style)
Belkin PS/2 All-in-One Cable Kits:
F3X1105bXX (PS/2-style)
(-XX denotes length in feet)
F1D9000bea06 (PS/2-style)
P74529ea_F1DJ10xP_uk.indd 3 10/01/2008 10:37:38
4
Overview
SystemRequirements
OS Platforms
The PS/2 KVM Switch is compatible with CPUs running on, but not limited to, the
following OS platforms:
• Windows®NT®, 2000, XP, Server 2003, or Vista™
• Microsoft®DOS 5.x and above
• Red Hat®Linux®8.x and above
• Novell®NetWare®5.x
Keyboards
• PS/2-compatible
• Supports 101-/102-/104-/106-standard-key keyboards
Mice
• PS/2-compatible mice (with PS/2 adapter) having 2, 3, 4, or 5 buttons
• PS/2-compatible wireless or optical mice
Monitors
• CRT
• LCD (with VGA support)
OptionalPowerSupply
An optional 9V DC, 600mA power supply is available. This is only required in rare
cases where the power output from the connected computer is not adequate to
power the KVM Switch.
P74529ea_F1DJ10xP_uk.indd 4 10/01/2008 10:37:38
1
2
3
4
5
6
7
8
section
5
Overview

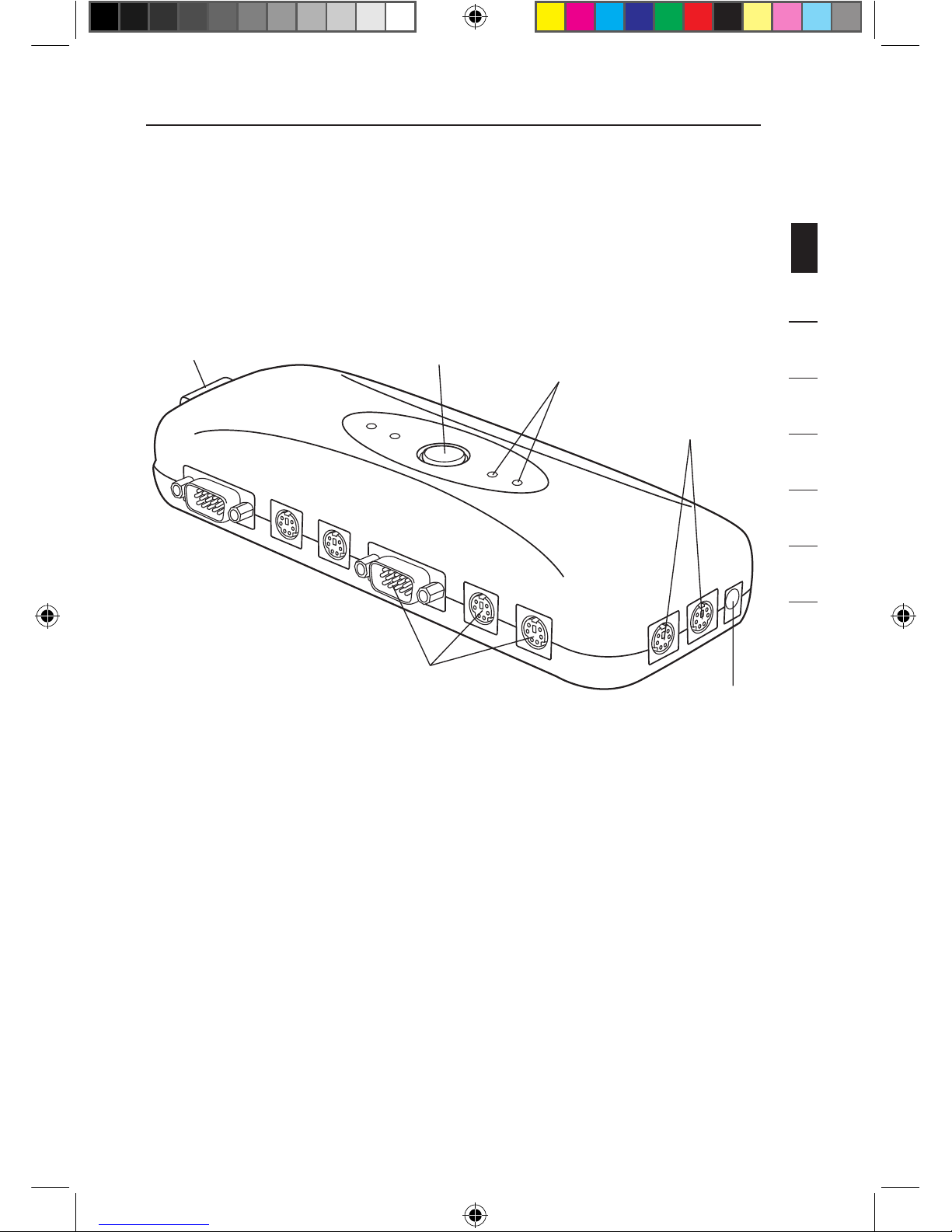

UnitDisplayDiagrams
4-Port PS/2 KVM Switch:
Port-Selector Button
Port Status LEDs
Console VGA Port
Computer Ports
Optional Power Jack
Console Keyboard and
Mouse Ports
P74529ea_F1DJ10xP_uk.indd 5 10/01/2008 10:37:39
Overview
Specifications
Part No.: F1DJ102P, F1DJ104P
Enclosure: High-impact plastic
Power: By PS/2 computer ports; optional 9V DC, 600mA
power adapter, center-pin-positive polarity
No. of Computers 2 and 4 respectively for 2- and 4-port models
Supported:
Monitors Supported: CRT and LCD (with VGA support)
Max. Resolution: Up to 1920x1440 @ 75Hz
Keyboard Input: PS/2 (miniDIN6)
Mouse Input: PS/2 (miniDIN6)
Monitor Port: VGA (HDDB15 female)
PC Ports: HDDB15 male, PS/2 (miniDIN6)
Operating Temp: 32° to 104° F (0~40° C)
Storage Temp: -4° to 140° F (20~60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 3 years
Dimensions: (F1DJ102P) 4.5 x 3.5 x 1.25 in.
(F1DJ104P) 7.75 x 3.5 x 1.25 in.
Weight: (F1DJ102P) 7.9oz.
(F1DJ104P) 4.8oz.
Note: Specifications are subject to change without notice.
P74529ea_F1DJ10xP_uk.indd 6 10/01/2008 10:37:39
1
2
3
4
5
6
7
8
section
7
Installation
Pre-Configuration
Where to Place the KVM Switch
The OmniView PS/2 KVM Switch is designed to sit on the desktop. Where you
place the KVM Switch will be based on the location of your CPUs and the length
of your cables.
ConsiderthefollowingwhendecidingwheretoplacetheKVM
Switch:
• whether or not you intend to use the port-selector button
• the lengths of the cables attached to your keyboard, monitor, and mouse
• the location of your computers in relation to your console
• the lengths of the cables you use to connect your computers to the KVM
Switch
Cable-DistanceRequirements:
ForPS/2Computers:
VGA signals transmit best up to 25 feet (7.6m). Beyond that length, the
probability of video degradation increases. For this reason, Belkin recommends
that the length of the cables between the KVM Switch and the connected
computers does not exceed 25 feet (7.6m).
Cautions and Warnings!
Avoid placing cables near fluorescent lights, air-conditioning equipment, or
machines that create electrical noise (e.g., vacuum cleaners).
P74529ea_F1DJ10xP_uk.indd 7 10/01/2008 10:37:39
8
Installation
Installation Guide
You are now ready to begin installation of your KVM Switch. The following sections
(pages8–10)providecompleteinstructionsforthehardwaresetup.
Before attempting to connect anything to the PS/2 KVM Switch or your computers,
ensure that everything is powered off. Plugging and unplugging cables while
computers are powered on may cause irreversible damage of the computers and/or
the KVM Switch. Belkin is not responsible for damage caused in this way.
Keyboard, Monitor, and Mouse Connections

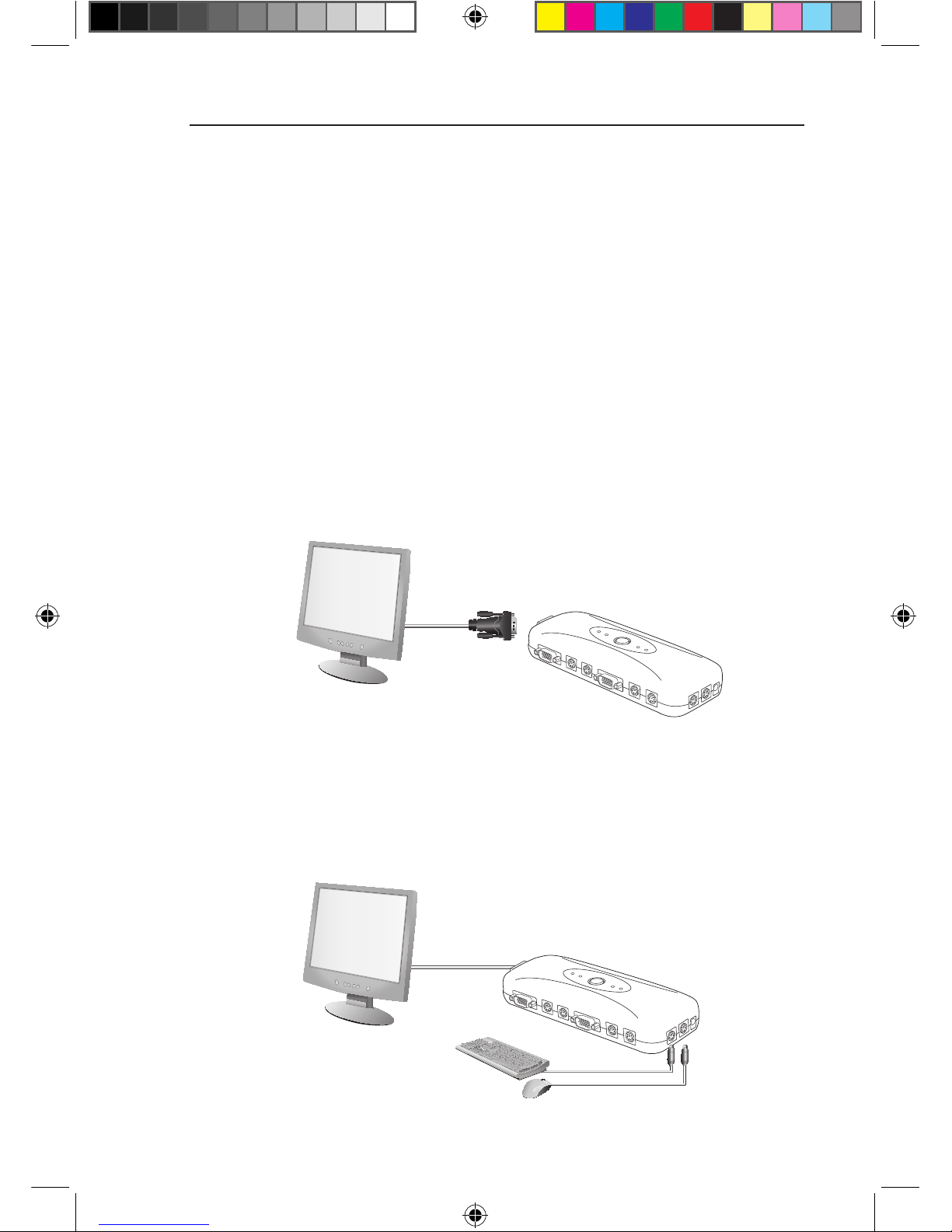

Connecting the Console
Step1
Connect the monitor to the PS/2 KVM Switch. Using the cable that is attached to
your monitor, connect it to the HDDB15 female port of the PS/2 KVM Switch labeled
“VGA Out”. (Refer to diagram below.)
Step2
Connect the PS/2 keyboard to the PURPLE keyboard port on the KVM Switch,
located on the same side as the optional power jack. (Refer to diagram below.)
Step3
Connect the PS/2 mouse to the GREEN mouse port on the front of the KVM Switch,
located on the same side as the optional power jack. (Refer to diagram below.)
You are ready to connect your computers.
P74529ea_F1DJ10xP_uk.indd 8 10/01/2008 10:37:41
