Belkin F8T013UK Manuel utilisateur

Bluetooth™ USB Adapter

F8T012 - F8T013

Connect your peripherals

and computing devices, without cables

User Manual

Table of Contents

Introduction ..................................................................................................... 4

Product Features .............................................................................................. 5

System Requirements ....................................................................................... 6

Package Contents ............................................................................................ 7

USB Adapter Specifications .............................................................................. 8

Software Setup ................................................................................................ 9

Hardware Setup .............................................................................................. 14

Windows XP SP2 Update ................................................................................. 17

Initial Configuration Wizard .............................................................................. 23

Uninstalling the Software ................................................................................. 26

For more detailed technical information please check our extended manual online at www.belkin.com

Introduction

Thank you for purchasing the Bluetooth USB Adapter (the USB Adapter) from Belkin.

The USB Adapter features the breakthrough Bluetooth wireless technology that lets

you create efficient communications between your USB desktop PC or notebook and

devices using Bluetooth wireless technology—without physical connectors or cables.

Before you install and start using your new USB Adapter, please take a few minutes

to review some of the terms that you will be seeing throughout the document.

Product Features

• Bluetooth allows you to create adhoc network

• Higher speed access up to 3Mbps (depending on environment)

• Adds Bluetooth 2.0 + EDR wireless technology to your

USB desktop computer, or notebook

• Fast paring time between 3.5 to 5 sec.

• Lower power consumption

• Bit Error Rate (BER) improved performance

• Manufacturer’s Lifetime Warranty

• Offers backwards compatibility with any Bluetooth v1.1 and v1.2-compliant device

• Installs easily with Plug-and-Play convenience

• Allows you to work at distances of up to 100 metres (Class 1) and

10 metres (Class 2)**

• Supports Microsoft® Windows® 98 SE, Me, 2000, XP, and Mac OS® X v10.3 and higher*

** Range is dependent upon environment, number of users and other wireless devices within immediate proximity.

PC System Requirements

• PC-compatible computer, CPU speed of 200MHz or above

• Memory: 64MB or above, 128MB recommended

• One available USB port, USB 1.1 standard

• Windows 98 SE, Me, 2000, and XP

Mac® System Requirements

• One available USB port, USB 1.1 standard

• Mac OS X v10.3 and higher*

*Mac OS X driver and software provided by Apple.

System Requirements

Package Contents

• Bluetooth USB Adapter

• CD-ROM for installation software and documentation

• User Manual on CD

• Quick Installation Guide

• Registration Card

USB Adapter Specifications

Bluetooth Compliance: Version 2.0

Physical Interface: USB UHCI/OHCI 2.0-compliant

Operating Frequency: 2.4 to 2.4835GHz

Output Power: (F8T012) 4~20 dBm, Class I

(F8T013) -6~4 dBm, Class II

Sensitivity: <0.1% BER @ -80 dBm

Data Rate: 2.1Mbps

Typical Power

Consumption: (F8T012) Tx: 150mA, Rx 80mA

(F8T013) Tx: 65mA, Rx 45mA

Operating Range: (F8T012) 100-meter radius

indoors

(F8T013) 10-meter radius indoors

Network Topology: Point-to-Multipoint

Packet Support: 1/3/5 Slots Packet

Operation: Master/Slave

Frequency Stability: +/- 10PPM

LED Indicator: Power On/Data Traffic

Antenna Type: Integrated, 0 +/- 1 dBi

Dimensions: 58mm (L) x 18mm (W) x 8mm (H)

Weight: 0.2oz. (7g)

Operating Temp: 0 to 70 degrees Celsius

Storage Temp: -30 to 80 degrees Celsius

Humidity: 5-90% (non-condensing)

Supply Voltage: 5.0V DC

Nominal Current: 100mA

Spread Spectrum: FHSS (Frequency Hopping

Spread Spectrum)

Modulation: GFSK (Gussian Frequency

Shift Keying)

Certifications: FCC, CE, ICES, C-Tick,

BQB, WHQL for XP

Specifications are subject to change without notice.

Software Setup

Software Setup for Windows 98 SE, Me, 2000, and XP

To install the software for the USB Adapter, follow the instructions below:

Note: The installation process for Windows XP may look slightly different from

Windows 98 SE, Me, and 2000.

Note: Do not insert the USB Adapter into the USB port prior to software installation.

1. Insert the software installation CD-

ROM into the PC’s CD-ROM drive.

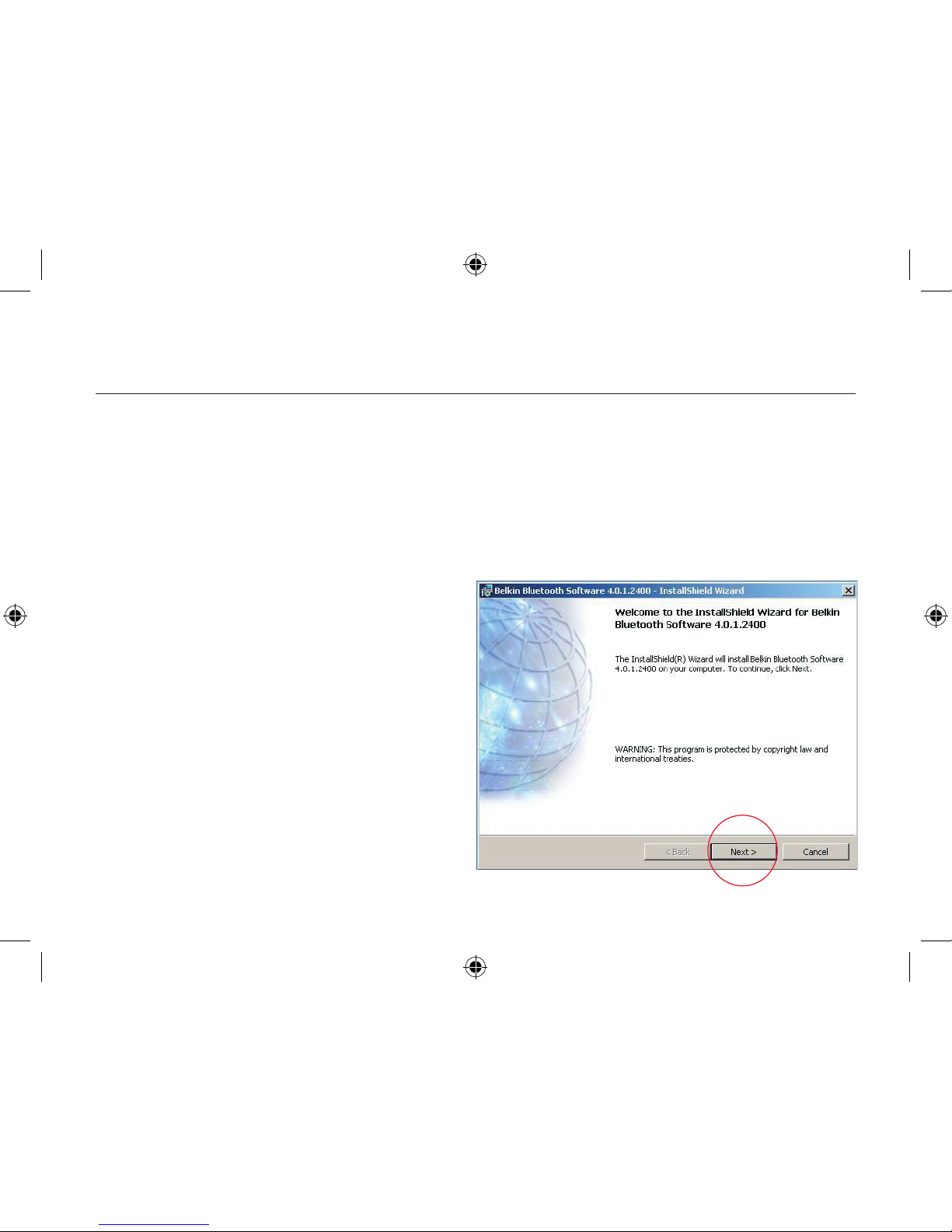

2. The “Software InstallShield Wizard”

window appears. Click on “Next” to

begin the installation process.

Software Setup

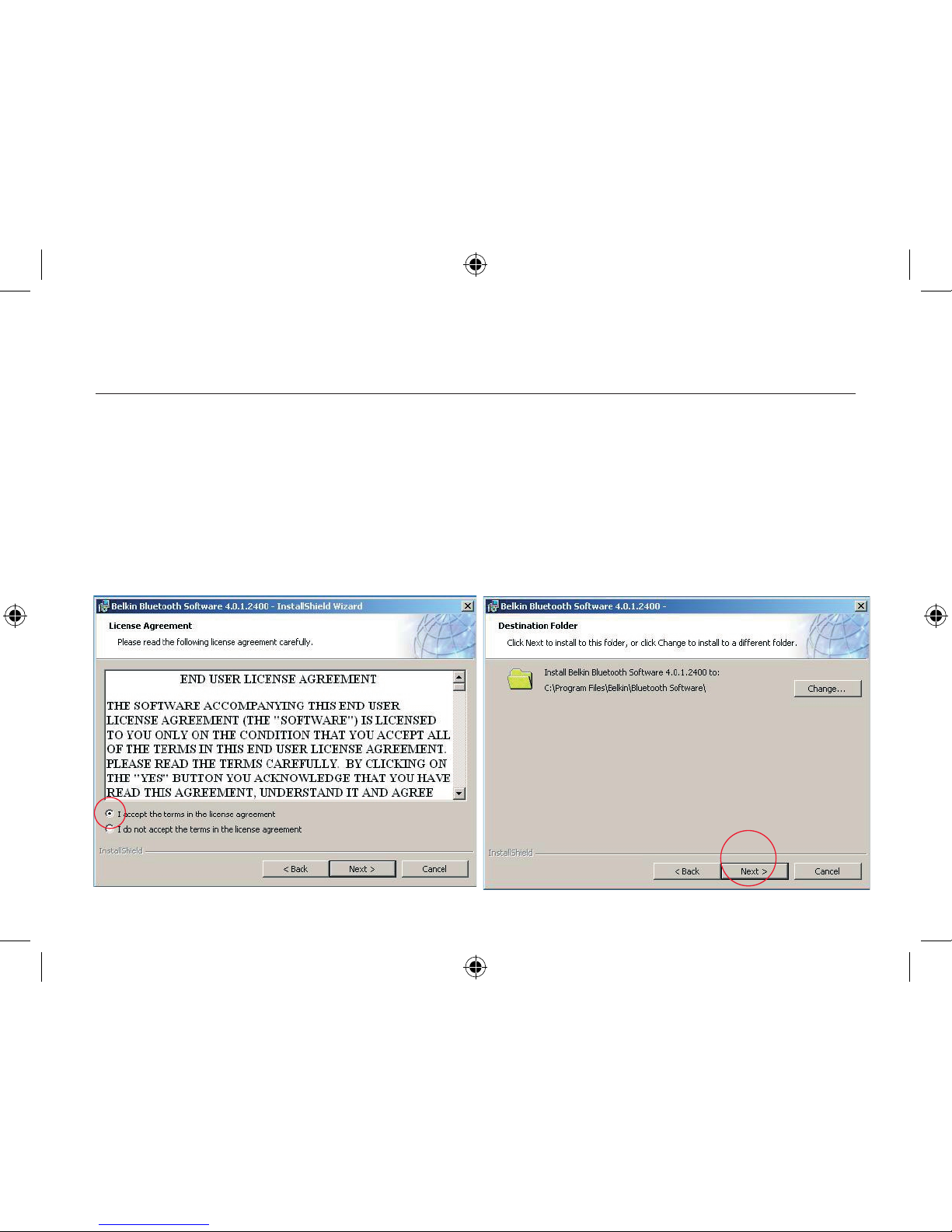

3. Choose “I accept the terms in the

license agreement” to accept the

license agreement. Click on “Next”

to continue.

4. Specify the location where the software

files will be installed on your hard drive.

It is recommended that you install

the software in the default directory

“C:\Program Files\belkin\Bluetooth\

Software\”. Click on “Next” to continue.
