Belkin F8T001 Manuel utilisateur

BLUETOOTH

™USB ADAPTER

USER MANUAL

F8T001

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 1

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

USB Adapter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Supported Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Software Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the USB Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing the USB Device Driver

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bluetooth

Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

“My Bluetooth Places” Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Uninstalling the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

FCC/CE Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 1

INTRODUCTION

Thank you for purchasing the

Bluetooth

USB Adapter (the USB Adapter) from Belkin featuring

Bluetooth

wireless technology. The USB Adapter lets you create cable-free connections between

your USB desktop PC and devices using

Bluetooth

wireless technology.

The USB Adapter is compatible with all

Bluetooth

v1.1-certified

devices and enables you to wirelessly connect up to seven other

devices enabled with

Bluetooth

technology, such as printers, PDAs,

and cell phones simultaneously. Now you can connect your

peripherals and computing devices up to 100 meters away

without cables in your home, office, or while on the road.

Establish ad-hoc connection between devices without having

to configure a network.

Before you install and start using your new USB

Adapter, please take a few minutes to review some

of the terms that you will be seeing throughout

the document. You will find a brief Glossary on

page 27 of this manual.

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 2

PRODUCT FEATURES

The USB Adapter is compliant with

Bluetooth

standard version 1.1 and provides:

• Compliancy with

Bluetooth

specification v1.1 devices

• USB bus powering: No external power supply necessary

• Support for Microsoft®Windows®98 SE, Me, 2000, and XP

• Operating distance of up to 100 meters

• Point-to-multipoint connections

• Support for data rates up to 721Kbps

• Built-in security: up to 128-bit encryption and authentication

• Compatibility with USB desktop and notebook computers

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 3

• PC-compatible computer, CPU speed of 200MHz or above

• Memory: 64MB or above, 128MB recommended

• One available USB port, USB 1.1 standard

• Windows 98 SE, Me, 2000, and XP

SYSTEM REQUIREMENTS

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 4

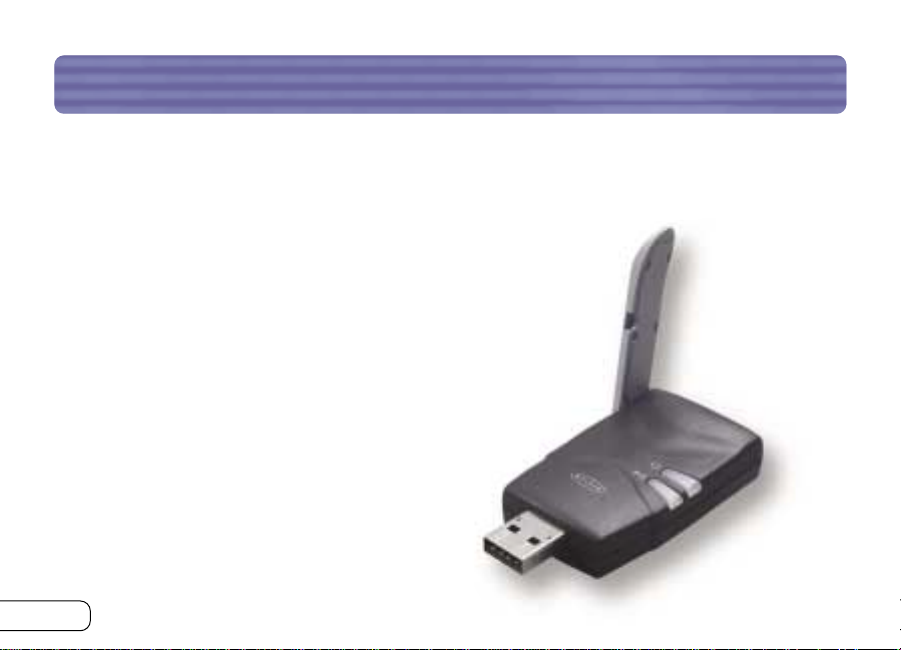

PACKAGE CONTENTS

•

Bluetooth

USB Adapter

• 5 Ft. USB Extension Cable

• CD-ROM for installation software and documentation

• User Manual

• Quick Installation Guide

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 5

USB ADAPTER SPECIFICATIONS

Bluetooth

Compliance: Version 1.1

Physical Interface: USBUHCI/OHCI 1.1-compliant

Operating Frequency: 2.4 to 2.4835GHz

Output Power: 0 to 20 dBm, Class 1, 2, 3

Sensitivity: -80 dBm @ 1E-3 BER minimum

Data Rate: 723/57.6Kbps

Operating Range: 100-meter radius indoors

Network Topology: Point-to-Multipoint

Packet Support: 1/3/5 Slots Packet

Operation: Master/Slave

Frequency Stability: +/- 10PPM

LED Indicator: Power On, Data Traffic

Antenna Type: External

Dimensions: 70mm (L) x 33mm (W)

x 13mm (H)

Weight: 0.9oz.

Operating Temp: 0 to 50 degrees Celsius

Storage Temp: -15 to +55 degrees Celsius

Humidity: 10-90% (non-condensing)

Supply Voltage: 5.0VDC

Nominal Current: 100mA

Support Profiles: Service Discovery, File Transfer,

Serial Port, DUN, LAN, Generic

Object Exchange, Business

Card, Push, Pull & Exchange

OS Support: Windows 98 SE, Me, 2000,

and XP

Specifications are subject to change without notice.

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 6

SUPPORTED PROFILES

The services supported by your USB Adapter are defined as “Profiles”. Available profiles include:

• Generic Access

• Service Discovery

• Serial Port

• LAN Access

• Dial-Up Networking

• Generic Object Exchange

• Object Push

• File Transfer

• Synchronization

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 7

SUPPORTED PROFILES (CON’T)

Your USB Adapter gives you the ability to do the following—without cables:

• Transfer files

• Access dial-up networks

• Connect to local area networks

• Perform an ActiveSync®session

• Connect to serial ports

• Exchange PIM data

• Send or exchange business cards

The basic functions of the

Bluetooth

Neighborhood include:

• Device Discovery

• Service Discovery

• Establishing links with remote devices

P74069_F8T001_man.qxd 5/24/02 4:03 PM Page 8

SOFTWARE SETUP

Soft are Setup for Windo s 98 SE, Me, 2000, and XP

To install the software for the USB Adapter, follow the instructions below:

Note: The installation process for Windows XP may look slightly different from Windows 98 SE,

Me, and 2000.

Note: Do not insert the USB Adapter into the USB port prior to installation.

1. Insert the software installation CD-ROM into

the PC’s CD-ROM drive.

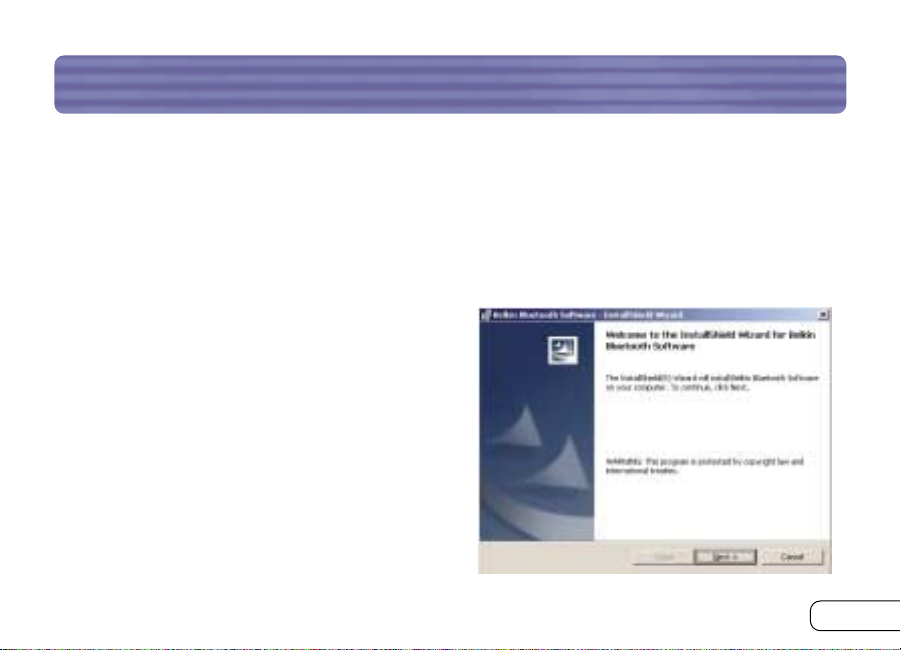

2. The “Software InstallShield Wizard” window

appears. Click on “Next” to begin the

installation process.
