Belden Hirschmann RS20 Series Manuel utilisateur

Installation RS20/22/30/32/40

Release

10/2021

Technical support

https://hirschmann-support.belden.com

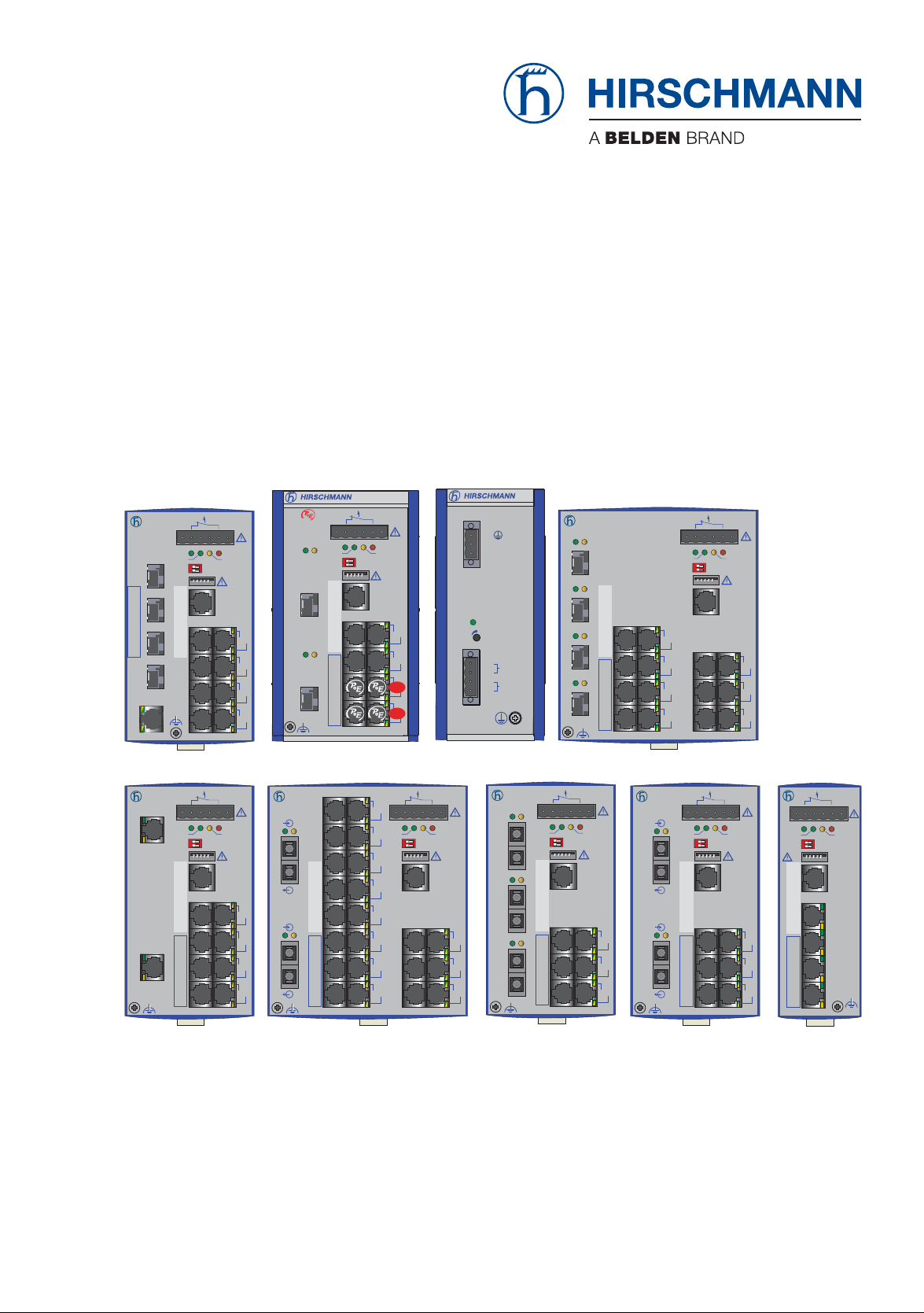

User Manual

Installation

Industrial ETHERNET Rail Switch

RS20/RS22/RS30/RS32/RS40 Family

RS30-0802...

RS30

+24V(P1) 0V 0V

FAULT

+24V(P2)

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

USB

Stand by

FAULT

RS30-1602...

RS20

+24V(P1) 0V 0V

FAULT

+24V(P2)

LS DA

RS30

+24V(P1) 0V 0V

FAULT

+24V(P2)

LS DA

RS20

LS DA

+24V(P1) 0V 0V

FAULT

+24V(P2)

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

LS DA

V.24

USB

Stand by

FAULT

RS20

LS DA

+24V(P1) 0V 0V

FAULT

+24V(P2)

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

LS DA

V.24

USB

Stand by

FAULT

RS20

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

USB

Stand by

FAULT

RS20-0800...RS20-2400... RS20-0400...

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

USB

Stand by

FAULT

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

USB

Stand by

FAULT

RS20-0900...

RS40

+24V(P1) 0V 0V

FAULT

+24V(P2)

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

USB

Stand by

FAULT

RS40-0009... RS32-0802... RPS90/48V HV

RPS90/48V HV

U: 110 / 230 VAC

U: 60 / 250 VDC

-/N

+/L

+48V / 1,9A

48-54V

RS32

Stand by

Aufkleber MAC-Adresse

IP-ADDRESS

V.24

USB

Stand by

FAULT

LS DA

+24V(P1) 0V 0V

FAULT

+24V(P2)

FAULT

+48V(P1) 0V 0V +48V(P2)

2021-10-29 Installation RS20/22/30/32/40

Release

10/2021

The naming of copyrighted trademarks in this manual, even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann.com).

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Germany

Installation RS20/22/30/32/40

Release

10/2021 3

Contents

Important information 5

Safety instructions 7

About this Manual 20

Key 21

1 Description 22

1.1 Description of the device variants 23

1.1.1 Combination options of the device variants RS20/

RS30/RS22/RS32 24

1.1.2 Combination options for the RS40 device variants 27

1.1.3 Number of ports and media for RS20-... 29

1.1.4 Number of ports and media for RS30-... 32

1.1.5 Number of ports and media for RS40-... 35

1.2 Device variants with PoE (optional) 36

1.2.1 Number of ports and media for devices with PoE 36

1.2.2 PoE power units 38

1.3 Ethernet ports 38

1.3.1 10/100/1000 Mbit/s twisted pair port 38

1.3.2 10/100 Mbit/s twisted pair port 39

1.3.3 10/100 Mbit/s twisted-pair connection PoE

(RS22-.../RS32-...) 40

1.3.4 1000 Mbit/s F/O port 40

1.3.5 100 Mbit/s F/O port 41

1.3.6 Gigabit combo port 41

1.4 Display elements 42

1.5 Management interfaces 44

1.5.1 USB interface 44

1.5.2 V.24 interface (external management) 44

2 Installation 46

2.1 Checking the package contents 47

2.2 Installing and grounding the device 47

2.2.1 Installing the device onto the DIN rail 47

4Installation RS20/22/30/32/40

Release

10/2021

2.2.2 DIN rail mounting on ships (RS30-0802...) 48

2.2.3 Mounting on a vertical flat surface 49

2.2.4 Grounding the device 50

2.3 Installing an SFP transceiver (optional) 51

2.4 Adjust DIP switch settings 51

2.5 Connecting the terminal block 52

2.5.1 RS20/RS30/RS40: supply voltage and signal contact 53

2.5.2 RS22/RS32: supply voltage and signal contact 54

2.6 Mounting the terminal block 57

2.7 Connecting the ferrite 57

2.8 Operating the device 58

2.9 Connecting data cables 58

2.10 Filling out the inscription label 58

3 Making basic settings 59

3.1 Applies to devices with a software version before HiOS 7.1/

8.1 59

3.1.1 Default settings 59

4 Monitoring the ambient air temperature 60

5 Maintenance and service 61

6Disassembly 62

6.1 Removing the device 62

6.2 Removing an SFP transceiver (optional) 63

7 Technical data 64

A Further support 81

Installation RS20/22/30/32/40

Release

10/2021 5

Important information

Note: Read these instructions carefully, and familiarize yourself with the

device before trying to install, operate, or maintain it. The following notes may

appear throughout this documentation or on the device. These notes warn of

potential hazards or call attention to information that clarifies or simplifies a

procedure.

Symbol explanation

This is a general warning symbol. This symbol alerts you to

potential personal injury hazards. Observe all safety notes that

follow this symbol to avoid possible injury or death.

If this symbol is displayed in addition to a safety instruction of the

type “Danger” or “Warning”, it means that there is a danger of

electric shock and failure to observe the instructions will

inevitably result in injury.

This symbol indicates the danger of hot surfaces on the device.

In connection with safety instructions, non-observance of the

instructions will inevitably result in injuries.

DANGER

DANGER draws attention to an immediately dangerous situation, which will

inevitably result in a serious or fatal accident if not observed.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

CAUTION indicates a possible danger which, if not avoided, may result in

minor injuries.

6Installation RS20/22/30/32/40

Release

10/2021

NOTICE

NOTE provides information about procedures that do not involve the risk of

injury.

Installation RS20/22/30/32/40

Release

10/2021 7

Safety instructions

General safety instructions

You operate this device with electricity. Improper usage of the device

entails the risk of physical injury or significant property damage. The

proper and safe operation of this device depends on proper handling

during transportation, proper storage and installation, and careful

operation and maintenance procedures.

Before connecting any cable, read this document, and the safety

instructions and warnings.

Operate the device with undamaged components exclusively.

The device is free of any service components. In case of a damaged

or malfunctioning device, turn off the supply voltage and return the

device to Hirschmann for inspection.

Certified usage

Use the device solely for the application cases described in the

Hirschmann product information, including this manual.

Operate the device solely according to the technical specifications.

See “Technical data” on page 64.

Installation site requirements

Install the device in a fire enclosure according to IEC 60950-1.

If installed in a living area or office environment, the device must be

operated only in switch cabinets with fire protection characteristics

according to IEC 60950-1.

Only when using the PoE power supply unit RPS90/48V HV:

Install this device only in a switch cabinet or in an operating site with

restricted access, to which maintenance staff have exclusive access.

WARNING

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all

the data transmission devices individually.

Before you start any machine which is controlled via data transmission, be

sure to complete the configuration of all data transmission devices.

Failure to follow this instruction can result in death, serious injury, or

equipment damage.

8Installation RS20/22/30/32/40

Release

10/2021

Strain relief

Note: If the strain relief is insufficient, there is a potential risk of torsion,

contact problems and creeping interruptions.

Relieve the connection points of cables and lines from mechanical

stress.

Design strain reliefs in such a way that they help prevent any

mechanical damage to cables, wires or conductors caused by external

influences or their own weight.

To help prevent damage to device connections, connectors and

cables, follow the instructions for proper installation in accordance with

DIN VDE 0100-520:2013-06, sections 522.6, 522.7 and 522.13.

Device casing

Only technicians authorized by the manufacturer are permitted to open

the casing.

Never insert pointed objects (narrow screwdrivers, wires, etc.) into the

device or into the connection terminals for electric conductors. Do not

touch the connection terminals.

Keep the ventilation slits free to ensure good air circulation.

See “General technical data” on page 64.

Mount the device in the vertical position.

At ambient air temperatures > +60 °C (+140 °F):

The surfaces of the device housing may become hot. Avoid touching

the device while it is operating.

Qualification requirements for personnel

Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:

Qualified personnel are properly trained. Training as well as practical

knowledge and experience make up their qualifications. This is the

prerequisite for grounding and labeling circuits, devices, and systems

in accordance with current standards in safety technology.

Qualified personnel are aware of the dangers that exist in their work.

Qualified personnel are familiar with appropriate measures against

these hazards in order to reduce the risk for themselves and others.

Qualified personnel receive training on a regular basis.

National and international safety regulations

Verify that the electrical installation meets locally or nationally applicable

safety regulations.

Installation RS20/22/30/32/40

Release

10/2021 9

Grounding the device

The device is grounded via the separate ground screw on the bottom left

of the front side of the device.

Use a wire diameter for the ground conductor that is no smaller than

the diameter of the supply voltage connection, however of at least 1.0

mm² (AWG16).

Ground the device before connecting any other cables.

Disconnect the grounding only after disconnecting all other cables.

Shielding ground

The overall shield of a connected shielded twisted pair cable is connected

to the grounding connector on the front panel as a conductor.

Beware of possible short circuits when connecting a cable section with

conductive shielding braiding.

Supply voltage

The supply voltage is electrically isolated from the housing.

The devices are designed for operation with Safety Extra-low Voltage

(SELV). Connect only SELV circuits with voltage restrictions according

to IEC 60950-1 or ES1 according to IEC/EN 62368-1 to the supply

voltage connections and to the signal contacts.

Exclusively connect a supply voltage that corresponds to the type

plate of your device.

Applies exclusively to RS20-..., RS30-..., RS40-... device variants:

For power supply via DC voltage: All following prerequisites are

fulfilled:

There are fuses suitable for DC voltage in the positive conductors

of the supply lines, or the voltage sources are appropriately current-

limited. Regarding the properties of this fuse: See “General

technical data” on page 64.

The negative conductors of the voltage inputs are on ground

potential.

For power supply via AC voltage: All following prerequisites are

fulfilled:

There are fuses in the supply lines, or the voltage sources are

appropriately current-limited. Regarding the properties of this fuse:

See “General technical data” on page 64.

The power sources are electrically isolated from the ground

potential.

10 Installation RS20/22/30/32/40

Release

10/2021

Applies exclusively to RS22-..., RS32-... device variants:

All of the following requirements are complied with:

There are fuses suitable for DC voltage in the positive conductors

of the supply lines, or the voltage sources are appropriately current-

limited. Regarding the properties of this fuse: See “Technical data”

on page 64.

The power sources are electrically isolated from the ground

potential. According to specification IEEE 802.3, the insulation

voltage must be 1500 V AC or 2250 V DC.

Observe the maximum values for the contact load of the signal

contact.

Relevant for North America:

The device may only be connected to a Class 2 supply voltage that

fulfills the requirements of the National Electrical Code, Table 11(b). If

the voltage is being supplied redundantly (two different voltage

sources), the combined supply voltages must fulfill the requirements of

the National Electrical Code, Table 11(b).

Relevant for North America: For use in class 2 circuits.

Use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire only.

Relevant for North America

for devices certified for hazardous locations:

Power, input and output (I/O) wiring must be in accordance with

Class I, Division 2 wiring methods [Article 501-4(b) of the National

Electrical Code, NFPA 70] and in accordance with the authority having

jurisdiction.

Start connecting the electrical wires only if all the above safety

requirements are fulfilled.

Enable the supply voltage for the device only when the following

requirements are fulfilled:

the housing is closed

the terminal blocks are wired correctly

the terminal blocks for the power supply are connected

Internal fuses are triggered only in the case of a detected error in the

device. In case of damage or malfunction of the device, turn off the

supply voltage and return the device to the plant for inspection.

Autres manuels pour Hirschmann RS20 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Belden Changer

Belden

Belden Hirschmann Rail Switch Power Lite Manuel utilisateur

Belden

Belden Hirschmann SPIDER-SL-20-08T1999999SY9HHHH Manuel utilisateur

Belden

Belden HIRSCHMANN HiOS-2A Manuel utilisateur

Belden

Belden HIRSCHMANN OCTOPUS OS24 Series Manuel utilisateur

Belden

Belden Thinklogical TLX48 Manuel utilisateur

Belden

Belden Telecast Fiber Systems THOR-SLG Manuel utilisateur

Belden

Belden Hirschmann MAMMUTHUS MTS2600 Manuel utilisateur

Belden

Belden HIRSCHMANN OCTOPUS OS3 Manuel utilisateur

Belden

Belden Hirschmann RS20 U Series Manuel utilisateur

Belden

Belden grass valley SIRIUS 800 Series Guide de l'utilisateur

Belden

Belden ThinkLogical TLX12 Manuel utilisateur

Belden

Belden MAMMUTHUS MTM2800-PSU120 Manuel utilisateur

Belden

Belden Hirschmann MACH104 Series Guide de l'utilisateur

Belden

Belden Hirschmann MACH1040 Series Manuel utilisateur

Belden

Belden Hirschmann IT MAMMUTHUS MTS26 Series Manuel utilisateur

Belden

Belden Hirschmann SPIDER II 8TX Manuel utilisateur

Belden

Belden Hirschmann SPIDER Standard Line Series Manuel utilisateur

Belden

Belden Hirschmann MICE MS20 Manuel utilisateur

Belden

Belden Hirschmann MACH104-PoEP Series Manuel utilisateur

Belden

Belden Hirschmann GREYHOUND GRS1042 Manuel utilisateur

Belden

Belden HIRSCHMANN RSP20 Manuel utilisateur

Belden

Belden grass valley MASTERPIECE 12G-SDI Manuel utilisateur

Belden

Belden HIRSCHMANN PTN-CSM310-A Manuel utilisateur

Belden

Belden HIRSCHMANN IT MAMMUTHUS MTS2948X-6Q-A Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
