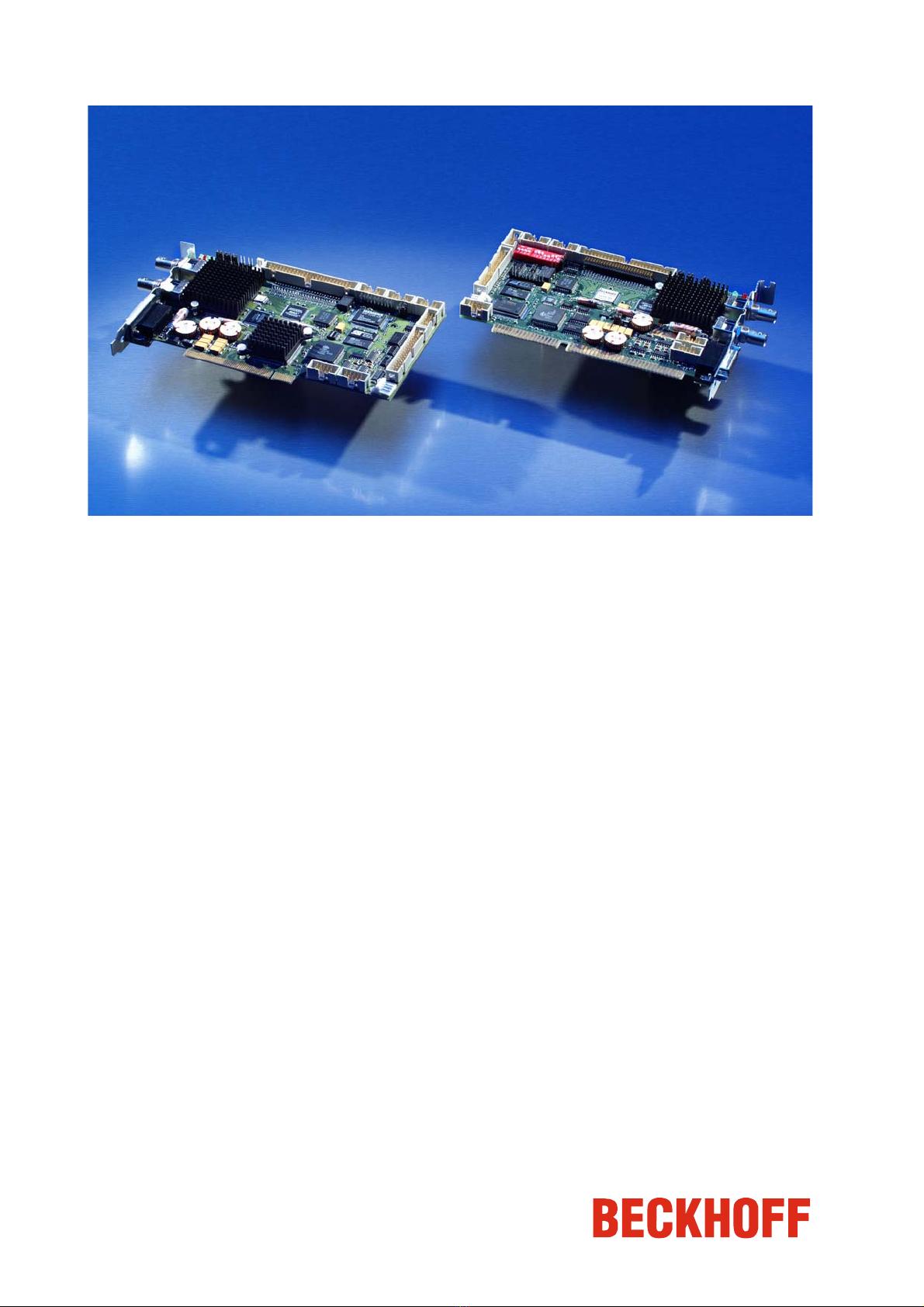

Operating instructions for

Beckhoff CP9030 / CP9035

CP-Link Cards

Version: 1.5

Date: 2009-10-05

General instructions

Table of contents

General instructions 5

Notes on the Documentation 5

Liability Conditions 5

Beckhoff CP-Link System Description 6

CP-Link 6

Example: CP-Link "Single" Connection 7

Multi CP-Link 8

Example: CP-Link "Double" Connection 9

Technical Data CP9030 10

Layout of the BECKHOFF CP-Link Card 10

Cable and jumper configurations 16

Advantech SBC 16

Bayview 50 / 52 Graphic Card 16

Boser HS6237 SBC 16

Inside Technology 686LCD SBC 17

MITAC 251 SBC 17

Vampower 7 Graphic Card 17

Vampower 8 Graphic Card 17

View of the CP9030 Slot Cover 18

CP9030 DPRAM Memory Allocation 19

CP9030 card pin assignments 22

Description of the Status LEDs 26

Jumper Assignments 27

ISA bus current consumption 27

Technical Data CP9035 28

Layout of the BECKHOFF CP-Link Card 28

Cable and jumper configurations 30

CP9035 card pin assignments 30

Description of the Status LEDs 33

Jumper Assignments 34

Current consumption 34

View of the CP9035 Slot Cover 35

Technical Data CP9035 with DVI-Add Card 36

Layout of the CP9035 with DVI-Add Card 36

Multi CP-Link Cable-sets 37

CP-Link connecting cable 38

Appendix 40

Beckhoff Support & Service 40

Beckhoff branches and partner companies 40

Beckhoff Headquarters 40

Beckhoff Support 40

Beckhoff Service 40

CP9030 / CP9035 3

General instructions

4 CP9030 / CP9035

General instructions

Notes on the Documentation

This description is only intended for the use of trained specialists in control

and automation engineering who are familiar with the applicable national

standards. It is essential that the following notes and explanations are

followed when installing and commissioning these components.

Liability Conditions

The responsible staff must ensure that the application or use of the

products described satisfy all the requirements for safety, including all the

relevant laws, regulations, guidelines and standards.

The documentation has been prepared with care. The products described

are, however, constantly under development. For that reason the

documentation is not in every case checked for consistency with

performance data, standards or other characteristics. None of the

statements of this manual represents a guarantee (Garantie) in the

meaning of § 443 BGB of the German Civil Code or a statement about the

contractually expected fitness for a particular purpose in the meaning of

§ 434 par. 1 sentence 1 BGB. In the event that it contains technical or

editorial errors, we retain the right to make alterations at any time and

without warning. No claims for the modification of products that have

already been supplied may be made on the basis of the data, diagrams

and descriptions in this documentation.

this publication, whether in whole or in part, without the written permission

of Beckhoff Automation GmbH, is forbidden.

CP9030 / CP9035 5

Beckhoff CP-Link System Description

System

ouch screen

PC keyboard

Einschub

Streifen

Einschub

Streifen

Einschub

Streifen

Einschub

Streifen

Einschub

Streifen

PLC keys

with LED

Diskette

drive

RS232

interface

5V power supply

LCD grafic-

controller

Motherboard

- Keyboard

- Serial interface

- Diskette drive

CP-Link

multiplexer

CP-Link

Control Panel

multiplexer

12 V DC from PC

power supply

CP-Link

giga bit serial link

2 coaxial cable

(max. 100 m)

TFT display

PS/2 mouse

interface

START

Schub

STOP

HELP

STOP

START

Schub

STOP

HELP

Pushbutton

Extension

CP-Link

Flexibility Maximum flexibility for location of the Control Panel on the equipment.

The connection from the Control Panel to the PC itself is made via CP Link,

a transmission technology having a data rate in the gigabit range. CP Link

implements transmission segments up to 100 m on a twin-core coaxial

cable. No additional power supply is needed. The CP-Link Interface is

implemented as an ISA and PCI bus plug-in card and is thus usable in any

PC. The PC is also equipped with a graphics card providing an LCD

interface. The PC ports for LC display, keyboard, COM ports, PS/2 mouse

and floppy drive are converted by the CP-Link plug-in card into a high-

frequency serial signal and transmitted via coaxial cable to the Control

Panel. The CP-Link Interface in the Control Panel re-converts the serial

signal for the original PC ports, to which the components of the Control

Panel, such as keyboard, LC display, touch screen, touch pad, PS/2 mouse

and floppy drive are connected, but at a 100 meters longer distance than

would ordinarily be possible. There is a CP-Link channel for each direction

of the communication between the Control Panel and the PC. Two coaxial

cables are laid for this reason.

6 CP9030 / CP9035

Beckhoff CP-Link System Description

Example: CP-Link "Single" Connection

One Control Panel with Touchpad and Touchscreen

The signals required for the touchpad (RS232) and touchscreen (RS232)

are distributed through connector ST303 to the computer's individual COM

ports. The sequence of the COM ports only has to be maintained for the

installation of the corresponding drivers. The keyboard signals are also

passed via ST303 to the motherboard's own keyboard connection.

Switching between the various keyboards (Control Panel membrane

keypad, a keyboard socket which may be present on the Control Panel, and

external keyboard connection on the PC) is performed on the CP-Link

board, which means that it is possible to operate all the keyboards in

parallel.

The BNC cables are connected to the CP-Link A and CP-Link B connectors

on the CP-Link card. Orientation is aided by a red mark on the card. The

cable types and the corresponding lengths are described below.

Fig. 3

CP9030 / CP9035 7

Beckhoff CP-Link System Description

Multi CP-Link

Up to three Control Panels Up to three Control Panels can be connected to one PC. Each Control

Panel can be installed at a distance of up to 100 m from the PC, which

ensures maximum flexibility in locating the Control Panel on the equipment.

For each Control Panel, one CP-Link insert card is installed in the PC.

If a number of pointing devices or interfaces (touchpad, touchscreen,

RS232) are used with the Control Panel it is necessary for the PC to have a

corresponding number of interfaces.

Assembly and connections

in the PC

ext. keyboard

hic card

CP- L I N K 0 1

CP- L I N K 0

All displays show the same image. This requires all the displays to have the

same format.

Data can be entered on the PC keyboard, on the keyboard of one of the

Control Panels or on a standard keypad connected to one of the Control

Panels or directly to the PC.

8 CP9030 / CP9035

Beckhoff CP-Link System Description

Example: CP-Link "Double" Connection

One Control Panel with Touchscreen and one Control Panel with

Touchpad

If we assume that the Control Panel with touchpad is connected to CP-Link

1 and that the Control Panel with touchscreen is connected to CP-Link 2,

then the signals from the one Control Panel for the touchpad (RS232) from

CP-Link 1 are passed to COM2, and the signals from the touchscreen

(RS232) of the other Control Panel are passed to COM 1. The keyboard

cable to the motherboard must be plugged into the card on the outside (CP-

Link 2). Further, a 1:1 connection from ST305 (CP-Link 1) to ST304 (CP-

Link 2) is required in order to pass the keyboard signals arising from CP-

Link 1 on to CP-Link 2.

The drivers must be installed in accordance with the assignments of the

touchpad and touchscreen.

The BNC cables are connected to the "CP-Link A" and "CP-Link B"

connectors on the CP-Link card. Orientation is aided by a red mark on the

card. The cable types and the corresponding lengths are described below.

Fig. 4

CP9030 / CP9035 9

Technical Data CP9030

Layout of the BECKHOFF CP-Link Card

CP9030_3

Fig. 5

ONDIP

234

ONDIP

12345678

T304

W500

ST404

SW400

ST306

ST203

ST501

ST303

ST305

ST302

ST301

T202

201

500

-LinkA

-LinkB

CP9030_3

LED

JU201

JU401

JU402

J300

JU202

JU203

LED

LED06

LED07

Bayview

Version1.1

ersion1.730

01.11.1998

10 CP9030 / CP9035

Technical Data CP9030

Configuration jumpers on the CP9030_3

Fig. 6

BECKHOFF CP9030_ 3

J201

J203

J205

J207

J209

J211

J213

J215

J217

J219

J221

J223

J225

J227

J229

J231

J233

J235

J237

J239

J241

J243

J245

J247

J249

J269J268

J267J266 J265J264

J263J262

J252

J254

J256

J258

J251

J253

J255

J257

J261

J260

J202

J204

J206

J208

J210

J212

J214

J216

J218

J220

J222

J224

J226

J228

J230

J232

J234

J236

J238

J240

J242

J244

J246

J248

J250

CP9030 / CP9035 11
