BCM AR3399RK Manuel utilisateur
AR3399RK
This Quick Start Guide is for BCM AR3399RK ARM motherboards based on Rockchip
RK3399 Cortex A72+A53 platform.
Quick Start Guide
Ver 0.1
AR3399RK Quick Start Guide Page 2
Contents
1. Overview…………………………………………………….3
2. Mainboard Illustration…………………………………….4
3. Getting Started……………………………………………..5
4. Jumper and Connector pin out………………………….7
AR3399RK Quick Start Guide Page 3
1. Overview
AR3399RK
Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core
Cortex-A53 (6-Core) SoC ARM Motherboard
•Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core Cortex-A53
(6-Core) SoC
•2GB DDR3L Onboard (Expandable to 4GB Max)
•ARM® Mali-T860MP4 Integrated Graphics
•HDMI, LVDS, MIPI-CSI
•1 x uSD Card Socket
•16GB eMMC Onboard
•2 x USB 3.0, 2 x USB 2.0, 1 x USB 3.0 Gen 2 Type C OTG Connector
•1 x 2230 M.2 E Key and 1 x 2242 M.2 B Key
•I2C, I2S, GPIO
•12V DC-In
•4.33” x 5.71” (110mm x 145mm)
AR3399RK Quick Start Guide Page 4
2. Board IO/Jumper illustration
Board Top view：
AR3399RK Quick Start Guide Page 5
3. Getting started
1. Insert a bootable uSD card into slot CN23 if booting from uSD instead of eMMC.
Note: do not force the card into the slot; it should go in with moderate pressure
2. Connect an HDMI monitor to CN2
3. Connect a USB mouse/keyboard either to the rear I/O USB connectors (CN7), or
through the onboard header CN22 (USB cable not included)
AR3399RK Quick Start Guide Page 6

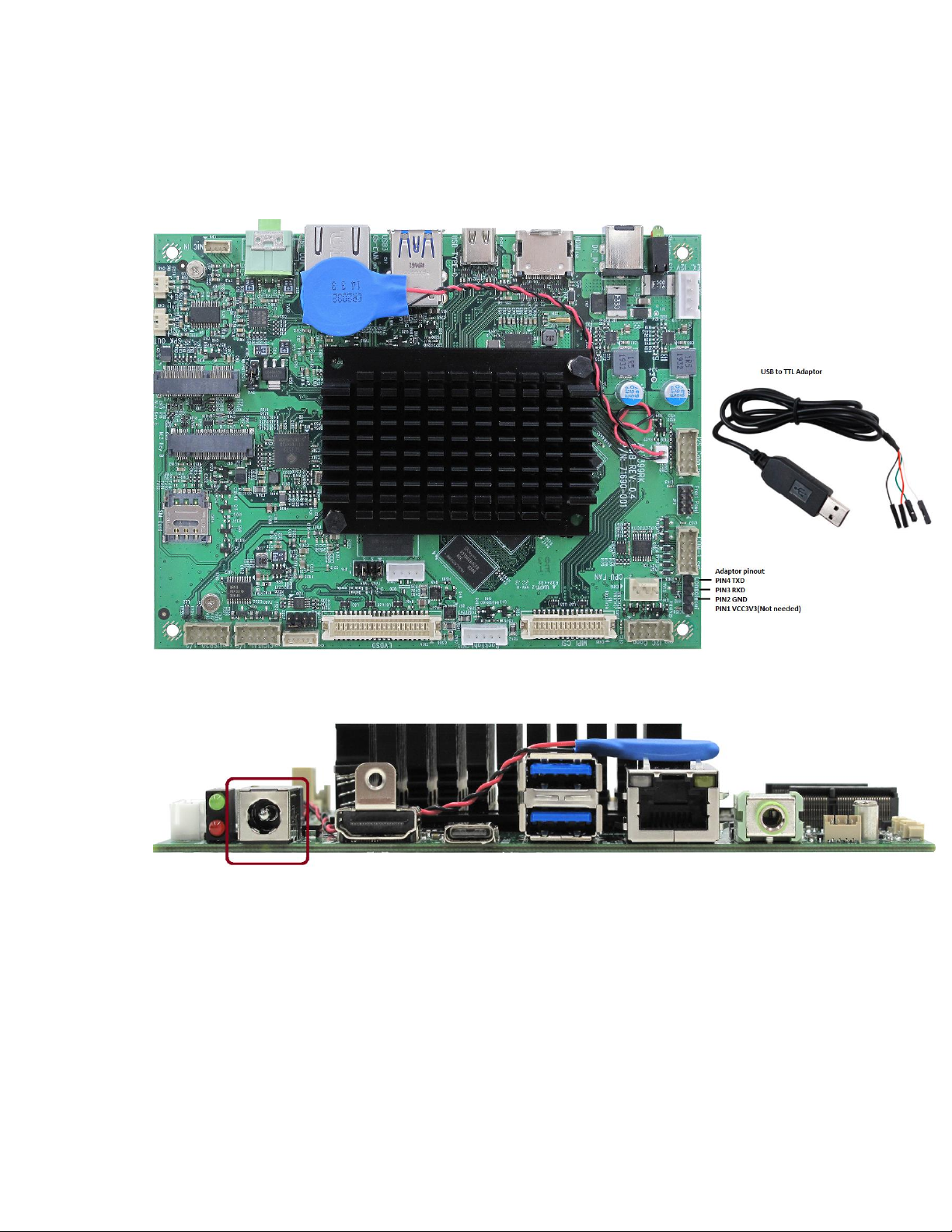

4. if you need console access, connect a serial (TTL) to USB adapter from CN11 to your
workstation.
4.1 Set your terminal settings to the following: 115200 bps, 8bits, no parity, 1 stop bit,
and no flow control
5. Connect 12V power adapter to CN5 to boot up
AR3399RK Quick Start Guide Page 7
4. Jumper Settings and Pin Definition
1.
JP1
Boot Mode
2.
JP2
Front Panel
Connector type：HDR 1x2 2.0mm
Pin
Definition
1
GND
2
GND
Default
JP1
BOOT MODES
Open
Normal Boot
Close
Recovery Mode
Connector type：HDR 2x4 2.0mm DIP
Pin
Definition
Pin
Definition
1
GND
5
GND
2
NC
6
PMIC_PWRON
3
GND
7
VCC_RTC
4
NC
8
RK808D_RESET
Usage
JP2
Effect
Short pin 7-8
System Reset
3.
JP5
LVDS Panel EDID Options
Connector type：HDR 2x4 2.0mm DIP
Pin
Definition
Pin
Definition
1
7511GPI3
5
7511GPI2
2
7511GPI1
6
7511GPI0
3
GND
7
GND
4
GND
8
GND
Default
GPI[3:0]
Panel EDID
GPI[3:0]
Panel EDID
0000
800x600 1ch/18bit
1000
1366x768 1ch/24bit
0001
1024x768 1ch/18bit
1001
1440x900 2ch/24bit
0010
1024x768 1ch/24bit
1010
1440x1050 2ch/24bit
0011
1280x768 1ch/18bit
1011
1600x900 2ch/24bit
0100
1280x800 1ch/18bit
1100
800x480 1ch/24bit
0101
1280x960 2ch/24bit
1101
1024x600 1ch/24bit
0110
1280x1024 1ch/18bit
1110
800x480 1ch/18bit
0111
1366x768 1ch/18bit
1111
1024x600 1ch/18bit
AR3399RK Quick Start Guide Page 8
4.
JP6
CH7511 LVDS FW mode
5.
CN1
LINE OUT
Connector type：HDR 2x4 2.0mm DIP
Pin
Definition
Pin
Definition
1
9904_SPC
5
9904_SPD
2
SPC1
6
SPD1
3
9904_SPC
7
9904_SPD
4
EE100_SPC
8
EE100_SPD
Default
Jumper selector
9904 EEPROM
1-2, 5-6
Default
3-4, 7-8
Update mode
Connector type：3.5mm Phone Jack Green
Pin
Definition
1
AD_AGND
2
LOUT_R
3
L-DET
4
AD_AGND
5
LOUT_L
6.
CN2
HDMI
7.
CN4
MIC IN
Connector type：HDMI
Pin
Definition
Pin
Definition
1
D2+
13
CEC
2
GND
14
NC
3
D2-
15
I2C_CLK
4
D1P
16
I2C_DAT
5
GND
17
GND
6
D1+
18
5V
7
D0+
19
HP_DET
8
GND
20
GND
9
D0-
21
GND
10
CLK+
22
GND
11
GND
23
GND
12
CLK-
Connector type：HDR 1x4 1.25mm DIP
Pin
Definition
1
MIC_DET
2
MICBIAS_J
3
MIC_J
4
AD_AGND
AR3399RK Quick Start Guide Page 9
8.
CN5
DC JACK
9.
CN6
LAN
Connector type：DC-JACK 6.5/2.5mm
Pin
Definition
1
12V DC-IN
2
GND
3
GND
Connector type：RTA-164AAK1A
Pin
Definition
Pin
Definition
1
GE_MDI0+
9
GE_MDI3+
2
GE_MDI0-
10
GE_MDI3-
3
GE_MDI1+
11
LED2
4
GE_MDI1-
12
D3V3
5
GND
13
D3V3
6
GND
14
LED1
7
GE_MDI2+
15
GND
8
GE_MDI2-
16
GND
10.
CN7 : USB3.0x2 (Type A)
Connector type：UEA11123-8HD1-4H
AR3399RK Quick Start Guide Page 10
11.
CN8
SPK OUT R
12.
CN9
SPK OUT L
Connector type：Header 1X2 1.25
Pin
Definition
1
SPK_R_OUT+
2
SPK_R_OUT-
Connector type：Header 1X2 1.25
Pin
Definition
1
SPK_L_OUT+
2
SPK_L_OUT-
13.
CN10
M.2 Key E Slot
14.
CN11
UART Debug Console
Standard M.2 Key E pinout
Connector type：Header 1X4 2.54
Pin
Definition
1
VCC3V3
2
GND
3
UART2_TXD
4
UART2_RXD
15.
CN12
I2S
16.
CN13
M.2 Key B Slot
Connector type：HDR 2x5 2.0mm DIP
Pin
Definition
Pin
Definition
1
I2S1_SCLK
6
I2S1_SDO0
2
VCC1V8
7
I2S_LRCK_TX
3
GND
8
I2S1_SDI0
4
GND
9
GND
5
I2S_LRCK_RX
10
GND
Standard M.2 Key B pinout
17.
CN14
NANO SIM CARD
18.
CN15
COM-1 UART0
Connector type：NANO SIM Socket
Pin
Definition
C1
CCVCC
C2
CCRST
C3
CCCLK
C5
GND
C6
NC
C7
CCIO
SW
SIMDET_1
Connector type：HDR 2x5 2.0mm DIP
Pin
Definition
Pin
Definition
1
RTS_RS232
6
RX_TTL
2
RX_RS232
7
CTS_TTL
3
CTS_RS232
8
TX_TTL
4
TX_RS232
9
GND
5
RTS_TTL
10
GND
