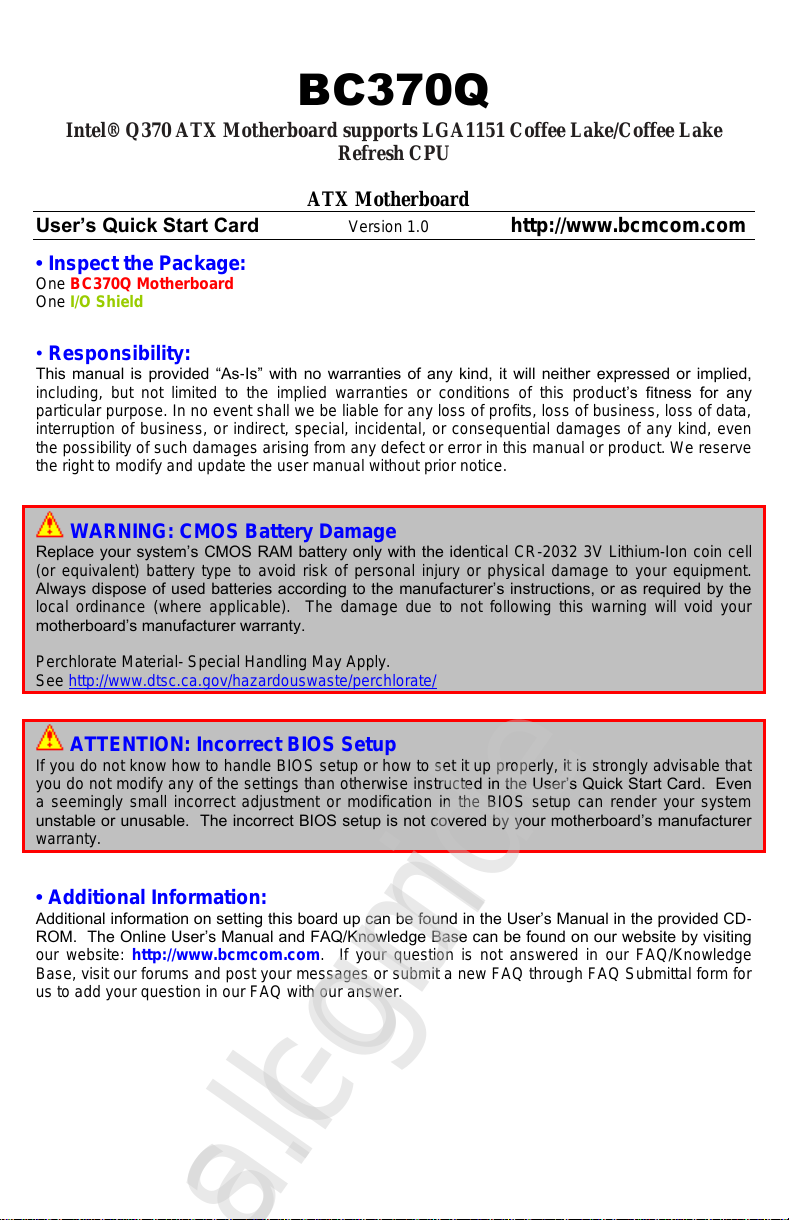

BCM Advanced Research BC370Q Manuel utilisateur

BC370Q

Intel® Q370 ATX Motherboard supports LGA1151 Coffee Lake/Coffee Lake

Refresh CPU

ATX Motherboard

User’s Quick Start Card Version 1.0http://www.bcmcom.com

• Inspect the Package:

One BC370Q Motherboard

One I/O Shield

• Responsibility:

This manual is provided “As-Is” with no warranties of any kind, it will neither expressed or implied,

including, but not limited to the implied warranties or conditions of this product’s fitness for any

particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of data,

interruption of business, or indirect, special, incidental, or consequential damages of any kind, even

the possibility of such damages arising from any defect or error in this manual or product. We reserve

the right to modify and update the user manual without prior notice.

WARNING: CMOS Battery Damage

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell

(or equivalent) battery type to avoid risk of personal injury or physical damage to your equipment.

Always dispose of used batteries according to the manufacturer’s instructions, or as required by the

local ordinance (where applicable). The damage due to not following this warning will void your

motherboard’s manufacturer warranty.

Perchlorate Material- Special Handling May Apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

ATTENTION: Incorrect BIOS Setup

If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that

you do not modify any of the settings than otherwise instructed in the User’s Quick Start Card. Even

a seemingly small incorrect adjustment or modification in the BIOS setup can render your system

unstable or unusable. The incorrect BIOS setup is not covered by your motherboard’s manufacturer

warranty.

• Additional Information:

Additional information on setting this board up can be found in the User’s Manual in the provided CD-

ROM. The Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting

our website: http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge

Base, visit our forums and post your messages or submit a new FAQ through FAQ Submittal form for

us to add your question in our FAQ with our answer.

All manuals and user guides at all-guides.com

all-guides.com

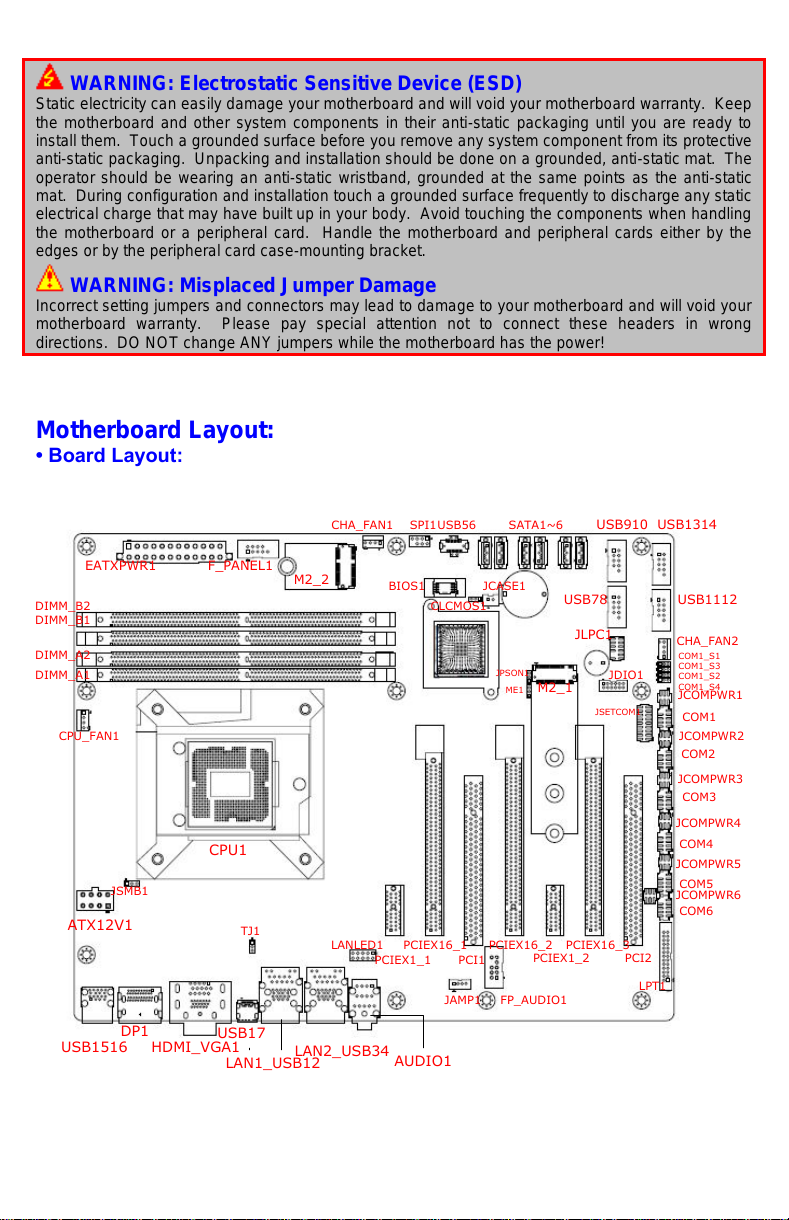

WARNING: Electrostatic Sensitive Device (ESD)

Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep

the motherboard and other system components in their anti-static packaging until you are ready to

install them. Touch a grounded surface before you remove any system component from its protective

anti-static packaging. Unpacking and installation should be done on a grounded, anti-static mat. The

operator should be wearing an anti-static wristband, grounded at the same points as the anti-static

mat. During configuration and installation touch a grounded surface frequently to discharge any static

electrical charge that may have built up in your body. Avoid touching the components when handling

the motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the

edges or by the peripheral card case-mounting bracket.

WARNING: Misplaced Jumper Damage

Incorrect setting jumpers and connectors may lead to damage to your motherboard and will void your

motherboard warranty. Please pay special attention not to connect these headers in wrong

directions. DO NOT change ANY jumpers while the motherboard has the power!

Motherboard Layout:

• Board Layout:

DP1

EATXPWR1

USB1516

ATX12V1

CPU1

CHA_FAN1 SATA1~6

JSMB1

PCI2

F_PANEL1

SPI1

LPT1

USB910 USB1314

JLPC1

FP_AUDIO1

USB56

CLCMOS1

COM1_S1

COM1_S3

COM1_S2

COM1_S4

JCOMPWR1

JDIO1

TJ1

LANLED1

CPU_FAN1

JCASE1

M2_2 BIOS1

USB78 USB1112

CHA_FAN2

COM1

JCOMPWR2

COM2

JCOMPWR3

COM3

JCOMPWR4

COM4

JCOMPWR5

COM5

COM6

JCOMPWR6

JSETCOM1

PCIEX16_3

PCIEX1_2

PCIEX16_2

PCI1

PCIEX16_1

PCIEX1_1

JAMP1

M2_1

HDMI_VGA1

USB17

LAN1_USB12

LAN2_USB34 AUDIO1

DIMM_A1

DIMM_A2

DIMM_B2

DIMM_B1

JPSON1

ME1

All manuals and user guides at all-guides.com

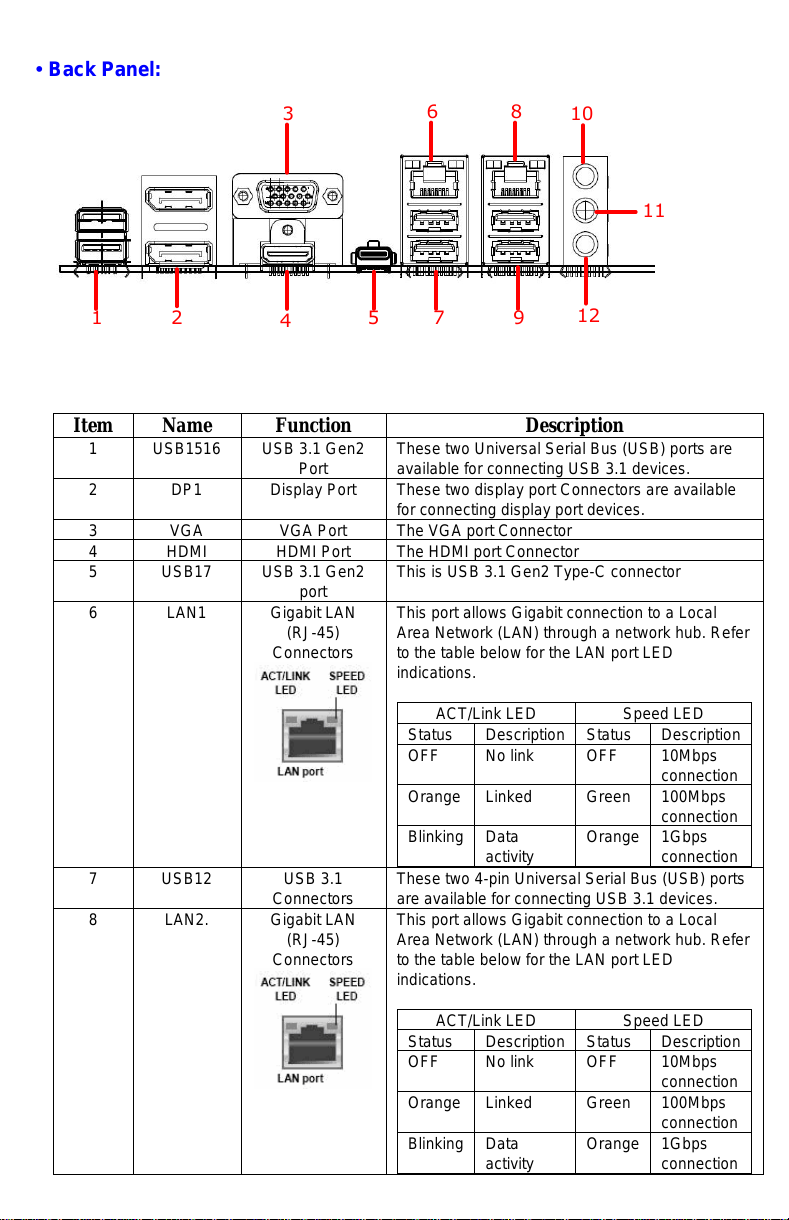

• Back Panel:

1 2

Item

Name

Function

Description

USB1516

USB 3.1 Gen2

Port

These two Universal Serial Bus (USB) ports are

available for connecting USB 3.1 devices.

DP1

Display Port

These two display port Connectors are available

for connecting display port devices.

VGA

VGA Port

The VGA port Connector

HDMI

HDMI Port

The HDMI port Connector

USB17

USB 3.1 Gen2

port

This is USB 3.1 Gen2 Type-C connector

LAN1

Gigabit LAN

(RJ-45)

Connectors

This port allows Gigabit connection to a Local

Area Network (LAN) through a network hub. Refer

to the table below for the LAN port LED

indications.

ACT/Link LED

Speed LED

Status

Description

Status

Description

OFF

No link

OFF

10Mbps

connection

Orange

Linked

Green

100Mbps

connection

Blinking

Data

activity

Orange

1Gbps

connection

USB12

USB 3.1

Connectors

These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 3.1 devices.

LAN2.

Gigabit LAN

(RJ-45)

Connectors

This port allows Gigabit connection to a Local

Area Network (LAN) through a network hub. Refer

to the table below for the LAN port LED

indications.

ACT/Link LED

Speed LED

Status

Description

Status

Description

OFF

No link

OFF

10Mbps

connection

Orange

Linked

Green

100Mbps

connection

Blinking

Data

activity

Orange

1Gbps

connection

All manuals and user guides at all-guides.com

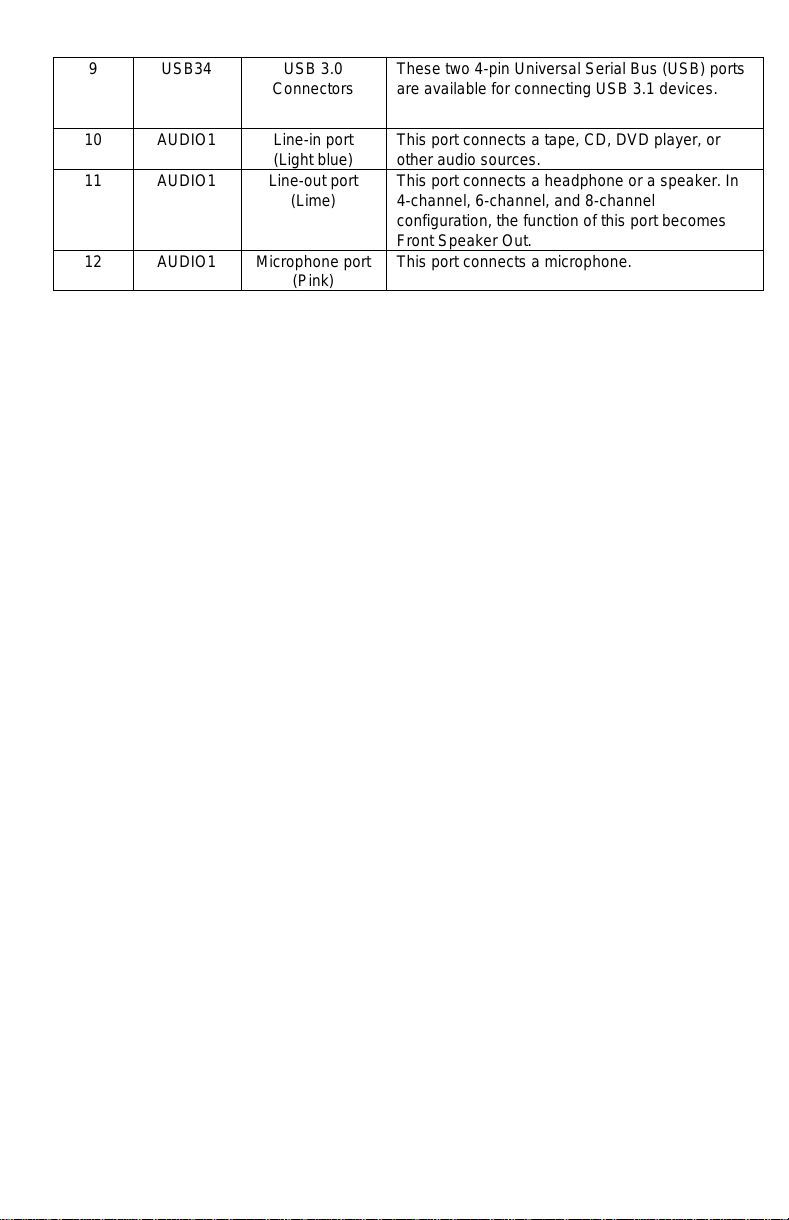

USB34

USB 3.0

Connectors

These two 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 3.1 devices.

AUDIO1

Line-in port

(Light blue)

This port connects a tape, CD, DVD player, or

other audio sources.

AUDIO1

Line-out port

(Lime)

This port connects a headphone or a speaker. In

4-channel, 6-channel, and 8-channel

configuration, the function of this port becomes

Front Speaker Out.

AUDIO1

Microphone port

(Pink)

This port connects a microphone.

All manuals and user guides at all-guides.com

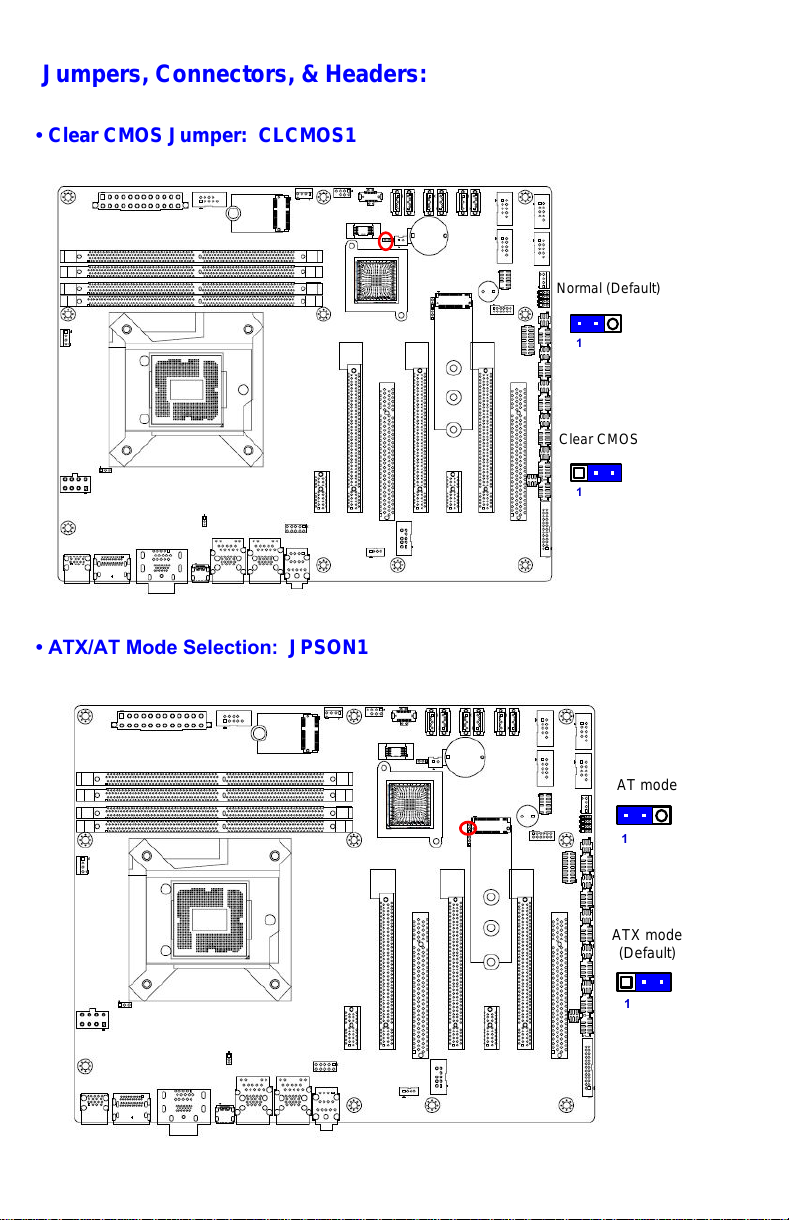

Jumpers, Connectors, & Headers:

• Clear CMOS Jumper: CLCMOS1

Normal (Default)

Clear CMOS

• ATX/AT Mode Selection: JPSON1

AT mode

ATX mode

(Default)

All manuals and user guides at all-guides.com

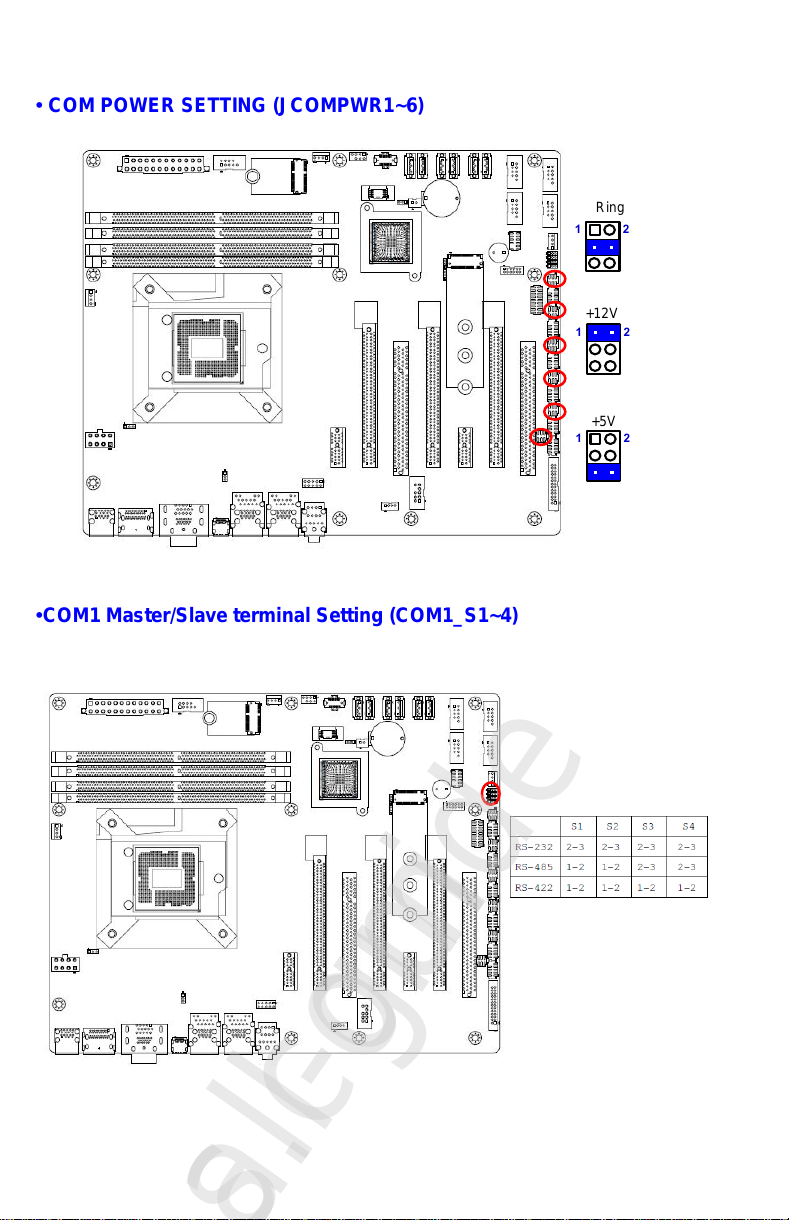

•COM POWER SETTING (JCOMPWR1~6)

Ring

+12V

1 2

+5V

1 2

•COM1 Master/Slave terminal Setting (COM1_S1~4)

All manuals and user guides at all-guides.com

all-guides.com

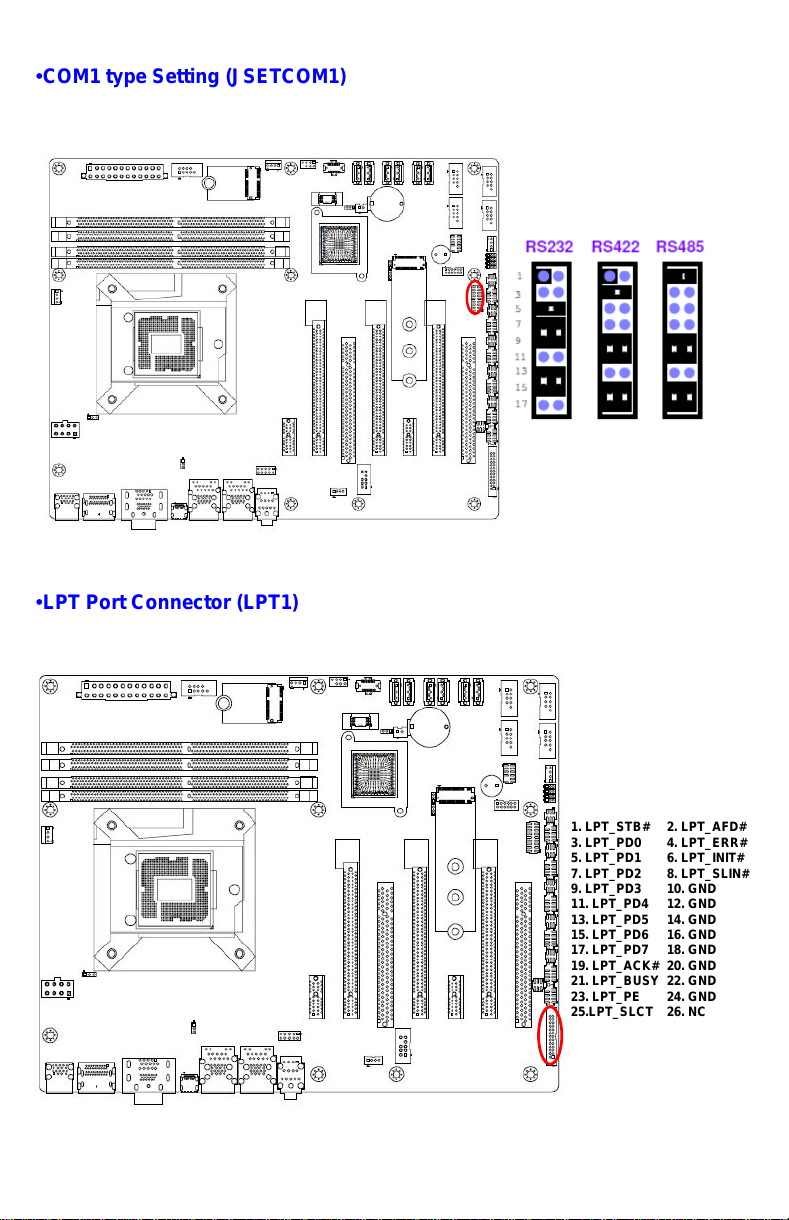

•COM1 type Setting (JSETCOM1)

•LPT Port Connector (LPT1)

1. LPT_STB#

3. LPT_PD0

5. LPT_PD1

7. LPT_PD2

9. LPT_PD3

11. LPT_PD4

13. LPT_PD5

15. LPT_PD6

17. LPT_PD7

19. LPT_ACK#

21. LPT_BUSY

23. LPT_PE

25.LPT_SLCT

2. LPT_AFD#

4. LPT_ERR#

6. LPT_INIT#

8. LPT_SLIN#

10. GND

12. GND

14. GND

16. GND

18. GND

20. GND

22. GND

24. GND

26. NC

All manuals and user guides at all-guides.com

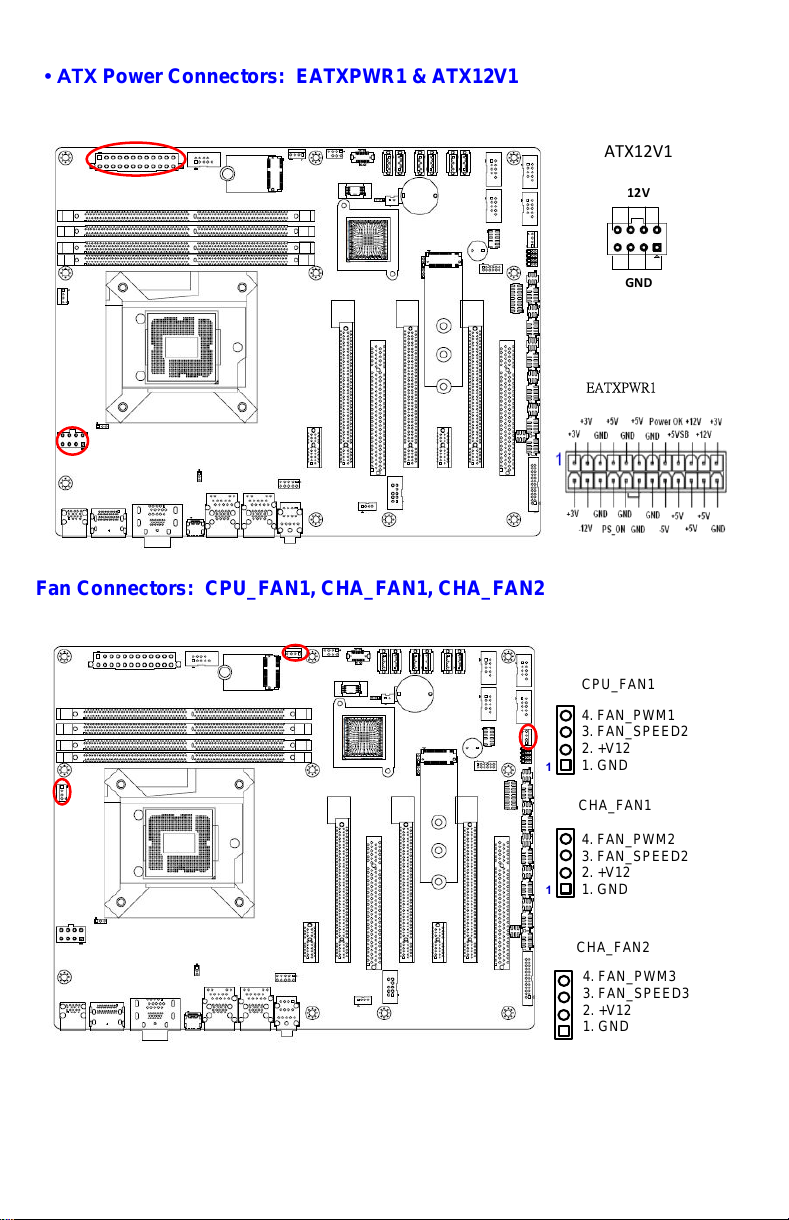

• ATX Power Connectors: EATXPWR1 & ATX12V1

ATX12V1

EATXPWR1

GND

12V

EATXPWR1

ATX12V1

Fan Connectors: CPU_FAN1, CHA_FAN1, CHA_FAN2

CPU_FAN1

CHA_FAN1

4. FAN_PWM2

3. FAN_SPEED2

2. +V12

1. GND

4. FAN_PWM1

3. FAN_SPEED2

2. +V12

1. GND

CHA_FAN2

4. FAN_PWM3

3. FAN_SPEED3

2. +V12

1. GND

All manuals and user guides at all-guides.com

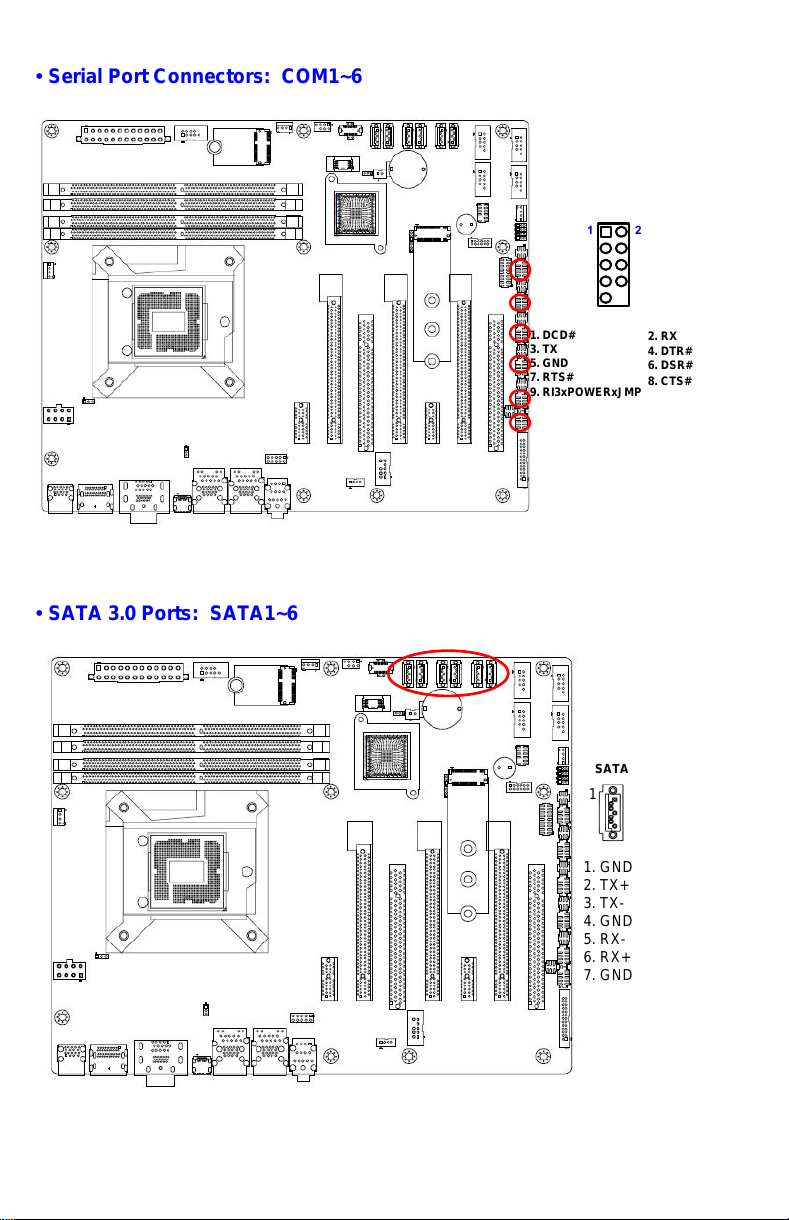

• Serial Port Connectors: COM1~6

1. DCD#

3. TX

5. GND

7. RTS#

9. RI3xPOWERxJMP

2. RX

4. DTR#

6. DSR#

8. CTS#

• SATA 3.0 Ports: SATA1~6

SATA

1. GND

2. TX+

3. TX-

4. GND

5. RX-

6. RX+

7. GND

All manuals and user guides at all-guides.com

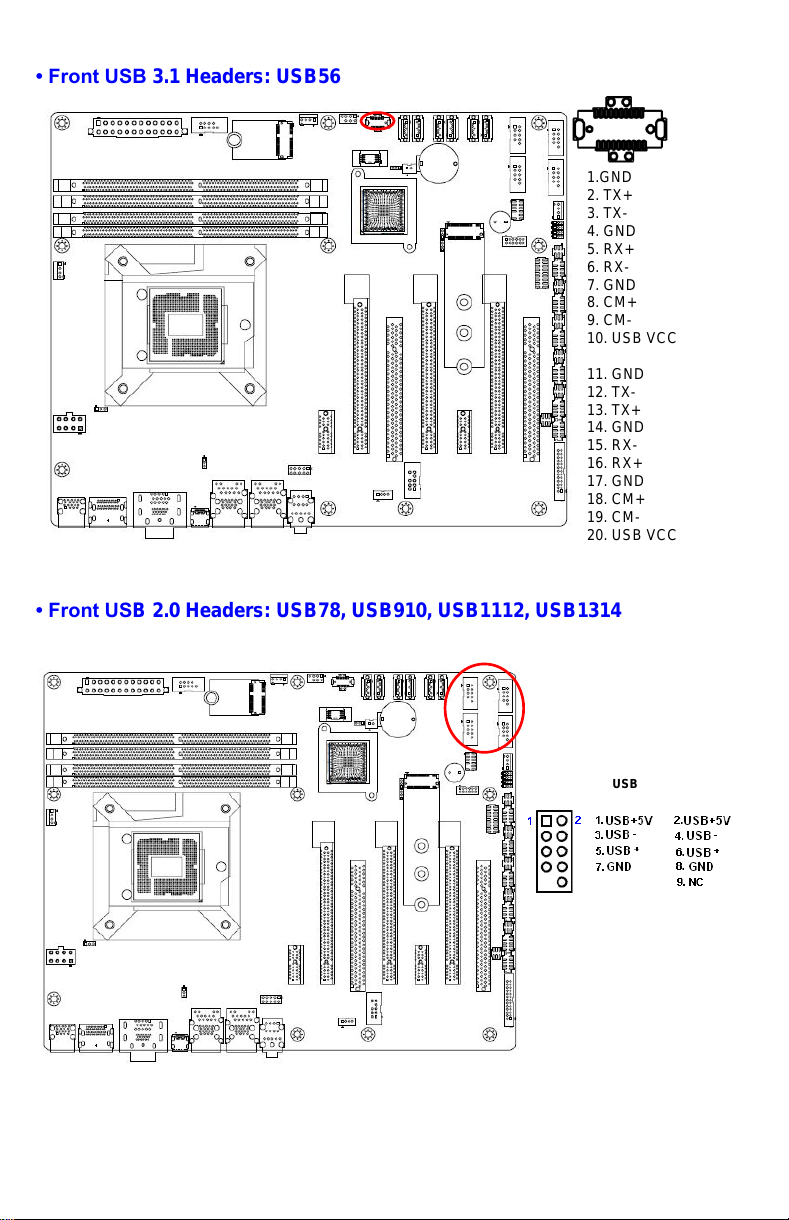

• Front USB 3.1 Headers: USB56

1.GND

2. TX+

3. TX-

4. GND

5. RX+

6. RX-

7. GND

8. CM+

9. CM-

10. USB VCC

11. GND

12. TX-

13. TX+

14. GND

15. RX-

16. RX+

17. GND

18. CM+

19. CM-

20. USB VCC

• Front USB 2.0 Headers: USB78, USB910, USB1112, USB1314

USB
