USER MANUAL FOR YOUR BAUMATIC

BWM1409W

60 cm 9 kg

Freestanding

washing machine

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 25/05/10

Contents

Environmental note 4

Important safety information 5 – 6

Specifications 7

Description of the appliance 8

Controlpanel 9-10

LCDdisplay 10-11

Detergent drawer 11-12

Preparing the wash cycle 12-14

Preparing your garments for washing 12-13

A selection of wash care symbols 13

Detergents and conditioners 14

Wash program table 15

Wash program guidance 15-16

Selecting a wash program 16-23

Descriptions of the wash programs 16 – 22

Endofcycle 22

Pausing a wash program 22

Changing a wash program 22

Delay start feature 22-23

Childlock 23

Maintenance and cleaning 23-30

Indailyuse 23-24

Control panel and washing machine cabinet 24

Detergentdrawer 24

The washing machine drum 24-25

Door 25

95° maintenance wash 25

Cleaning the drain pump filter 25-26

Cleaning the water inlet filter 26

Winter storage 26-27

Removingstains 27

Stainremovalrules 27

Stainremovalguide 28

Poor wash results 29-30

Installation 30-35

Removing the transit bolts 30-31

Locating your washing machine 31

Connecting to the mains water supply 32

Connecting to the water outlet 33

Levelling the appliance 34

Powersupply 35

Before first use maintenance wash 35

Error code failure system 36–37

General troubleshooting 37-38

Contact details 39

Environmental note

Important safety information

Your safety is of the utmost importance to

Baumatic. Please make sure that you read this

instruction booklet before attempting to install or

use the appliance. If you are unsure of any of the

information contained in this booklet, please

contact the Baumatic Advice Line.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your washing machine.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe glass of the porthole door may become hot during the higher

temperature wash programs.

oThe machine should be allowed to cool before carrying out an

emergency drain or cleaning the drain filter.

oIt is possible for small animals to chew either the mains cable or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, we advise that a 95

degree cotton wash is completed. No garments should be

placed inside the machine; however a small amount of

detergent must be used.

During Use

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThis appliance is only designed to wash normal domestic

washloads. If you use your washing machine in any other way or

it is incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oNo attempt should be made to alter or modify the specifications

of this appliance.

oThe detergents that you place in this appliance should be

suitable for automatic washing machines. With regards to dosage

levels, the detergent manufacturer’s recommendations should be

followed.

oYou should not wash garments that have been in contact with

flammable materials.

oYour washing machine should not be used for dry cleaning.

oIf you use either dyes or bleaching agents inside this machine,

then you should consult with the manufacturer of these products

to make sure they are suitable for use in your washing machine.

Baumatic cannot be held responsible for any damage that may

result.

Child Safety

oYour washing machine should only be used by adults. You should

not allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

washing machine through the porthole door. Therefore please

check the drum before using the appliance.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of a child’s reach and in a safe

place.

Specifications

o18 wash programs

o9 kg wash load

o1400 rpm maximum spin speed

oLED display

oDelay start

oDigital countdown indicator

oOpen door indicator

oWater supply indicator

oWash phase indicator

oTilted drum

oAir bubble washing system

o488 mm porthole and 180° opening

oAntibacterial surface

oFailure detection system

oImbalance control system

oOverflow protection

oFoam protection

oAdjustable feet

oDirect drive system

oSafety door lock

Appliance dimensions

Height: 850 mm

Width: 600 mm

Depth: 645 mm

Ratings

Energyefficiencyclass A+

Wash performance class A

Water extraction performance class A

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your washing machine

will either be located on the right hand side of the cabinet or behind

the porthole door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

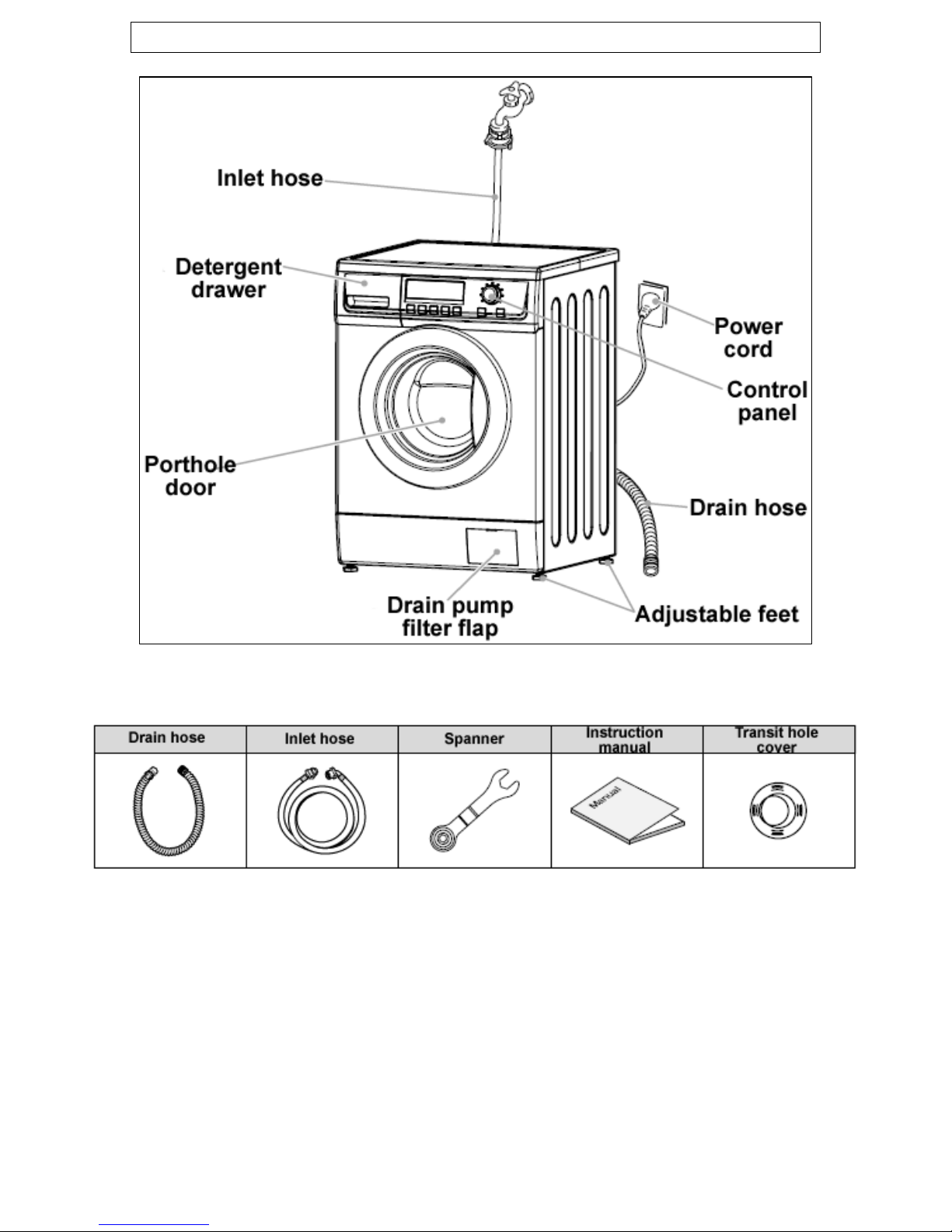

Description of the appliance

Accessories

Control panel

1) Power button. Press this button to turn the power on or

off.

2) Start/pause button. Operation and temporary stop is

repeated as it is pressed. When you want to change a

program while it is in use, press this button, then select the

program you want to change to, and then press this button

again.

3) Wash program selection

knob. You can select the cycle

you want by rotating the knob to

choose from 8 options around the

outside.

4) Temperature button. This button can be used to

adjust the temperature of the water according to the type

of load that needs cleaning. As the button is pressed, the

temperature of the water can be selected through the

following options:

Cold

30°C

40°C

60°C

95°C

5) Spin button. By pressing this button, the spin speed

can be chosen. You can set the spin speed by rpm through

the following options:

Rinse Hold

400

800

1000

1400

6) Wash button. You can select the cycle you want by

using this button. The light of the chosen cycle will glow

after selection. As the button is pressed, the wash cycle is

chosen through the following options:

Wash

Soak

Pre-wash

7) Rinse + Spin button. You can select the rinse and

spin cycle by pressing this button.

8) Water + button. You can press this button to add an extra 6 litres

of water to the rinse section of any wash cycle, to increase the rinse

performance without lengthening time it takes to complete.

9) Delay start button. This button can be used to delay the start of

the wash cycle from between 1 – 12 hours.

10) Memory button.You can use this button to recall a cycle that you

have previously programmed the washing machine to remember.

11) Rinse + button. You can press this button to introduce an

additional rinse, which will help to remove traces of detergent residue.

LCD display

Wash cycle progress indicator

This lights when a wash cycle is in progress, to indicate what stage of

the wash cycle the appliance has reached from:

Wash

Rinse

Spin

Wash display

This lights the wash functions that have been selected such as a pre-

wash or a soak.

Wash program temperatures

This light indicates which wash temperature has been selected.
