Baumatic BFLW75 Manuel utilisateur

BFLW75 60 cm 7.5 kg

Freestanding

Washin

Machine

USER MANUAL FOR YOUR BAUMATIC

BFLW75

60 cm 7.5 kg Freestanding

washing machine

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 18/03/13

Contents

Environmentalnote 5

Important safety information 6 – 8

Specifications 9

Description of the appliance 10-13

Controlpanel 11

LEDdisplay 12

Detergentdrawer 13

Preparing the wash cycle 14 - 18

Preparing your garments for washing 14

A selection of wash care symbols 15

Detergentsandconditioners 15-16

Washprogramtable 17

Wash program guidance 18

Selecting a wash program 19-22

Settingawashprogram 19

Endofcycle 19

Pausingawashprogram 19

Delaystartfeature 19

Settingasinglewash 20

Manualsoaking 20

Hightemperatureself-clean 21

Activeenzyme 21

Extrarinse 21

Childlock 22

Addingagarment 22

Poweroffmemory 22

Maintenance and cleaning 23 - 30

Indailyuse 23

Control panel and washing machine cabinet 23

Detergentdrawer 24

The washing machine drum 24

Door 24

Emergency drainage 25

Cleaning the drain pump filter 26

Cleaning the water inlet filter 27

Winterstorage 27

Removingstains 28

Stainremovalrules 28

Stainremovalguide 28-29

Poor wash results - troubleshooting 30

Installation 31 - 36

Removing the transit bolts 31

Locatingyourwashingmachine 32

Connecting to the mains water supply 33

Connectingtothewateroutlet 34

Levelling the appliance 35

Powersupply 35

Before first use maintenance wash 36

Error code failure system 36

General troubleshooting 37–39

Contactdetails 43

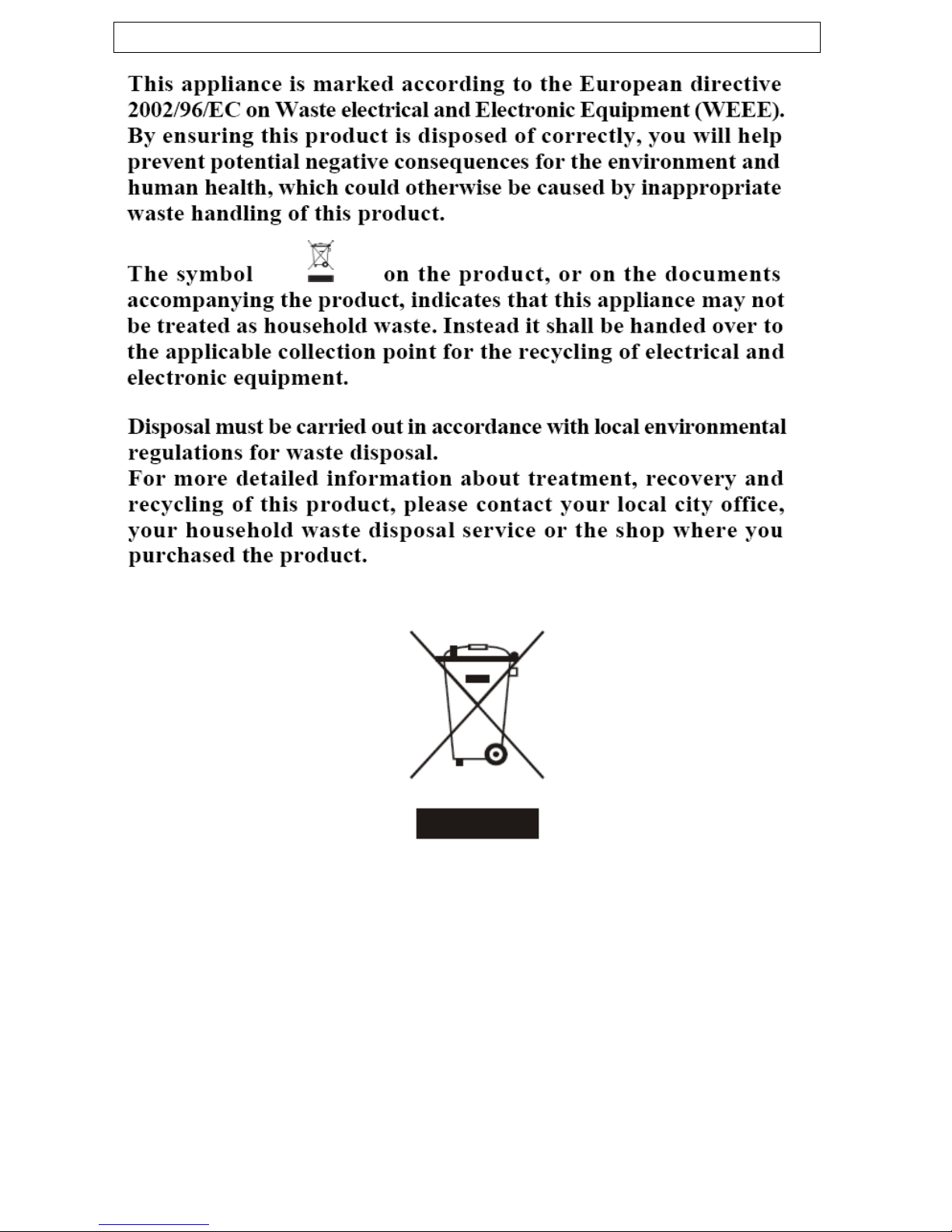

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction

booklet before attempting to install or use the

appliance. If you are unsure of any of the

information contained in this booklet, please contact

the Retailer where you purchased your unit.

General Safety

oRepairs to your appliance must only be carried out by an

authorised service agent and only genuine spare parts should be

used. Any attempt by an inexperienced person to repair the

appliance, could result in injury or damage to your washing

machine.

oThis appliance is designed for household use only.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe glass of the porthole door may become hot during the higher

temperature wash programs.

oThe machine should be allowed to cool before carrying out an

emergency drain or cleaning the drain filter.

oIt is possible for vermin to chew either the mains cable or water

hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, we advise that a 95

degree cotton wash is completed. No garments should be

placed inside the machine; however a small amount of

detergent must be used.

During Use

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThis appliance is only designed to wash normal domestic wash

loads. If you use your washing machine in any other way or it is

incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oNo attempt should be made to alter or modify the specifications

of this appliance.

oThe detergents that you place in this appliance must be suitable

for front load washing machines. With regards to dosage levels,

the detergent manufacturer’s recommendations should be

followed.

oYou should not wash garments that have been in contact with

flammable materials.

oYour washing machine should not be used for dry cleaning

purposes or commercial use.

oIf you use either dyes or bleaching agents inside this machine,

then you should consult with the manufacturer of these products

to make sure they are suitable for use in your washing machine.

Baumatic cannot be held responsible for any damage that may

result. Avoid leaving bleach containing chlorine in the drum for

an extended period of time.

Child Safety

oYour washing machine should only be used by adults. You should

not allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oThis washing machine is not intended for use by persons

(including children) with reduced physical sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning the use of

the appliance by a person responsible for their safety.

oIt could be possible for a child or pet to gain access to the

washing machine through the porthole door. Therefore, please

check inside the washing machine drum before using the

appliance.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of a child’s reach and stored in

a safe place.

Specifications

o15 wash programs

o7.5 kg wash load

o1200 rpm maximum spin speed

oLED display

oElectronic control operation

oDelay start

oDigital countdown indicator

oSpin speed regulation

oTemperature regulation

oWash phase indicator

oDoor locked indicator

oElectronic aqua stop

oStainless steel drum

o180° door opening

oFailure detection system

oImbalance control system

oOverflow protection

oFoam protection

oAdjustable feet

oChild lock

Appliance dimensions

Height: 855 mm

Width: 595 mm

Depth: 565 mm

Ratings

Energy efficiency class (wash only) 3*

Wash performance class 4.5*

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your washing machine

will either be located on the right hand side of the cabinet or behind

the porthole door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Description of the appliance

Accessories
