Please note- this Instruction Manual contains important safety information. Please

make sure that you read it before using your Washing Machine for the first time. It also

contains valuable Troubleshooting tips so that you can solve faults without having to call

for a service engineer.

Instruction Manual for your Baumatic

BTWM4

FULLY INTEGRATED FULL HEIGHT

WASHING MACHINE

27/07/05

Please note: for fast access to using your

Washing Machine, please look at the bold-font

items listed on the Contents page (page 2).

CONTENTS

Specifications ……….…………….……………………..………………. 3

Important Safety Information……….…..………..…..…………………..4

Your Washing Machine’s Control Panel…...……..….....……………...5

Cautions and Advice ………….…………..……....…………………….…6

Using your BTWM4…………...…………………….….……..…………….7

Before Loading your Washing Machine ………….…………..….……..8

Tips for Loading Laundry / Guide to Washing Labels ..………..…….9

Filling your Washing Machine’s Dispenser

Drawer with Detergent …………………………………..……………10-11

Tips on Washing your Clothes / Running your Washing Machine

……………………………………………………….…………………...12-15

The Programme Knob ….………………………………12

Selecting a Washing Programme ………………..…..13

Starting a Washing Programme ………………..….…14

Interrupting a Programme ……………………..……...14

Additional Functions Buttons ……………….…....15

WASHING PROGRAMME CHART …………………………..…….16-17

At the End of a Wash Programme …………….…..….………………18

Maintenance and Cleaning …………………....……………………19-21

Notes on Stains and How to Remove them

from your Clothes .......................................................................22-23

TROUBLESHOOTING ……………………………..……………….….24-26

INSTALLATION INSTRUCTIONS …………………..………………..27-33

ADJUSTING THE FEET ………..………….......................……………..34

ELECTRICAL CONNECTION ………………..…………………………..34

WATER CONNECTION ……………..…………………………………34-35

Directive Conformity Confirmation ..…………………………………..36

Conditions of Guarantee……………………..….………………............37

Contact Details…………………………..….…………………………..…38

2 washing programmes

Wash load: 5 kg

Maximum spin speed: 1000 rpm

(

)

: 1) On /

Off 2) Rinse Hold 3) No

Spin 4) Spin Speed select

(

650 or 1000 r

)

IMPORTANT SAFETY INFORMATION

WARNING: THIS IS IMPORTANT SAFETY INFORMATION. PLEASE

READ THIS BEFORE USING YOUR WASHING MACHINE.

:DO NOT USE AN EXTENSION CORD OR PLUG INTO A MULTIPLE

SOCKET.

:DO NOT INSERT A PLUG WITH A DAMAGED CORD OR THAT IS

BROKEN INTO THE SOCKET.

:IF THE CORD IS DAMAGED IT SHOULD BE REPLACED BY THE

MANUFACTURER OR APPOINTED SERVICE AGENT.

:NEVER REMOVE THE PLUG FROM THE SOCKET BY PULLING FROM

THE CORD SECTION. HOLD THE PLUG AS YOU PULL IT OUT.

:DO NOT PLUG INTO THE POWER SUPPLY IF YOUR HANDS ARE WET.

:DO NOT TOUCH THE MACHINE WITH WET HANDS OR FEET.

:DO NOT OPEN THE DETERGENT DRAWER WHILE THE DEVICE IS

RUNNING.

:DO NOT FORCE OPEN THE DOOR OF THE MACHINE WHILE THE

MACHINE IS RUNNING.

:DO NOT TOUCH THE DRAIN HOSE AND WATER DURING DRAINING –

THE WASHING MACHINE CAN REACH HIGH TEMPERATURES DURING

DRAINING.

:DO NOT ATTEMPT TO REPAIR. PLEASE APPLY TO THE NEAREST

AUTHORISED SERVICER.

:DO NOT FORGET THAT THE PACKING MATERIAL OF YOUR MACHINE

MAY BE HAZARDOUS FOR CHILDREN.

:NEVER LET CHILDREN PLAY WITH YOUR WASHING MACHINE.

:KEEP PETS AWAY FROM YOUR WASHING MACHINE.

:ONLY USE YOUR WASHING MACHINE IN THE HOME. THE WARRANTY

WILL BE INVALID SHOULD YOU USE IT FOR COMMERCIAL

PURPOSES.

:ALWAYS SWITCH OFF THE POWER AFTER USING YOUR APPLIANCE.

:ENSURE THAT YOU REMOVE AND CLEAN THE FILTER AS AND WHEN

DIRECTED IN THIS MANUAL.

:THE OUTLET HOSE MUST BE FREE OF RESTRICTIONS.

:THE WATER PRESSURE MUST NOT BE ANY MORE THAN 1 MPa

AND NOT LESS THAN 0.05 MPa.

:DO NOT OVERLOAD THE DRUM.

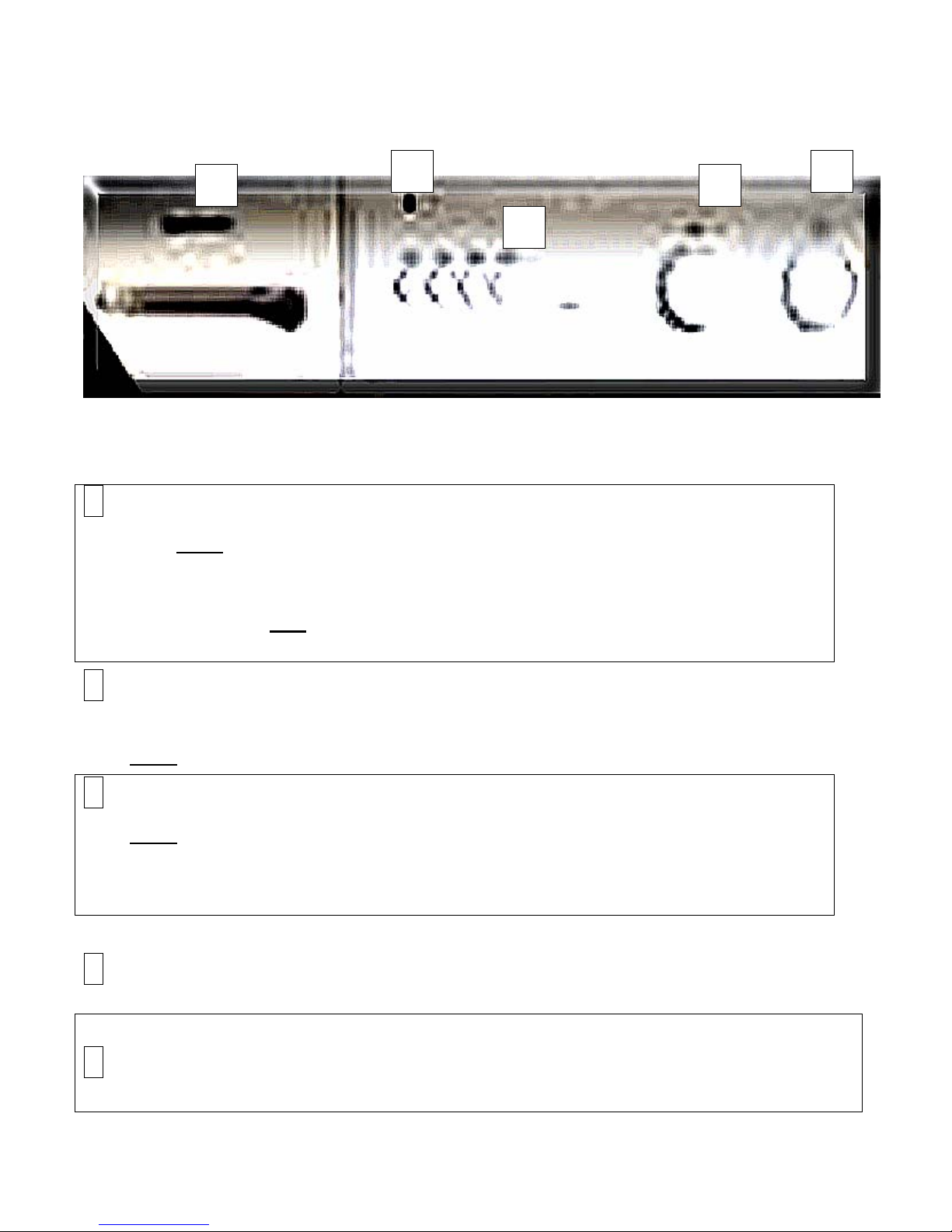

Your BTWM4’s Control Panel

Key to above figure:

1 – Programme Selector (see pages 12-13 for details on use).

Turn this knob to select a Washing programme OR to select a Drying

programme, depending on the dirtiness of your laundry. To set the

programme, firstly ensure that your appliance is OFF (i.e., the position of the

ON/OFF button is out) and turn the knob clockwise until the needle points

to the mark matching the programme you want to use.

2- Wash Temperature Selector Control Knob (see page 13 for

details on use).

This knob adjusts the washing temperature within your appliance.

3 – Additional Function Buttons (see page 15 for details on use).

This knob adjusts the temperature of your wash or drying cycles.

Always check the labels of your clothes before grouping them for a wash

load.

4 – Detergent Dispenser Drawer.

5 – ‘On’ Light

Comes on during operation.

Cautions and advice about using your

washing machine

In order to get maximum satisfaction and performance from your

washing machine, please ensure you follow the instructions given

below:

9Select the clothes load correctly and choose the appropriate

programme.

9Before opening the door, check that there is no water in

the machine and the pilot light is off.

9Put the washing products in the right proportion and in the right

compartment.

9Small garments such as socks, belts, etc. are best put

inside a bag to avoid their being lost.

9Before putting clothes into the washing machine, make sure that

there is nothing in the pockets (coins, buttons, clips, etc.) and

that the zips are undone.

9If your machine has a filter, you should check regularly

that it is clean & not blocked. Be especially wary of coins,

brassiere wire & fluff/hair.

9The interior of the washing machine should be handled by

specialists only. NEVER attempt to repair or modify it

yourself.

9After each wash, leave the door ajar to prevent the rubber

seal from becoming misshapen or mouldy.

9When the clothes to be washed are heavily soiled or splattered

with mud, it is advisable to run a programme with pre-wash.

9Unless doing half load washing, always put the machine

on fully loaded to save energy.

9When the machine has just been installed, or after a long

time without it being used, it is advisable to run a washing

programme with the machine empty, to eliminate any

rusty water in the tubes.

Using your BTWM4

NOTE: (*VERY IMPORTANT*) – You must

ensure that the transportation bolts

have been removed before you attempt

to use your Washing Machine,

OTHERWISE you will damage or

destroy your appliance. See page 27

for instructions.

Only once you are sure this has been done can you do

the following:

1) Plug in your machine

2) Turn on the water supply

Note on using your

Washing Machine

for the first time:

There may be water

left inside your

machine after factory

tests and trials.

•The first time you run a

wash cycle, you should not

put laundry in your machine

as it may need to drain water.

•Pour half a measuring cup of

normal or all purpose detergent

into compartment 2 ( ) in your

detergent dispenser and select

wash program 2 (without prewash)

for 90

•Start the programme.

•Wait until the programme finishes.

*FOR NORMAL USE, SEE NEXT PAGE

Before Loading your

Washing Machine

NOTE: Before putting the clothes into the machine:

oSeparate the clothes into 3 lots (cotton,

synthetics and wool).

9Within each group, separate the coloureds from

the whites. *NOTE – see next page for tips.

9Once the clothes have been separated, you can

put them into the drum of the washing machine,

separately and according to colour and group,

loose, piece by piece. Do not exceed the

maximum weight of clothes as given below:

Cotton Maximum: 5 kg

HOW TO

OPEN THE

DOOR

Pressing the hidden

lever (1) with the

index and middle

fingers, pull

outwards.

oLoad your clothes inside the drum one item at a

time and spread them about well.

oShut the door of your machine, being careful

that no pieces of clothing are jammed between

the door and the gasket seal. Make sure the door

is closed tightly otherwise it won’t work.

Tips for loading your laundry:

:Never wash

your white

and

coloured

clothes

together.

ÂSince your

new

coloured

clothes may

shed dye on

the first

wash,

wash them

separately.

ÂBe careful that

no metal

pieces are in

the pockets of

your clothes.

There is the

chance of rust

residues

coming off and

causing stains.

ÂZip-up and

button your

clothes.

ÂRemove the

plastic or metal

hooks of curtains

or place them

inside a washing

bag and tie.

ÂPull textiles

like trousers,

knitted fabric, T-

shirts and

sweatshirts inside

out.

ÂWash small

clothes like socks

and handkerchiefs

in a washing bag.

REMEMBER TO READ THE LABELS ON YOUR CLOTHES BEFORE ATTEMPTING TO

WASH THEM!

WASHING LABELS & THEIR MEANINGS
