Baumatic BFW1001W Manuel utilisateur
men
BFW1001W Washing
Machine

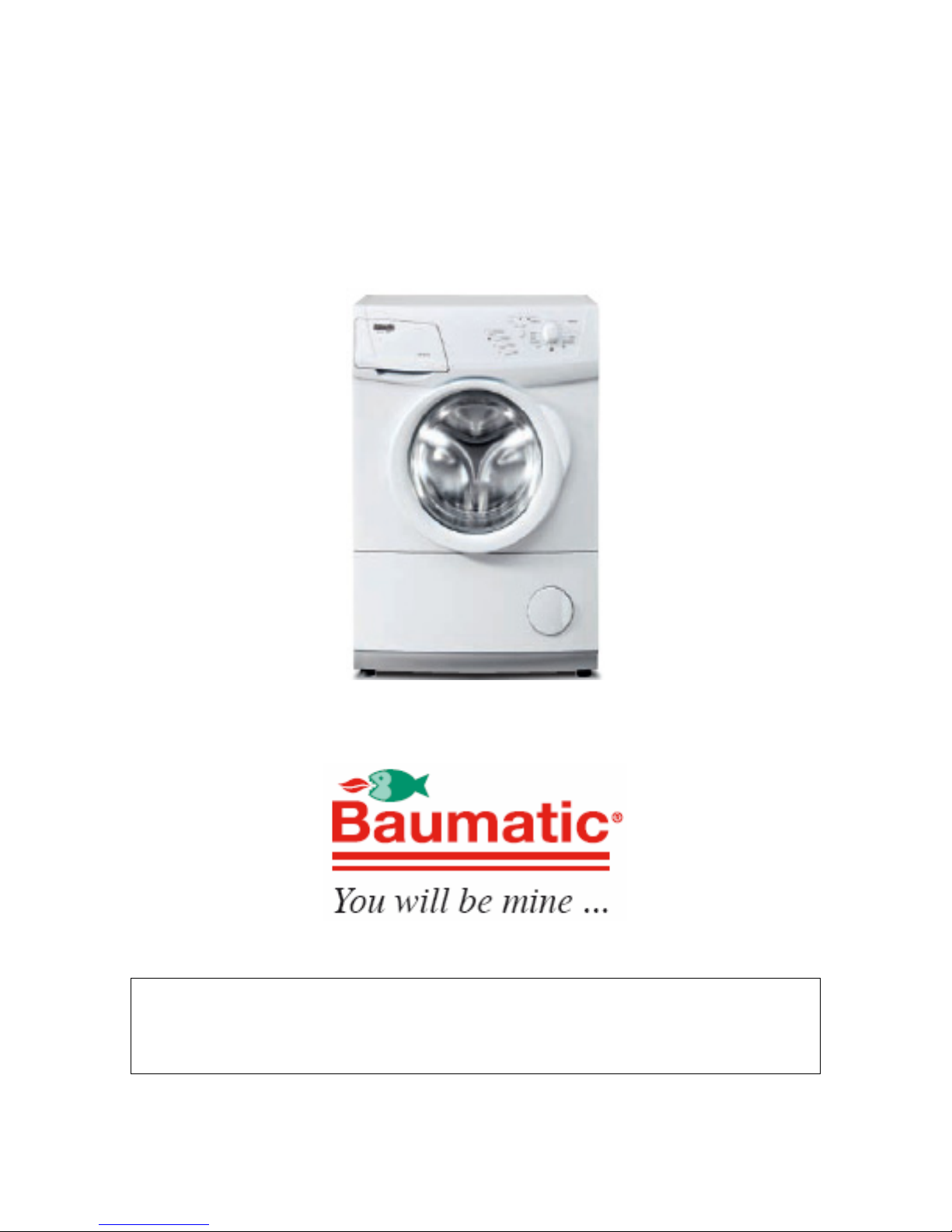

USER MANUAL FOR YOUR BAUMATIC
BFW1001W Washing
Machine
2
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
DD 20/12/06
3
Contents page
Environmental note 4
Important safety information 5 - 6
Specifications 7
Description of the appliance 8
Controlpanel 9
Program options 10
Detergent drawer 11
Preparing the wash cycle 12
Preparing your garments for washing 12
A selection of wash care symbols 13
Detergents and conditioners 14
Programtable 15
Wash program guidance 16
Selecting a wash program 17
At the end of the wash cycle 17
Cancelling a wash program 18
Changing a wash program 18
Spinreductionbutton 19
Maintenance and cleaning 20
Indailyuse 20
Controlpanel 20
Detergent drawer 20
The washing machine drum 21
Door 21
Error code failure system 22 - 24
General troubleshooting 25
Poorwashresults 26
Cleaning the drain pump filter 27
Installation 28
Removing the transit bolts 28
Positioning and levelling the appliance 29
Watersupply 30
Wateroutlet 30
Powersupply 31
Baumatic Ltd. conditions of guarantee 32
Contactdetails 33
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Technical
Department.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorized service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your washing machine.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe glass of the porthole door may become hot during the higher
temperature wash programs.
oThe machine should be allowed to cool before carrying out an
emergency drain or cleaning the drain filter.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
5
6
oBefore the first use of the appliance, we advise that a 95
degree cotton wash is completed. No garments should be
placed inside the machine; however a small amount of
detergent must be used.
During Use
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThis appliance is only designed to wash normal domestic
washloads. If you use your washing machine in any other way or
it is incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oThe detergents that you place in this appliance should be
suitable for automatic washing machines. With regards to dosage
levels, the detergent manufacturer’s recommendations should be
followed.
oYou should not wash garments that have been in contact with
flammable materials.
oYour washing machine should not be used for dry cleaning.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your washing machine.
Baumatic cannot be held responsible for any damages that may
result.
Child Safety
oYour washing machine should only be used by adults. You should
not allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
washing machine through the porthole door. Therefore please
check the drum before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
7
Specifications
915 wash programs
95.5kg wash load
91000 rpm maximum spin speed
9Drum size- 47 litres
9Electronic control
94 Option buttons: Spin speed reduction
Easy ironing
Extrarinse
Rapidwash
9Unbalance control system
9Foam protection
9Overflow protection
9Door closed indicator
9Door safety lock
9Tilted and stainless steel drum
9Adjustable feet
9Error code failure system
9Cold water fill only
Dimensions
Height : 850 mm
Width : 596 mm
Depth : 540 mm
Energy efficiency
Energyrating A
Wash performance A
Water extraction performance C
Description of the appliance
1Control panel
2Detergent drawer
3Porthole door with handle
4Rating plate (on inside rim of porthole door)
5Flap in front of the drain pump filter
6Height adjustable feet
8
CONTROL PANEL
Wash program selection knob
This control knob allows you to select the wash program of your
choice.
Start/Stop button
Once a wash program has been selected, this button should be
pressed to start the wash cycle.
9
10
Program options
¾These buttons need to be pressed after a wash
program has been selected, but before the wash
program has been started.
Spin reduction You can reduce the spin speed
from the one automatically selected by the machine for the wash
program.
Extra rinse The machine will add an additional rinse
to the wash program that you have selected.
Easy ironing Once the last spin has completed, the
drum will move for several minutes. This should help to reduce
creasing in the garments being washed.
Rapid wash The length of the wash cycle will be
shortened by approximately 30%. The machine achieves this by
reducing the number of rinse cycles by one.
