Baumatic BTEL60X Manuel utilisateur
BTEL60X Cooker Hood
2
User Manual for your Baumatic
BTEL60X
Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 14/12/16
3
Contents Page
Environmental note 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8
BTEL60X 8
Using your Baumatic cooker hood 9 - 10
Before first use 9
To use your cooker hood 9 - 10
Cleaning your Baumatic cooker hood 11
The grease filter 11
Maintenance 12 – 14
Removing and cleaning the grease filters 12
Changing a light bulb 13
Fitting the carbon filters 13 - 15
Installation 15 - 21
Electrical connection 15
Before beginning installation 15 - 16
Installing your cooker hood 16 - 18
Connecting to external ducting 19
Completing the installation 19 - 20
Extraction mode or recirculation mode? 20
My appliance isn’t working correctly 21
4
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or us e the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe hood must be installed in accordance with the installation
instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or atte mpt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of t he
cooker hood:
Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
6
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
oThe edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
oIf the room where the cooker hood is to be use d contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with th e cooker hood. O lder
children and infirm persons should be
supervised if they are using the cooker hood.
oYour cooker hood is for domestic use only.
oPlease dispose of the packing material carefully – children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
7
oRemember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that pr oper ventilation
measures are being observed.
oNote that it removes odours from your room, not steam.
oWarning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
oDo not connect th e ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans u nattended during use
as overheated fats and oils might catch fire.
oThe cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or h eat from electric hob zones without a pan on
them.
oDo not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
oNever flambé cook under this cooker hood.
oThe lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
8
Specifications of your cooker hood
BTEL60X
PRODUCT DIMENSIONS
Height: 176 mm
Width: 598 mm
Depth: 280 mm (encased)
430 mm (extended)
Your cooker hood is fitted with:
oSlider control operation
o3 x speeds
o2 x metallic grease filters
o2 x light
Optional extras: 1 x Pair of S2 Carbon filters for air recirculation
All of the optional extras are available from the Baumatic
Spares Department.
9
Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner on ALL of
the stainless steel areas of your cooker hood, before it is used
for the first time.
oThis will help to leave a si licone water-resistant film to protect
the stainless steel surfaces.
oMake sure that it has b een installed by a suitably qualified
person, as pe r the information contained in Baumatic’s
installation instructions.
To use your cooker hood

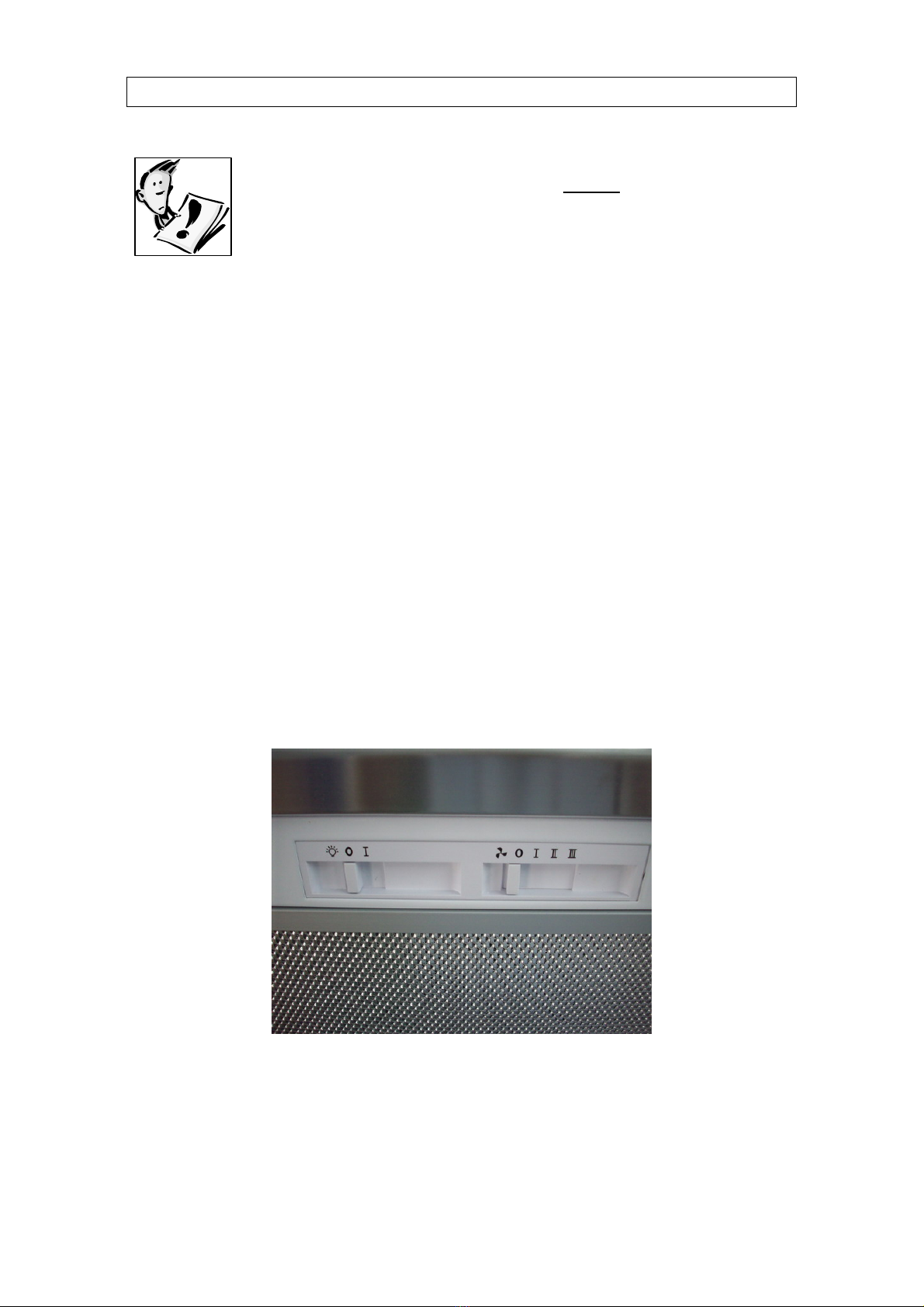

oThe control panel contains switches, as shown in the p icture
below, which perform separate functions.
10
Motor speed switch. This switch controls the speed of the motor as
well as turning the hood on and off. You can change the fan speed at
any time during operation.
0 = OFF
I = Low speed
II = Mid-speed
III = High speed
Light ON / OFF switch. This switch turns your cooker hood’s light on
and off. Slide the switch to position 1 to turn the light on and position
0 to turn it back off.
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
