Baumatic BRC60SS Manuel utilisateur

User Manual for your Baumatic

BRC60SS & BRC90SS

60/90 cm Cooker Hood in stainless steel

NOTE: This User Instruction Manual contains important information,

including safety & installation points, which will enable you to get the

most out of your appliance. Please keep it in a safe place so that it is

easily available for future reference; for you or any person not familiar

with the operation of the appliance.

Packing List

-19

Contents Page

Environmental note 3

IMPORTANT SAFETY INFORMATION

Specifications of your cooker hood 7

Using your Baumatic cooker hood 9

Before first use 9

To use your cooker hood 9

Cleaning your Baumatic cooker hood 10

The grease filters 10

Maintenance 11

Removing and cleaning the grease filters 11

Changing a light bulb 12

Fitting the carbon filters 13

Installation 14 -

Electrical connection 14

Before beginning installation 15

Installing your cooker hood 16

Completing the installation

Extraction mode or recirculation mode?

Troubleshooting

Contact details 2

2 2

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

This appliance is marked according to the European directive 2002/96/EC on

Waste electrical and Electronic Equipment (WEEE). By ensuring this product

is disposed of correctly, you will help prevent potential negative consequences

for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product or on the documents accompanying the

product indicates that this appliance may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations

for waste disposal. For more detailed information about treatment, recovery and

recycling of this product, please contact your local city office or local waste

management office.

o The packaging materials that we use are environmentally friendly and can

be recycled.

o Please discard all packaging material with due regard for the environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

ØElectric cookers: 700 mm

ØGas cookers: 700 mm

ØCoal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

e e

es o

f th

e coo

are s

arp

e m

thi

s as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

emem

n ex

rac

on mo

e, your coo

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that it removes odours from your room, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oDo not leave naked flames under the cooker

hood.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

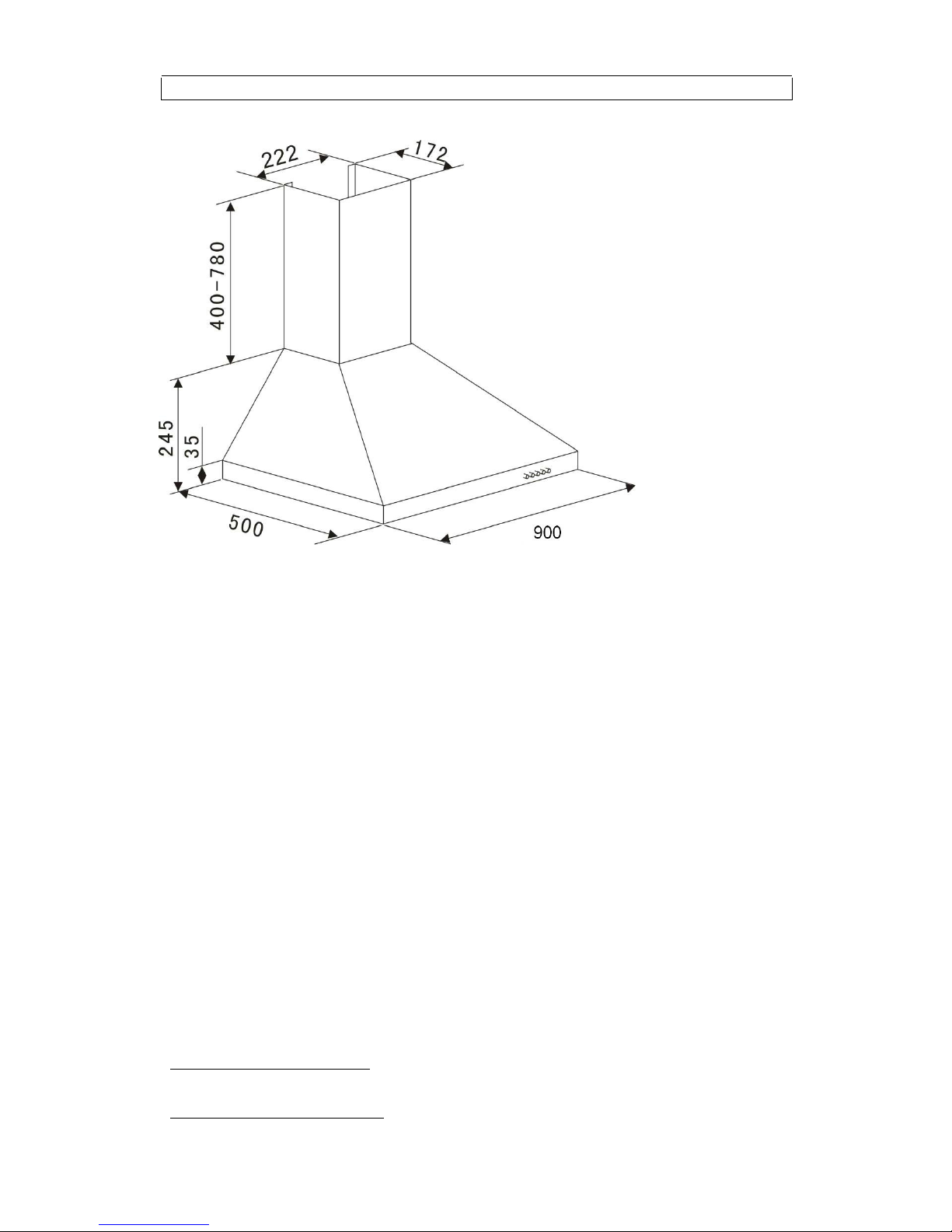

Specifications of your cooker hood

BRC60SS

PRODUCT DIMENSIONS

Height: 645 mm

1025 mm

Width: 600 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION:

170 mm x 221 mm

Power Rating: 194W

Your cooker hood is fitted with:

High extraction tangential motor

Push button control operation

3 Speeds

2 baffle filters SYBF353B6

2 LED lights SYKL30

Extraction capacity: 700 m³/hr

Noise level min/max: 5

60 dB

Rated Voltage: 220-240 Vac 50 Hz

Specifications of your cooker hood

BRC90SS

PRODUCT DIMENSIONS

Height: 645 mm

1025 mm

Width: 900 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION:

170 mm x 221 mm

Rated Voltage: 220-240 Vac 50 Hz

Power Rating: 194W

Your cooker hood is fitted with:

High extraction tangential motor

Push button control operation

3 Speeds

3 baffle filters SYBF353F

2 LED lights SYKL30

Extraction capacity: 700 m³/hr

Noise level min/max: 5

60 dB

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE

RANGEHOOD IS USED FOR THE FIRST TIME.

oYou should use a mild liquid detergent and a damp cloth on all the external

areas of your rangehood, before it is used for the first time.

oThis will help to remove any residues from the manufacturing process.

To use your rangehood

oMake sure that it has been installed by a suitably qualified person, as per the

information contained in these installation instructions.

oFind the control panel, which is located at the front right of the canopy.

oThe control panel contains switches, as shown in the picture below, which

perform separate functions.

1. Turn on the power; the buzzer

will buzz five times. The sound

shows that the appliance is

powered.

2. Push the low button, the

indicating light 1 turns on, the

buzzer will buzz once, and the

motor runs at low speed. Push

it again and the motor will stop.

3. Push the middle button, the

indicating light 2 turns on, the

buzzer will buzz once, and the

motor runs at mid speed. Push

it again and the motor will stop

4. Push the high button, the

indicating light 3 turns on, the

buzzer will buzz once, and

motor runs on high speed.

Push it again and the motor will

stop.

5. Push the light button; the

indicating light 4 turns on, and

the two lighting lamps will come

on. Push it again and the lamps

will turn off. With every push,

the buzzer will buzz one time.

IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR RANGEHOOD TEN

MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN

YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR RANGEHOOD FOR

TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

Cleaning yo Baumatic cooker hood

IMPORTANT: BEFORE CLEANING, ALWAYS

ENSURE THAT YOU HAVE SWITCHED YOUR

COOKER HOOD OFF AT THE OMNI-POLAR

SWITCH, SET AT TE WALL FROM THE CABLE.

Cleaning

Clean the external parts of your cooker hood with mild liquid

detergent and a new damp cloth.

Never use abrasive powder, corrosive solvents or brushes.

Never insert pointed objects into the motor’s protective grid.

Only clean the control panel and grease filter grill with mild liquid

detergents and a new damp cloth.

If you are using the appliance in recirculation mode, then be

sure to replace the carbon filter at the recommended interval

(see section on “Fitting the carbon filter”). A build up of grease

could cause a fire hazard.

Never attempt to clean the area above the grease filters.

The grease filters

Your cooker hood includes grease filters which help to absorb

grease particles to protect your kitchen & furniture from greasy

residues.

This metallic filters may become inflammable if they become

saturated with this greasy residue.

To prevent this fire hazard, the filters should be cleaned

regularly. Depending on use, this should be done every 10-15

days or at least once a month, using hot water and normal

washing-up detergent.

DO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Baumatic hotte de ventilation

Baumatic

Baumatic BT82.1GL Manuel utilisateur

Baumatic

Baumatic Q900SS Manuel utilisateur

Baumatic

Baumatic BT6.3BGL Instructions d'utilisation

Baumatic

Baumatic QF6SS Manuel de la liste des pièces

Baumatic

Baumatic IAL5SS 90cm Manuel utilisateur

Baumatic

Baumatic ISLW5SS Manuel utilisateur

Baumatic

Baumatic Q600 Manuel utilisateur

Baumatic

Baumatic BT85GL Manuel utilisateur

Baumatic

Baumatic BKH61SS Manuel utilisateur

Baumatic

Baumatic BT6.1GL Manuel utilisateur

Baumatic

Baumatic BWT7.3GL Manuel utilisateur

Baumatic

Baumatic BER600-RD Manuel utilisateur

Baumatic

Baumatic BEDD600SS Manuel utilisateur

Baumatic

Baumatic BTC6750GL Manuel utilisateur

Baumatic

Baumatic BT08.6ME Manuel utilisateur

Baumatic

Baumatic BES900BGL Manuel utilisateur

Baumatic

Baumatic BT83AL Manuel utilisateur

Baumatic

Baumatic BTI9170GL Manuel utilisateur

Baumatic

Baumatic BTI917GL 90cm Manuel utilisateur

Baumatic

Baumatic OMBRA3 .1 SS Manuel utilisateur

Baumatic

Baumatic BT7.1GL Manuel utilisateur

Baumatic

Baumatic geh6017 Manuel utilisateur

Baumatic

Baumatic BT120 Manuel de la liste des pièces

Baumatic

Baumatic MG3 Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
