Baumatic BEO910BGL Manuel utilisateur

BEO910BGL

90 cm Glass Chimney

Hood

User Manual for your Baumatic

BEO910BGL

90 cm Glass Chimney hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 31/01/12

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your cooker hood 9 – 11

Turning on the cooker hood 9 – 10

Speedselection 10

Lightcontrol 10

Thetimer 11

Turning off the cooker hood 11

Cleaning your Baumatic cooker hood 12 – 13

Cleaning 12

The grease filters 12 - 13

Maintenance 13 - 17

Removing and cleaning the grease filters 13 - 14

Changingalightbulb 14-15

Fitting the carbon filters 16 - 17

Installation 17 - 24

Electrical connection 17 - 18

Before beginning installation 18 - 19

Extraction mode or recirculation mode? 19

Installing your cooker hood 20 - 21

Connecting to external ducting 21 - 22

Fitting the optional chimney sections (CQ4SS) 22 – 24

Completing the installation 24

Troubleshooting 25 - 26

Baumatic consumables 27

Contactdetails 28

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Customer

Care Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote: Your cooker hood is designed to remove cooking

odours from the room and not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe lights on this appliance should only be used during operation

of the cooker hood. They should not be left on permanently and

used as a lighting source.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. a naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

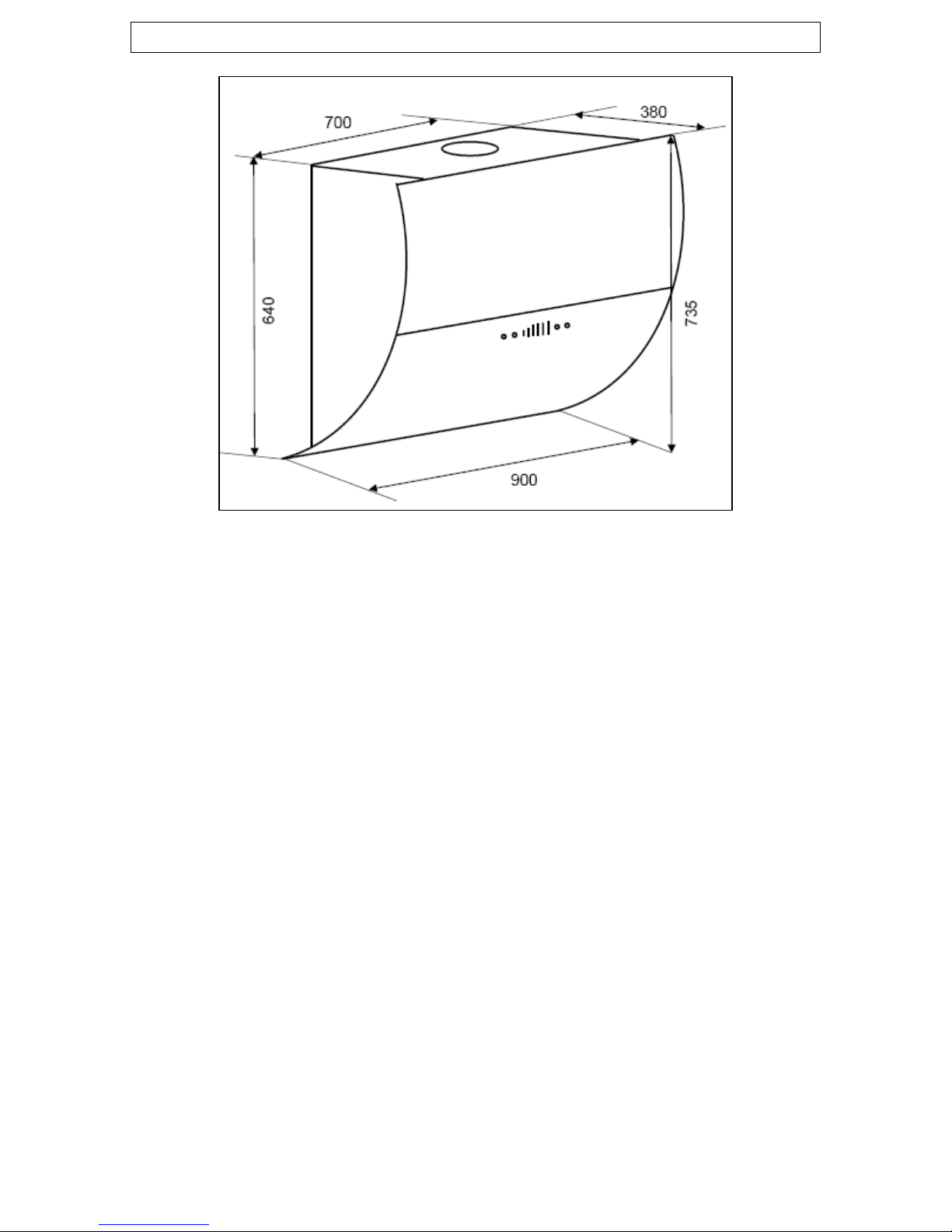

PRODUCT DIMENSIONS

Height: 735 mm

Width: 900 mm

Depth: 380 mm

Your cooker hood is fitted with:

oIntegrated centrifugal motor

oLCD display

oTouch control operation

o4 Speeds

oCut-off timer

o2 x Washable aluminium grease filters

o2 x LED lights

oNon-return air-flow flap

oExtraction capacity: 1000 m³/hr

oOptional extras: 1 x pair S1 Carbon filters required for

recirculation

CQ4SS Decorative Chimney Cover

Using your cooker hood

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

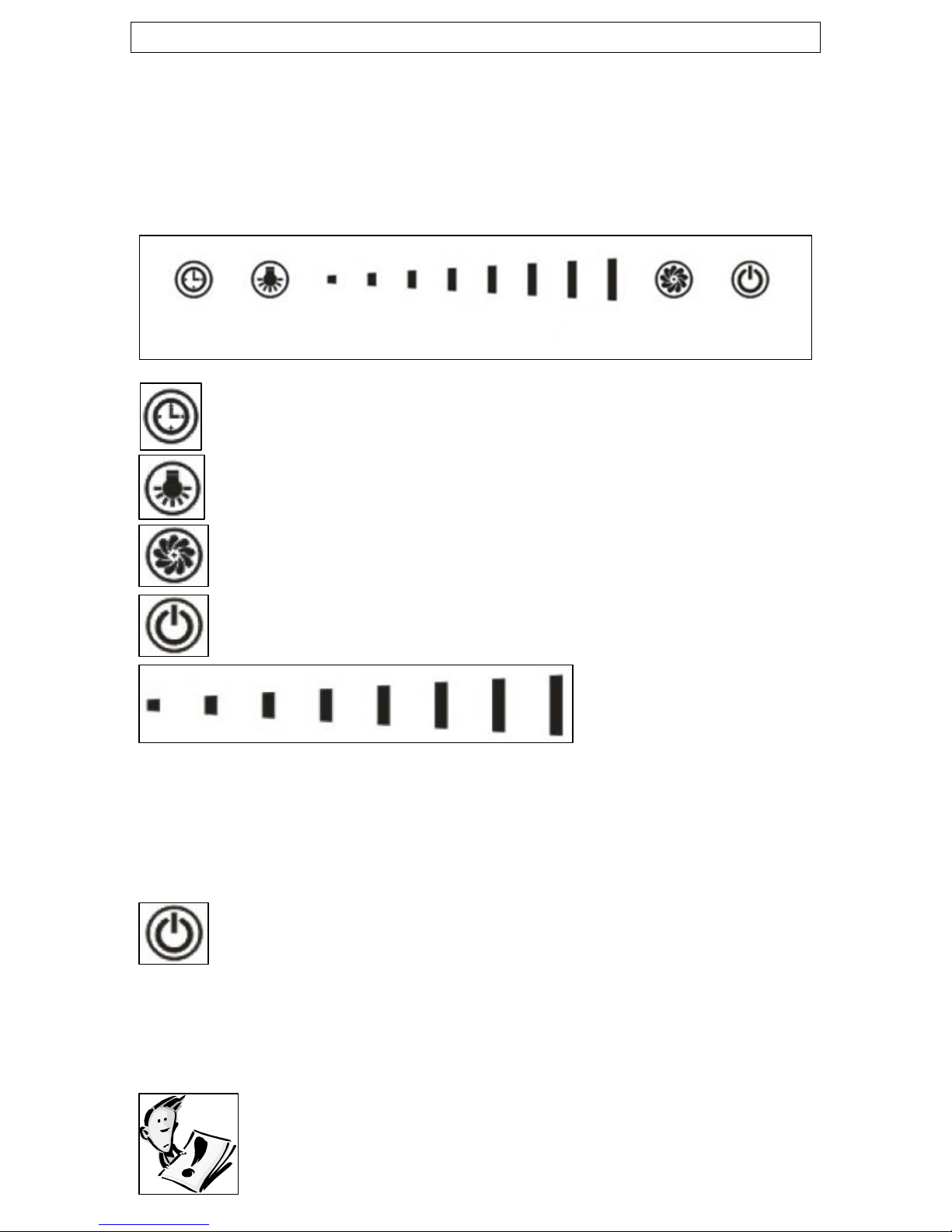

oThere are several buttons on the control panel, which perform

separate functions.

Timer button

Light control button

Speed selection button

Power button

Slider control

Turning on the cooker hood

oAfter you have connected the cooker hood to the mains supply

the backlight will turn on. The backlight will turn off after 5

seconds and the hood will enter stand-by mode.

oPress and hold the power button for 3 seconds to turn

the cooker hood on. The decorative cover will open and

the speed selection and power indicators will light. The

first two steps of the slider control will also light.

oAll the cooker hood functions can only be used when the

decorative cover is open.

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK,

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU

SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU

HAVE FINISHED COOKING.

Speed selection

oPress the speed selection button to turn the speed

selection function on and off. When you have turned the

speed selection function on, you can then use the slider

control to choose an operating speed for the motor.

oThe slider control has a total of 4 settings and 8 indicator lights

so each speed has 2 correlating indicator lights.

oWhen you use the slider control to choose a speed the cooker

hood will operate at the selected speed. If no adjustments are

made after 15 seconds the indicator lights will turn off and the

hood will operate at the chosen speed.

oThe next time you use your cooker hood, the motor will operate

at the previously selected speed.

Light control

oPress the light control button to switch the LED lights on

and off.

oAfter you have pressed the light control button to turn the lights

on, you can then use the slider control to adjust the brightness

of the lights.

oThere are 8 light brightness settings on the slider control with an

indicator light for each setting. If no adjustments are made after

15 seconds the indicator lights will turn off and the LED lights

will operate at the chosen brightness.

oThe next time you use your cooker hood, the lights will operate

at the previously selected brightness.
