USER
MAN6A-
52cm &
90cm
Undermount
Rangehood
GUH52SD
GUH90
For Your Safety
Safety Precautions . . . ....... .........................3
Before Connecting . . . . . . . . . . . ........................3
Warnings . . ............... .........................4
Use and Care
Use and Care . . . ........... .........................6
Controls .................. .........................6
Cleaning your Rangehood . . . . .........................7
Troubleshooting . . .......... .........................8
Disposal . . . . . . . . . ......... .........................8
Installation
Electrical Connection . . ...... .........................9
Instructions for Installation . . . . . ........................10
Dimensions. . . . . . .......... .........................10
Contents
2
Warranty . . . . . . . . . . . . . . . . . . .........................12
For Your Safety
3
Carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet
accessible for future reference.
This appliance has been designed for use in Ducted or
Recirculated installation.
Optional extras: 1 Pair of Carbon filters for recirculated
installation.
GUH52SD: Part CF130
GUH90: Part CF110
Safety Precautions
Take care when the Range Hood is operating simultaneously with
an open fireplace or burner that depend on natural ventilation as
the Range Hood removes air from the room, which a burner or
fireplace may need for combustion.
Provide adequate ventilation for safe operation of the Range
Hood. Follow any local laws that apply to external air evacuation.
Before connecting to the electricity network:
Look at the data plate (located inside the appliance) to ascertain
that the voltage and power correspond to the available power
supply and the power outlet is suitable. If in doubt ask a qualified
electrician.
If the appliance is used intensively for a long period of time, you
may need to opening a window to improve airflow.
For Your Safety
4
WARNINGS!
·Do not check the status of the filters while the Range Hood
is operating.
·Do not touch bulbs or adjacent areas, during or straight
after use.
·CAUTION: Accessible parts may become hot when used
with cooking appliances.
·Do not flambé under the Range Hood.
·Avoid free flame, as it is damaging to the filters and can
cause fire hazard.
·Constantly check food frying, overheated oil may become a
fire hazard.
·Disconnect the electrical plug prior to any maintenance.
·This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
·Children should be supervised to ensure that they do not
play with the appliance.
·There shall be adequate ventilation in the room when the
Range Hood is used at the same time as appliances
burning gas or other fuels.
·There is a fire risk if cleaning is not carried out in
accordance with the instructions.
·WARNING: DO NOT penetrate any screws into the range
hood as this may result in electrical hazards.
·WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
WARNINGS!
·If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
·The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
·The minimum distance between the cooktop hob and the
lowest part of the range hood shall be at least 60cm. If the
instructions for installation of the gas hob specify a
greater distance, this has to be taken into account.
·Regulation concerning the discharge of air has to be
fulfilled.
For Your Safety
5
·90cm rangehoods can only be installed above hobs with
6 or less burners / elements.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
LED Lamps
LED lamp assemblies are a spare part and are not repairable or
replaceable by the customer.
If an LED lamp fails, it must be replaced by a suitably qualified
technician.
Please call Glen Dimplex after sales service.
·52cm rangehoods can only be installed above hobs with
4 or less burners / elements.
Use and Care
6
It is recommended to start the Range Hood prior to commencing to
cook and leave the Range Hood in operation for 15 minutes after
cooking is finished in order to completely eliminate cooking vapours
and odours.
To ensure the Range Hood continues to operate effectively, regular
maintenance and cleaning is required. Clean the fan and other
surfaces of the Range Hood regularly using a cloth moistened with
warm water or non abrasive liquid detergent.
Controls
How to use the control panel:
1. Slide switch 1 to “I”, the lamp turns on; slide to “0”, the lamp
turns off.
2. Slide switch 2 to or ,the motor will be at “low,
mid, high” speeds; slide to “0”, the motor will be off.
Cleaning your rangehood
The proper function of the rangehood requires regular
maintenance operations.
The anti-grease filters capture the grease particles suspended in
the air, and are therefore subject to clogging according to the
frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to clean the
filter at a minimum of every 2 months by carrying out the following
instructions:
- Remove the filters from the cooker hood and wash them in a
solution of water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminum panels may alter in color after several washes. This
is not cause for customer complaint nor replacement of panels.
Clean the fan and other surfaces of the cooker hood regularly
using a cloth moistened with denatured alcohol or non abrasive
liquid detergent.
Keep motor and other parts free from water as this will cause
damage to the appliance.
Use and Care
7

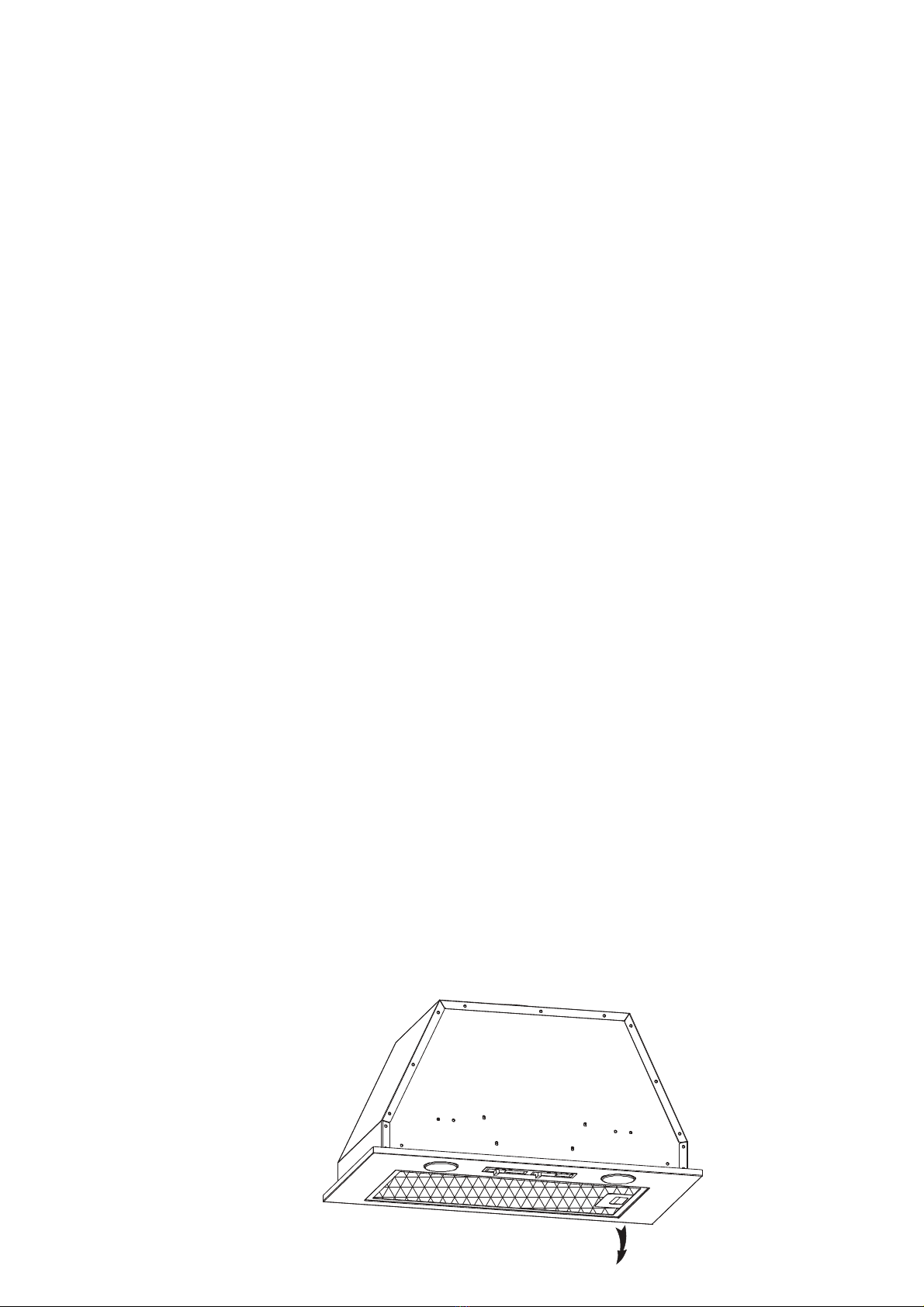

Removing the anti grease filters:
2. Slide the plastic filter handle inwards and pull the filter down.
To refit the filters:
1. Angle the tabs on the filter into slots at one end.
2. Slide plastic filter handle inwards and push the filter into place.
Use and Care
Troubleshooting
Contact service department
No electricity supply
Motor turns off after
a few minutes
Contact service department
Check that the main switch/circuit
breaker/safety switch is turned on
The hood must be at least 600mm
from the top of the cooktop
Disposal
By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate
waste handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city council
office.
8
Installation
Assembly and electrical connections must be carried out by
authorised personnel.
Electrical Connection
The Range Hood is fitted with a power cord and 3 pin plug. Install
the Range Hood so that the plug is easily accessible. Plug the 3-
pin plug into a properly earthed, 10A general purpose power
outlet.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
The appliance has been manufactured as a class I, therefore
earth cable is necessary.
The connection to the mains is carried out as follow:
If not provided, connect a plug for the electrical load indicated on
the description label. Where a plug is provided, the cooker hood
must be installed so that the plug is easily accessible after
installation.
An omnipolar switch with a minimum aperture of 3mm between
contacts, in line with the electrical load and local standards, must
be placed between the appliance and the network in the case of
direct connection to the electrical network.
9
IEC227 North America
L = Live Brown Black
N = Neutral Blue White
E = Earth Green/Yellow Green
Instructions for Installation
WARNING: DO NOT penetrate any screws into the range hood
as this may result in electrical hazards.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
If a connection flue composed of two parts is used, the upper part
must be placed outside the lower part.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
Installation must comply with any local regulations concerning the
discharge of exhaust air.
Before proceeding with the assembly, remove the anti-grease filter
so that the unit is easier to handle. Prepare the hole in the ceiling
or wall for the evacuation of the air.
Installation
10
650-750
Rangehood
Cooking Surface
Recommended Clearances
Install Range Hoods in accordance
with the manufacturer’s instructions.
For optimum performance, we
recommend that all Range Hood
clearances be a minimum of 650mm
to a maximum of 750mm between
the top of the cooking surface to the
underside of the Range Hood. The
distance may be reduced to 600mm
to align with AS/NZS 5601.
