Baumatic BKH61SS Manuel utilisateur

BKH61SS, BKH600GLS

60 cm

BKH91SS, BKH900GLS,

BKHISL900GLS

90 cm Range Hoods

User Manual for your Baumatic

BKH61SS, BKH600GLS

60 cm

BKH91SS, BKH900GLS,

BKHISL900GLS

90 cm

Range Hoods

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 17/02/11

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your range hood 8 – 13

BKH61SS 8

BKH600GLS 9

BKH91SS 10

BKH900GLS 11

BKHISL900GLS 12

Using your range hood 13 - 16

Beforefirstuse 13

To use your range hood 13 – 14

Settingthetimeofday 14

Turning ON/OFF the hood lights 14 – 15

Switching on the appliance and setting a power level 15

Using the timer function 15 - 16

Cleaning your range hood 17

Generalcleaning 17

The grease filters 17

Maintenance 18 - 21

Removing and cleaning the grease filters 18

Changingalightbulb 19-20

Fitting the S1 carbon filters 20 - 21

Installation 21 - 33

Electrical connection 21 - 22

Before beginning installation 22 – 23

Installing your range hood

Positioning 17-18

Installing your range hood 23 - 26

(BKH61SS, BKH91SS, BKH600GLS, BKH900GLS)

Connecting the external ducting 26

Fitting the chimney 26 – 28

Positioning (BKHISL900GLS) 29 – 33

Installation (BKHISL900GLS) 30 - 33

Extraction mode or recirculation mode? 33 - 34

Troubleshooting 34 - 35

Warrantycard 36 - 37

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Retailer where you

purchased your unit from.

IMPORTANT: Any installation work must be

carried out by a suitably qualified person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the range hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

standard NZS 5261:2003.

oIt is dangerous to alter the specifications or to modify this

product. Do not tamper with it or attempt to modify the

appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 750 mm

¾Gas cookers: 750 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR RANGE HOOD LESS THAN

750mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the range hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the range hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the range hood. Older

children and infirm persons should be

supervised if they are using the range hood.

oYour range hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire, from a failure

to observe the fire safety advice contained in this instruction

booklet.

oRemember that when in extraction mode, your range hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that it removes odours from your room, not steam.

oWarning - Always ensure that the range

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe lights on this appliance should only be used

during operation of the range hood. They should not be left on

permanently and used as a lighting source.

oThe range hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the range hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this range hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

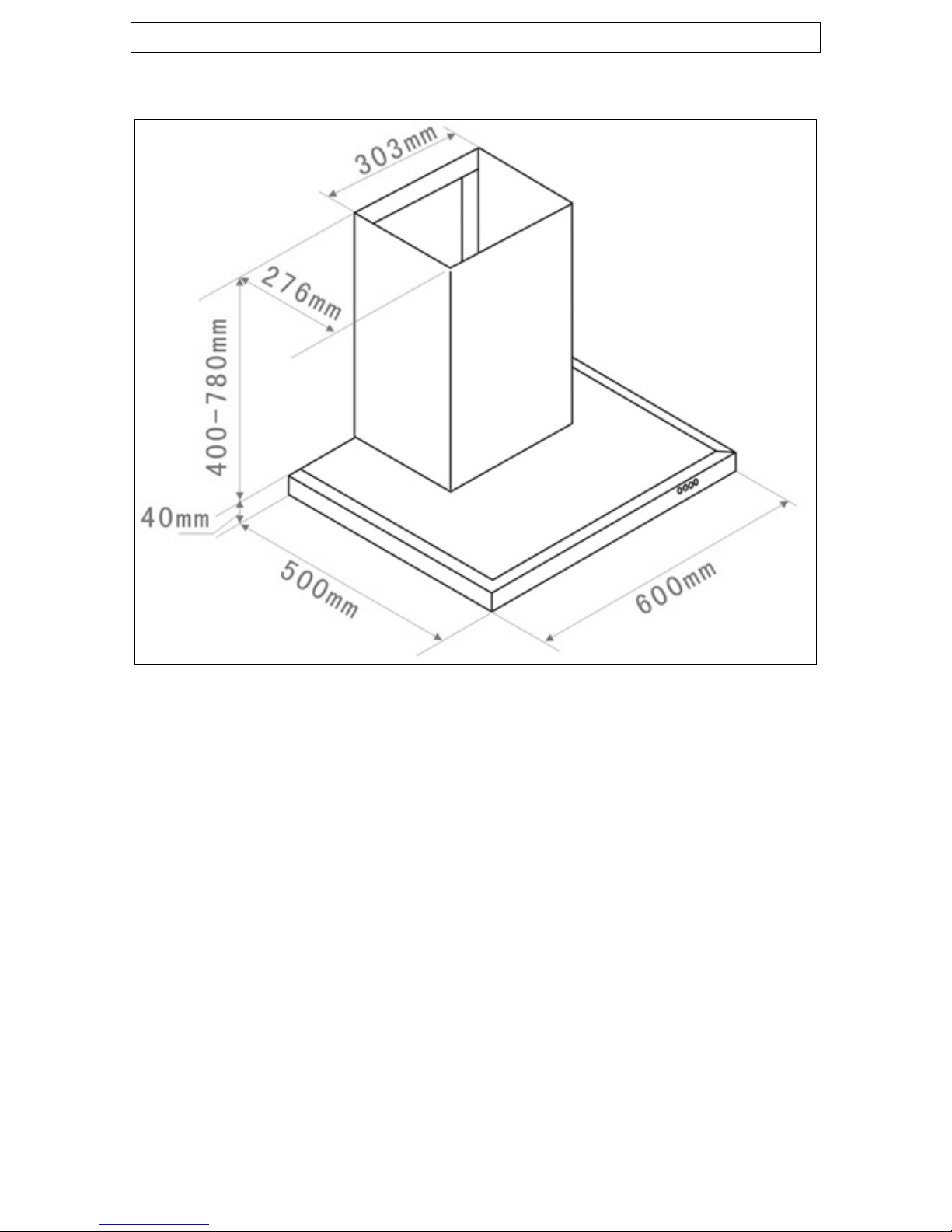

Specifications of your range hood

BKH61SS

PRODUCT DIMENSIONS

Height: 400 mm * – 780 mm

Width: 600 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION

276 mm x 303 mm

oTangential motor

oElectronic pushbutton operation

o3 x Speeds

o2 x Aluminium grease filters

o2 x LED lights

oNoise level: 61 / 63 / 66 dB

oExtraction capacity: 500 m³/hr

oOptional extra: 1 x pair S1 carbon filters required for

recirculation mode

BKH600GLS

PRODUCT DIMENSIONS

Height: 500 mm * – 980 mm

Width: 600 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION

273 mm x 305 mm

oTangential motor

oElectronic pushbutton operation

o3 x Speeds

o1 x Aluminium grease filter

o2 x LED lights

oNoise level: 61 / 63 / 66 dB

oExtraction capacity: 500 m³/hr

oOptional extra: 1 x pair S1 carbon filters required for

recirculation mode

BKH91SS

PRODUCT DIMENSIONS

Height: 400 mm * – 780 mm

Width: 900 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION

276 mm x 303 mm

oTangential motor

oElectronic pushbutton operation

o3 x Speeds

o3 x Aluminium grease filters

o2 x LED lights

oNoise level: 61 / 65 / 68 dB

oExtraction capacity: 1000 m³/hr

oOptional extra: 1 x pair S1 carbon filters required for

recirculation mode
