Baumatic CAN54SS Manuel utilisateur

CAN54SS

Cooker hood

User Manual for your Baumatic

CAN54SS

52 cm Canopy Hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 20/06/07

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9

Thecontrolpanel 9-10

Cleaning your Baumatic cooker hood 11

The grease filter 11

Maintenance 12

Removing and cleaning the grease filter 12

Changingalightbulb 13

Fitting the carbon filters 14 - 15

Installation 16

Electrical connection 16 – 17

Before beginning installation 18

Installing your cooker hood 19 - 21

Connecting to external ducting 22

Completing the installation 22

Extraction mode or recirculation mode? 23

Troubleshooting 24

Baumatic Ltd. conditions of guarantee 25

Contactdetails 26

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product in any way. Do not tamper with or attempt to modify

the appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in extraction mode, ensure that the

ducting is fire retardant and that there are no bends greater than

90 degrees as this will reduce the efficiency of the hood.

oEnsure the ducting for extraction mode has the same diameter

as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire from failure to

observe fire safety advice contained in these instructions.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that the cooker hood removes odours from your

room, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including cleaning and

replacing light bulbs.

oDo not connect the ducting system of this appliance to an

existing ventilation system being used for any other purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oDo not leave naked flames under the cooker

hood.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic Cooker

Hood!

PRODUCT DIMENSIONS

Height: 240 mm

Width: 530 mm

Depth: 310 mm

Your canopy hood is fitted with:

oHigh extraction tangential motor

oPushbutton control operation

o3 Speeds and booster

o2 Metallic grease filters

o2 Halogen lights

Extraction capacity: 500 m³/hr

Optional extras: 2 x UCF1 Carbon filters for air

recirculation mode

Venting kit

(Both optional extras are available from the Baumatic

Spares Department).

Using your Baumatic cooker hood

The control panel

oBefore using the cooker hood make sure that it has been

installed by a suitably qualified person, as per the information

contained in Baumatic’s installation instructions.

oFind the control panel, which is located in the middle of the

canopy.

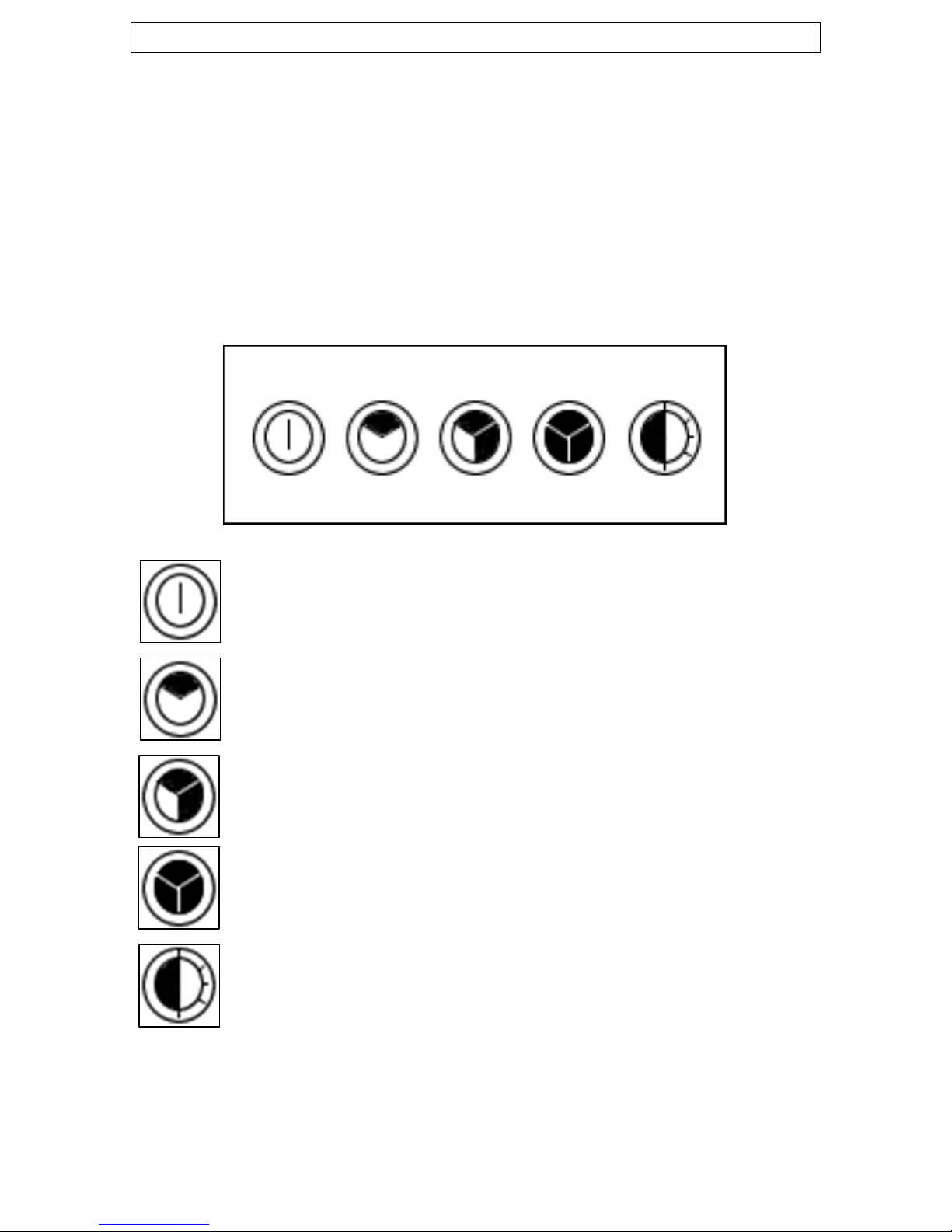

oThere are several buttons on the control panel, which perform

separate functions, as listed below.

ON/OFF BUTTON

SPEED 1

SPEED 2

SPEED 3

LIGHT BULBS ON/OFF

oTo switch the hood on, press the ON/OFF button.

oSelect a speed using the SPEED 1, SPEED 2 or SPEED 3 buttons.

SPEED 1 = Low speed

SPEED 2 = Medium speed

SPEED 3 = High speed

oTo switch the halogen light bulbs on, press the LIGHT BULBS

ON/OFF button.

oThe light bulbs can be switched on without the hood being

turned on using the LIGHT BULBS ON/OFF button.

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK,

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

YOU SHOULD ALSO RUN YOUR HOOD FOR TEN

MINUTES AFTER YOU HAVE FINISHED COOKING.

oWhen you have finished using the appliance, you should switch

off the cooker hood using the ON/OFF button. If the light bulbs

have been switched on, then these should be switched off using

the LIGHT BULBS ON/OFF button.
