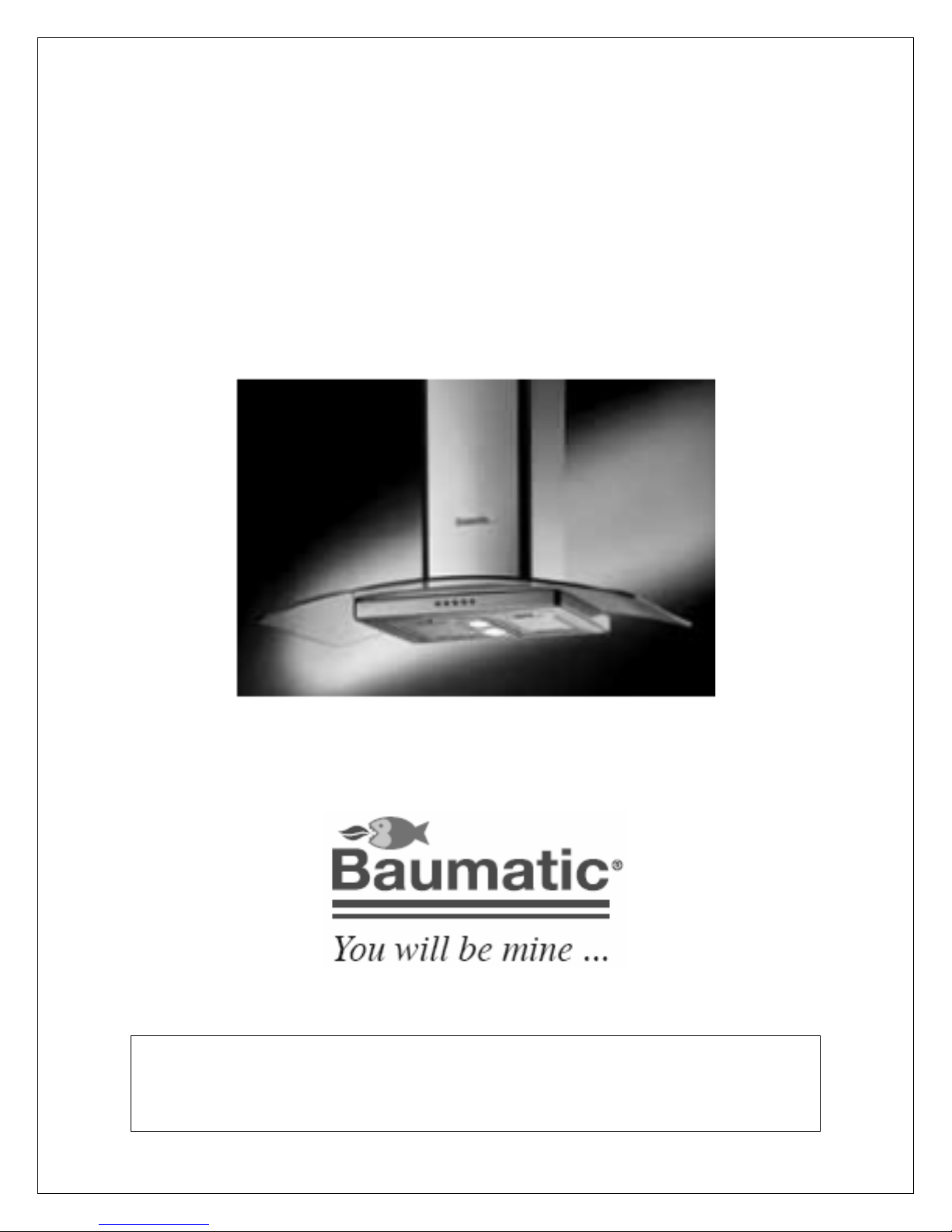

Baumatic BT82.1GL Manuel utilisateur

BT82.1GL Cooker

Hood

User Manual for your Baumatic

BT82.1GL Cooker

Hood

90 cm Chimney Hood in Stainless Steel

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference.

DD 20/06/07

YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3

IMPORTANT SAFETY INFORMATION……………………………….…4-5

ENVIRONMENTAL NOTE…………..…………………………………………6

USING YOUR COOKER HOOD………………………………..……………..7

MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10

INSTALLATION INSTRUCTIONS ……………………….……...….11-16

CARBON FILTER …………..11

ELECTRICAL CONNECTION……………12

INSTALLING THE COOKER HOOD………..….13

INSTALLING THE PIPE…………..14

INSTALLATION NOTES – EXTRACTION / PURIFYING VERSION .…...15

ATTACHING THE GLASS…………………………....……16

TROUBLESHOOTING ……………………………………………17

CONDITIONS OF GUARANTEE……………………………………………18

CONTACT DETAILS…………………………………………………………..19

CONTENTS

Congratulations on purchasing a Baumatic Cooker

Hood!

To fully enjoy using your appliance long into the future,

please firstly familiarise yourself with its specifications,

safety advice and operational instructions included in this

manual. You will also need this manual to ensure that your

Cooker Hood has been installed properly.

DIMENSIONS

Width (canopy): 900 mm

Depth (canopy): 500 mm

Height (adjustable): 620 mm to 1090 mm

Dimensions of Pipe Section:

266mm X 266mm

Your stainless steel Cooker Hood is fitted with:

•High extraction tangential motor

•Pushbutton control operation

•3 Speeds

•2 Stainless Steel grease filters

•2 Halogen lights

Extraction capacity – 500 m³/hr

Optional Extras: 1 x C1 carbon filter for air recirculation.

BTSB95SS 90-50 cm Stainless Steel

splashback

Venting kit

Specifications of your BT82.1GL

Cooker Hood

Any installation work must be

carried out by a qualified

electrician or competent person.

The hood must be installed in

accordance with the installation

instructions and all measurements

followed.

oIf the cooker hood is installed

for use above a gas appliance then

the provision for ventilation must

be in accordance with the Gas

Safety Codes of Practice BS.6172,

BS.5440 & BS.6891 (Natural Gas)

and BS.5482 (LP Gas) 1994, the

Gas Safety (Installation & Use)

Regulations, the Building

Regulations issued by the

Department of the Environment,

the Building Standards (Scotland)

(Consolidated) Regulations issued

by the Scottish Development

Dptmt.

oIt is dangerous to alter the

specifications or to modify this

product in any way. Do not tamper

with it or attempt to alter it in the

attempt to customise it further.

oWhen installing the hood,

ensure that the following

recommended distances are

observed between the highest

point on the hob top (including the

burners) and the bottom of the

cooker hood:

9Electric cookers:

700 mm

9Gas cookers:

700mm

9Coal/ oil cookers:

800 mm

* NOTE -

DO NOT SET YOUR

COOKER HOOD LESS THAN

700mm ABOVE YOUR COOKER!

Important Safety Information: Please Read this before installing & using.

oWhen installed between

adjoining wall cabinets,

the cabinets must not

overhang the hob & must

hang 50mm or more

away from the side of the

hob surfaces.

oThe edges of the cooker

hood are sharp – be

mindful of this as you

handle your appliance,

especially during

installation and cleaning.

NOT

CLEAN

BEHIND

THE

GREASE

FILTERS!

oIf the room where the

cooker hood is to be used

contains a fuel burning

appliance such as a

central heating boiler

then its flue must be of

the sealed or balanced

flue type.

oIf other types of flue or

appliances are fitted,

ensure that there is an

adequate supply of air in

the room.

oWhen the hood is being

used in its extractor

function, ensure that the

ducting is fire retardant

and that there are no

bends sharper than 90

degrees as this will

reduce the efficiency of

the hood.

oEnsure the ducting for

the extractor function

has the same diameter as

the outlet hole all the

way through.

Keep young children from

using, playing with or

tampering with the

cooker hood. Older

children and infirm

persons should be

supervised if they are

using the cooker hood.

Your cooker hood is for

domestic use only.

Please dispose of the

packing material

carefully – children are

especially vulnerable to

it.

Dirty oil is an even

greater fire risk.

Always put lids on pots

and pans when cooking

on a gas cooker.

The manufacturer

refuses to accept any

responsibility for

damages arising to the

hood or its catching on

fire from failure to

observe fire safety advice

in these instructions.

Remember that when in

extraction mode, your

cooker hood is removing

air from your room.

Important Safety Information: Please Read this before installing & using.

Ensure that proper

ventilation measures are

being observed. Note

that it removes odours

from your room, not

steam.

oWarning - Always ensure

that the cooker hood has

been disconnected from

the power supply before

carrying out any work on

the hood, including

replacing light bulbs.

:Do not connect the

ducting system of this

appliance to any existing

ventilation system which

is being used for any

other purpose.

:Do not install above a

cooker with a high level

grill.

Never leave frying pans

unattended during use as

overheated fats and oils

might catch fire.

Do not leave naked

flames under the cooker

hood.

:Do not attempt to use

the cooker hood if it is

damaged in any way.

Never attempt to use it

without the grease filters

fitted or if the filters are

excessively greasy!

Never flambé cook under

this cooker hood.

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person.

CONFORMITY TO W.E.E.E. DIRECTIVE

Environmental Note

To use your cooker hood:

1) Make sure it has been properly installed.

2) Find the CONTROL PANEL. It is located at the bottom of the

hood at the front of the canopy. You have a Pushbutton control

panel that will look like the one pictured below.

3) The CONTROL PANEL’s buttons all perform separate functions.

You will need to understand what these do before you attempt to

use your cooker hood.

* Note: The hood should be switched on at least as soon as you start

cooking.

Button (from left on figure pictured above)

Mark Function

‘0’ - Turns motor ON / OFF

‘I’ - Lowest Fan speed

‘II’ - Middle Fan speed

‘III’ - Highest Fan speed

‘0/l’ - Turns light ON / OFF

Usin

our Baumatic Cooker Hood:

IMPORTANT!:

Before cleaning, always ensure that you

have switched your cooker hood OFF at the omni-polar

switch, set at the wall from the cable:

Cleaning

ÂClean the external parts with

mild liquid detergents on a

damp cloth.

ÂNever use abrasive powder,

corrosive solvents or brushes.

ÂNever insert pointed objects

into the motor’s protective grid.

ÂOnly clean the control panel

and filter grill with a damp

cloth and delicate detergents.

ÂBe sure to replace the

carbon filters at the

recommended intervals.

Build up could cause a

fire hazard.

ÂNever take out the

grease filters and

attempt to clean the

space above where they

are set.

________________________________________________

Grease filter

ÂYour cooker hood includes a grease filter which

helps absorb vapour-suspended grease particles to

protect your kitchen & furniture from greasy

residues.

ÂThe metal grease filter may become inflammable if

it becomes saturated with greasy residue.

9To prevent this fire hazard, the grease filter should

be cleaned regularly (depending on use) every 10-15

days and at least once a month in hot water with

normal washing-up detergent. DO NOT USE A

DISHWASHER TO ACHIEVE THIS.

Cleanin

our Baumatic Cooker Hood:Cleanin

our Baumatic Cooker Hood:

First remove the grille by pulling down on it. Undo the

side catches.

You can now clean the grease filters.

9Soak them for about one hour in hot water with a

grease-loosening detergent then rinse off thoroughly

with hot water.

9Repeat the process if needed. Refit the grease grille

once it has dried.

9Refit the grease filters when dry.

Let the grease filters dry thoroughly before refitting

them.

Maintenance - Cleaning the Grease Filters
