Baumatic BWE600GL Manuel utilisateur

User Manual for your

BWE600GL Cooker Hood

60 cm Glass cooker hood in stainless steel

BWE700GL Cooker Hood

70 cm Glass cooker hood in stainless steel

BWE900GL Cooker Hood

90 cm Glass cooker hood in stainless steel

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

GS 21/05/12

Contents Page

Environmentalnote 3

IMPORTANT SAFETY INFORMATION 4 – 6

Specifications of your BWE600GL cooker hood 7

Specifications of your BWE700GL cooker hood 8

Specifications of your BWE900GL cooker hood 9

Using your cooker hood 10 - 11

Beforefirstuse 10

To use your cooker hood 10 - 11

Cleaning your cooker hood 11 - 12

The grease filter 12

Maintenance 12 - 15

Removing and cleaning the grease filter 12 - 13

Changingalightbulb 14

Fitting the carbon filters 15

Installation 16 - 25

Electrical connection 16 - 17

Before beginning installation 17 – 18

Attaching the glass canopy 18

Installing your cooker hood 19 - 21

Connecting to external ducting 22

Fitting the chimney 22 – 24

Completing the installation 25

Extraction mode or recirculation mode? 25

Troubleshooting 26 - 27

Contactdetails 28

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

CONFORMITY TO W.E.E.E. DIRECTIVE

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to us. Please

make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Advice L

ine.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product in any way. Do not tamper with or attempt to modify

the appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

Electric cookers: 700 mm*

Gas cookers: 700 mm*

Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

*In the case of a reduced ceiling height, it is possible to reduce the

minimum gap to 400 mm.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in extraction mode, ensure that the

ducting is fire retardant and that there are no bends greater than

90 degrees as this will reduce the efficiency of the hood.

oEnsure the ducting for the extractor mode has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or for it catching on fire, from a

failure to observe the fire safety advice contained in these

instructions.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed.

oNote that the cooker hood removes odours from your

kitchen, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including cleaning and

replacing light bulbs.

oDo not connect the ducting system of this appliance to an

existing ventilation system being used for any other purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oThe cooker hood should not be exposed to a direct heat source

from the cooking device underneath it, i.e. naked flame from a

gas burner or heat from electric hob zones without a pan on

them.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filter fitted or if

the filter is excessively greasy!

oNever flambé cook under this cooker hood.

oThe lights on this appliance should only be used during operation

of the cooker hood. They should not be left on permanently and

used as a lighting source.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your BWE600GL cooker hood

PRODUCT DIMENSIONS:

Height: 600 mm – 950 / 980 mm

Width: 600 mm

Depth: 405 mm

DIMENSIONS OF CHIMNEY SECTION:

297 mm x 265 mm

Your stainless steel cooker hood is fitted with:

oHigh extraction tangential motor

oElectrical button control operation

o3 Speeds

o1 Metallic grease filter

o2 halogen lights

Extraction capacity: 500 m³/hr

Noise level min/max: 54 – 58 dB

MODEL NUMBER CARBON FILTER REQUIRED

BWE600GL S1 (1 pair)

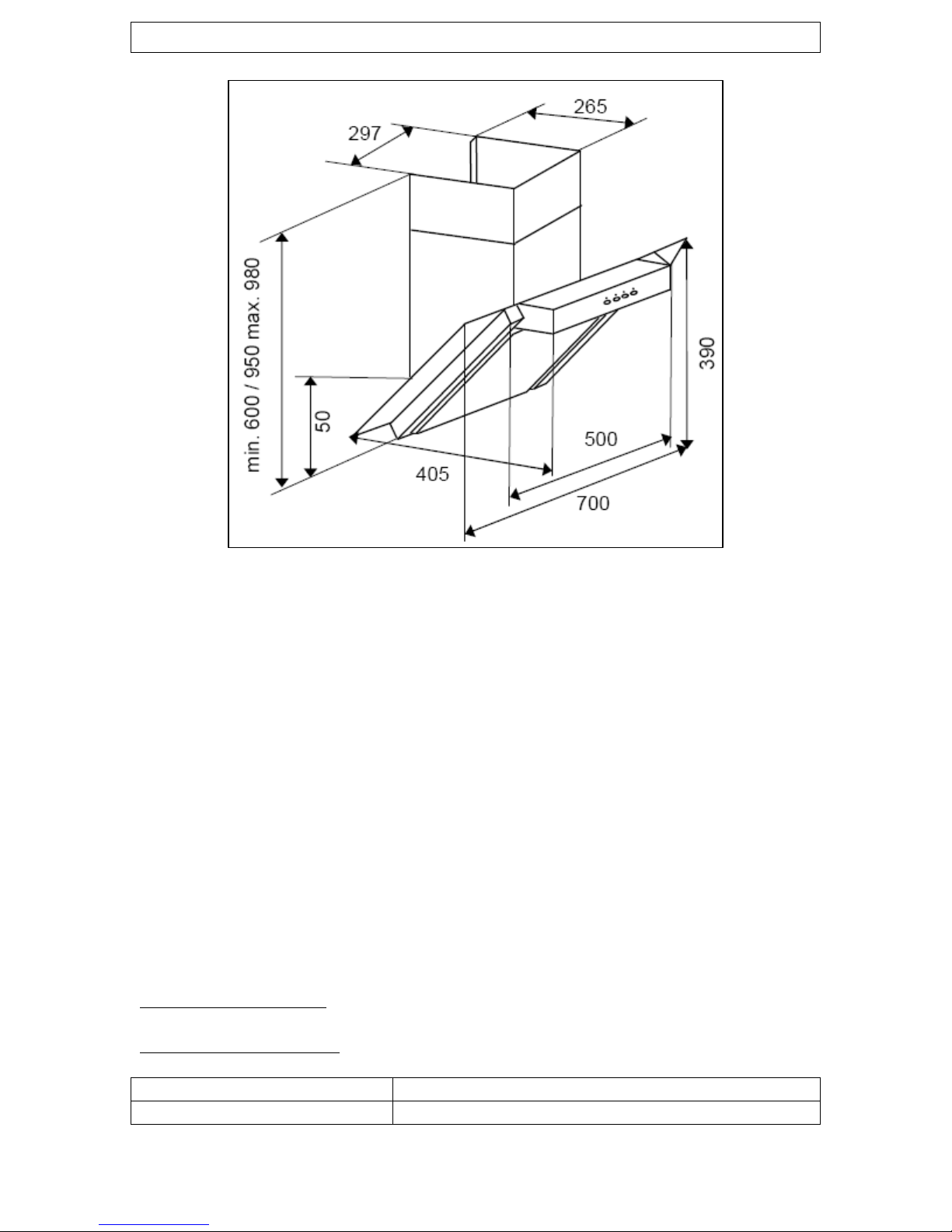

Specifications of your BWE700GL cooker hood

PRODUCT DIMENSIONS:

Height: 600 mm – 950 / 980 mm

Width: 700 mm

Depth: 405 mm

DIMENSIONS OF CHIMNEY SECTION:

297 mm x 265 mm

Your stainless steel cooker hood is fitted with:

oHigh extraction tangential motor

oElectrical button control operation

o3 Speeds

o1 Metallic grease filter

o2 halogen lights

Extraction capacity: 500 m³/hr

Noise level min/max: 54 – 58 dB

MODEL NUMBER CARBON FILTER REQUIRED

BWE700GL S1 (1 pair)

Specifications of your BWE900GL cooker hood

PRODUCT DIMENSIONS:

Height: 600 mm – 950 / 980 mm

Width: 900 mm

Depth: 405 mm

DIMENSIONS OF CHIMNEY SECTION:

297 mm x 265 mm

Your stainless steel cooker hood is fitted with:

oHigh extraction tangential motor

oElectrical button control operation

o3 Speeds

o1 Metallic grease filter

o2 halogen lights

Extraction capacity: 500 m³/hr

Noise level min/max: 54 – 58 dB

MODEL NUMBER CARBON FILTER REQUIRED

BWE900GL S1 (1 pair)

Using your cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED

BEFORE THE COOKER HOOD IS USED FOR THE FIRST

TIME.

oYou should use a good quality stainless steel cleaner on ALL of

the stainless steel areas of your cooker hood, before it is used

for the first time.

oThis will help to leave a silicone water-resistant film to protect

the stainless steel surfaces.

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in the manufacturer’s

installation instructions.

oFind the control panel, which is located in the centre of the

canopy.

oThere are several buttons on the control panel, which perform

separate functions.

To use your cooker hood

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in the manufacturer’s

installation instructions.

oFind the control panel, which is located at the front of the

canopy.

oThere are several buttons on the control panel, which perform

separate functions.
