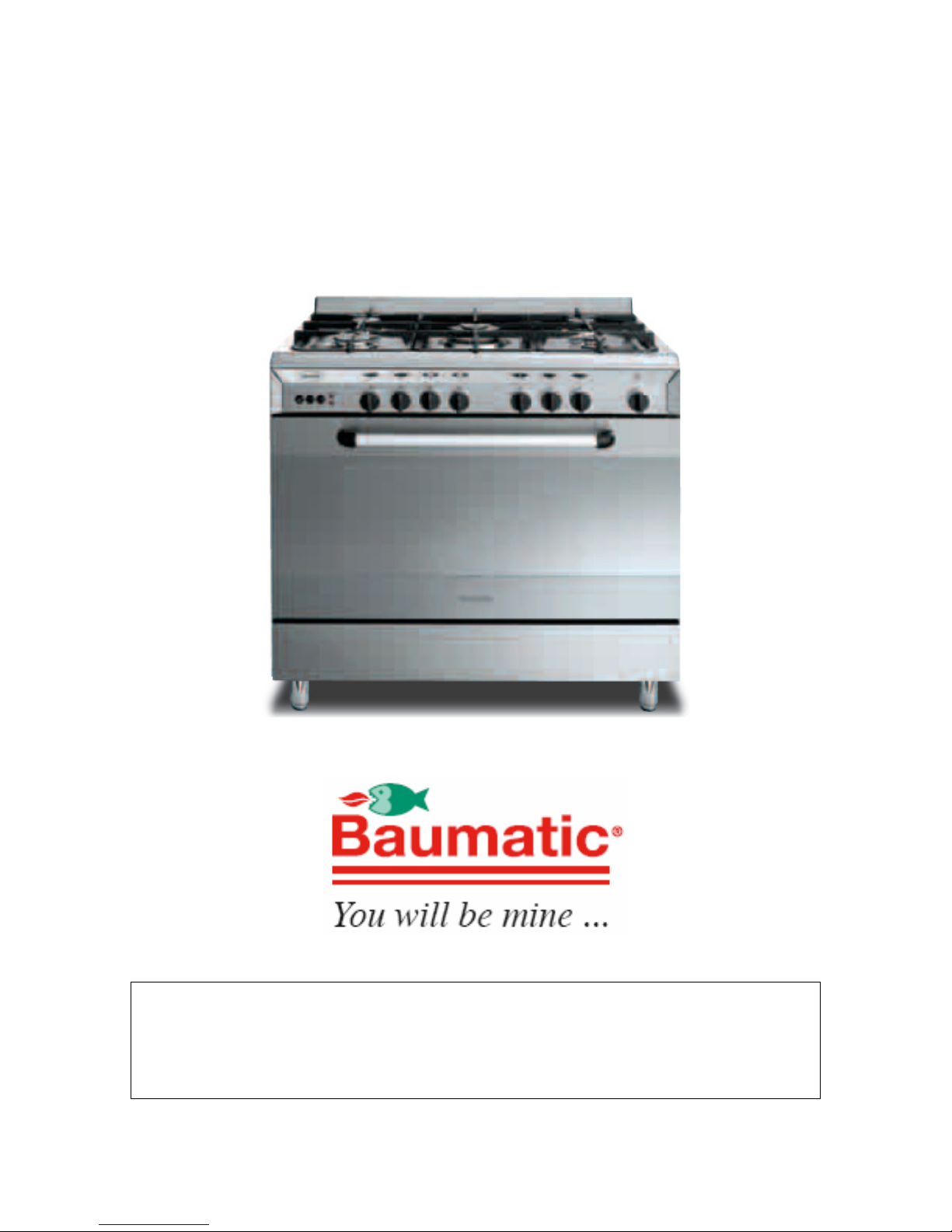

Baumatic BT2431SS Manuel utilisateur

BT2431SS

90cm Multi-

function single cavity

cooking theatre

User Manual for your Baumatic

BT2431SS

90 cm Multi-function single cavity cooking

theatre

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 19/12/06

Contents

Environmental note 4

Important safety information 5 – 9

Specifications 9 – 10

Controlpanel 11

Thermostatcontrolknob 11

Oven function selector knob 11

Selecting a cooking function and temperature 12

Beforefirstuse 12

Selecting an oven function 12-13

Thermostatcontrolknob 13

Cookingguidelines 14

Warnings 14-15

Usingtheminuteminder 15

Usingthehobtop 16

Electricignition 16

Energysavingtips 17

Cleaning and maintenance 18

Cleaning the hob burners 19

Replacing the oven bulb 19

Removing the oven door for cleaning 20

Removing the inner door glass for cleaning 20-21

Installation 21

Positioning 21-23

Gas connection 23-24

Gas Safety (Installation and Use) Regulations 24

Gas connection 25

Gas adjustment (Conversion to LPG and flow adjustment) 26-27

Minimum flow adjustment for hob gas taps 27

Fitting a stability chain 28

Electricalconnection 29

Connecting the mains supply cable 29–30

Replacing the mains supply cable 30

My appliance isn’t working correctly 31-32

Baumatic Ltd. Conditions of guarantee 33

Contactdetails 34

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Information

oThis appliance is designed for domestic household use and for

the cooking of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the ambient temperature of the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 20 mm to the appliance, will be

the liability of the owner.

oFor use in leisure accommodation vehicles, please refer to

the appropriate information given in the installation instructions

for this appliance.

oIMPORTANT: Baumatic Ltd. DO NOT recommend that this

appliance is installed on any type of marine vessel.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent.

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation.

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time. During and after use, all

surfaces will become hot.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

Make sure that you understand the controls before using the

appliance.

Check that all of the controls on the appliance are turned off

after use.

Always stand back when opening the oven door, this will allow

heat to disperse.

Take care when removing items from the oven, as the contents

may be hot.

Always keep the oven doors closed when the oven is not in use.

Always follow the basic principles of food handling and hygiene,

this will prevent the possibility of bacterial growth.

Always keep ventilation slots clear of obstructions.

Keep fingers away from the hinge areas when closing the door,

otherwise you may trap them.

Oven gloves should be used when placing food in the oven cavity

and when removing it. Care should be taken to avoid direct

contact with any of the elements in the appliance.

oDO NOT LEAVE THE APPLIANCE UNATTENDED WHILST IN

USE.

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges. Nobody should be allowed to sit or stand on any

part of the cooker.

oDo not store chemicals, food stuffs, pressurised containers in or

on the cooker or in the cabinets immediately above or near the

hob burners.

oDo not heat up unopened food containers, as pressure can build

up which may cause the container to burst.

oDo not place flammable or plastic items on or near the hob

burners, these types of materials should also not be placed in

the oven or the compartment below the oven.

oDo not leave heated oil or fat unattended, as this is a fire risk.

You should not fill a deep fat frying pan more than one third full

of fat or oil, you should also not use a lid.

oDo not allow fat or oil to build up in the oven trays, grill pan or

oven base.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not grill food containing fat without using the grill trivet. The

grill trivet should never be covered with aluminium foil.

oDo not place hot enamel parts in water, leave them to cool first.

oDo not allow vinegar, coffee, milk, saltwater, lemon, tomato

juice or any liquid with high sugar content to remain in contact

with the enamel parts of the appliance. Spillages should be

wiped up immediately.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing. No clothing should be placed over or near to the

hob burners or oven door.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refer to

installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC regarding “low voltage”

-89/336/EEC regarding “electromagnetic disturbances”

-90/396/EEC regarding “gas appliances”

-89/109/EEC regarding “materials in contact with food”.

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product dimensions:

Height: 870-920 mm

Width: 900 mm

Depth: 600 mm

Product specifications:

o5 burner gas hob:

o1 x 3.60 kW wok burner

o1 x 3.00 kW rapid burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxillary burner

oHeavy duty cast iron pan stands

oPushbutton electric ignition

o8 function main oven

oOven energy efficiency class: B

oOven capacity: 107 litres

oStorage compartment capacity: 35 litres

oMinute minder

oCooling fan

oThermostatically controlled grill

oDouble glazed removable door

oAdjustable feet

Standard accessories:

oWok stand

o2 x Safety shelves

oEnamelled drip tray with handle

oTrivet

oLPG conversion jets

Optional extras:

oBPS1 Pizza stone

oBTGRID Double-sided griddle plate

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 13 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 2.5 kW

Mains Supply Lead: 3 core x 1.5 mm²

Oven Light Bulb: E14 25 W/300°C screw type pigmy

Gas details

Gas Connection Type: 1/2” BSP

Gas Type (Natural Gas): 20 mbar

Gas Type (LPG): See table on page 26 for this

information

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the door of the storage compartment.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Table des matières

Autres manuels Baumatic Appareils de cuisine

Baumatic

Baumatic BCG900SS Manuel utilisateur

Baumatic

Baumatic BU54EE Manuel utilisateur

Baumatic

Baumatic BVP460SS Manuel utilisateur

Baumatic

Baumatic BCE620SS Manuel utilisateur

Baumatic

Baumatic BCG520SL Manuel utilisateur

Baumatic

Baumatic BT2000SS Manuel utilisateur

Baumatic

Baumatic BWBDZ150GL Manuel utilisateur

Baumatic

Baumatic BT2385SS Manuel utilisateur

Baumatic

Baumatic Royal Chiantishire BRC2BDY Manuel utilisateur

Baumatic

Baumatic BT3062SS Manuel utilisateur

Baumatic

Baumatic SUPREMA1SS Manuel utilisateur

Baumatic

Baumatic BT3060SS Manuel utilisateur

Baumatic

Baumatic P460 Guide d'installation

Baumatic

Baumatic BCG620SS Manuel utilisateur

Baumatic

Baumatic BWCU15SS Manuel utilisateur

Baumatic

Baumatic BCD905SS Manuel utilisateur

Baumatic

Baumatic BBCSZ150GL Manuel utilisateur

Baumatic

Baumatic BT2730SS Manuel utilisateur

Baumatic

Baumatic PT2800SS Manuel utilisateur

Baumatic

Baumatic BCD510SS/W Manuel utilisateur

Baumatic

Baumatic BAU91EG Manuel utilisateur

Baumatic

Baumatic TG1 Manuel utilisateur

Baumatic

Baumatic BWC157 Manuel utilisateur

Baumatic

Baumatic BT2000SS Manuel utilisateur

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
