Baumatic BW300SS Manuel utilisateur

BW300SS

30 cm 12

Bottle built- in

electronic wine cooler

USER MANUAL FOR YOUR BAUMATIC

BW300SS

30 cm 12 Bottle built-in

electronic wine cooler

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

DD 27/07/10

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications of your wine cooler 7 – 8

Description of the appliance 8-10

Controlpanel 8

Description of the product features 9-10

Using your Baumatic wine cooler 10-12

Beforeswitchingon 10

Duringfirstuse 10

Switching on the appliance and setting the temperature 11

Loading the wine cooler 12

Storingyourwines 12-14

Wine storage problems 14-15

Cleaning and maintenance 15-16

Defrosting 16

Installation 16-21

Electrical connection 16-17

Positioning 17-18

Built-in installation 18

Reversing the door of your wine cooler 19-21

Troubleshooting 22-24

Contactdetails 25

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing and chilling wine.

NO food stuffs must be stored in the appliance. If it

is used for any other purpose or it is not used

correctly, then Baumatic Ltd. will accept no liability

for any damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Customer Care Department.

Specifications of your wine cooler

Congratulations on purchasing a Baumatic wine cooler

Dimensions of appliance

Height: 820 - 890 mm

Width: 295 mm

Depth: 550 mm

Dimensions of aperture*

Height: 820 - 890 mm

Width: 300 mm (min)

Depth: 553 mm (min)

oGross capacity: 55 litres

oNet capacity: 52 litres

oBottle capacity: 12 x 0.75 litre Bordeaux wine bottles

oElectronic push button control operation

oLED display

o4 Wooden shelves

oAdjustable temperature

oInternal white LED light

oOne temperature zone:

oAdjustable feet

oSmoked glass door

oStainless steel door frame

o1 temperature zone: 4 – 18 °C

* Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the rear or inside

of the appliance. The rating plate will indicate the ambient temperature

range that your appliance will function correctly within. It is also

advisable to make a note of the model number and the serial number

of the appliance before installing it.

Model number ………………………………………………

Serial number ………………………………………………

Date of purchase ……………………………………………..

Description of the appliance

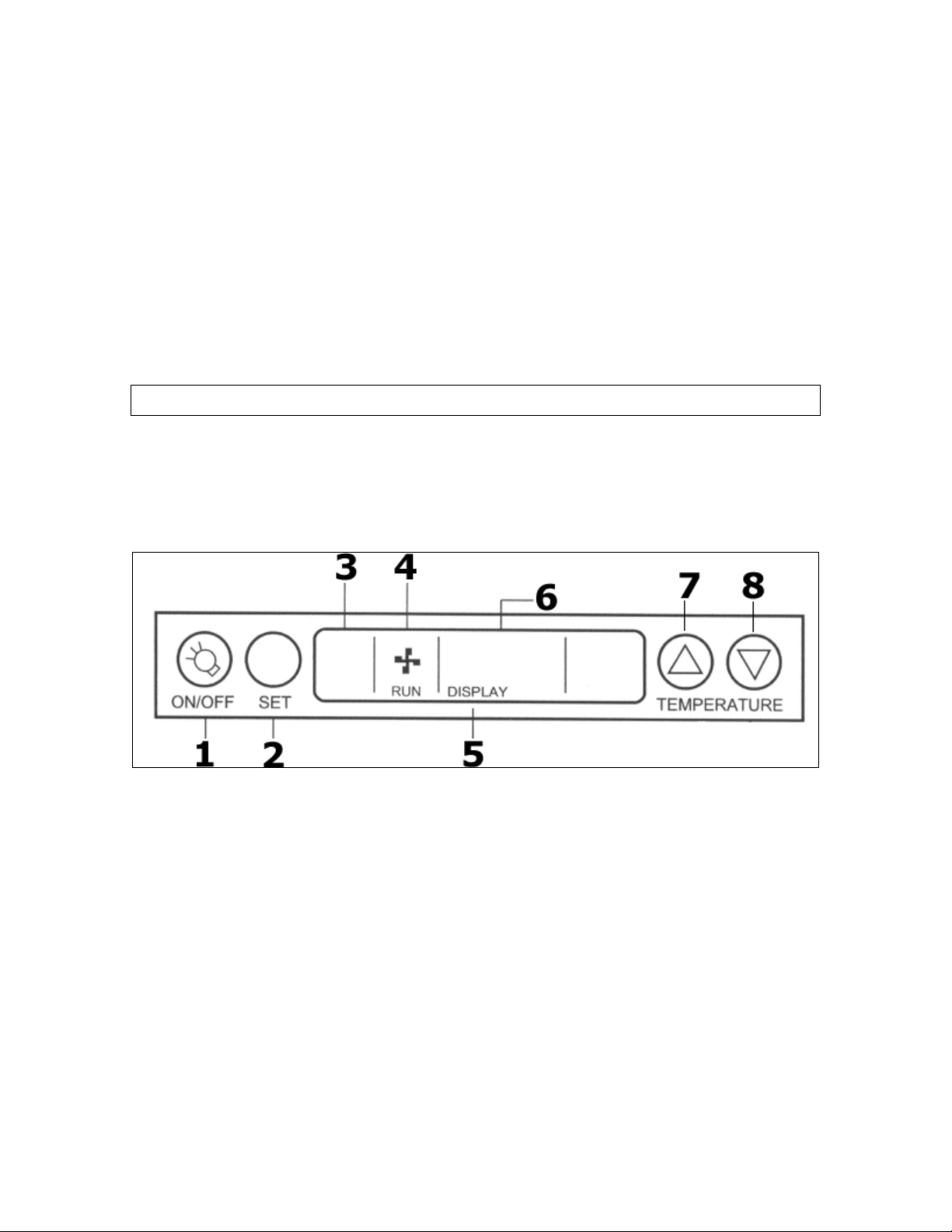

Control panel

The control panel is located at the top of the appliance, behind the

glass door.

1) Light ON/OFF button

2) Temperature setting button

3) Warning alarm indicator

4) Compressor running indicator

5) LED display

6) Temperature display

7) Temperature increase button

8) Temperature decrease button

Description of the product features

1) Control panel

oThe control panel is located at the top of the appliance, behind

the glass door. This means it is easy to set the temperature of

the appliance and see what temperature the appliance is set to.

2) One cooling zone

oThere is one cooling zone inside of your wine cooler.

oThe cooling zone has a temperature control and temperature

display.

3) Interior light

oThe cooling zone has an interior light. The light can be switched

on and off by using the light ON/OFF button (1).

oIf you do not switch the interior light off using the light ON/OFF

button, the appliance will switch the light off automatically after

5 minutes.

4) The wine cooler shelves

oThe full depth shelves will fit into the slots in the cabinet of the

wine cooler.

5) Compressor running indicator

oWhen the compressor is running, the LCD display will show the

compressor running indicator (4), which is a moving fan symbol.

oApproximately every six hours, the compressor will stop running

for about 30 minutes.

oWhen the compressor is not running, the moving fan symbol will

stop.

6) LED display

oIf you press any button on the LCD display (5), then a backlight

will appear behind it.

oIf no other button is pressed, the appliance will switch the

backlight off automatically after 5 minutes.

7) Error codes

oIf the appliance senses a problem, then an audible alarm will

sound and an alarm code will show on the LCD display (5). See

the error codes section of this manual for more detailed

information.

Using your Baumatic wine cooler

Before switching on

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it, should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned

with a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.

oThere can be an odour when you first switch on the appliance. It

will lessen as the appliance starts to cool.

During first use

oWhen you first switch on the appliance, the compressor will run

continuously until the wine cooler reaches a cool enough

temperature.

oDuring this period of time, you should try not to open the door

frequently or place bottles inside of the appliance.

oIf the unit is switched off or unplugged, you must allow at least 5

minutes before restarting the appliance or reconnecting it to

your mains supply.
