If you seek the ultimate in resolution and image quality, there is no better

choice than Barco’s LX-5.

Barco’s LX-5 pushes innovative LCoS display technology to its limits by being

the world’s first projector with an incredibly detailed resolution of 10 million

pixels, and a 10,000:1 high dynamic contrast ratio. This results in the best,

most detailed image quality currently available on the market.

The LX-5 produces high-density pixels to paint images with such fine detail

that they enhance the human perception of reality. This level of accuracy is

perfect for applications such as product design, model review, aerial views,

close-up image analysis and other purposes that require highly detailed visu-

alization.

Up to four sources with a resolution greater than 1080p HD can be

simultaneously displayed with Barco’s LX-5, with each image retaining its

native high resolution and outstanding color qualities. Cost-effective, easy to

install and maintain, the LX-5 is the ideal single-projector solution for any

visualization environment that requires pristine, ultra-realistic image and

color quality.

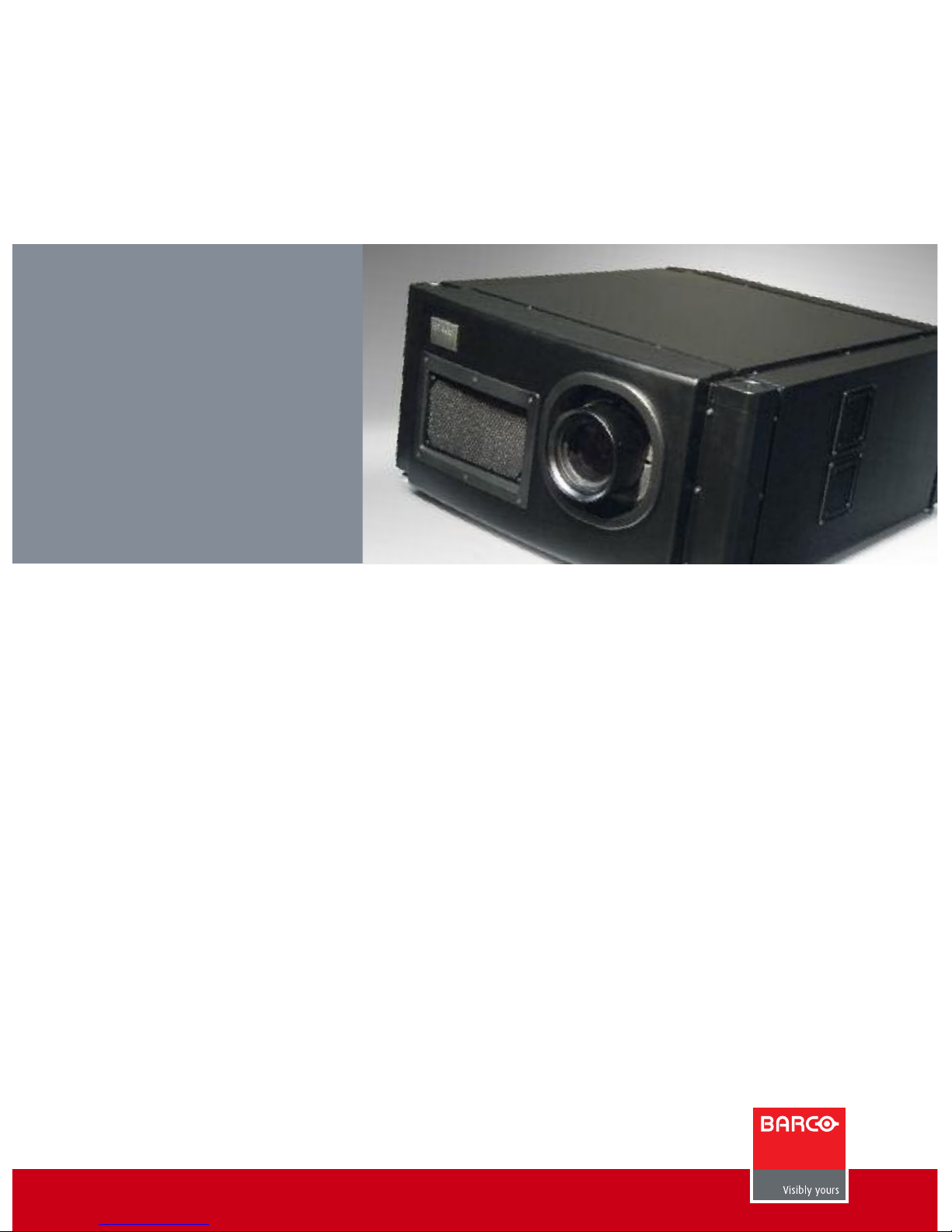

LX-5

10 megapixel LCoS projector for ultra-realistic visualization

www.barc .c m

R5990106 December 2007

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice.

The latest version of this product sheet can be found on www.barco.com.

LX-5 technical specifications

EMEA & ROW

Noordlaan 5

8520 Kuurne - Belgium

Tel. +32 56 36 82 11

Fax +32 56 36 85 26

Barco

Presentation & Simulation Division

contact.bps@barco.com

USA

600 Bellbrook Avenue

Xenia, OH 45385-4053

Tel. +1 (937) 372-7579

Fax +1 (937) 372-8645

APAC

7F, Fen ang Road 138

200 031 Shanghai - China

Tel. +86 21 5465 5501

Fax +86 21 5465 5502

Dimensi ns

Light utput

4,500 lumens

C ntrast rati

> 10,000:1 contrast ratio

Res luti n

4,096 x 2,400 pixels (10Mp)

Display techn l gy

LCoS

Lamps

Lamp

800W Xenon

Lamp lifetime (typical)

Warranted 750 hrs - max 1,500 hrs

Dimensi ns

Weight

Body only: 50kg / 110 lbs

Height - width - length

390 x 660 x 830 mm

15.35

” x

25.99

” x

32.67

”

Lenses

Available z m lenses

TLB HB (1.5 - 1.9:1) included

Available fixed f cal lenses

TLB HB (1:1)

Features

Special features

Up to 4 picture-and-picture data and images

Adjustable color temperature

High dynamic range compatible

Inputs and utputs

Inputs

4x dual DVI-D (up to 12 bit)

Cmmunicati n p rts

RS232 in/out on D9

RJ45 (10/100 Base-T Ethernet)

USB port

C mpatibility

Data

Computer graphics formats VGA, SVGA, XGA, SXGA, UXGA,

1080p HD, 2K up to 4K and 10M

Safety

Safety regulati ns

UL 60950

CE compliant

RoHS and WEEE compliant

P wer

AC p wer

100 - 240 VAC/50-60 Hz

Max. p wer c nsumpti n

1500 Watt

Order inf

LX-5 R9011220
