Barco F400-HR Manuel utilisateur

R5914423 /00 | 2022-04-11

CAUTION: It is important to read the installation instructions before connecting the equipment to the

mains power supply.

Download Product Manual: Product manuals and documentation are a ailable online at https://

www.barco.com/support. The QR code at the bottom of this page leads directly to the F400

product page on the Barco website. Registration may be required; follow the instructions gi en on

the website.

Local keypad

1 2 3 4 5 6

10 9 8 711

Menu Na igation

Menu Selection

Open Menu

Menu Back

Power On/Off

OSD On/Off

Input Selection

Shutter Open/Close

Test Patterns

Lens Menu

LCD Panel

Button acklight status

Button Color status Description

Power button Blinking WHITE (slow) Projector starts up (Booting).

Blinking WHITE (fast) Projector is upgrading firmware.

Solid WHITE Projector is in Ready mode.

Blinking BLUE Projector goes to ON mode.

Solid BLUE Projector is ON.

Blinking RED Error condition.

Shutter button Off Projector is OFF, starts up, or is in Standby mode.

Solid WHITE Projector is ON, shutter is open.

Solid RED Projector is ON, shutter is closed.

ENABLING BRIGHT OUTCOMES

Models F400-HR / FS400-HR

Quick Reference Guide

F400

- 2 -

RCU uttons

14 16

25 26

Button pressed indicator

Shutter open

Shutter close

LCD panel on / off

Project OSD on / off

Lens zoom

Lens shift

Menu open / close

Menu selection, OK button

Menu na igation

Input selection

Address button

Numeric buttons

Backspace (while entering alues)

XLR connector

Decimal mark (while entering alues)

Macro button

Menu back

Default alue button

Lens focus

RGB filter

Test patterns

Power on

Power off

3.5 mm jack

RCU on / off

RCU atteries

•Two AA size batteries. Use alkaline batteries for optimum range and life time.

•Replacing batteries will reset the broadcast address of the RCU to its default alue ’0’.

•Replacing batteries switches on the RCU automatically.

- 3 -

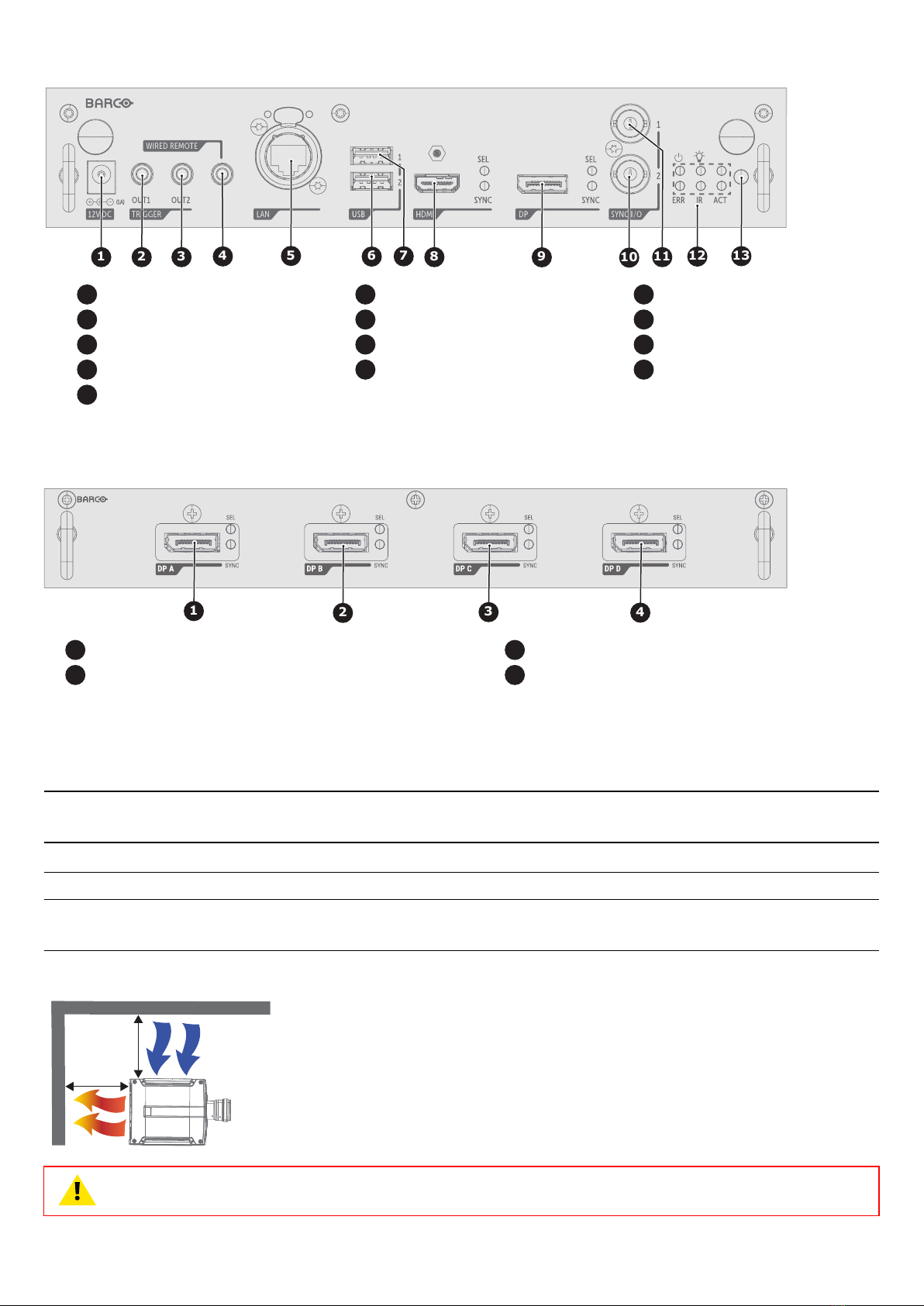

Communication panel

12 3 4568910 12

711 13

12V 1A output

USB connector 2

Sync I/O 2

Trigger output 1

USB connector 1

Sync I/O 1

Trigger output 2

HDMI Input

Status LED’s

Wired remote input

Display Port

IR recei er sensor

LAN connection

Quad DP1.2 input card

1234

Quad DisplayPort 1.2 channel A Input

Quad DisplayPort 1.2 channel C Input

Quad DisplayPort 1.2 channel B Input

Quad DisplayPort 1.2 channel D Input

Installation conditions

Requirement Value

Operation temperature 10 - 40°C / 50°F - 104°F (Altitude 0 - 1500 m)

10 - 35°C / 95°F - 104°F (Altitude 1500 - 3000 m)

Humidity 20 - 80% RH

Power 100 - 240V / 50 - 60 Hz

Dimensions without lens

[W x L (no front co er) x H]

472 x 562 (542) x 286 mm / 18.6 x 22.1 (21.3) x 11.3 in

Weight without lens 30 kg / 66.1 lbs

250mm

The projector must be installed with free air space on the projectors

left and rear side of minimum 250 millimeters. The air inlet is on the

left side, and the hot air output is on the rear side.

WARNING: Do not place heat sensiti e objects or materials in the area of the hot air output. (Orange

arrows).

- 4 -

Install a lens

1. Ensure that the combined handle is in the open position by pulling the release handle out (reference 1).

The locking handle (reference 2) will “follow”.

2. Insert the lens in to the correct position. Ensure that the lens connector (reference 3) matches the

electrical socket on the lens holder.

3. Press the locking handle inwards until it is in locked position. (a “click”will be felt and heard).

4. Ensure that the lens has a firm connection to the projector, without any slack.

Remove a lens

1. Support the lens with one hand.

2. Release the lens lock by pulling the release handle (reference 1). The locking handle (reference 2) will

follow, and the lens will come loose.

Power up the projector

1. Connect the mains power cord to the power inlet connector.

2. The projector will perform the startup sequence. When ready, the power button on the keyboard will

illuminate white, meaning that the projector is in ready mode.

3. Press the Power button on the keypad or remote. The power button will after some seconds illuminate

solid blue, meaning that the projector is ON.

- 5 -

Power down the projector

1. Press and hold the power button for 3 seconds. (A timer indicator will show up on the display).

2. The power button illumination will become white, and projector will enter the cool down modus for

approximately 5 minutes.

3. When the backlight for the keypad is off, unplug the power cord from the projector.

3 sec 5min

Connect and select source

1. Connect a ailable sources to the appropriate input ports.

2. Select connected source.

(See User Guide for detailed menu na igation steps).

Input LEDs explained:

•Select LED (reference 1)

-GREEN : port configured as input. Image appears on the screen.

-Blinking GREEN : bidirectional port configured as output/loopthrough.

•Sync LED (reference 2)

-YELLOW : sync/signal is present.

Sync

Select

Adjust

1. Adjust the lens settings by pressing the lens menu button on the keypad or ia the zoom, shift and focus

buttons on the RCU.

2. Orientation of the unit is set as standard in table front projection mode.

Change the projector set up in the INSTALLATION >ORIENTATION menu.

3. For Advanced adjustments like Warping, Light management, etc. see projector User Guide.

- 6 -

LED status

LED COLOR STATUS DESCRIPTION

PWR (power LED) Off Projector powers up or has no power

RED Projector is in Standby

ORANGE Projector is Ready

GREEN Projector is on

LIGHT (Illumination LED) Off Light source is off

RED No light source detected

GREEN Light source is on in normal mode

GREEN-ORANGE Light source is on in CLO mode

ERR (error LED) Off No error

RED toggles on/off Error

ORANGE toggles on/off Warning: Projector is installing firmware

IR RED IR signal recei ed

GREEN IR signal acknowledged
