Bambu Lab A1 mini Manuel utilisateur
Please review the entire guide before operating the printer.
* Safety Notice: Do not connect to power until assembly is complete.
PF002-M SA005
A1 mini with AMS lite
Bambu Lab
Quick Start
What’s In The Box
AMS lite StandAMS lite BodyA1 mini
Quick Sta
Quick Start
580mm
PTFE Tube (×2)
700mm
PTFE Tube (×2)
Sample
Filament
Spool Holder Accesso Box Bambu
Filament Swatches
Purge WiperAMS lite Rota
Spool Holder
(×4)
Build Plate
Accesso Box
Spare Filament
Cutter (×2)
BT3-6 Screw (×5)
(For AMS Stand)
BT2.6-8 Screw (×2)
(For Scraper) (For Spool Holder)
M3-8 Screw (×2)
(For Purge Wiper)
M3-12 Screw (×1)
Allen Key H2Unclogging Pin Tool Allen Key H1.5 Heatbed Nozzle Wiper
Cable Organizer Spool Holder Base
Bambu
Scraper Blade
Grease
Unlock
② Cut the ziptie wrapped around the toolhead.
③ Remove the foam padding.
① Remove the 4 screws to unlock the Z-axis limiter.
①
②
③

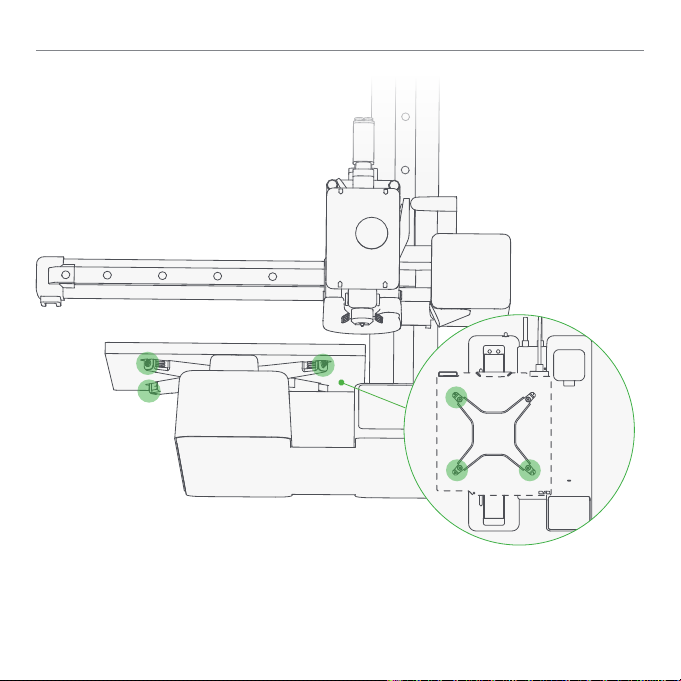

Lock Heatbed
① Tighten the 3 screws circled in green to lock the heatbed.
Purge Wiper Installation
① Slide in the Purge Wiper unit into the slot at the end of the X-Axis.
② Install the 1*M3-12 screw (For Purge Wiper) from the accesso box to x the
Purge Wiper in place.
Spool Holder Installation
① Install the spool holder base plate with the 2*M3-8 screws (For Spool Holder)
from the accesso box.
② Slide in the spool holder. (match the slot orientation)
①
②
AMS lite Assembly
① Put the AMS lite body on the stand. (cable on the upward end)
② Secure the AMS lite with the 4*BT3-6 screws (For AMS Stand) from the accesso box.
①
②
AMS lite Assembly
① Slide the rota spool holders on (all the way in), being careful to match colors to avoid
damaging any pas.
