Bacharach 2825 Manuel d'exploitation et d'entretien

CO2Analyzer

2825/2830/2835

Instruction 19-9320

Operation & Maintenance

Rev. 2 – April 2004

Product Leadership • Training • Service • Reliability

Model 2835 Shown

 



        

AInstruction 19-9320

WARRANTY

Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from

defects in material and manufacture and will conform substantially to Bacharach Inc.’s

alicable secications. Bacharach’s liability and Buyer’s remedy under this warranty

are limited to the repair or replacement, at Bacharach’s option, of this Product or parts

thereof returned to Seller at the factory of manufacture and shown to Bacharach Inc.’s

reasonable satisfaction to have been defective; provided that written notice of the defect

shall have been given by Buyer to Bacharach Inc. within one (1) year after the date of

delivery of this Product by Bacharach, Inc.

Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach’s

liability and Buyer’s remedy under this warranty of title are limited to the removal of any

title defects or, at the election of Bacharach, to the replacement of this Product or parts

thereof that are defective in title.

THE FOREGOING WARRANTIESARE EXCLUSIVEANDARE GIVENANDACCEPTED

IN LIEU OF (I) ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-

ING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITYAND

FITNESS FOR A PARTICULAR PURPOSE: AND (II) ANY OBLIGATION, LIABILITY,

RIGHT, CLAIM OR REMEDY IN CONTRACT OR TORT, WHETHER OR NOT ARISING

FROM BACHARACH’S NEGLIGENCE,ACTUALOR IMPLIED.The remedies of the Buyer

shall be limited to those provided herein to the exclusion of any and all other remedies

including, without limitation incidental or consequential damages. No agreement varying

or extending the foregoing warranties, remedies or this limitation will be binding upon

Bacharach, Inc. unless in writing, signed by a duly authorized ofcer of Bacharach.

Notice:

Product imrovements and enhancements are continuous, therefore the secications and information

contained in this document may change without notice.

Bacharach, Inc. shall not be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

No part of this document may be photocopied, reproduced, or translated to another language without the

prior written consent of Bacharach, Inc.

BACHARACH®is a registered trademark of Bacharach, Inc.

All other trademarks are the property of their respective owners.

www.bacharach-inc.com

CO2Analyzer 2825/2830/2835

Instruction 19-9320 i

CO2Analyzer 2825/2830/2835

Contents

1.0 INTRODUCTION................................................................................1

1.1 General .......................................................................................1

1.2 Features......................................................................................1

1.3 Applications................................................................................2

1.4 Instruction Manual....................................................................2

1.5 Measuring Ranges ..................................................................... 2

2.0 OPERATION .......................................................................................3

2.1 Important Note .......................................................................... 3

2.2 Switching Analyzer ON/OFF ....................................................3

2.3 Probe Installation (2830 / 2835)................................................4

2.3.1 Temperature Probe Installation (2830)......................... 4

2.3.2 Temperature & Humidity Probe Installation (2835).... 4

2.4 Pump Operation......................................................................... 5

2.5 Pump Contamination.................................................................5

2.6 Selecting the Measurement to be Displayed ............................6

2.7 Current / Peak Gas Reading Mode ...........................................7

2.8 Storing Readings........................................................................7

2.9 Battery Low Display ..................................................................8

2.10 Battery Charge Display.............................................................8

2.11 Fault Condition Warning ..........................................................8

2.12 Powering Analyzer from Charger .............................................9

2.13 High Humidity Gas Sampling (2825 / 2830) ............................9

2.14 Testing Incubators (2825 / 2830)............................................. 10

3.0 MAINTENANCE ...............................................................................11

3.1 Cleaning ...................................................................................11

3.2 Sunlight ....................................................................................11

3.3 Servicing...................................................................................11

3.4 Software Version / Serial Number ..........................................11

3.5 Factory Settings.......................................................................11

3.6 Battery Charging ..................................................................... 12

3.7 Air Calibration .......................................................................... 13

4.0 PARTS & SERVICE .........................................................................14

4.1 Replacement Parts and Accessories........................................14

4.2 Bacharach Service Centers .....................................................15

CO2Analyzer 2825/2830/2835

ii Instruction 19-9320

CO2Analyzer 2825/2830/2835

Notes

CO2Analyzer 2825/2830/2835

Instruction 19-9320 1

1.0 INTRODUCTION

1.1 General

Bacharach’s line of CO2analyzers are easy to use, but it is essential that

this instruction manual be read, understood, and followed by all operators

and maintenance personnel prior to using or servicing the analyzer.

CO2analyzer models 2825, 2830 and 2835 are all compact and light-

weight instruments that principally measure and display CO2concentra-

tions, with each of the various models offering the ability to also measure

barometric pressure, O2, temperature, and relative humidity.

• 2825 – CO2(0–60%), Pressure, and O2

• 2830 – CO2(0–60%), Pressure, O2, and Temperature

• 2835 – CO2(0–10,000 ppm), Pressure, Temperature,

and Relative Humidity

Each reading is displayed separately on a backlit LCD, with an operator

being able to quickly scroll through all the readings by pressing the f3

button. A peak-gas-reading mode enables an operator to view the highest

gas reading that was taken since the analyzer was switched ON.

Each analyzer can store all measured readings in memory, which can

later be downloaded to a personal computer via its integral IrDA commu-

nications link and the optional BACH-COM software.

1.2 Features

•Normal and peak reading modes

•Up to 10 hours of operation on one charge

•Convenient zero function for all gas sensors

• Internal pump for remote gas sampling

•Long-life sensors (CO2- 10 years; O2- 2 years)

•Infrared CO2sensor and electrochemical O2sensor

•Battery capacity display

•Manual (snapshot) and continuous data logging of readings

with time and date stamp

•Memory capacity for storing 200 sets of data

•IrDA link for downloading stored data to a personal computer

•Charge-and-run capability for long-term monitoring

•Weight: 12 oz

•Dimensions: 5.5"H x 2.5"W x 1.5"D

CO2Analyzer 2825/2830/2835

2Instruction 19-9320

1.3 Applications

• Incubators • Food Packing

• Mushroom Farms • Brewing

• Fruit/Vegetable Storage • Carbonated Drink Dispensing

• Greenhouses • Blended Beer Gases

1.4 Instruction Manual

Unless otherwise noted, all sections in this instruction manual describe

the operation and maintenance of all three CO2analyzer models (2825 /

2830 / 2835).

If a section is relevant to only one or more analyzer models, then the

section heading will contain the name(s) of those models. For example,

section heading 2.3 Probe Installation (2830/2835) indicates that the

information under this heading pertains only to analyzer models 2830

and 2835.

1.5 Measuring Ranges

Measurement Range / Resolution

CO2– High Range (2825 / 2830).................................................0 to 60% / 1%

CO2– Low Range (2835)......................................... 0 to 10,000 ppm / 10 ppm

O2(2825 / 2830) ..........................................................................0 to 30% / 1 %

Barometric Pressure (2825 / 2830 / 2835).................. 21 to 36" Hg / 0.01" Hg

Temperature (2830 / 2835) ..................................................0 to 104°F / 0.1°F

Relative Humidity (2835) ........................................................0 to 99.9% / 1%

CO2Analyzer 2825/2830/2835

Instruction 19-9320 3

2.0 OPERATION

2.1 Important Note

Always ensure that the analyzer’s gas inlet connector (Figure 1, Item A)

and gas exhaust (Figure 1, Item B) are unobstructed and open to the at-

mosphere. Be careful not to breath directly on the analyzer while taking

a measurement; otherwise, inaccurate readings will result.

2.2 Switching Analyzer ON/OFF

Switch ON the analyzer by pressing the button. Switch the analyzer

OFF by pressing the button down for at least 3 seconds, or until the

display goes blank. When rst switched on, there is an approximate

60 second warm-up period before the CO2level is displayed, and 3 min-

utes before the O2level is displayed. Note that normal fresh air back-

ground readings are 340 ppm CO2and 21% O2.

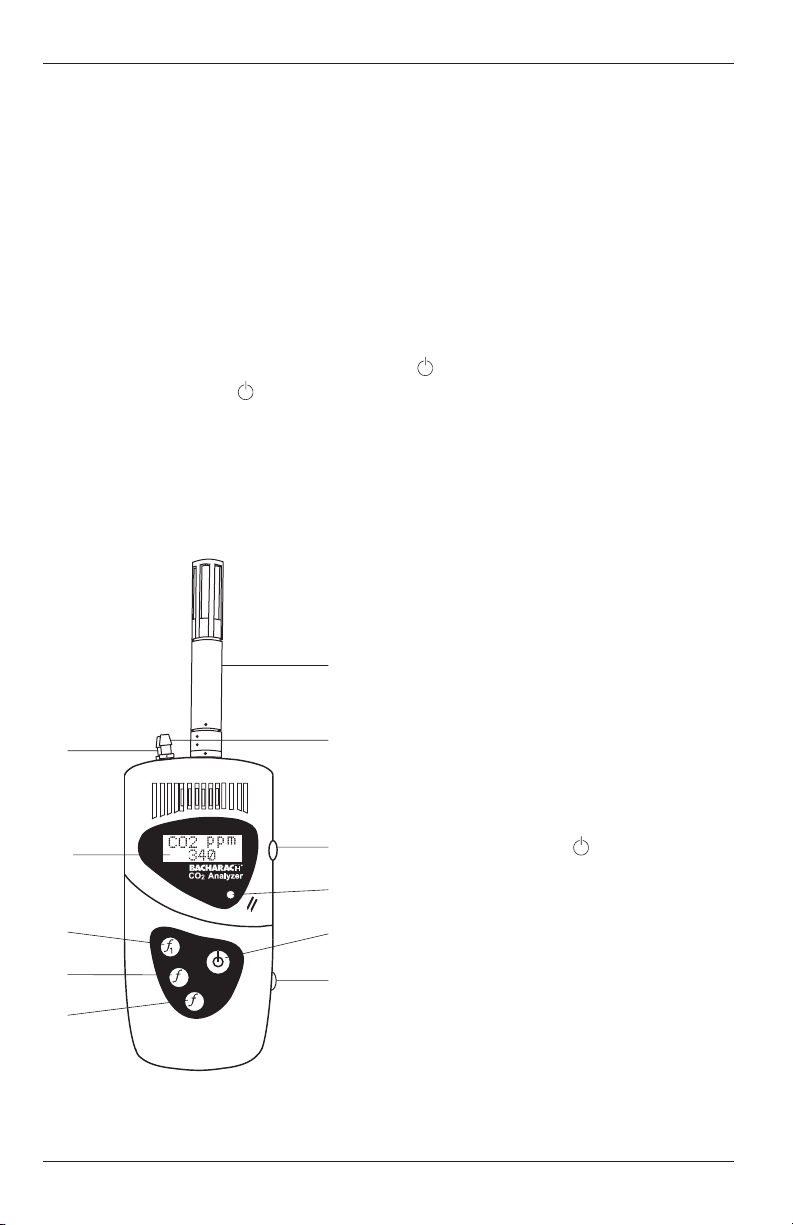

Figure 1. Components of the CO2Analyzer

A - Gas inlet tting

B - Gas outlet tting

C - LCD display

D - Temperature and humidity

sensor probe (Model 2835)

E - IrDA link

F - Pump ON light

G - Press once to switch analyzer

ON; press once to start and stop

pump; hold 3 seconds to switch

analyzer OFF ( )

H - Battery charging socket

I - Press once to store data; hold to

start and stop data-logging (f1)

J - Press once for battery level; hold

to start Air Calibration (f2)

K - Press once to scroll through

measurement channels; hold for

peak gas reading (f3)





)

(



CO2Analyzer 2825/2830/2835

4Instruction 19-9320

2.3 Probe Installation (2830 / 2835)

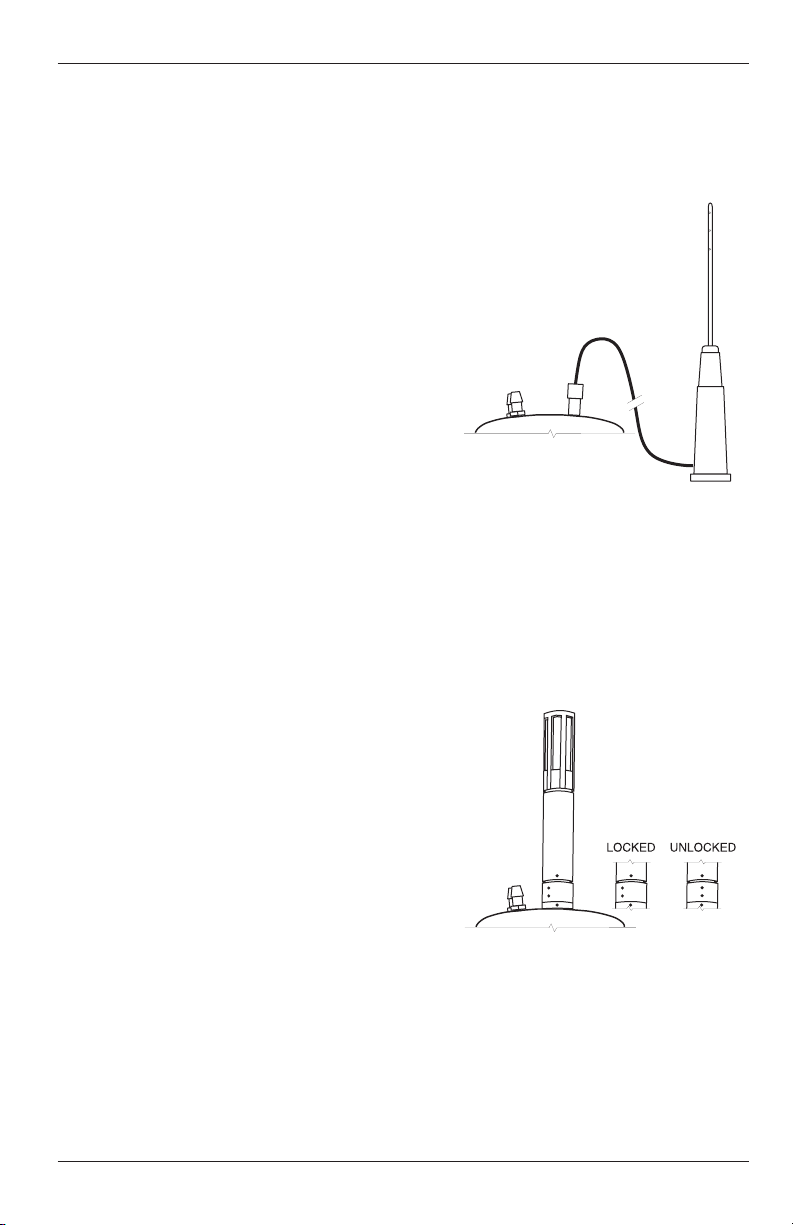

Figure 3. Temperature &

Humidity Probe Installation

Figure 2. Temperature

Probe Installation

2.3.1 Temperature Probe

Installation (2830)

The 2030 Analyzer’s temperature sensor

is mounted in a hand-held probe assem-

bly that plugs into a separate socket on

top of the analyzer (Figure 2).

Before installing the probe, turn the an-

alyzer OFF. Align the slot on the probe

connector with the tab on the analyzer’s

mating socket; then push the probe con-

nector onto its socket until it bottoms.

Remove the probe connector by pulling

it straight up.

2.3.2 Temperature & Humidity

Probe Installation (2835)

The 2835 Analyzer’s temperature and

humidity sensors are mounted in a rigid

probe assembly that attaches to a sepa-

rate connector on top of the analyzer

(Figure 3).

Before installing the probe, turn the

analyzer OFF. Turn the probe’s locking

collar on the analyzer so that all dots

line up. Align the dot on the probe with

the dots on the locking collar; then push

the probe into its socket until it bottoms.

Now lock the probe into place by turning

the locking collar to its locked position.

To remove the probe, rst turn the locking collar to its unlocked position;

then pull the probe straight up.

CO2Analyzer 2825/2830/2835

Instruction 19-9320 5

2.4 Pump Operation

With the analyzer already switched ON, momentarily pressing the

button will start and stop the internal pump. The optional Extended

Probe Assembly with in-line lter (P/N 19-3310) can be connected to the

gas inlet tting (Figure 1, Item A) on the top of the analyzer for drawing

gas samples from hard-to-reach areas. If desired, a section of 1/8" I.D.

tubing can be connected to the gas outlet tting (Figure 1, Item B) to

exhaust the gas being sampled to an outside area.

Note that the combined sampling hose and probe length should not

exceed 6 feet (1.8 m). Also note that the internal pump is intended for

use only at normal atmospheric pressure, and is not designed to draw

in gas samples against a vacuum or an obstruction such as a kink in the

sampling hose. If an obstruction or negative-pressure gradient is present,

then gas will not be drawn into the analyzer. Please consult the factory

for applications where longer sampling lengths are required, or where it

is necessary to draw against a vacuum.

2.5 Pump Contamination

Over time the pump can become contaminated, leading to a slower

response time and lower readings. To check for pump contamination,

turn the pump ON and hold your index nger over the inlet tting. The

pump should normally stall. If the pump, however, continues to run, then

the pump is contaminated and the analyzer needs to be returned to a

Bacharach Service Center for repair (refer to Section 4.2).

CO2Analyzer 2825/2830/2835

6Instruction 19-9320

2.6 Selecting the Measurement to be Displayed

Depending upon the analyzer model, several different gases and environ-

mental measurements can be taken as described in Section 1.1 General.

Important! For the 2830/2835 analyzer to display accurate

temperature readings, the temperature probe must be in-

stalled per Section 2.3. Note that if the temperature probe is

removed, the analyzer will continue to provide accurate read-

ings for all other measurements.

Each measurement is displayed separately on the analyzer’s LCD (Fig-

ure 1, Item C). The measurement displayed is selected by pressing the f3

button.

Each time the f3button is pressed, the display scrolls through the follow-

ing measurements:

CO2 ppm

340

Baro"Hg

28.79

O2%

Temp F

72.4

RH %

Carbon Dioxide

(2825 / 2830 / 2835)

Oxygen

(2825 / 2830)

Temperature

(2830 / 2835)

Barometric Pressure

(2825 / 2830 / 2835)

Relative Humidity

(2835)

‘Please Wait’ will be displayed

if the O2cell is still warming up

(approx. 3 min.)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bacharach Instrument de mesure

Bacharach

Bacharach Neutronics LEGEND ID RI-2018 Series Manuel utilisateur

Bacharach

Bacharach Neutronics 5124BE-N1-WO Manuel utilisateur

Bacharach

Bacharach HGM-MZ Mode d'emploi

Bacharach

Bacharach 24-7224 Manuel utilisateur

Bacharach

Bacharach Draftrite Manuel utilisateur

Bacharach

Bacharach MGD-100 Manuel utilisateur

Bacharach

Bacharach Fyrite Tech 50 Manuel utilisateur

Bacharach

Bacharach Neutronics Mini-ICS Manuel utilisateur

Bacharach

Bacharach LS-20B Manuel utilisateur

Bacharach

Bacharach HGM-MZ Manuel utilisateur

Bacharach

Bacharach Parasense 3300RM2 Manuel

Bacharach

Bacharach HGM300 Mode d’emploi

Bacharach

Bacharach Fyrite INSIGHT PLUS Manuel utilisateur

Bacharach

Bacharach Legend Series Manuel utilisateur

Bacharach

Bacharach 0012-9015 Manuel utilisateur

Bacharach

Bacharach Gas Pup Manuel utilisateur

Bacharach

Bacharach Fyrite INSIGHT PLUS Manuel utilisateur

Bacharach

Bacharach Monoxor Plus Manuel utilisateur

Bacharach

Bacharach Fyrite Tech 50 Manuel d'exploitation et d'entretien

Bacharach

Bacharach 300 Manuel utilisateur

Bacharach

Bacharach QV2 Manuel

Bacharach

Bacharach HGM-MZ Manuel utilisateur

Bacharach

Bacharach 0024-8555 Manuel utilisateur

Bacharach

Bacharach Tru Pointe Manuel d'utilisation

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
