Baby Trend Trendsport Lite 1510 Manuel utilisateur

Model # 1510, 1511

03.08

Read all instructions BEFORE assembly and USE of product.

KEEP INSTRUCTIONS FOR FUTURE USE.

Instruction Manual

Convenience through innovation and thoughtful design

TRENDSPORT LITE

WARNING: Please follow all of these instructions to ensure

the safety of your child. Keep these instructions for future reference.

WARNING: Failure to follow these instructions could result

in serious injury or death. Avoid serious injury from falling or sliding

out. Always use the safety harness and insure that the child is properly

positioned according to these instructions.

WARNING: Never leave child unattended.

TRENDSPORT LITE

To Contact us:

Baby Trend, Inc.

1607 S. Campus Ave.

Ontario, CA. 91761

Parts Hotline:

1-800-328-7363

8:00 a.m. and 4:30 p.m. Pacific Standard Time

* Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and

cause hazardous unstable conditions.

* The maximum weight that can be carried in the basket is 5 lbs and in the parent tray is 3 lbs. Excessive

weight may cause a hazardous unstable condition to exist.

.* Be certain the stroller is fully erect and latched in the open position before allowing the child near the

stroller.

* Use of the stroller with a child weighing more than 35 pounds will cause excessive wear and stress on the

stroller., and may cause a hazardous unstable condition to exist.

* DO NOT use the stroller on stairways or escalators.

* DO NOT use the stroller with roller skates or in-line skates.

* Never allow your stroller to be used as a toy

* To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.

* Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or

repair parts as needed

* Discontinue use of stroller should it malfunction or become damaged. Please contact our customer service

Parts Hotline to arrange for repair or obtain replacement parts.

Please: If you experience any diffculty with the use of our product or have a question regarding these

instructions, please contact our Customer Service Department at 1-800-328-7363 between the hours of

8:00a.m. and 4:30p.m. Pacifc Standard Time. Please do not return to the store as once it is returned it

cannot be resold and the materials and energy used to make it are wasted.

ASSEMBLING

PARTS

TO ENSURE SAFE OPERATION OF YOUR STROLLER, PLEASE FOLLOW THESE

INSTRUCTIONS CAREFULLY. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

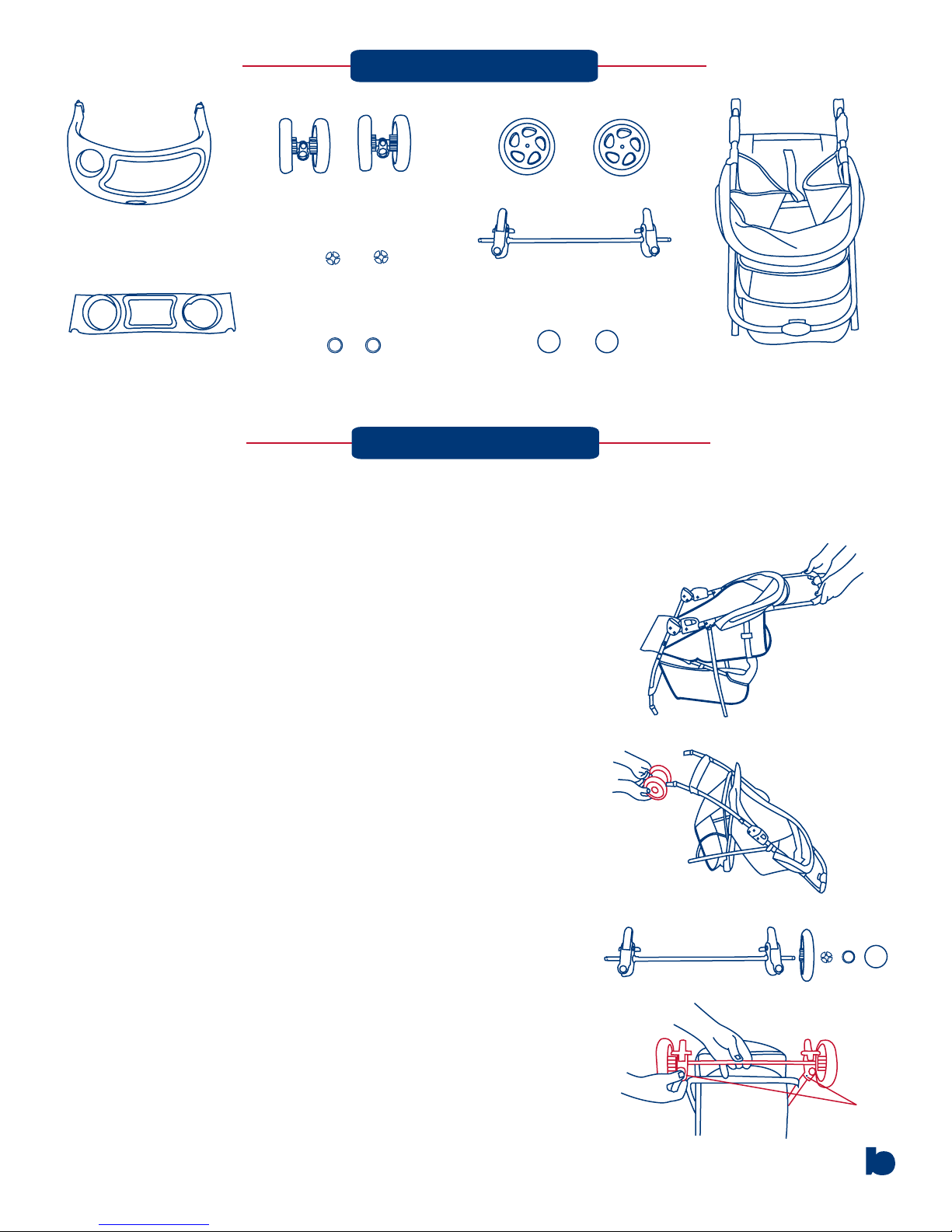

ASSEMBLY:

*Remove stroller from box. The front wheels, rear wheels, child

tray and parent tray need to be installed prior to use.

* To attach the front wheels, unfold stroller as described in the

section following. See figure 1.

* Lean the stroller backwards so that it rests on the handle and rear

frame tubes and the front wheel bayonets are pointing upward.

* Push each front wheel onto the front wheel bayonet until snapped

into place. Pull on the wheel to ensure that it is securely attached

to the stroller. Please see figure 2.

* Assemble the rear axle as follows. Insert the axle through each

wheel, with axle going through the brake cluster on the wheel first.

Snap the small lock washer onto the grove at the end of the axle to

lock the wheel on. Snap the locking cap over the lock washer.

Lastly, snap the hub cap into place. Pull on each wheel to ensure

that each is securely locked onto the rear axle. Please see figure 3.

* Lean the stroller forward to rest on the front wheels. To attach the

rear axle, line up the rear frame tubes with the rear axle housing

with the brake pedals facing toward the rear of the stroller. Push

both housings onto the rear frame tubes at the same time until they

snap into place. Check that the push button shows through the

small hole near the bottom of the inside of the housing. Make sure

that the axle is firmly attached to the stroller. Please see figure 4.

Fig. 1

Fig. 2

Fig. 3

Push Buttons

Fig. 4

Stroller

Front Wheels

Child Tray

Parent Tray

Axle

White Locking Cap

Dark Solid Cap

Rear Wheels

Hub Cap

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

snap on

* Ensure that the wheels are firmly locked into place. Do Not use the

stroller if the wheels are not locked into place, but rather contact our

customer service department immediately at 1-800-328-7363,

between the hours of 8:00am and 4:30pm PST, for assistance.

* To attach the front child tray, snap each side latch onto the front

frame tube just below the fold joint. To remove the front child tray,

pull outward on the side latch on the tray. Please see figure 13.

* To attach the parent tray, place one side of the tray on the stroller

handle such that the button engages into the hole on the tray. Snap

opposite side onto handle checking that the button engages into the

hole on the tray. Please see figure 6.

Warning: Do Not lift the stroller by the

front tray.

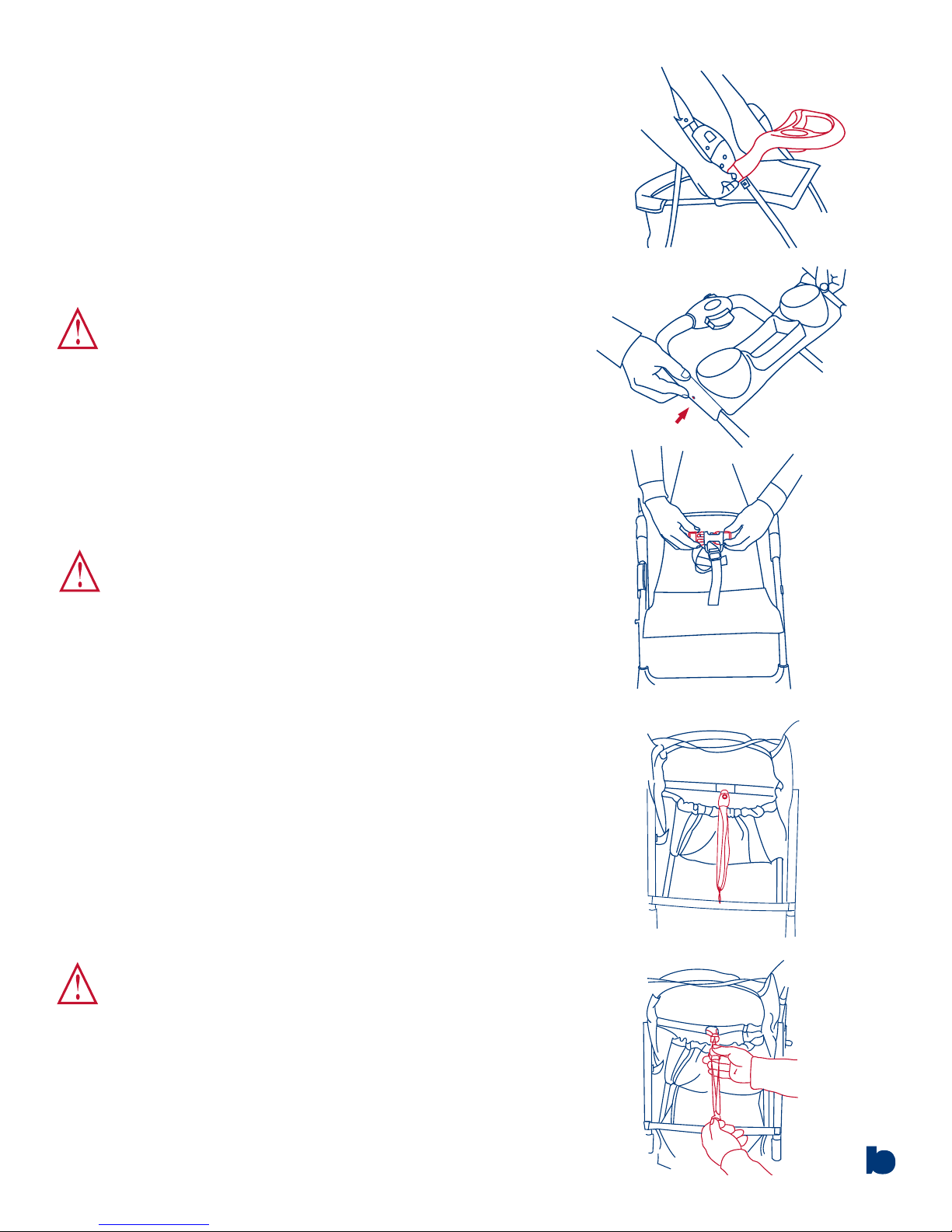

TO SECURE THE CHILD

* Carefully place the child in the stroller seat and bring the seat belt

around the child's waist. Place the crotch strap between the child's

legs. Insert the male end of each seat belt into the female buckle

until snapped into place. Tighten the seat belt to be snug around the

child's waist. Please see figure 7.

Warning: Avoid serious injury from

falling or sliding out. Always use the seat belt.

* To release, apply pressure to both sides of each male clip until the

clip is released. This process requires a moderate amount of effort

so as to prevent an accidental release by your child.

SEATBACK POSITIONING

* The seat has a multiple position recline that is controlled by a strap

and spring loaded slider behind the seat. See figure 8. To recline

the seat, press the round button on the slider and adjust to the

required recline position. Please see figure 9. The strap will lock

automatically. The upright position should be used only for a

child that is at least 6 months old.

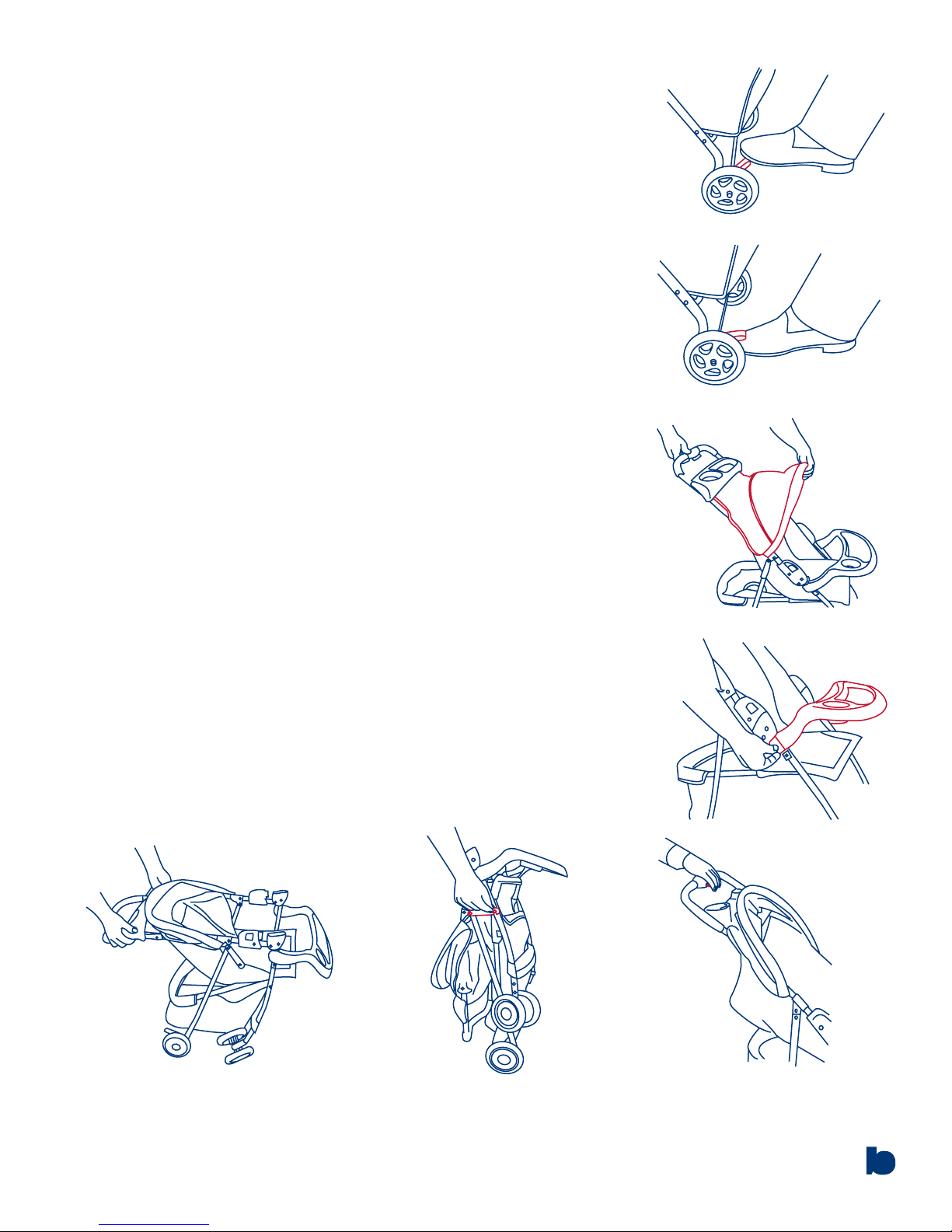

BRAKES

Warning: Always set brakes when the

stroller is not being pushed so that the stroller

will not roll away. Never leave stroller

unattended on a hill or incline as the stroller

may slide down the hill.

Fig. 10

Fig. 11

PULL

Fig. 12

Fig. 13

Fig. 16

Fig. 15

Fig. 14

IF YOU EXPERIENCE ANY DIFFICULTY IN USING THIS PRODUCT, PLEASE

CONTACT OUR CUSTOMER SERVICE DEPARTMENT AT 1-800-328-7363 BETWEEN

THE HOURS OF 8:00AM AND 4:30PM PACIFIC STANDARD TIME FOR ASSISTANCE.

* To engage brakes, apply light downward pressure to the brake lever

located on each rear wheel. See figure 10. The stroller may require

slight forward or rearward movement in order to line up the teeth on the

brake with each wheel brake cluster. Check that the stroller will not

move and that the brakes are properly applied. To release, gently lift

up on the brake lever. See figure 11.

CANOPY

* To open the canopy, push forward on the front frame of the canopy.

Pull backwards on the canopy frame to fold completely. Always fold

the canopy prior to folding the stroller frame. Please see figure 12.

TO REMOVE FRONT CHILD TRAY:

* Pull outward on the tray latches to release. Please see figure 13.

TO FOLD STROLLER:

* Close the canopy as described in the Canopy section above. To fold the

stroller slide the red fold lock with your thumb while squeezing the

large red fold button in the center of the handle and push downward on

the handle. Once the stroller begins to fold, release the red handle and

pull rearward on the child tray until the stroller is folded. Secure the

stroller in the folded position by fastening the fold locking latch, located

on the right side of the stroller at the intersection of the handle and the

rear leg tube, over the extended rivet on the lower frame tube. Please

see figure 14 and 15. NOTE: before folding firstly to recline seat by

releasing buckle as described in seat back position section above.

TO UNFOLD STROLLER:

* Release the folding latch, which is located on the right side.

See figure 15.

* Lift up on the stroller handle with both hands until the stroller frame is

erect and locked in the open position. See figure 16. The stroller has

spring-loaded latches on both sides of the frame. Test that both latches

are fully engaged prior to placing your child in the stroller.

1 2 3 4

ATTENTION

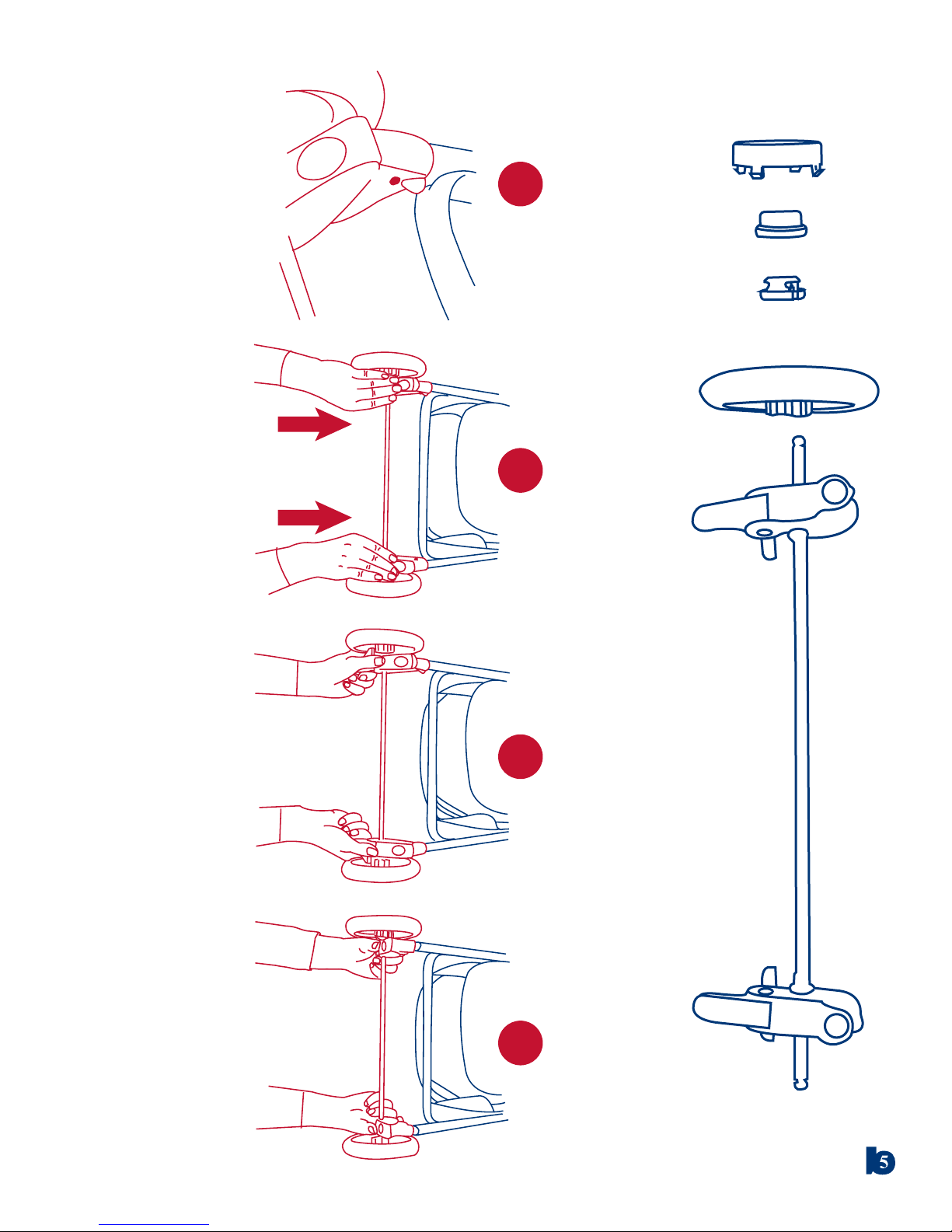

TO ATTACH THE REAR WHEELS

Follow this order

PLEASE FOLLOW THESE INSTRUCTIONS FOR THE PROPER

INSTALLATION OF YOUR REAR AXLE ASSEMBLY.

1234

Line up the frame tubes

with the axle assembly

Slide onto frame tubes

at the same time

Push down until axle

housing snaps into place

Axle housing is secure

when the metal tab locks

axle housing into place
