Read all instructions BEFORE assembly and USE of product.

KEEP INSTRUCTIONS FOR FUTURE USE.

Lea todas las instrucciones ANTES de armar y USAR el producto.

CONSERVE LAS INSTRUCCIONES PARA USO FUTURO.

Lisez toutes les instructions du manuel AVANT l’assemblage

ou L’UTILISATION de ce produit. CONSERVEZ CES

INSTRUCTIONS POUR RÉFÉRENCE ULTÉRIEURE.

ST03XXXA

Gravity Fold Stroller

Instruction Manual

Manual de Instrucciones

Manuel d’instruction

ST03XXXA_3L_070720_SP

WARRANTY

DO NOT RETURN YOUR PRODUCT TO THE STORE. PLEASE CONTACT BABY TREND

FOR REPLACEMENT PARTS, SERVICE AND REPAIR.

The Baby Trend® warranty covers workmanship defects within the rst 180 days of

purchase. Any product which has been subjected to misuse, abuse, abnormal use,

excessive wear and tear, improper assembly, negligence, environmental exposure, alteration

or accident, or has had its serial number altered or removed invalidates all claims against

the manufacturer. Any damage to property during installation is the sole responsibility of the

end user. The Customer Service Department can be contacted at 1 (800) 328-7363 Monday

through Friday between 8:00am and 4:30pm (PST). Return Authorizations are required prior

to returning product(s) to Baby Trend®. Warranty only valid in North America.

GARANTIA

NO DEVUELVA SU PRODUCTO A LA TIENDA. POR FAVOR CONTACTE A BABY TREND

PARA PIEZAS DE REPUESTO, SERVICIO Y REPARACION.

La garantía de Baby Trend® cubre defectos de fábrica dentro de los primeros 180 días de

la compra.Cualquier producto que haya sido sometido a uso indebido, abuso, uso anormal,

desgaste excesivo, montaje incorrecto, negligencia, exposición ambiental, alteración o

accidente, o que ha tenido su número de serie alterado o removido anula todos los reclamos

contra el fabricante. Cualquier daño a la propiedad durante la instalación es de la exclusiva

responsabilidad del usuario nal. El Departamento de Servicio al Cliente puede ser

contactado a 1 (800) 328-7363 Lunes a viernes entre 8:00am y 4:30pm (PST).Un numero

de autorizacion es requerido antes de la devolución de los producto(s) a Baby Trend®.

Garantia válida sólo en América del Norte.

1-800-328-7363

(8:00am ~ 4:30pm PST)

www.babytrend.com

Baby Trend, Inc.

13048 Valley Blvd.

Fontana CA 92335

WARNING

PARTS

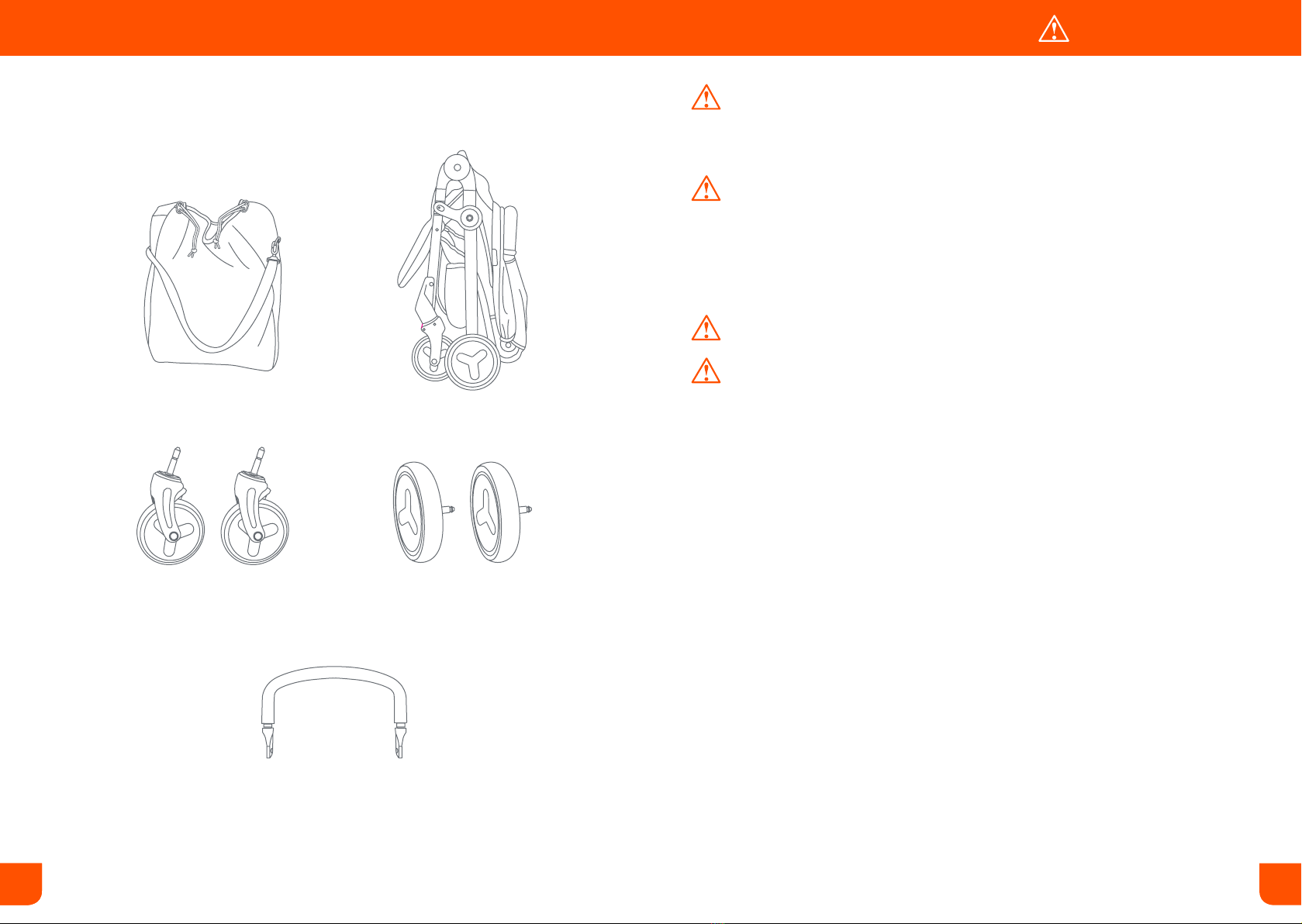

Check that you have all the parts for this model

before assembling the stroller.

Compact Stroller

Rear WheelsFront Wheels

Carry / Tote bag

WARNING: Please follow all of these

instructions to ensure the safety of your child. Keep

these instructions for future reference.

WARNING: Failure to follow these instructions

could result in serious injury or death. Avoid serious

injury from falling or sliding out, always use the safety

harness and ensure that the children are properly

positioned according to these instructions.

WARNING: Never leave children unattended.

WARNING: Care must be taken when folding

and unfolding the stroller to prevent nger entrapment.

• CAUTION: This stroller is designed for one child only. Use with more than

one child may cause an unbalanced condition which can injure/harm your

child.

• Purses, shopping bags, parcels, diaper bags or accessory items may

change the balance of the stroller and cause a hazardous, unstable

condition.

•

The maximum weight that can be carried in the storage basket is 5 lbs (2.26 kg).

Excessive weight may cause a hazardous unstable condition to exist.

• Be certain the stroller is completely opened and locked in place before

allowing a child near the stroller.

•

The maximum weight capacity of this stroller is 45 lbs (20.41 kg) or 40 inches

(101.6 cm). Additional weight will cause excessive wear and stress on the

stroller and may cause a hazardous unstable condition to exist.

• NEVER use the stroller on stairways or escalators.

• NEVER use the stroller with roller skates, in-line skates, skateboards or

bicycles.

• NEVER allow your stroller to be used as a toy.

• To clean use only mild household soap or detergent and warm water on a

sponge or clean cloth.

• Check your stroller for loose screws, worn parts, torn material or stitching

on a regular basis. Replace or repair parts as needed.

• Discontinue use of stroller should it malfunction or become damaged.

* Wheels style may vary.

Bumper Bar

Sac de transport / fourre-tou

ASSEMBLY

WARNING

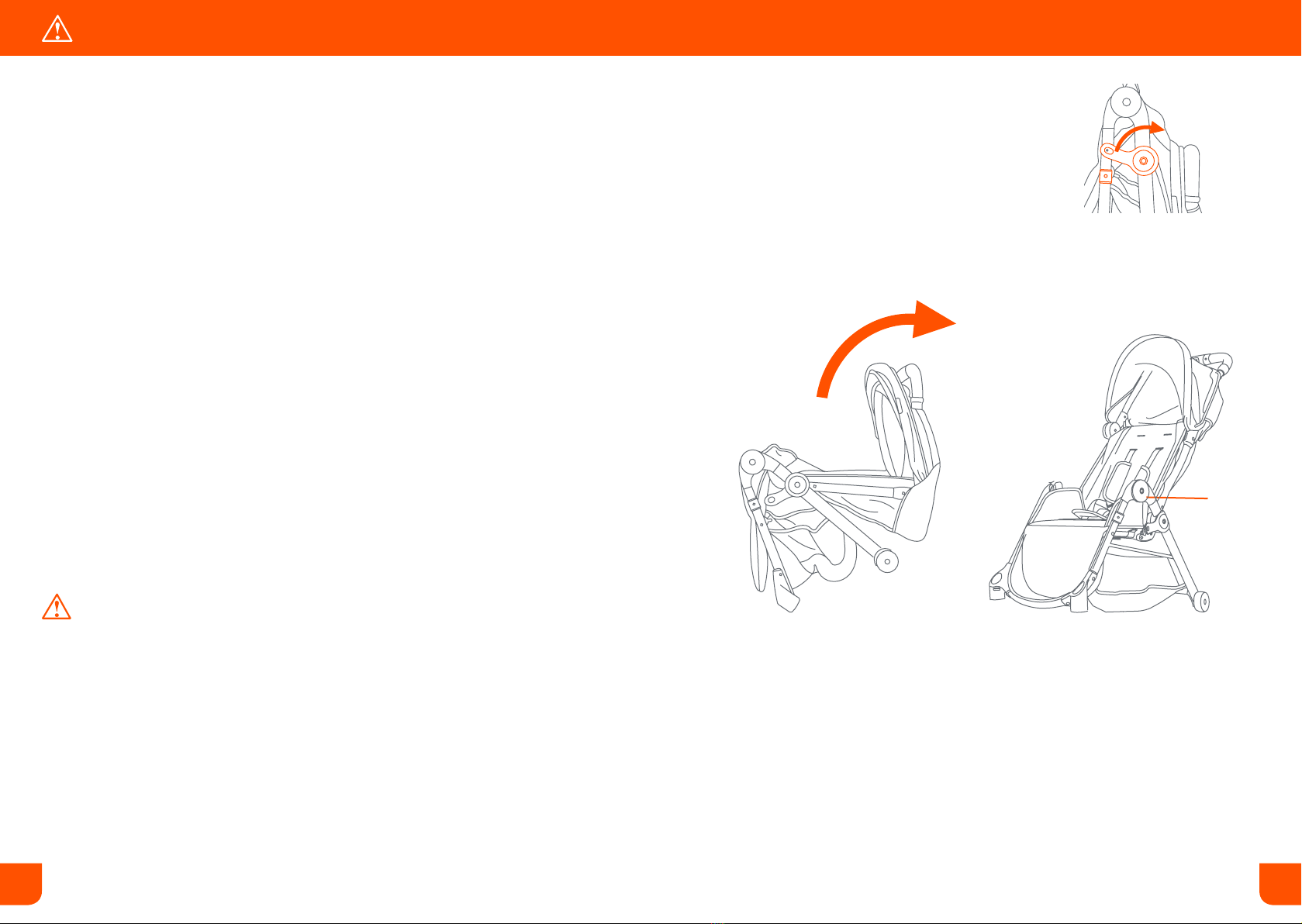

TO UNFOLD STROLLER

WARNING: Care must be taken

when unfolding the stroller to prevent

nger entrapment.

CAUTION: Do not allow children

near stroller while unfolding.

Unfold stroller as described in the following

section :

IMPORTANT! To ensure safe operation of your

product, please follow these instructions carefully.

Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use,

inspect this product for damaged hardware, loose

joints, missing parts or sharp edges. NEVER use if

any parts are missing or broken.

IMPORTANT! Adult assembly is required.

Fig. 1a

Fig. 1c

Fig. 1b

"Click"

1) • Release the fold latch by pulling

it outward (Fig. 1a). Pull upward

on the stroller handle until the

frame locks (Fig. 1b).

NOTE: The frame clicks into

position when fully extended.

The frame must lock (Fig. 1c).

ASSEMBLY ASSEMBLY

Copyright © 2020, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés. Copyright © 2020, Baby Trend Inc., All Rights Reserved. Todos los derechos reservados. Tous droits réservés.

CANOPY

4) • To open the canopy: push

forward on the front edge of the

canopy while holding the rear of

canopy in place (Fig. 4a).

• To fold the canopy: pull

backwards on the front edge

(Fig. 4b).

REMOVABLE BUMPER BAR

WARNING: Do not

use bumper bar to carry

stroller with child inside.

FALL HAZARD:

Bumper bar is not designed

to support a car seat,

stroller may become

unstable.

5) • Attach the bumper bar by lining

up anchors with the slots on

the seat. Push until it clicks into

place (Fig. 5a).

NOTE: The bumper bar must be

securely attached before using

this product.

• To access the child seat, press

both buttons and pull out both

sides to remove the bumper bar

(Fig. 5b).

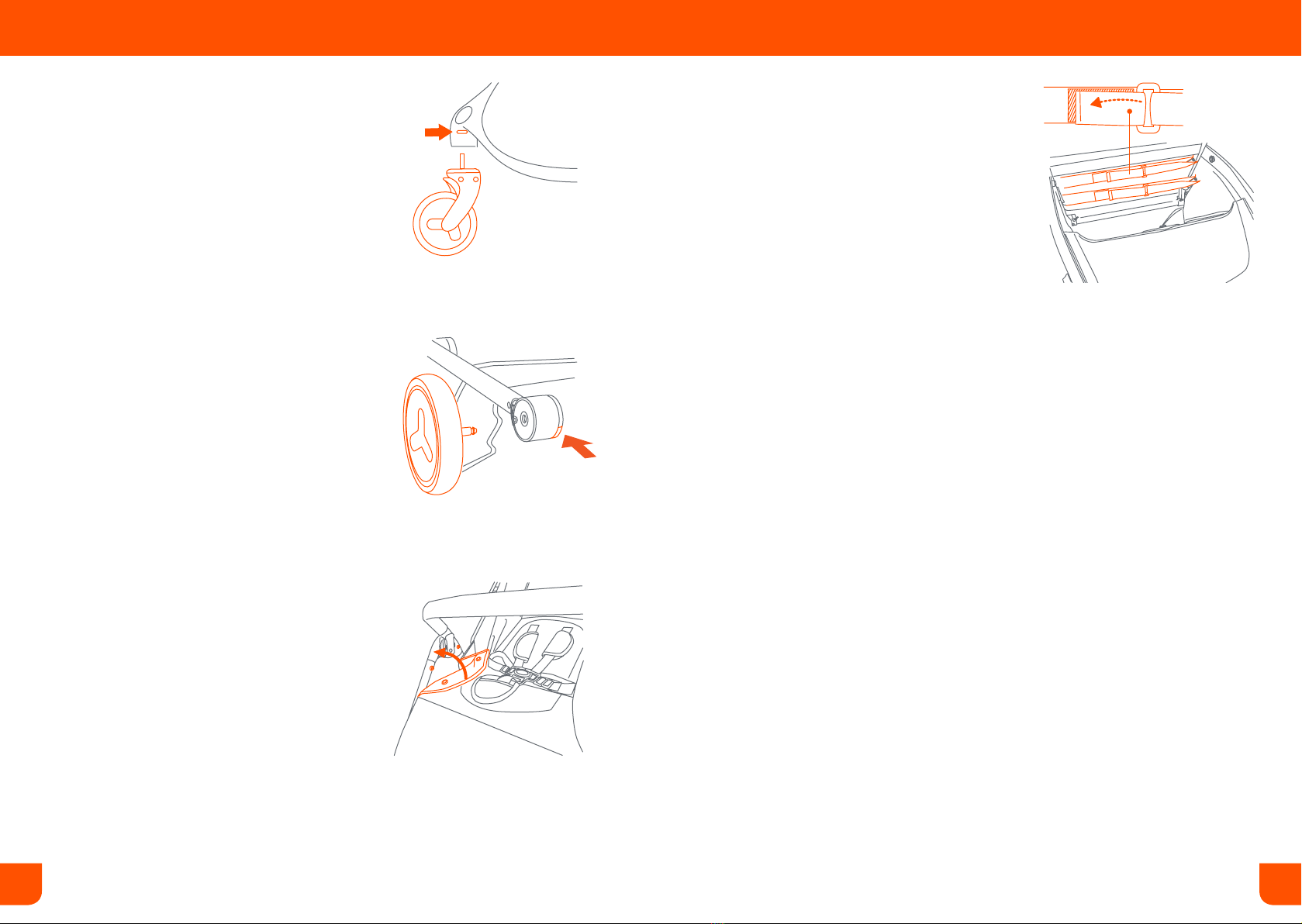

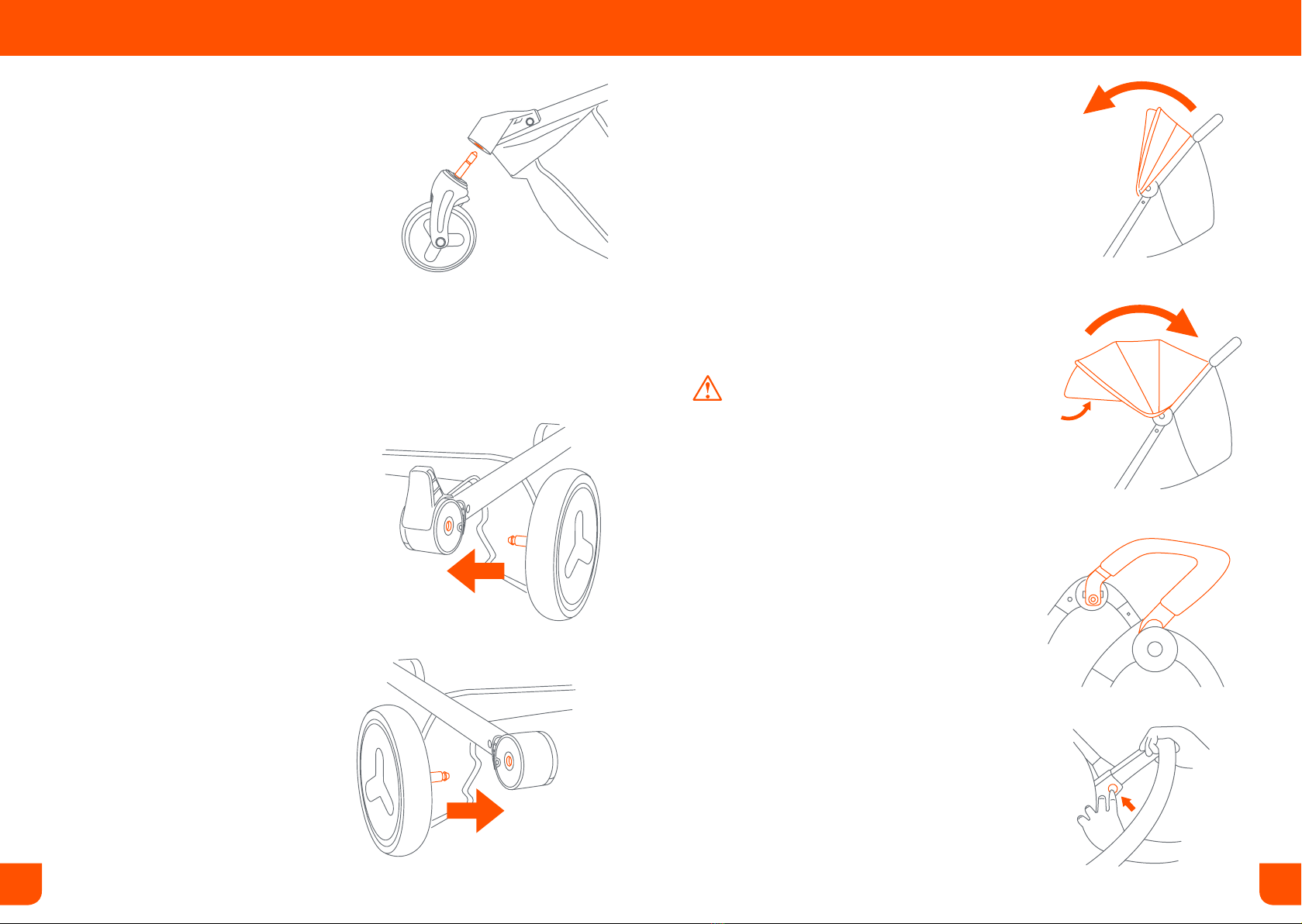

FRONT WHEELS

To attach the wheels, unfold

stroller as described in the

following section:

2) • Lean the stroller backwards

and push each front wheel

assembly into the front wheel

housing until they lock into

place (Fig. 2).

NOTE: Pull on the wheel

assembly to ensure that it

is securely attached to the

stroller.

REAR WHEELS

3) • Lean the stroller forward and

press the rear wheel post into

the rear frame hub until it clicks

into place. Repeat for the other

side (Fig. 3).

NOTE: Pull on the rear wheel

to ensure that it is securely

attached to the stroller.

Fig. 2

Fig. 4a

Fig. 4b

Fig. 5a

Fig. 5b

Fig. 3

visor

optional

ASSEMBLY ASSEMBLY

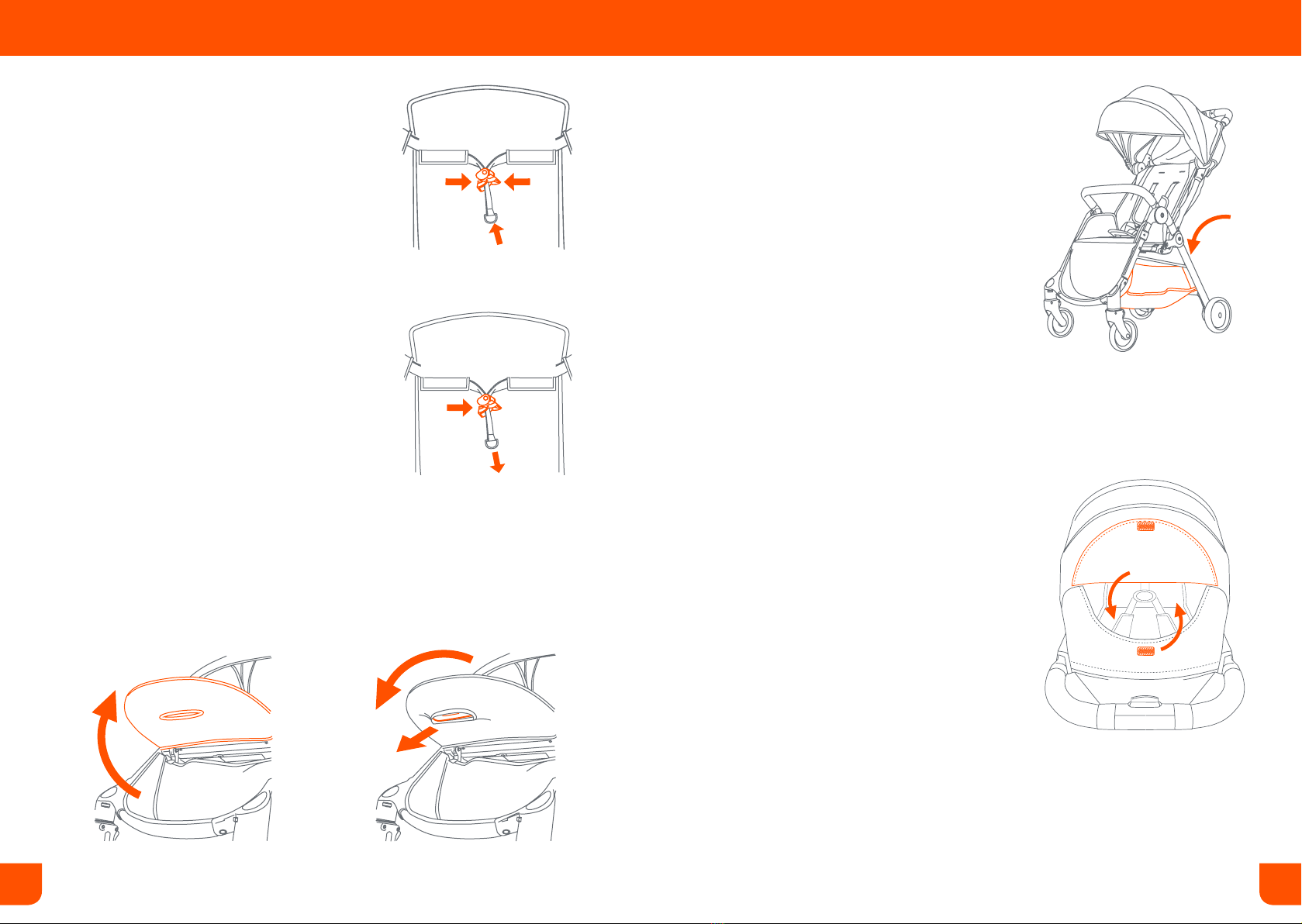

STORAGE BASKET

8) • The storage basket is accessed

from the stroller rear underneath

the seat (Fig. 8).

NOTE: Placing the seat in the

upright position (Fig. 6a), may

help better access the storage

basket.

ACCESSING THE WINDOW

9) • Use the hook and loop fasteners

to open and close the view

window (Fig. 9).

SEATBACK POSITIONING

6) • To put seat into the upright

position, press the clip ends

together, hold the hoop to

push the clip up and buckle

the top straps (Fig. 6a).

NOTE: The upright position

should be used only for a

child that is at least 6 months

old. Always re-adjust the

safety harness, including

the shoulder belts when

repositioning the seatback.

• To recline the seat, release

the top buckle, press the clip

ends together and pull it down

(Fig. 6b).

ADJUSTING THE LEG SUPPORT

7) • Lift to raise the leg support

(Fig. 7a). To lower, pull the

release bar underneath the

leg support (Fig. 7b).

Fig. 6a

Fig. 6b

Fig. 8

Fig. 9

Fig. 7a Fig. 7b

910

SAFETY SAFETY

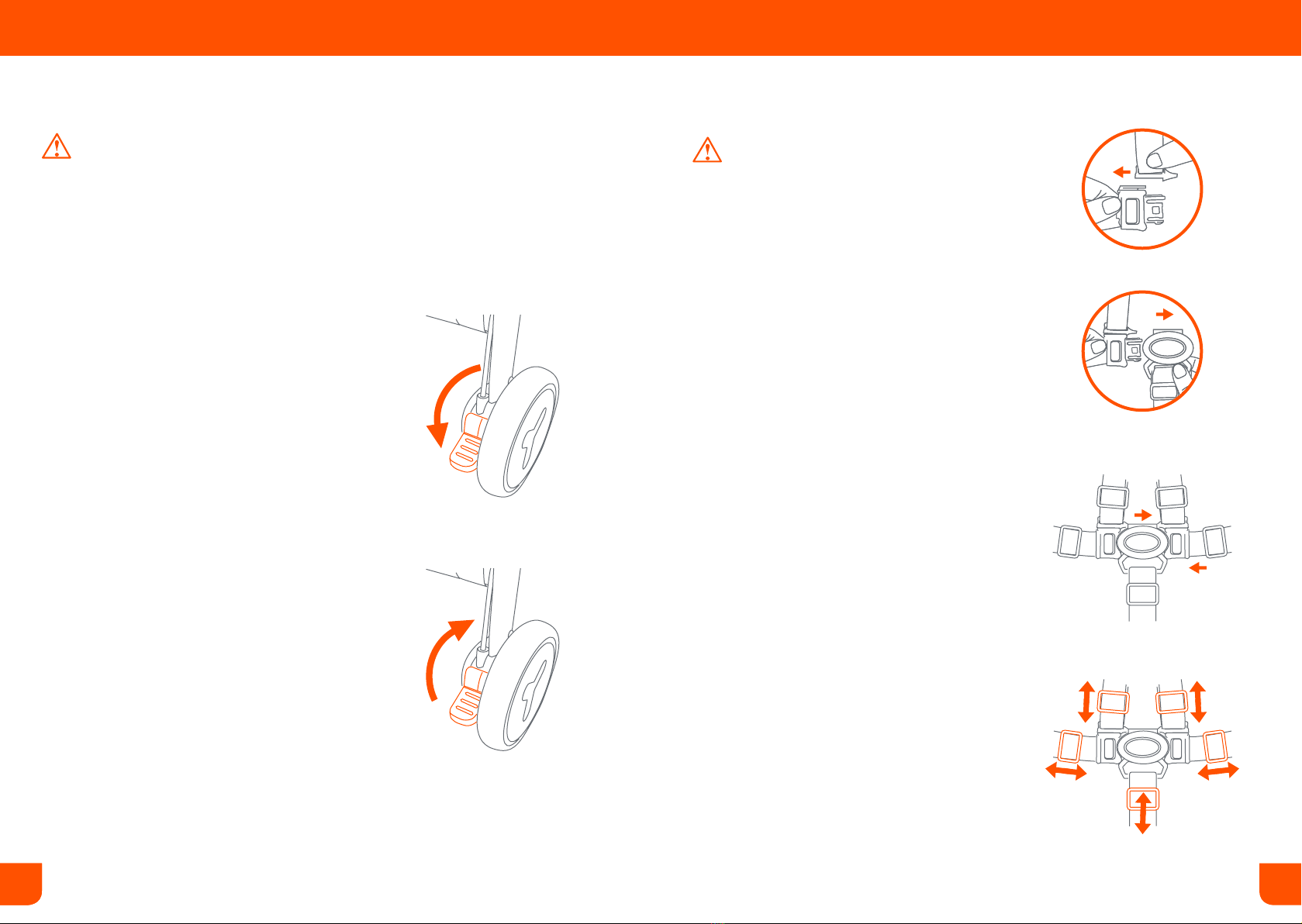

10) • To engage brakes, apply light

downward pressure to rotate

the brake lever located on the

frame behind the rear wheel.

The stroller may require slight

forward or rearward movement

in order to line up the teeth

on the brake with each wheel

brake cluster (Fig. 10a).

NOTE: Gently attempt to roll

the stroller forward to check

that the stroller will not move.

If applied correctrly the stroller

will not roll.

• To release, gently rotate up on

the brake lever (Fig. 10b).

TO SECURE THE CHILD

WARNING: Avoid

serious injury from falling

or sliding out. Always

use the safety harness.

STRANGULATION

HAZARD: Child can

strangle in loose straps. Never

leave child in seat when straps

are loose or undone.

11) • BUCKLE TYPE A: Carefully place

the child in the stroller seat and

bring the safety harness around

the child’s waist and over the

shoulders. Place the crotch strap

between the child’s legs. Connect

the shoulder strap with the waist

strap together as seen in Step A

(Fig. 11a). Connect to the buckle on

the crotch strap as seen in Step B

(Fig 11b).

• Repeat on the opposing side to fully

join all the 5-point harness straps

together (Fig. 11c).

• Use the adjustable buckles to set

the height of the shoulder straps

and a comfortable t on the waist

(Fig. 11d).

BRAKES

WARNING: Always

set brakes when the stroller

is not being pushed so

that the stroller will not roll

away. NEVER leave stroller

unattended on a hill or incline

as the stroller may slide down

the hill.

Fig. 10a

Fig. 10b

Fig. 11d

Fig. 11c

Fig. 11b

Fig. 11a

Shoulder

Strap

Waist

Strap

Crotch

Strap

BUCKLE TYPE A

11 12

SAFETY SAFETY

• BUCKLE TYPE B: To secure the

child, place the safety harness

around the child’s waist and

over the shoulders. Place the

crotch strap between the child’s

legs. Insert the male end of

each shoulder/waist belt into the

crotch buckle. Tighten all buckles

to the proper t for the child

(Fig. 11e).

TO RELEASE THE CHILD

12) • Push button on center clasp, the

harness buckles will pop free

(Fig. 12).

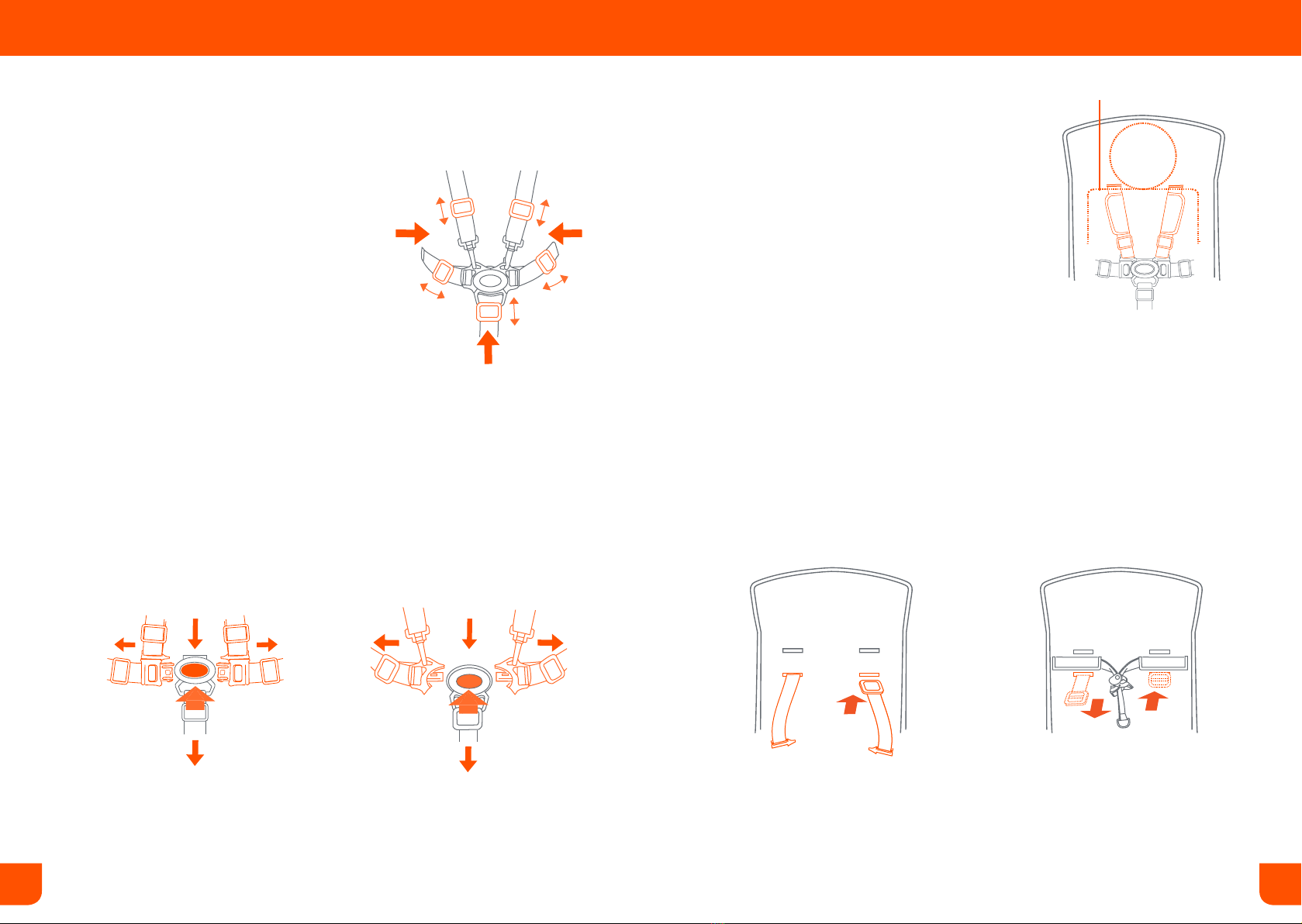

TO ADJUST THE HARNESS

13) • Select the position that

places the shoulder strap

level with, or below, the

top of the child’s shoulders

(Fig. 13a).

Fig. 13a

Adjust to child’s shoulder

• Adjust the harness by pulling the anchor in or out through the

adjustment slots (Fig. 13b).

NOTE: May require you to grip and pull the anchor through

the slots. Always ensure the anchor is at against the seat

backrest (Fig. 13c).

Fig. 13b Fig. 13c

Front Side Back Side

BUCKLE TYPE B

BUCKLE TYPE BBUCKLE TYPE A

Adjust for a snug t

Fig. 12

Center ClaspCenter Clasp

Fig. 11e

13 14

FOLD / UNFOLD FOLD / UNFOLD

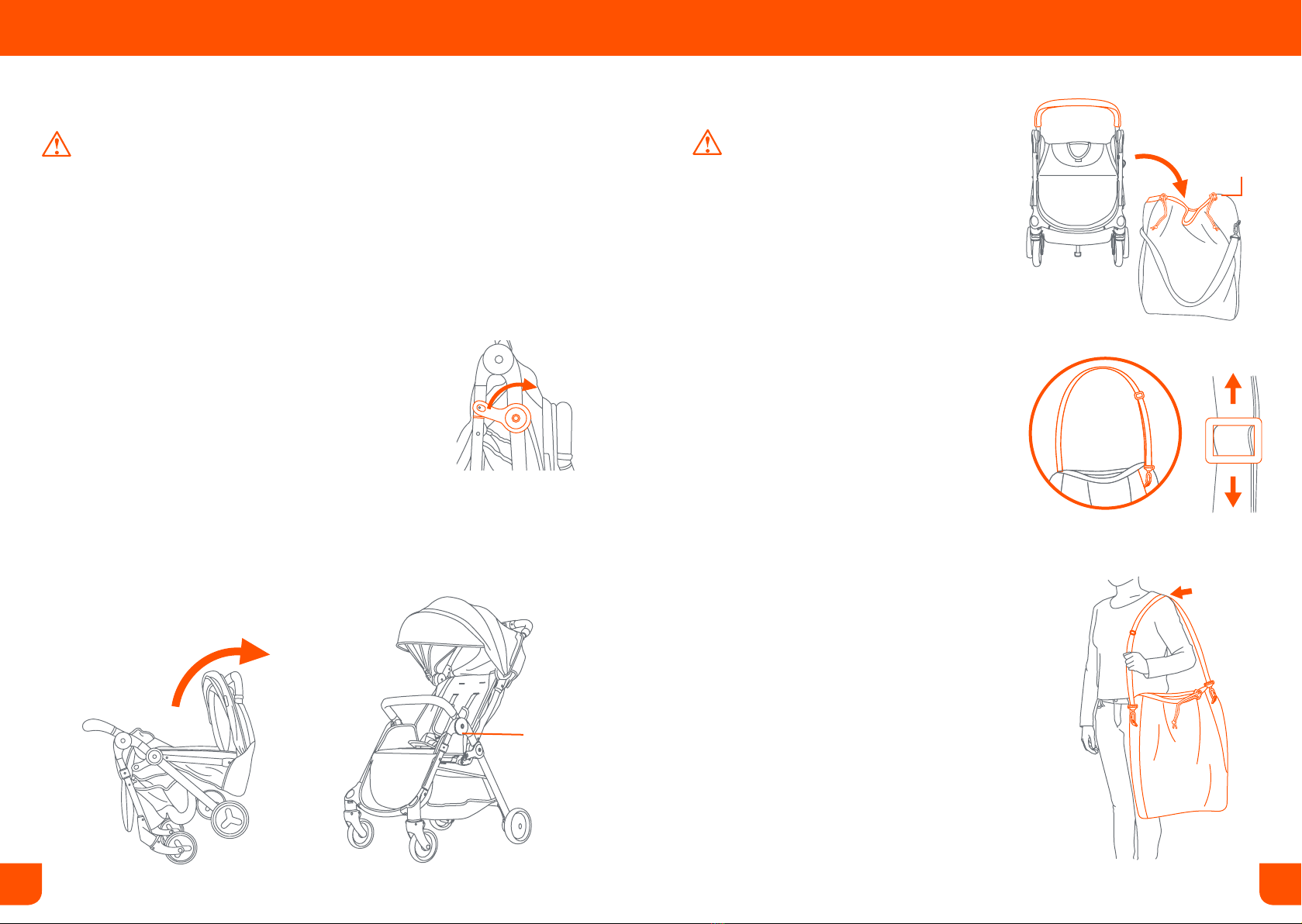

• Folded Stroller Carry Option 1:

Carry the stroller from the bumper

bar (Fig. 14e).

NOTE: Ensure the bumper bar is

completely attached. Only for use

when the stroller is folded.

• Folded Stroller Carry Option 2:

Carry the stroller from the rear

leg. Always grab the leg from the

center of the tubing (Fig. 14f).

NOTE: Only for use when the

stroller is folded.

• IMPORTANT: To avoid nger

injury, do not carry the stroller

from any other areas.

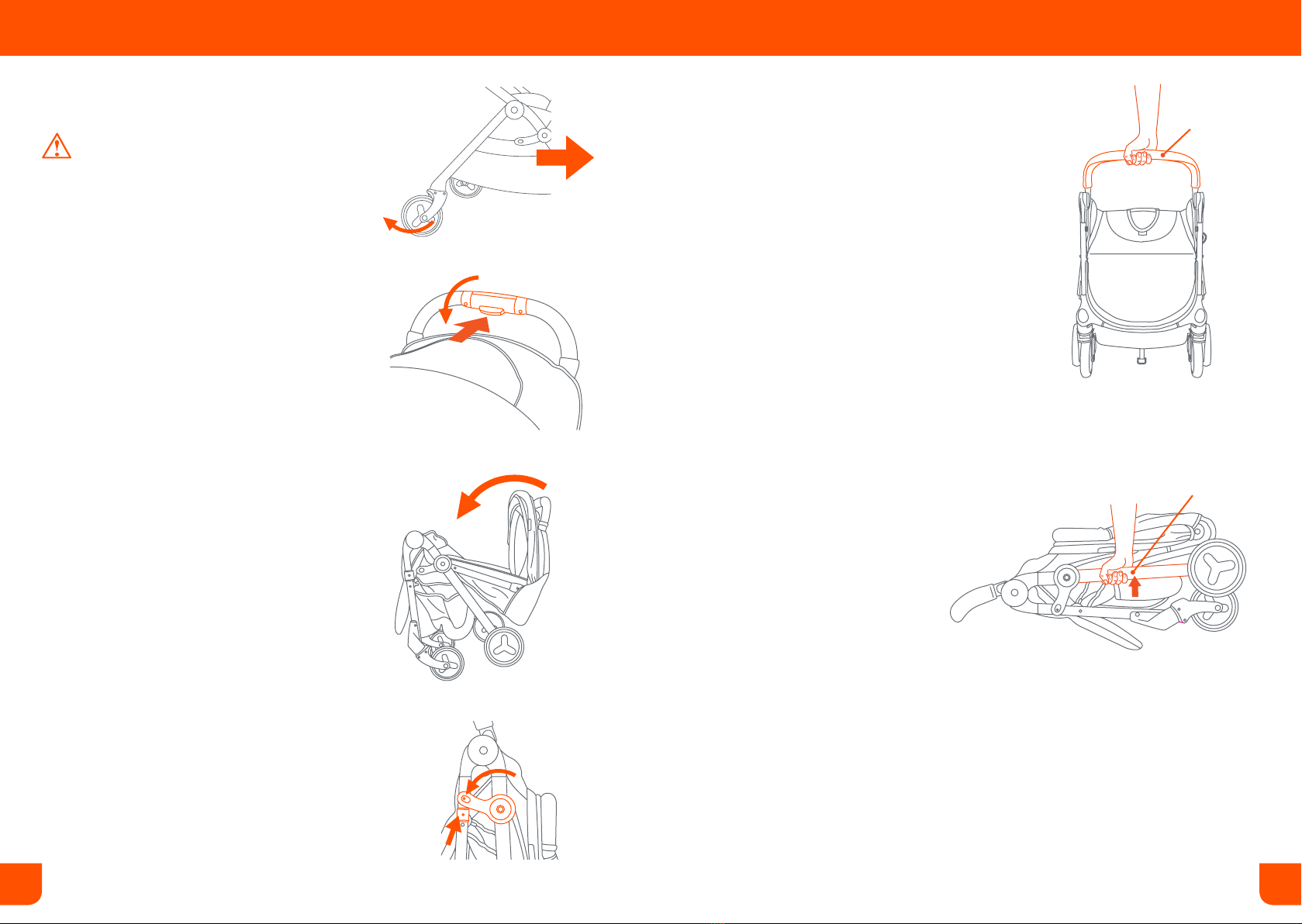

TO FOLD STROLLER

WARNING: Care

must be taken when

folding the stroller to

prevent nger entrapment.

CAUTION: Do not

allow children near stroller

while folding.

14) • Pull stroller backward several

inches to rotate the front

wheels to the front (Fig. 14a).

• Push in the large center button

and rotate the handle forward

(Fig. 14b) while pushing

forward and downward on the

stroller handle until the frame

locks (Fig. 14c).

• Ensure the fold latch clicks and

secures the stroller closed

(Fig. 14d).

NOTE: May require lifting up

the sliding tab.

Fig. 14a

Fig. 14e

Fig. 14f

Fig. 14b

Fig. 14c

OPTION 1.

Bumper bar

OPTION 2.

Rear Leg Center

Sliding

tab

Fig. 14d

OPERATION

FOLD / UNFOLD

Fig. 15b Fig. 15c

"Click"

Fig. 15a

TO UNFOLD STROLLER

WARNING: Care

must be taken when unfolding

the stroller to prevent nger

entrapment.

CAUTION: Do not allow

children near stroller while

unfolding.

15) • Release the fold latch by pulling it

outward (Fig. 15a).

• Using the handle lift upward on the

stroller handle until the frame locks

(Fig. 15b).

NOTE: The frame clicks into position

when fully extended. The frame must

lock (Fig. 15c).

CARRY BAG / TOTE BAG

WARNING:

STRANGULATION HAZARD!

Children have strangled in

loose straps. Never leave

child unattended when

straps are loose or undone.

16) • Stretch the elastic opening of the

tote bag, and place the stroller

into the carry bag. Ensure that

you put the stroller in wheels

rst. Tighten or losen the cording

with the adjuster tab (Fig. 16).

SHOULDER STRAPS

17) • After setting the stroller neatly

into the tote bag, locate the

strap. Adjust the length as

desired with the adjuster buckle

(Fig. 17a). Always use the strap

when carrying the stroller in the

tote bag.

• Use the bag for transporting

the stroller or for storing away

the stroller.

NOTE: The strap on the tote bag

is intended to be used on the

shoulder (Fig. 17b). Store away

the bag when not in use.

Fig. 16

Fig. 17b

Fig. 17a

Tightgen

Carry with bumper bar

17 18

MAINTENANCE MAINTENANCE

FRONT WHEEL RELEASE

18) • NOTE: Remove the wheels for

storage or replacement: Press

the release latch and pull the

wheels out (Fig. 18).

REAR WHEEL RELEASE

19) • NOTE: Remove the wheels for

storage or replacement: Press

the release latch and pull the

wheels out (Fig. 19).

SEAT FABRIC SNAP BUTTTONS

20) • Check both sides of the seat

fabric to ensure it is properly

attached.

NOTE: If assembly needed,

press the snap buttons on the

fabric onto the snap buttons on

the frame (Fig. 20).

Fig. 18

Fig. 19

Fig. 20

SEAT FABRIC SUPPORT

21) • Underneath the seat, ensure that

the straps are both pulled tightly

and always attached with the

hook and loop fasteners

(Fig. 21).

Fig. 21

Table des matières

Langues :

Autres manuels Baby Trend Poussette

Baby Trend

Baby Trend Expedition LX Manuel utilisateur

Baby Trend

Baby Trend Snap-N-Go Manuel utilisateur

Baby Trend

Baby Trend EZ Ride Plus TS44 D Series Manuel utilisateur

Baby Trend

Baby Trend SS80B Manuel utilisateur

Baby Trend

Baby Trend ST48 Manuel utilisateur

Baby Trend

Baby Trend DOUBLE SNAP N GO 1305TW Manuel utilisateur

Baby Trend

Baby Trend Sonar TS06 A Series Manuel utilisateur

Baby Trend

Baby Trend JG35A Manuel utilisateur

Baby Trend

Baby Trend Sit N' Stand Snap Gear SS88 Manuel utilisateur

Baby Trend

Baby Trend Expedition Sport LX JG92 Manuel utilisateur

Baby Trend

Baby Trend Sit N' Stand 2.0 SS27 Series Manuel utilisateur

Baby Trend

Baby Trend Expedition ELX Manuel utilisateur

Baby Trend

Baby Trend Navigator DX60 Manuel utilisateur

Baby Trend

Baby Trend Go Lite Propel 35 TJ16 Manuel utilisateur

Baby Trend

Baby Trend Expedition LX Manuel utilisateur

Baby Trend

Baby Trend Sit N' Stand SS27 B Series Manuel utilisateur

Baby Trend

Baby Trend Expedition TJ94 A Series Manuel utilisateur

Baby Trend

Baby Trend Umbrella Stroller with Canopy Manuel utilisateur

Baby Trend

Baby Trend ST04 Manuel utilisateur

Baby Trend

Baby Trend Expedition Double Manuel utilisateur

Baby Trend

Baby Trend MUV Tango Pro Travel TS04 M Series Manuel utilisateur

Baby Trend

Baby Trend TS23 Manuel utilisateur

Baby Trend

Baby Trend Sit-N-Stand SS76A80A Manuel utilisateur

Baby Trend

Baby Trend Snap-N-Go SG88B Manuel utilisateur

Manuels Poussette populaires d'autres marques

Hauck

Hauck Priya Trioset Manuel utilisateur

CHILDHOME

CHILDHOME CWQDN Manuel utilisateur

Dreamer Design

Dreamer Design Rebound GST Manuel utilisateur

Britax

Britax STEELCRAFT AGILE Manuel utilisateur

Graco

Graco 7427 Manuel utilisateur

Comfort

Comfort COMPASS Manuel utilisateur

OBaby

OBaby Aura Manuel utilisateur

Tutek

Tutek Tirso Manuel utilisateur

Babify

Babify Dual Plus Manuel utilisateur

Graco

Graco Stroller Manuel utilisateur

Special Tomato

Special Tomato Jogger Manuel utilisateur

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manuel utilisateur

Otto Bock

Otto Bock Kimba neo Manuel utilisateur

Milly Mally

Milly Mally ROYAL Guide de démarrage rapide

Hauck

Hauck DUETT 3 PRAM Manuel utilisateur

BOB

BOB DUALLIE Manuel utilisateur

Nuna

Nuna Pepp Manuel utilisateur

Britax

Britax B2 Manuel utilisateur
