B-K lighting ORION Manuel utilisateur

RELEASE DATE

01/20/2022

REFERENCE NUMBER

INS-2506-01

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR

SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all

Local and Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel must perform all servicing or relamping

of this product.

• Before wiring to power supply and during servicing or

relamping, turn off power at fuse or circuit breaker before

service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause

an unsafe condition. The use of damaged components may

cause an unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL

SAFETY AND INSTALLATION INSTRUCTIONS

• Do not block light emanating from product in whole or part,

as this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body. Do not touch the lamp at any time. Use

a clean, dry, soft cloth to handle the lamp. Oil from skin

may damage the lamp and cause it to rupture.

• Replace lamp only with correct wattage and type of lamp

marked on fixture label.

• All gaskets, o-rings and sealing surfaces must be kept

clean during installation and service; failure to do this may

cause an unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY

TO PERSONS IMPORTANT

SAFETY INSTRUCTIONS

Lighted fixture is HOT!

WARNING - To reduce the risk of

FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before

replacing lamp/LED. Fixture gets HOT quickly!

Contact only switch/plug when turning

on. Do not touch hot lens, guard, or enclosure.

Keep fixture away from materials that may burn.

Do not operate the luminaire fitting with a missing or

damaged shield. Do not touch the source at any time.

Use a soft cloth or gloves. Oil from skin may cause

damage.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION

INSTRUCTIONS

ORION

YOKE WITH MOUNTING STUD

IMPORTANT LISTINGS AND CERTIFICATIONS

· Suitable for wet locations

Standard Installation

TOOLS

NEEDED:

Warning Hot Surface

Waterproof Wire Connectors

Adjustable Crescent Wrench

Flat Head Screwdriver

TORX T27 Tamper Resistant 1/4” Bit

Mounting Hardware

High Voltage

ORION - YOKE WITH MOUNTING STUD

Yoke

Heavy-Gauged, Die-Formed

Aluminum Housing

Tamper Resistant

Screws

LED Array

Mounting

Plate

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

RELEASE DATE

01/20/2022

REFERENCE NUMBER

INS-2506-01

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO

MANUFACTURE, USE OR SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

ORION

YOKE WITH MOUNTING STUD

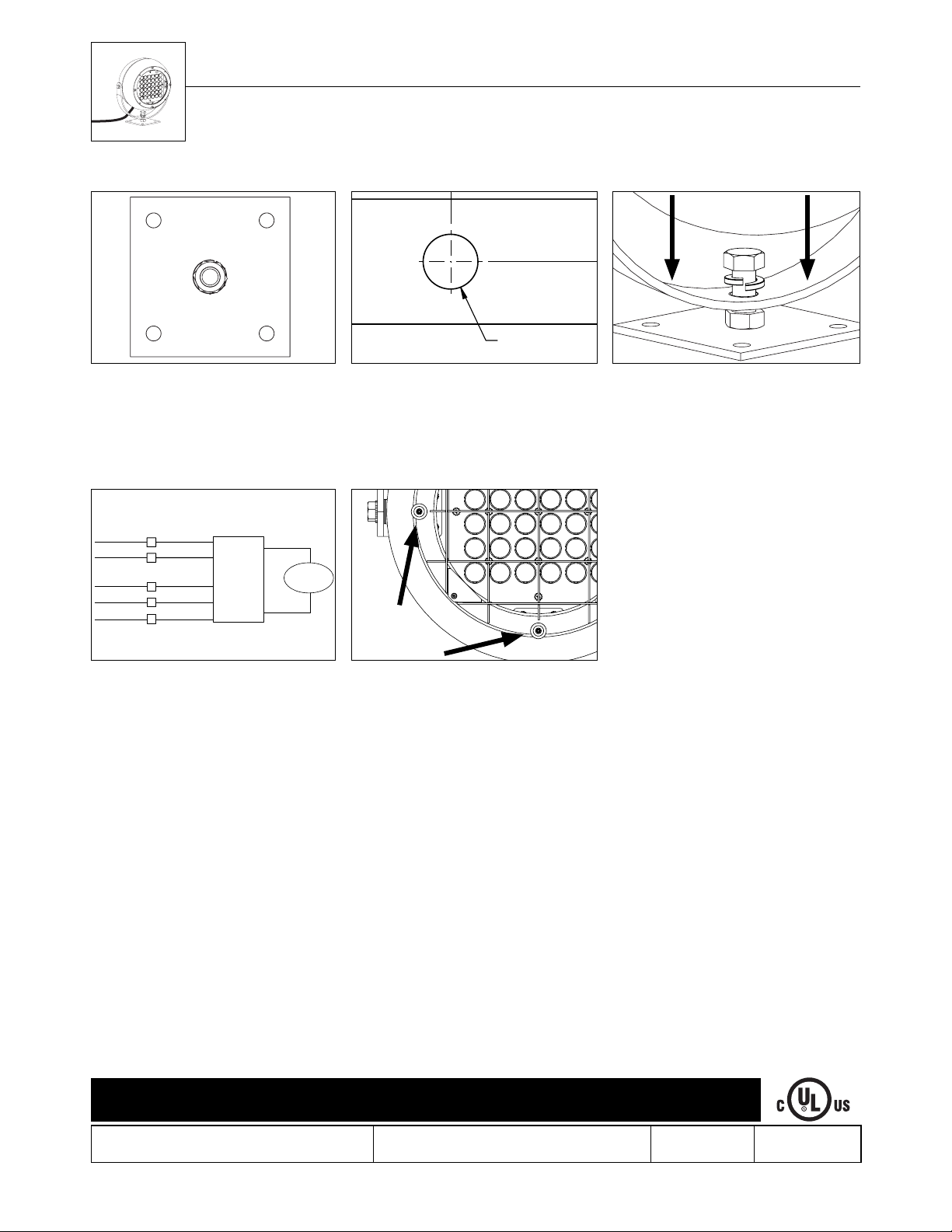

Standard Installation

WIRING DIAGRAM

4. Make watertight connections using waterproof

wire connectors to connect incoming primary

wiring to integral driver wiring as per NEC.

Secondary side is factory wired.

HOT LED

NEUTRAL

GROUND

HOT

NEUTRAL

GROUND

Integral

DRIVER

0-10V -

0-10V +

0-10V -

0-10V +

2. Clearance hole of yoke is 7/16” diameter.

7/16” Dia.

5. To relamp: remove faceplate and louver by

loosening four (4) tamper resistant screws

using a TORX T27 socket (1/4” bit). Relamp as

needed, then reverse install.

3. Line up fixture yoke to mounting plate and

secure with 3/4”-10 bolt and locking washer

(mounting hardware not included).

1. Install mounting plate in location as per

lighting plan. Mounting plate has four (4) 9/16”

dia. mounting holes 4-1/4” apart on center,

square (mounting hardware not included).
