Aztech PCI 56K Fiche d'information produit

Easy Start

Page 1 of 16

PCI 56K Modem

Easy Start

Version 1.0

Contents

INTRODUCTION .........................................................................................................2

PACKAGE .....................................................................................................................2

MINIMUM SYSTEM REQUIREMENTS....................................................................2

STEP 1: SETTING UP YOUR MODEM CARD..........................................................2

STEP 2: INSTALLING THE DRIVER FOR YOUR MODEM CARD .......................4

STEP 3: VERIFYING YOUR MODEM.....................................................................15

STEP 4: UNINSTALLING YOUR MODEM DRIVER .............................................16

Product warranty does not apply to damage caused by lightning, power surges or wrong voltage usage.

Easy Start

Page 2 of 16

Introduction

Thank you on your purchase of the PCI 56K Modem!

With the PCI 56K Modem, you can perform a comprehensive range of modem

related functions that include downloading of graphic intensive web pages, high

bandwidth audio/video files and large file size software programs at speeds up to

56Kbps. You can also send and receive faxes through the PCI 56K Modem.

Package

For any missing items, please contact your dealer immediately.

• A PCI 56K Modem Card

• An Easy Start documentation

• An Installation CD

• A telephone cable

Minimum System Requirements

• IBM PC computer with Pentium®166 processor

• A CD-ROM drive

• A free PCI-Buss lot

• Minimum 16MB RAM

• 10MB hard disk space (system files and modem drivers only)

• Operating System support: Windows®98 / 98 SE, Windows®Me, Windows®

2000, Windows®XP

Step 1: Setting Up Your Modem Card

Important Note:

POWER OFF YOUR COMPUTER AND ANY CONNECTED DEVICES

BEFORE INSTALLING YOUR MODEM !!!

• You need to a remove any existing modem installed in your computer. If your

modem is non Plug-and-Play, you need to de-install its modem driver before you

remove it. Check your existing modem documentation for details on this.

• The following illustrations and procedures are examples for your easy under

standing. Please refer to your computer documentation for actual illustrations

and procedures to dismantle your computer chassis.

Easy Start

Page 3 of 16

i Remove the cover of your computer.

ii Select a free PCI-Bus slot and remove its cover plate, keep the mounting screw to

secure your card later.

iii Align the card with the selected PCI-Bus slot and firmly push it into the slot.

Make sure that the card is lined up properly and try again. Secure your card to

your computer chassis with the mounting screw.

iv Replace the cover of your computer.

Easy Start

Page 4 of 16

v Connect one end of the telephone cable to the LINE jack and the other end to the

telephone wall socket (model with TWO telephone jacks). This connection is

required for dialing to your internet service provider for internet connection.

Proceed to STEP 2 to install the driver for your modem card.

STEP 2: Installing the Driver for Your Modem Card

For Windows®98 / 98 SE

i Power on your computer.

ii Windows will detect your newly-installed modem card. At the following prompt,

place the Installation CD onto the CD-ROM drive and then click Next.

Easy Start

Page 5 of 16

iii Select Search for the best driver for your Device (Recommended) and click

Next.

iv Select Specify a location and click Browse to navigate to the folder \Win98 on

the Installation CD (the example assumed that your CD-ROM drive is D). Click

Next to continue.

v Click Next again to start the installation of the indicated driver.

Easy Start

Page 6 of 16

(Depending on your system configurations you may be prompted for your Windows

CD-ROM replace the installation CD with your Windows CD-ROM and click OK.

At the copying files dialog box, enter the path of your windows CD-ROM e.g.

D:\Win98 and click OK.)

vi Click Finish to complete the driver installation.

Proceed to STEP 3 to verify your modem.

For Windows®Me

i Power on your computer.

ii Windows will detect your newly-installed modem card. At the following prompt,

place the Installation CD onto the CD-ROM drive.

Select Specify the location of the driver (Advanced) option and click Next.

Easy Start

Page 7 of 16

iii Select Specify a location and click Browse to navigate to the folder \WinME on

the Installation CD (the example assumed that your CD-ROM drive is D). Click

Next to continue.

iv Click Next again to proceed installation with the indicated driver.

v Click Finish to complete the driver installation.

Proceed to STEP 3 to verify your modem.

Easy Start

Page 8 of 16

For Windows®2000

i Power on your computer.

ii Windows will detect your newly-installed modem card. At the following prompt,

place the Installation CD onto the CD-ROM drive. Click Next to continue.

iii Select Search for a suitable driver for my device (recommended) option and

click Next.

Easy Start

Page 9 of 16

iv Select Specify a location and click Next to continue.

v Click Browse to navigate to the folder \Win2000 on the Installation CD (the

example assumed that your CD-ROM drive is D).

vi Click Next to proceed installation with the indicated driver.

Easy Start

Page 10 of 16

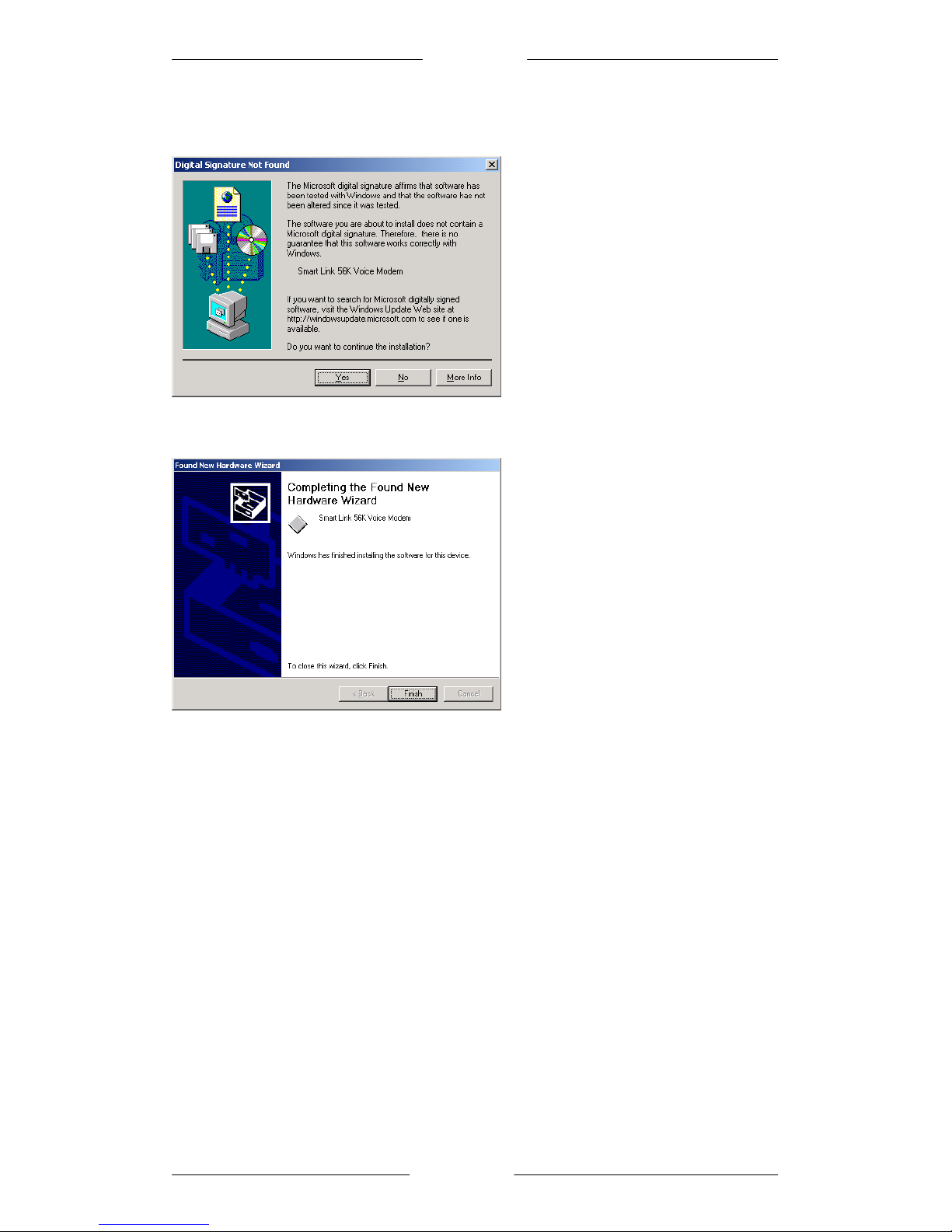

vii Along the way you would encounter a screen that says “Digital Signature Not

Found”. Click Yes to continue the installation.

viii Click Finish to complete the driver installation.

Proceed to STEP 3 to verify your modem.
