ACTIVAL

Motorized Three-Way Valve

with Flanged-End Connection

(145 psig / Gray cast iron)*

General

ACTIVAL Model VY54X0F is a series of motorized three-way

valves with flanged connection. The valve and the actuator

are integrated in a single unit.

The valve size ranges from 2” to 3”.

The actuator has a reversible synchronous motor, which

operates at a low voltage of 24 V AC.

Control signal is 4 to 20 mA DC input. Executes proportional

control in combination with a single loop controller (e.g.,

Model SDC15).

Features

Compact and lightweight

Valve and actuator integrated in a single unit

NEMA 4X and IP54 enclosure rating

(Waterproof connectors are required to assure NEMA 4X

and IP54)

Valve with large Cv value, high rangeability, and low

leakage

Actuator with low power consumption and Durable

design

Linear flow characteristics

2 to 10 V DC output (for position feedback) available with

4 to 20 mA DC input type

CE Marking certified:

ACTIVAL Model VY54X0F conforms to all the applicable

standards of CE Marking.

* This product was designed and manufactured conforming to the JIS (Japanese Industrial Standards, JIS10K/FC200).

AB-7356-U

Safety Instructions

Please read instructions carefully and use the product as specified in this manual. Be sure to keep this manual nearby for quick

reference.

Restrictions

This product is targeted for general air conditioning. Do not use this product in a situation where human life might be affected.

Also, do not install this product in an atmosphere containing explosive gas or flammable gas.

If this product is used in a clean room or a place where particularly high reliability or control accuracy is required, please contact

our sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators.

Warnings and Cautions

WARNING Alerts users that improper handling might cause death or serious injury.

CAUTION Alerts users that improper handling might cause minor injury or material loss.

Signs

Alerts users possible hazardous conditions caused by erroneous operation or erroneous use. The symbol inside 

indicates the specific type of danger. (For example, the sign on the left warns of the risk of electric shock.)

Notifies users that specific actions are prohibited to prevent possible danger. The symbol inside graphically

indicates the prohibited action. (For example, the sign on the left notifies that disassembly is prohibited.)

Instructs users to carry out a specific obligatory action to prevent possible danger. The symbol inside graphically

indicates the actual action to be carried out. (For example, the sign on the left indicates general instructions.)

WARNING



Some of the product models weigh more than 40 lb (18.1 kg). Carefully move the product with a vehicle or enough

manpower in an appropriate manner. Careless lift or accidental drop of the product might cause injury or product

damage.

Detach the cover only when wiring, setting the product or maintenance and reattach the cover after wiring, setting

the product or maintenance. Failure to do so might cause electric shock.

Before wiring or maintenance, be sure to turn off the power to the product (including the optional devices) .Failure

to do so might cause electric shock or device failure.

CAUTION (1/2)

Install and use this product under the operating conditions (for temperature, humidity, power, vibration, shock,

mounting direction, atmosphere, etc.) listed in the specifications. Failure to do so might cause fire or device failure.

Use the product within its lifespan and avoid instrumentations that keep the product to operate excessively.

Continued use beyond the lifespan might cause fire or device failure.

Keep the products in package for storage. Failure to do so might damage or stain the products.

Do not allow any shock on the product. Doing so might damage the product.

Installation and wiring must be performed by qualified personnel in accordance with all applicable safety

standards.

All wiring must comply with applicable codes and ordinances.

Provide circuit breaker/fuse protection when powering this product.

Provide a circuit protector (e.g., a fuse, circuit breaker) for the control panel to ensure your safety.

For installation, do not mount the valve in an improper position or overtighten the bolts on the flange. Doing so

might damage the product.

After installation, make sure no fluid leaks from the valve-pipe connections. Incorrect installation might cause fluid

leakage.

Use full face gaskets for flat face flanges to prevent the product damage or fluid leakage.

AB-7356-U

CAUTION (2/2)



Install the product so that no foreign objects remains inside the pipes. Be sure to provide a strainer on the inflow

side of the piping. Flush the piping to remove the foreign objects after installation. Foreign objects inside the piping

might damage the product.

Do not allow the fluid to freeze. Doing so might damage the valve body and cause fluid leakage.

Do not put load or weight on the actuator of the product. Doing so might damage the product.

Do not install the product nearby a steam coil, pressurized hot-water coil, or any high heat source. High

temperature radiation might cause malfunction of its actuator.

Do not use the product in an atmosphere corrosive to the actuator, valve, and their components. Doing so might

damage the product.

Do not carelessly touch this product when being used to control hot water. The product temperature is hot, and you

might get burned.

Use crimp terminals with insulation for connections to the product terminals. Failure to do so might cause short

circuit leading to fire or device failure.

Firmly tighten the terminal screws. Insufficient tightening of the terminal screws might cause fire or overheating.

Do not touch the moving parts of the product. Doing so might cause injury.

Do not disassemble the product. Doing so might cause device failure.

Dispose of this product as industrial waste in accordance with your local regulations. Do not reuse all or part of the

product..

IMPORTANT:

In case an Azbil Corporation product fails, you are required to provide your Equipment with safety design such

as fool-proof design*1, and fail-safe design*2(anti-flame propagation design, etc.), whereby preventing any

occurrence of physical injuries, fires, significant damage, and so forth. Furthermore, fault avoidance*3, fault

tolerance*4, or the like should be incorporated so that the said Equipment can satisfy the level of reliability and

safety required for your use.

*1. A design that is safe even if the user makes an error.

*2. A design that is safe even if the device fails.

*3. Avoidance of device failure by using highly reliable components, etc.

*4. The use of redundancy.

IMPORTANT:

When installing the product with a flange gasket, do not allow the gasket going inside the pipe.

AB-7356-U

Model Numbers

Model VY5430F00XXS-019

Model number is assigned for the valve combined with the actuator. Model number label is attached to the yoke.

Base

model

No.

Actuator / Valve Actuator Valve

Fixed Description

Control

signal

Rating /

Material Size/Cv Fixed Size/Cv

VY54 Motorized three-way valve with flanged connection

3 4 mA DC to 20 mA DC input with 2 V DC to 10 V DC feedback output

0 145 psig /Gray cast iron*

NEMA 4X and IEC IP54 protected and standard torque type actuator

with terminal block

(Mountable valve sizes: 2" to 3")

00 Fixed

51 2” / 45 Cv value

61 21/2” / 70 Cv value

81 3” / 100 Cv value

S-019 Fixed

* This product was designed and manufactured conforming to the JIS (Japanese Industrial Standards, JIS10K / FC200).

Specifications

For weight of the ACTIVAL, refer to the table shown in the section Dimensions.

Valve and actuator (as a single unit) specifications

Item Specification

Environmental conditions Rated operating conditions Transport/storage conditions (packaged*2)

Ambient temperature*1-4 F to 122 F (-20 C to 50 C), fluid no

freezing -4 F to 158 F (-20 C to 70 C)

Ambient humidity 5 % RH to 95 % RH

Vibration 16.1 fps2(4.9 m/s2), 10 Hz to 150 Hz 64.3 fps2(19.6 m/s2), 10 Hz to 150 Hz

Notes:



1 Do not allow the fluid to freeze.

2 Actuator shall be packed during transport.

Installation locations Indoor (salt air, corrosive gas, and organic solvent must be avoided.)

Outdoor (the optional outdoor cover must be used. Direct sunlight, salt air, corrosive gas,

and organic solvent must be avoided.)

Installation orientation Installable in any position ranging from upright to sideways (90tilted.)

*Always install in upright position outdoors.

Position for shipment Port A 100 % (fully open) preset at factory.

Weight VY5430F0051S-019: 30.9 lb (14 kg)

VY5430F0061S-019: 40.8 lb (18.5 kg)

VY5430F0081S-019: 44.1 lb (20.0 kg)

Insulation resistance Between terminal and case: 5 M



or higher at 500 V DC

Dielectric strength Between terminal and case: 500 V AC/min with 5 mA or less leakage current

AB-7356-U

Valve

Item Specification

Model Three-way valve with flanged-end connection

Body pressure rating Max. working pressure 145 psig

Size, Cv,

Maximum pressure drop Model number Nominal size Cv close-off rating

inch DN

VY5430F0051S-019 2" 50

45 43.5 psig

VY5430F0061S-019 21/2" 65

70 29 psig

VY5430F0081S-019 3" 80

100 21.8 psig for mixing use

14.5 psig for diverting use

Materials Body Gray cast iron

Retainer Stainless steel

Ball, stem Stainless steel

Seat ring PTFE with filler

Gland packing Inorganic fiber

Gasket Expanded graphite sheet

End connection ANSI Class125 Bolt pattern flanges, flat face flange (FF)

Applicable fluids Chilled/hot water, ethylene glycol solutions 50 % max.

Allowable fluid temperature 32 F to 212 F (0 C to 100 C), non-freezing

Flow characteristics Linear characteristic (See Fig. 1.)

Rangeability 30 : 1

Seat leakage 0.1% of the rated Cv value

Paint of body Gray (equivalent to Munsell 5B 4/1)

Actuator to be combined Integrated with the valve

Position indication Indicated by the groove on the top of valve stem

Actuator

Item Specification

Power supply 24 V AC 15 % 50 Hz/60 Hz

Applicable valve size 2" to 3" of standard torque type

Power consumption 8 VA

Timing 63 5 sec. (50 Hz) / 53



5 sec. (60 Hz)

Control signal 4 mA DC to 20 mA DC input (input impedance: 100



)

Analog output Range: 2 V DC (0 %) to 10 V DC (100 %)

Allowable load resistance: 10 kor higher (Max. 1 mA)

Materials Case Die cast aluminum

Top cover, terminal cover Polycarbonate resin (Color: gray)

Yoke Steel plate

Surface finishing Case None

Yoke Electro-galvanized (Bright chromate finish)

Valve position indication Pointer located at the bottom of the actuator shows the position by pointing at the value of the scale

(0 to 100) on front, rear, and bottom sides.

(0: B-AB (Port B fully open), 100: A-AB (Port A fully open)

Manual operation Available. Refer to the section Manually opening/closing the ACTIVAL.

Wires connection M3.5 screw terminal connection

Enclosure rating NEMA 4X, IEC IP54

Position for shipment Port A in 100 % (fully open)

Option and auxiliary device

Item Specification

Seal connector

(Part No. 83104346-003)

Diameter of wire: 0.28" Dia. to 0.35" Dia. (7 mm Dia. to 9 mm Dia.)

(Seal connector is necessary for NEMA 4X and IEC IP54 protection.)

Auxiliary switches

(Part No. 83165274-001)

Number of switches: 2 (SW A and SW B)

Maximum applied voltage/current: 30 V DC / 3 A DC

Actuating position: SW A: Adjustable between 0 % (fully closed) and 100 % (fully open)

SW B: Adjustable between 0 % (fully closed) and 100 % (fully open)

Outdoor cover

(Part No. DY3001A1017)

Material: stainless steal t1.0

Weight: approx. 1.21 lb (550 g)

Class125

(ASTM A126 class B ASME 16.1-2010)

AB-7356-U

Linear flow characteristic diagram

Figure 1. Linear flow characteristic diagram

Application examples

For diverting valve application For mixing valve application

Figure 2. Example of diverting valve application Figure 3. Example of mixing valve application

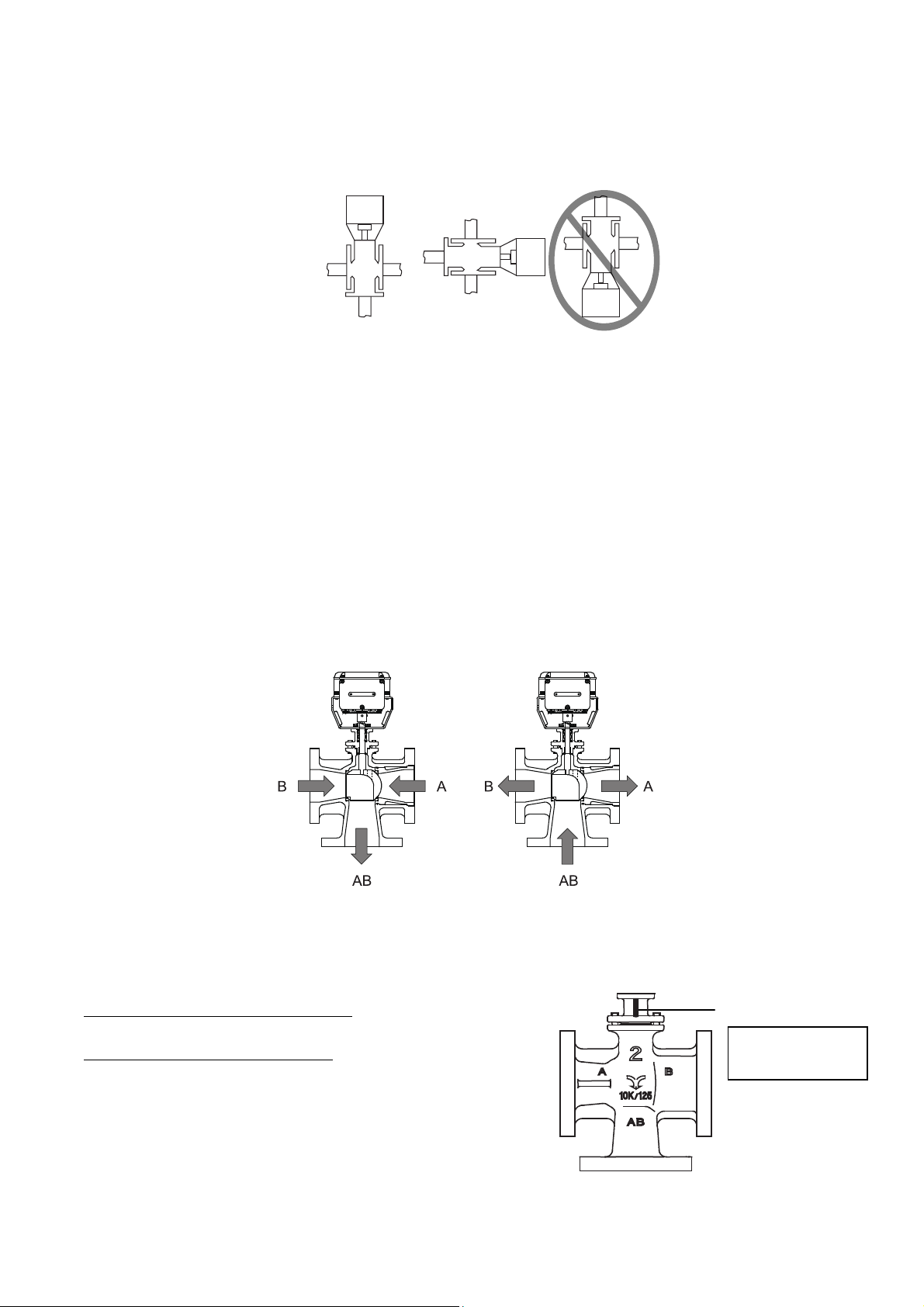

Installation examples

For diverting valve installation For mixing valve installation

Figure 4. Example of diverting valve installation Figure 5. Example of mixing valve application

Upright

90tilted

Upright

90tilted

B A

AB AB

B A

AB AB

Cv value / Rated Cv value (%)

ctuator input signal (%)

Port B Port A

Composite flow characteristic

AB-7356-U

CE Marking Conformity

This product complies with the following Electromagnetic Compatibility (EMC).

EMC: EN61000-6-2, EN55011 Class A

Dimensions

Model number Valve

size Unit H H1 H2 L L1 t C D h N Weight

VY5430F0051S-019 2" in 10.61 5.16 4.92 8.03 4.02 0.79 4.72 5.91 0.75 4 32.4 lb

DN50 mm 269.5 131 125 204 102 20 120 150 19 14.7 kg

VY5430F0061S-019 2 1/2" in 10.79 5.33 5.12 9.06 4.53 0.87 5.51 6.89 0.75 4 41.9 lb

DN65 mm 274 135.5 130 230 115 22 140 175 19 19 kg

VY5430F0081S-019 3" in 10.96 5.51 5.91 9.45 4.72 0.87 6.00 7.28 0.75 4 48.7 lb

DN80 mm 278.5 140 150 240 120 22 152.4 185 19 22.1 kg

Figure 6. Dimensions

Parts Identification

Figure 7. Parts Identification



Note:

Leave a clearance of 12" (305 mm) if you require to open the top

cover after the ACTIVAL is installed.

Min. 12" 2.76" 2.76" Min. 12"

(305 mm) (70 mm) (70 mm) (305 mm)

H2H1

C Dia.

Min. 12" 3.23" 3.35"

(

305 mm

)

(

82 mm

)

(

85 mm

)

Min. 4" (102 mm)* See Note.

N × h Dia.

D Dia.

AB-7356-U

Installation

Precautions for installation

WARNING



Some of the product models weigh more than 40 lb (18.1 kg). Carefully move the product with a vehicle or enough

manpower in an appropriate manner. Careless lift or accidental drop of the product might cause injury or product

damage.

CAUTION

For installation, do not mount the valve in an improper position or overtighten the bolts on the flange. Doing so

might damage the product.

After installation, make sure no fluid leaks from the valve-pipe connections. Incorrect installation might cause fluid

leakage.

Keep the products in package for storage. Failure to do so might damage or stain the products.



Install the product so that no foreign objects remains inside the pipes. Be sure to provide a strainer (with 40 or more

meshes) on the inflow side of the piping. Flush the piping to remove the foreign objects after installation. Foreign

objects inside the piping might damage the product.

Installation and wiring must be performed by qualified personnel in accordance with all applicable safety

standards.

ACTIVAL Model VY54X0F is the valve and actuator integrated into a single unit. Do not combine the valve with any other

actuator, or do not combine the actuator with any other valve.

To remove foreign substances inside the pipes, install a strainer (with 40 or more meshes) on the inflow side of each valve.

In case that the strainers cannot be installed on the inflow side of each valve, install it on the pipe diverting sections

(sections diverting from main piping system to sub piping system).

The arrow indicated on the valve body (port A/port B port AB) is the flow direction of the process fluid for mixing use. This

product also can be installed for diverting use (port AB port A/port B).

Installation location

CAUTION

Do not install the product nearby a steam coil, pressurized hot-water coil, or any high heat source. High

temperature radiation might cause malfunction of its actuator.

Do not use the product in an atmosphere corrosive to the actuator, valve, and their components. Doing so might

damage the product.

IMPORTANT:

The top and the terminal covers might be corroded by some chemical and organic solvent/vapor. Do not clean

the ACTIVAL using such substances, or do not expose the ACTIVAL to such substances.

Although the ACTIVAL can be used in high humidity environments (max. 95 % RH), do not immerse the

actuator in water.

Although the ACTIVAL can also be used outdoors, be sure not to expose the ACTIVAL to direct sunlight.

Install the ACTIVAL in a position allowing easy access for maintenance and inspection. Fig 6 shows the minimum clearance

for maintenance and inspection.

When installing the ACTIVAL in a ceiling space, provide an access hole within 20" (50.8 cm) radius of the ACTIVAL.

Place a drain pan under the valve.

Do not mount the ACTIVAL on a pipe where water hammer occurs, or where solid objects including slug may accumulate.

AB-7356-U

Mounting position

The ACTIVAL can be mounted in any position ranging from upright to sideways (90tilted). The ACTIVAL should be installed

with its actuator vertically positioned above the valve body. (See Fig. 9.) However, the ACTIVAL must be installed always in

upright position outdoors.

Figure 9. Mounting position

Piping

Check that the model number of the product is what you ordered. The model number is shown on the label attached to the

yoke.

Install a bypass pipe and gate valves on the inflow, outflow, and bypass sides. If difference between the coil side pipe

resistance (which contains coil resistance) and the bypass side pipe resistance are extremely large, use the gate valves to

adjust the pressure. Also, install a strainer with 40 or more meshes on the inflow side.

When installing the ACTIVAL to pipes, do not allow any object, such as chips, to get inside a pipe or valve. Valve cannot fully

close, or the valve seat may get damaged causing fluid leakage, due to an object jammed inside the valve.

When piping, do not apply too much sealing material, such as solidifying liquid and tape, to the pipe connection sections so

that these materials flow into the valve. Valve cannot fully close, or the valve seat may get damaged causing fluid leakage,

due to the sealing material jammed inside the valve.

Before activating the ACTIVAL, fully open (in 100 % position) the valve and flush the pipes (flush per each port) at the

maximum flow rate to remove all the foreign substances. (Factory preset position: Port A in 100 %)

Flow direction

Figure 10. Flow direction

Identification between Ports A and B

Valve body without heat insulation wrapped:

Identify ports A and B with the letters ‘A’ and ‘B’ marked on the valve body.

Valve body with heat insulation wrapped:

Identify ports A and B with the raised bar shape on the valve bonnet, as

shown in Fig. 8.

Figure 8. Identification between Ports A and B

Mixing:

Port A/Port B to Port AB

Diverting:

Port AB to Port A/Port B

Correct mounting Incorrect mounting

Bar shape

Facing the bar shape,

Left: Port A

Right: Port B

AB-7356-U

Heat insulation

Do not apply heat insulation to the actuator or to the yoke, as shows in Fig. 7. If the yoke and the actuator are covered with

insulation material, the pointer cannot be checked and may be distorted.

Factory preset position

The actuator shaft is positioned at 100% (Port A in fully open position) for shipment. The shaft is completely turned clockwise,

and the pointer points at “100”. (See Fig. 11.)

Figure 11. Pointer position for shipment

Manually opening/closing the ACTIVAL

IMPORTANT:

Manually opening/closing the ACTIVAL with the power (24 V AC) applied might damage the actuator.

To manually open/close the ACTIVAL, do not turn the joint beyond the fully open (100)/closed (0) mark.

To manually open/close the ACTIVAL, slowly turn the joint. If shock is sent to the actuator, the actuator might

get damaged.

Disconnect the power from the ACTIVAL before manually operating the ACTIVAL. As shown in Fig. 12, from the front of the

ACTIVAL, hold the joint using a tool such as a wrench, and turn the joint slowly toward the set position.

Figure 12. Manual open/close operation

Auxiliary switch (optional)

The auxiliary switch is installed on site. Refer to the instructions supplied with the auxiliary switch for installation.

IMPORTANT:

Do not open the top cover except when adjusting the auxiliary switch. Close the top cover instantly after

adjusting the auxiliary switch.

Do not put any load on the top cover.

Position indication

0: Port A fully closed (Ports B and AB fully open)

100: Port A fully open (Ports A and AB fully open)

Pointer

Hold the joint using a wrench

and turn slowly.

Autres manuels pour ACTIVAL

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Azbil Unité de contrôle

Azbil

Azbil FloWing VFR Manuel utilisateur

Azbil

Azbil Actival VY51 J Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY51 EJ Series Manuel utilisateur

Azbil

Azbil GV-A Series Manuel utilisateur

Azbil

Azbil ACTIVAL FVY5160J0011 Manuel utilisateur

Azbil

Azbil Infilex BC WY5610W0010 Manuel utilisateur

Azbil

Azbil AGVB Manuel utilisateur

Azbil

Azbil VDD Series Manuel utilisateur

Azbil

Azbil RJ-1 Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY516XJ Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY51 Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY5460F Series Manuel utilisateur

Azbil

Azbil VDC Manuel utilisateur

Azbil

Azbil AMT Manuel utilisateur

Azbil

Azbil Actival JIS 20K Manuel utilisateur

Azbil

Azbil ACTIVAL VY5302A Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY5303B Series Manuel utilisateur

Azbil

Azbil ACTIVAL FVY5130J Manuel utilisateur

Azbil

Azbil ACTIVAL VY51 Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY5303A Manuel utilisateur

Azbil

Azbil ACTIVAL VY519 J Series Manuel utilisateur

Azbil

Azbil ACTIVAL Intelligent Component Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY519 J Series Manuel utilisateur

Azbil

Azbil ACTIVAL VY5302B Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
