Azbil VDC Manuel utilisateur
Diaphragm Control Valve
Model: VDC, VAC, VST,VAA
ANSI Class 600 or under
User’s Manual
OM2-8110-0300
13th edition
Copyright, Notices and Trademarks
©2001-2023 Azbil Corporation All Rights Reserved.
While this information is presented in good faith and believed to
be accurate, Azbil Corporation disclaims the implied warranties of
merchantability and tness for a particular purpose and makes no
express warranties except as may be stated in its written agree-
ment with and for its customer.
In no event is Azbil Corporation liable to anyone for any indirect,
special or consequential damages. This information and speci-
cations in this document are subject to change without notice.
Model MTG11A/18A, MTG11B/18B, MTG14C i
Safety Guide
1 : Nomenclature of parts
Diagrams with the control valve terminologies and words used in this manual are
shown below. Please familiarise yourself with these denitions before using the
device.
Diaphragm
Yoke
Bonnet
Valve body
Flange
Actuato
r
Figure S-1 Nomenclature of globe valve
Body
Valve body
(Vane or disk)
Link
Actuato
r
Figure S-2 Nomenclature of buttery valve
Safety Guide Azbil Corporation
ii Model MTG11A/18A, MTG11B/18B, MTG14C
2 : Safety precautions
Please read this section before using the valve to ensure proper handling.
WARNING
If the stated procedures are not followed as specied, a potentially hazardous situation
may arise, which could result in death or serious injury.
CAUTION
Failure to observe these cautions may create dangerous conditions that could result in
injury to the personnel and/or in physical damage to the device.
3 : Verication of Valve Specications and Precautions on Storage
3-1 : Unpacking
Control valve is a precision equipment. Handle it with care to avoid damaging it.
When unpacking, check that the following items are in the crate:
• Main valve body, actuator and accessories as ordered,
• Additional equipment as ordered. Installation options
3-2 : Verication of specications
Please check and see if that the process ow uid conditions, and valve Tag No.
agree with the specications that were ordered. The nameplate of each product are
found as shown below. (Other products have their nameplates attached to the identical
positions.)
Figure S-3 Position of nameplate on V Series
Azbil Corporation Safety Guide
Model MTG11A/18A, MTG11B/18B, MTG14C iii
Compliance with Regulations
This product complies with the directive below.
• Pressure Equipment Directive (PED) 2014/63/EU
Requirements for workers (installation, operation, maintenance)
To ensure safety, only specialists who are skilled in instrumentation work should
carry out the installation, operation, and maintenance of this device.
Cautions on storage
When storing the control valve, pay attention to the following precautions:
• A control valve that has been packed in a cardboard box should be stored indoors
at normal temperature and humidity.
• A control valve that has been packed in a wooden crate should be stored indoors
at normal temperature and humidity as a rule. In the event outdoor storage, open
the crate, verify the specications of the unit and cover it with a polyethylene
protective sheet to guard against precipitation.
• When storing a used valve, follow the procedures described below:
(1) Flush out the process uid from inside the valve body and dry,
(2) When there is a possibility of the valve body rusting, preservation treatment
should be given,
(3) To prevent water from getting into the instrument, cover pneumatic tubing
connection and electric connector with watertight caps or tape. Also, protect
the connector threads,
(4) Place a ange cap onto the end of the pipe connecting surface (ange face,
butt welding connections) to avoid any possible damage.
Safety Guide Azbil Corporation
iv Model MTG11A/18A, MTG11B/18B, MTG14C
4 : Installation
4-1 : Installation environments
CAUTION
• Ensure sucient space for easy and
safe operation and maintenance of
the control valve.
• Avoid installing the valve in a
location where vibration or external
stress may impair proper valve
functions. If necessary, make
appropriate provisions against these.
• Consider providing a support for
the valve, so that the process piping
is not burdened with the excessive
weight of valve, or provide supports
on the upstream and downstream
pipe runs.
• Provide a cover or protective fence
around the valve installation, when
a valve is installed facing a path
or if physical contact with valve is
expected.
• Do not install a valve where it is
submerged under the water, or snow or freezing may take place.
• Provide a wall for protection against heat radiation.
• Provide measures to protect the valve against salt spray or corrosive atmosphere.
• To stop operation of the Flowmeter:
- Switch the control equipment connected to the owmeter to manual control.
- To turn the power to the converter o.
CAUTION
• In order to guard against accident while handling the valve, always wear safety
gloves, goggles and safety shoes.
Pipe support
Maintenance space
Azbil Corporation Safety Guide
Model MTG11A/18A, MTG11B/18B, MTG14C v
Prior to installation work, follow the items of caution as described below:
CAUTION
• Check and conrm that there is no external
damage to the valve (body, actuator,
accessories).
• Check and conrm that there is no damage
on pipe connecting anges or butt welding
connections.
• Ensure that the temperature of welded part
of pipe has been reduced before proceeding.
• Make sure that the anges on pipe have been
chamfered.
• Remove dust, sand, welding spatter or any
other foreign matter from the pipe and
clean out pipe. Any foreign matter will
damage the valve seat and reduces shut-o
characteristics.
• Ensure that upstream and downstream pipe
supports are suciently strong. Otherwise,
the valve's weight may cause leakage from
ange connections.
Y
Scar
Dirt, sand
WARNING
• Operation of valve over and beyond the
rated pressure or connection other than
recommended of specied connection may
cause damage or leakage which may result
in serious injury.
Y
Safety Guide Azbil Corporation
vi Model MTG11A/18A, MTG11B/18B, MTG14C
4-2 : Installation work
CAUTION

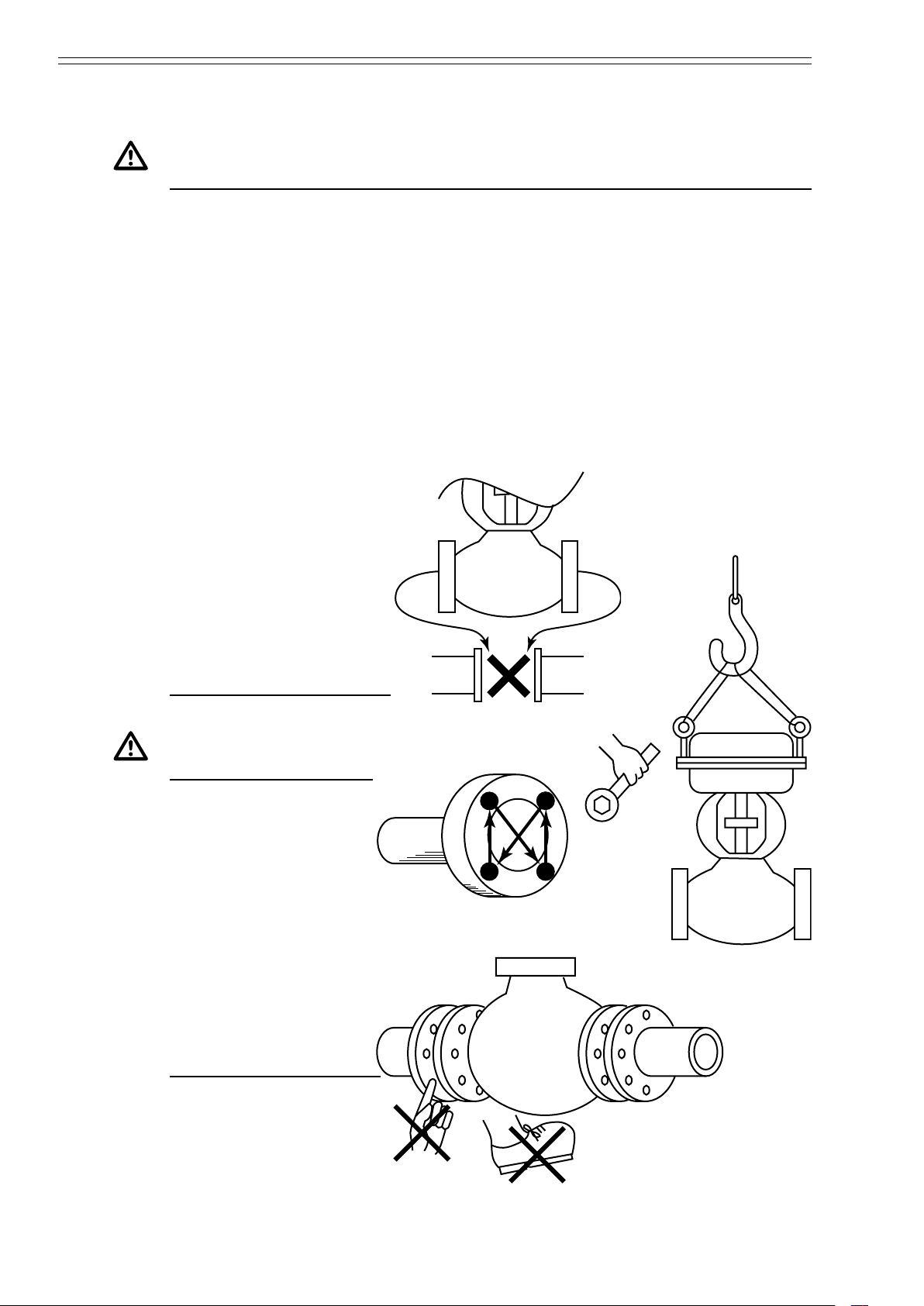

• Ensure that centers of upstream and downstream pipes are aligned when pipe
installation has been completed. Any mis-alignment of pipe will distort the valve
and will cause leakage from the connections. (Gasket)
• Make sure that the face to face dimension of pipe anges is equal to face to face
dimension of valve body plus gasket thickness.
• When installing a buttery valve on a pipe, keep the valve body (vane or disk) in
the fully closed position. When lifting a valve using the eyebolts on the actuator,
make sure that the rated weight of the bolt does not exceed the limit given in
the instruction manual. A load in excess of the limitation will cause damage to
actuator or will result in air leakage.
• Use proper gaskets for pipe anges. Otherwise, process uid may leak. Always
use new gaskets for pipe anges that will meet process uid specications,
temperature and pressure
conditions. Otherwise
process uid leakage
may occur.
• When ushing pipes,
keep valve in the fully
open position and do not
stroke valve. Welding
spatter or foreign matter
may damage valve.
WARNING
When installing a valve on
a pipe, keep hands and feet
away from valve body's
bottom or from between
anges to avoid physical
injury.
When reinstalling the
valve after inspection,
maintenance or
modication, ush out
process uid remaining in
the pipe or replace it with
safer liquid.
Weight
limit
1
2
3
4
Tighten diagonally
Azbil Corporation Safety Guide
Model MTG11A/18A, MTG11B/18B, MTG14C vii
4-3 : Pneumatic piping and electric work
CATUTION
• Pneumatic tubing should be sized so as not to
cause dropping of air pressure when the control
valve is in operation. Pneumatic tubing should
have an allowance in bend (use specialized
tool) and the parallel tubing should be clamped
together.
• Only qualied persons should do electrical
work in accordance to electrical facility
engineering standards.
• Cable connections should be made to conform
to the facility's conditions. A suitable adaptor
or packing should be selected to suit the outer
dimension of the completed installation.
• When using seal tape on pneumatic tubing, do
not apply tape on the rst two threads from
the tip of connector. This may block the air
passage and cause malfunction of the valve.
• When using liquid packing (seize lock) on
pneumatic tubing, care should be exercised
so the liquid does not leak into tubing. It
may block the air passage, resulting in valve
malfunction.
• Avoid electrical work in rainy weather or at a
time of high humidity. Any intrusion of water
into connector or terminal will cause rusting
and electrical leakage.
• Covers of accessories such as the positioner are
provided with a seal packing (gasket). Exercise
care so as not to misplace or lose them while
electrical work is in progress.
• Exercise care so as not to lose xing screws
of accessories such as the positioner. When
tightening screws, ensure that packing is in
place and tighten screws with an even torque.
• Cable threads and conduit seal should be
tightened so as to ensure that water does not
get in.
Y
Seal
tape
Two threads
Liquid run
Positioner
Safety Guide Azbil Corporation
viii Model MTG11A/18A, MTG11B/18B, MTG14C
5 : Caution on disassembly and reassembly
5-1 : Disassembly
CATUTION
• When disassembling a spring-
incorporated positioner, follow the
prescribed procedure in removing
bolts and nuts. Otherwise, the spring
may pop out and could resulting in
physical injury.
• When the eye-bolts of actuator are
used to lift the valve from the pipe,
ensure that the weight limit given
in manual is adhered to. Otherwise,
there is the danger of dropping the
valve,
• When removing the trim (inner
valve) from the body, ensure that
the proper type of specialized tool is
used. Refer to the instruction manual
for the tools that should be used.
Otherwise, the trim may be damaged.
Y
Eye bolt
Spring
HTS
2-inch
Specialized
tool
Weight
limit
Suspending
Y
Stop
valve
Reducing
valve
Close Open
WARNING
• Before disassembling the valve,
ensure that the pressure within piping
has been reduced to atmospheric
pressure. Flow out of process uid
may cause physical injury.
• When disassembling the valve,
ush out the interior of the valve
or replace the uid inside. Residual
process uid may cause physical
injury,
• Do not disassemble the pneumatic
actuator with supply air on.
Compressed air may cause physical
injury.
Ce manuel convient aux modèles suivants
9
Table des matières
Autres manuels Azbil Unité de contrôle
Azbil
Azbil GV-A Series Manuel utilisateur
Azbil
Azbil ACTIVAL VY5333B0021 Manuel utilisateur
Azbil
Azbil Actival FVY5147J Manuel utilisateur
Azbil
Azbil ACTIVAL VY51 EJ Series Manuel utilisateur
Azbil
Azbil ACTIVAL+ FVY51 FJ Series Manuel utilisateur
Azbil
Azbil ACTIVAL FVY5160J0011 Manuel utilisateur
Azbil
Azbil Actival JIS 20K Manuel utilisateur
Azbil
Azbil ACTIVAL VY51 K Series Manuel utilisateur
Azbil
Azbil ACTIVAL VY5302A Series Manuel utilisateur
Azbil
Azbil VDN Manuel utilisateur
Azbil
Azbil AMT Manuel utilisateur
Azbil
Azbil ACTIVAL+ Intelligent Component Series Manuel utilisateur
Azbil
Azbil ACTIVAL VY5302B Manuel utilisateur
Azbil
Azbil NX-D15 Manuel utilisateur
Azbil
Azbil ACTIVAL FVY513EJ Manuel utilisateur
Azbil
Azbil ACTIVAL VY5303A Manuel utilisateur
Azbil
Azbil ACTIVAL Intelligent Component Series Manuel utilisateur
Azbil
Azbil HLS Series Manuel utilisateur
Azbil
Azbil ACTIVAL VY519XH Manuel utilisateur
Azbil
Azbil ACTIVAL VY519 J Series Manuel utilisateur
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
