AWS Bioweight Manuel utilisateur

330lb x 0.2lb

150kg x 0.1kg

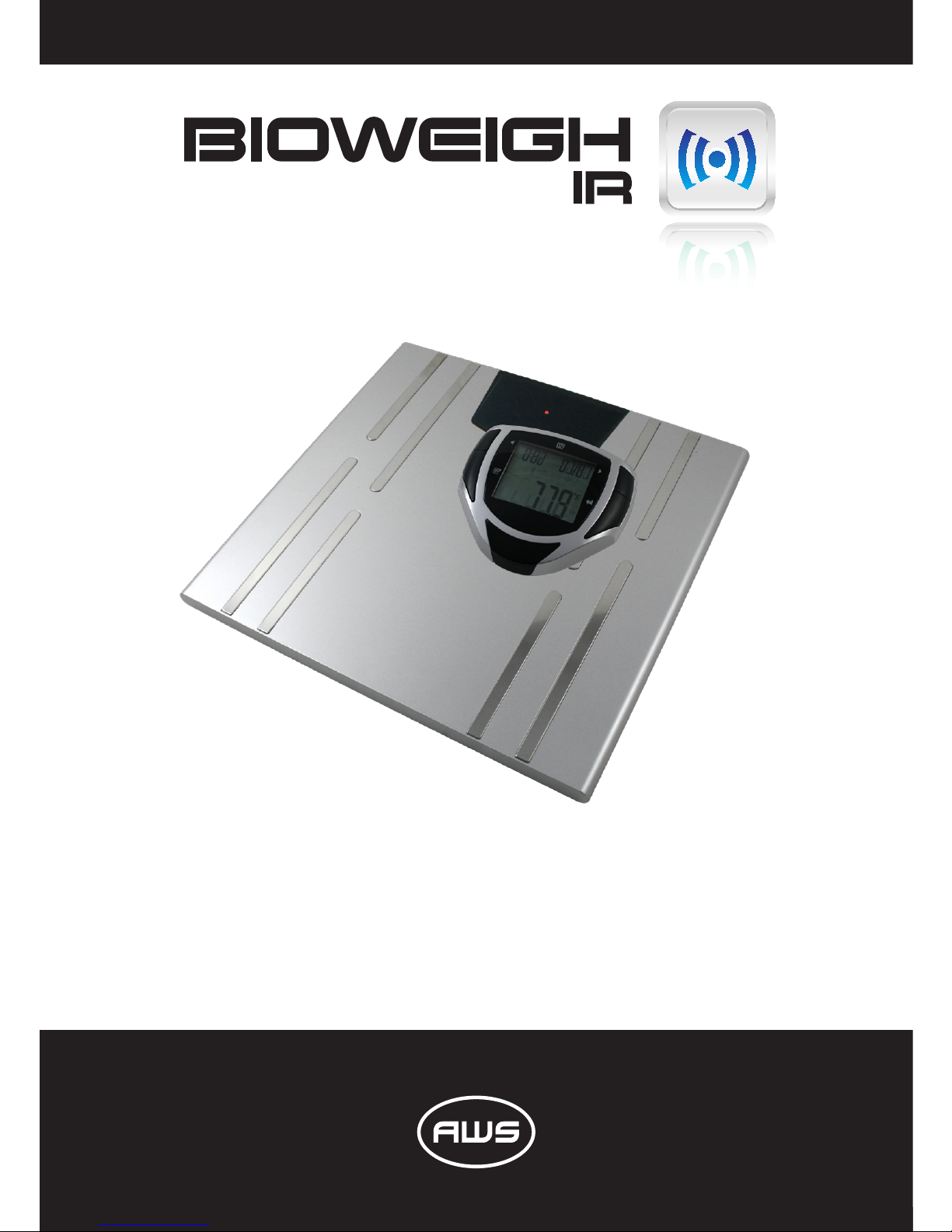

Wireless Body Fat Scale

BioWeigh-IR Manual

Thank you for purchasing the American Weigh BioWeigh-

IR Wireless Body Fat Scale. Please read all operating

instructions carefully before use. Scales are precision

instruments and should always be handled with care.

Special Note on Body Fat Scales

Body fat scales and analyzers use bioelectrical impedance

analysis (BIA) technology to calculate body fat %.

This technology works by measuring the resistance

(impedance) of small electrical currents through your body.

When the user’s height and body impedance are known,

the scale can accurately determine total body water (TBW)

and fat-free mass (FFM). Fat-free mass is then subtracted

from your total body weight to obtain your body fat mass.

This scale should be used while barefoot. Measurement

errors can arise if weighing while wearing socks or

pantyhose. To avoid slipping, do not step on the scale with

wet feet. Do not use the scale on carpet.

Although BIA method uses a safe, low level of electrical

current, users with pacemakers or other electric

medical devices or implants should not operate this

scale.

I. Remote Display Overview

II. Key Functions

DEL - Delete the current record

DOWN - Down key; Scrolls down through records; Press

and hold to change the clock faster during clock setup.

UP - Up key; Scrolls up through records; Press and hold to

change the clock faster during clock setup.

MODE - Lookup records

SET - Set and conrm time during clock setup; Search

records by date when in record lookup mode; Saves

current measurements during weighing mode.

UNIT - (on back of remote display) Unit Switch Key

Switch temperature units: °C or °F during the clock and

temperature mode;

Switch weight unit: KG, LB, or ST during weighing mode.

Switch height unit: CM or FT during user data input mode.

ST LB KG ft cm

DEL

UPDOWN

MODE SET

III. Battery Installation

This scale should come with batteries in the box. To

install the batteries, turn the scale over and remove the

battery cover. Insert two (2) AAA batteries according to

the diagram inside the battery compartment. Replace the

battery cover. Also insert two (2) AAA batteries into the

back of the remote display according to the diagram.

IV. Turning the Scale On and O

This scale has an Auto-On and Auto-O feature. The scale

will automatically turn on when the user steps on the

platform and automatically turn o after the user steps

o the platform. This scale is ready to weigh, and does not

require tapping rst before stepping on the scale.

V. Clock & Temperature Mode

The remote display defaults to clock / temp. mode after 18

seconds of non-use. To set the clock:

In clock / temp. mode, hold the• (Set) button. The

current year will begin to ash. Press and to adjust

the value. Now press to accept.

The month will begin to ash. Press• and to adjust

the value. Now press to accept.

The day will begin to ash. Press• and to adjust the

value. Now press to accept.

The hour will begin to ash. Press• and to adjust the

value. Now press to accept.

The minute will begin to ash. Press• and to adjust

the value. Now press to accept. The display will

return to clock / temp. mode after 4 seconds.

VI. Basic Weighing

Press• or on the remote display to enter User Select

Mode. The sex, height, and age for the current user will

be displayed.

Select the relevant user using• and .

The display will show the current weight applied to the•

scale.

VII. Changing Weighing Units

To change the current weighing unit, use the “UNIT”button

on the back of the remote display during weighing mode.

The display can change between kg -> lb -> st.

VIII. Entering Personal Data

Before you can obtain a body fat analysis, you must rst

enter your user data including sex, height, and age:

Press• or on the remote display to enter User Select

Mode.

Select the relevant user using• and . The sex, height,

and age for the current user will be displayed.

Press• to edit sex. Use and change the value.

Press• to edit height. Use and change the value.

Press• to edit age. Use and change the value.

Press• to conrm.

You may now stand on the scale’s metal contacts•

(barefoot).

Your weight will be displayed briey then the scale will•

begin body fat analysis. During this time, a oating 0

will be displayed.

If successful, the display will show Body Fat -> Water ->•

Muscle -> Bone -> Weight. After 3 cycles, the display

will return to clock / temp. mode.

To save the data, press the• key before the 3 cycles

are up. will be displayed to indicate that it saved.

NOTE: You may only save the data once a day for each user.

IX. Lookup Records

To view the last record for a user:

Press• or to enter User Select Mode.

Select the relevant user using• and then press

(MODE) to enter Record Inquiry Mode.

The last record set for the user will be shown in this•

order: Body Fat -> Water -> Bone -> Weight

To lookup a record by date:

While in Record Inquiry Mode, press• .

Use• and to adjust the date and press to conrm.

After a few seconds, the record set for that date will be•

displayed.

You may also use• and to view other records.

NOTE: If no record is found ! will be displayed.

X. Deleting Records

To delete a single record while in Record Inquiry Mode:

Press the• key once

The• icon will ash on the display.

Press and hold• for 2 seconds until the icon stops

ashing. The record is deleted.

The next record in memory will be displayed.•

To delete a users complete record set while in Record

Inquiry Mode:

Press the• key once

The• icon will ash on the display.

Press and hold• and at the same time for 5 seconds

until the icon stops ashing. All records for the user

are now deleted.

XI. Body Composition Charts

Body Fat %

Age

Female Male

Under-

weight Healthy Over-

weight Obese Under-

weight Healthy Over-

weight Obese

10-12 <12 12-22 22-30 >30 <8 8-18 18-24 >24

13-18 <15 15-25 25-33 >33 <8 8-18 18-24 >24

19-30 <20 22-31 31-38 >38 <8 8-18 18-24 >24

31-40 <24 24-33 33-40 >40 <11 11-20 20-26 >26

41-50 <24 24-33 33-40 >40 <13 13-22 22-28 >28

51-60 <26 26-35 35-42 >42 <15 15-24 24-30 >30

60+ <28 28-37 37-47 >47 <17 17-25 26-34 >34

Body Water %

Age Female Male

Healthy Healthy

10-12 >60 >64

13-18 >58.5 >63.5

19-30 >56 >62.5

31-40 >53 >61

41-50 >52 >60

51-60 >51 >59

60+ >50 >58

Body Muscle %

Age Female Male

Healthy Healthy

10-99 >34 >40

Bone Mass

Female Male

Weight <100lb 100-130lb >130lb <130lb 130-165 >165lb

Bone 4lb 4.8lb 5.5lb 5.5lb 6.4lb 7lb

XII. Icon Descriptions

Icon

Description Male Female Body Fat Water Muscle Bone

Icon

Description Low

Batteries

Delete

Record Overweight Record

Saved Age No Record

Found

XIII. Troubleshooting

If in the process of using the scale, the receiver stops

working properly, place the receiver on the platform of

the scale and press or to enter weighing mode. Then

place at least 30lbs of weight on the scale to turn it on. The

display should show the weight after about 5 seconds.

American Weigh Scales, Inc.

2 Carriage Ln, Suite 2

Charleston, SC 29407

Tel: 866-643-3444 (toll free)

Fax 843-225-7284

Model BIOWEIGH-IR

Capacity 150kg / 330lb / 23st:8lb

Resolution 0.1kg / 0.2lb / 0.2lb

Weighing Units kg, lb, st:lb

Memory 10 User Memory;

Stores up to 365 records per user.

Record includes: year, month, day, weight, fat, water,

muscle, and bone

Body Analysis Ranges body fat range: 0~80%

body fat graduation: 0.1%

water range: 10~80%

water graduation: 0.1%

muscle range: 13~80%

muscle graduation: 0.1%

bone range: 0~9kg

bone graduation: 0.2lb/0.1kg

age range: 10~80

Temperature Display range: 14°F ~ 104°F (-10°C ~ 40°C)

Scale Dimensions

(inches) 11.8 x 12.2 x 0.7”

Power 4 x AAA Batteries (included)

Warranty 10 Year Warranty
