Avocent AutoView 1400 Manuel utilisateur

To connect an AutoView Wireless transmitter

The following instructions will help you

connect your AutoView Wireless switch.

Should you require further assistance, please

consult your installer/user guide.

Power down the first computer that will be part of

your AutoView Wireless switching system and unplug

its peripherals. Place the transmitter near the

computer and connect the AutoView Wireless

transmitter cables into the computer’s PS/2

keyboard, PS/2 mouse and monitor connections.

Connecting the audio

Using the supplied audio cable, connect one end

to the transmitter’s audio input connection and the

other end to the computer’s audio output connection.

Connecting a local user to

the transmitter

Connect the local user’s keyboard, monitor and

mouse into the appropriately marked ports on the

rear of the transmitter.

Powering up the transmitter

and computer

Connect your transmitter to an AC power source with

one of the included power supplies and power up

your computer.

To Contact Avocent Technical Support CALL (888) 793-8763 EMAIL [email protected] DOWNLOAD www.avocent.com

Avocent, the Avocent logo, The Power of Being There and AutoView are registered trademarks of Avocent Corporation or its affiliates. All other marks are the property of their respective owners. © 2004 Avocent Corporation. All rights reserved. 590-412-001A

Quick Installation Guide

AutoView®Wireless Switch

NOTE: Use only an Avocent-supplied power

supply. The transmitter must be powered up before

the computer.

(Continued on reverse side)

Installing the AutoView Wireless transmitter

(Repeat for each computer in system)

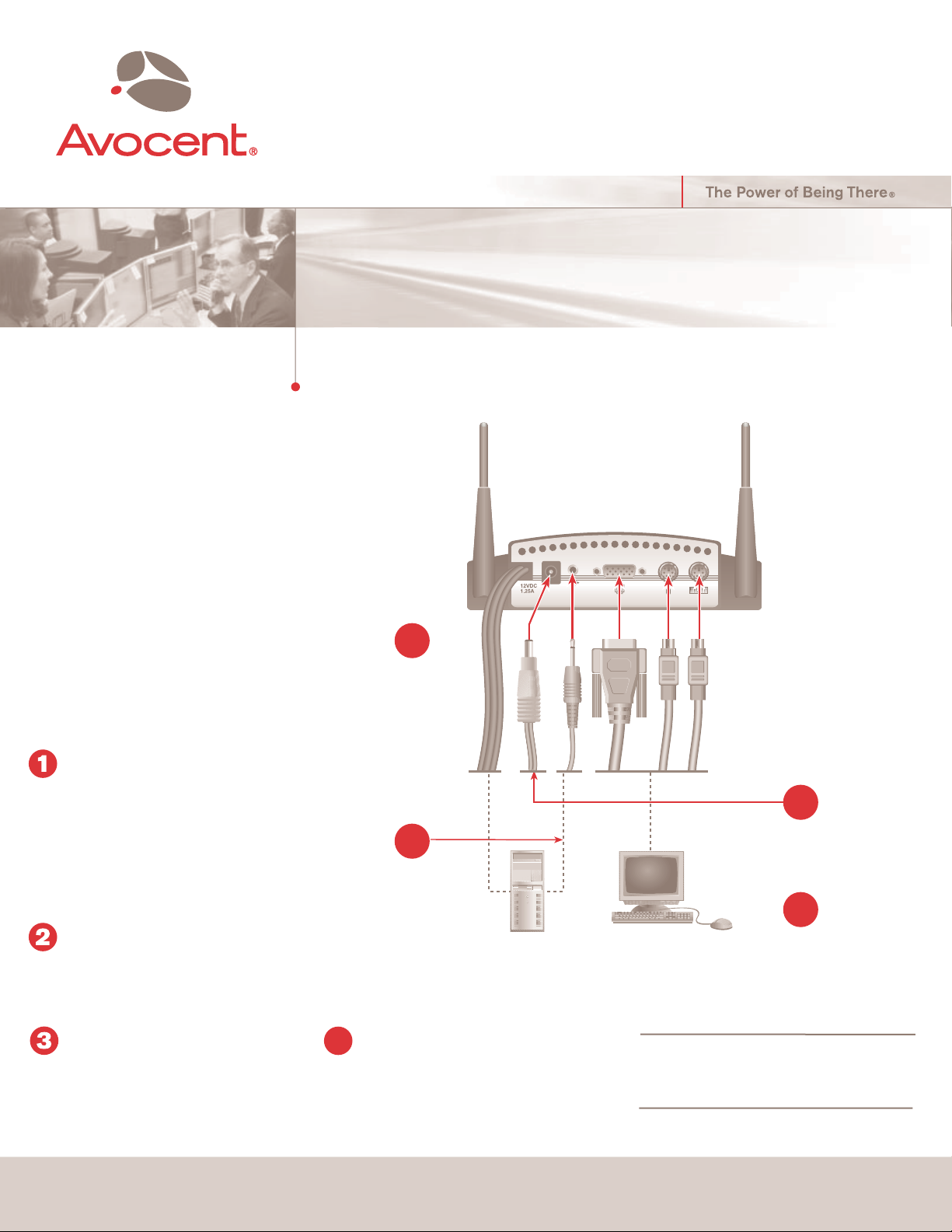

Connecting the computer’s peripherals

Transmitter

Connect the

transmitter

cables into the

appropriate

ports on the

computer.

Connect the audio.

Connect the local

user’s keyboard,

monitor and mouse.

Connect to an

AC power source.

To connect an AutoView Wireless receiver

The following instructions will help you

connect your AutoView Wireless switch.

Should you require further assistance, please

consult your installer/user guide.

Connecting the peripherals

Connect the extended user’s keyboard, monitor and

mouse into the appropriately marked ports on the rear

of the receiver.

Connecting the audio

Connect your PC speakers into the receiver’s audio

output connection.

Powering up the receiver

Connect the power supply into the AutoView Wireless

receiver and into an AC power source.

For additional information

For further instructions on AutoView Wireless switch

hardware connection and switching, please refer to the

installer/user guide included with the unit.

Installing the AutoView Wireless receiver

(Repeat for each user in system)

Quick Installation Guide

AutoView®Wireless Switch

To Contact Avocent Technical Support CALL (888) 793-8763 EMAIL [email protected] DOWNLOAD www.avocent.com

Connect to an AC

power source.

Connect the

extended speaker.

Connect the extended

user’s keyboard,

monitor and mouse.

Receiver

Notifications and Approvals

USA Notification

This device complies with part 15 of the FCC

rules. Operation is subject to the following

two conditions: (1) this device may not cause

harmful interference and (2) this device must

accept any interference received, including

received interference that may cause

undesired operation.

Agency Approvals

UL, cUL, FCC class A
