Switching your servers

Press the appropriate numbered front panel button to

access servers via your SwitchView SC switch.

Using the front panel card reader port

SwitchView SC 220 and 240 series switches are

equipped with a front panel USB card

reader port to

support Common Access Card (CAC) functionality.

Front panel push-buttons allow you to switch KVM

sessions and the card reader together. A yellow LED

indicates the target device to which the KVM session

and card reader port is connected.

Mechanical

H x W x D = 1.72” x 10.36” x 5.68”

Weight = 2.3 lbs

The Power of Being There®

Quick Installation Guide

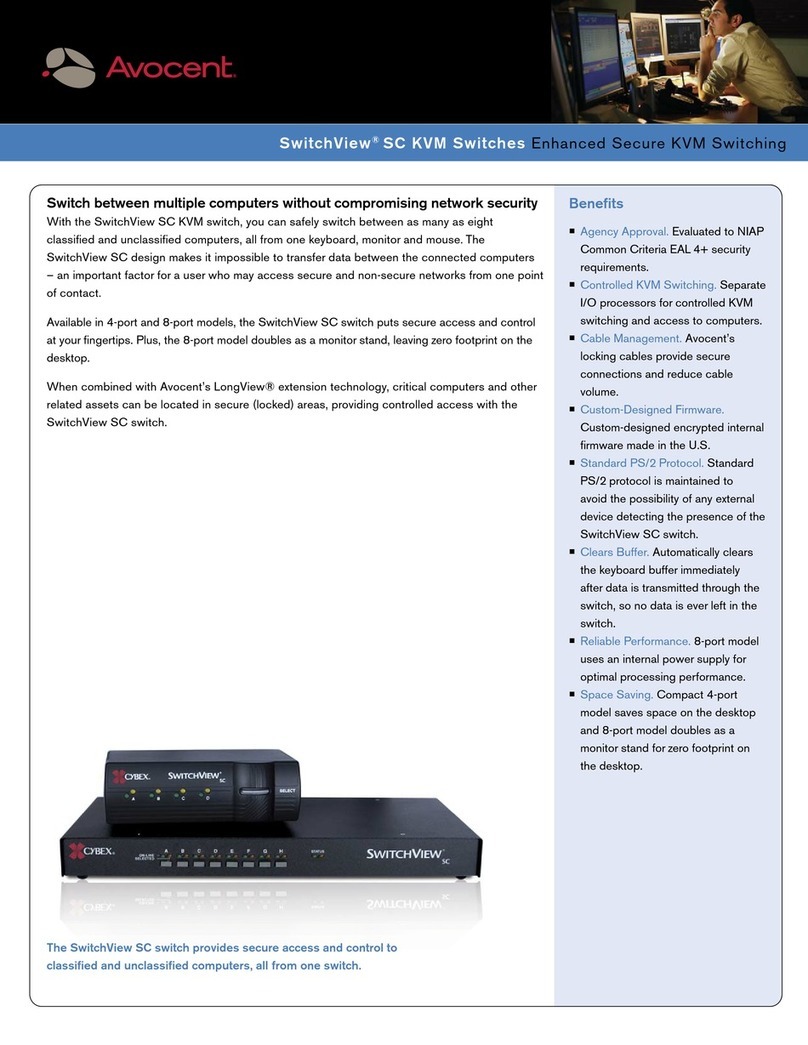

SwitchView®SC Switch

For models: 120/140/220/240

The following will help you install your

SwitchView SC switch easily.

Should you require further assistance, please

contact Avocent Technical Support.

To install the SwitchView SC switch

To Contact Avocent Technical Support: Visit www.avocent.com

Avocent, the Avocent logo, The Power of Being There, the Cybex logo and SwitchView are registered trademarks of Avocent Corporation or its afﬁliates. ©2007 Avocent Corporation. All rights reserved. 590-718-501A

Connecting local peripherals

Turn off all servers that will be part of your

SwitchView SC switching system.

Plug your

VGA monitor, keyboard and mouse cables into

the appropriate CONSOLE ports on the back

of your SwitchView SC switch

Powering your system

Plug one end of the power cord into the

SwitchView SC switch power supply. Then,

plug the power supply into the SwitchView SC

switch. Next, plug the otherend of the powercord

into an AC wall outlet. Turn on your switch ﬁrst,

then all attached servers.

Connecting your servers

Using the SwitchView SC switch’s peripheral

cable set (USB or PS/2), plug the cables

into the corresponding ports on your server.

Plug the other end into any of the available server

ports on your SwitchView SC switch. Repeat

this process until all servers are attached to the

SwitchView SC switch. A green LED indicates

the target device is turned on.

Environmental

Operating Temperature: 32˚ (0˚C) to 104˚ (40˚C)

Storage Temperature: 4˚ (-20˚C) to 122˚ (50˚C)

Input Power: .8A; Operating Voltage 100-240 VAC

Power Frequency: 50-60 Hz

Supported hardware and speciﬁcations

Servers: IBM, Sun, PC/AT, USB, PS/2 and

100% compatibles

Video Modes: VGA, SVGA, XGA, SXGA, UXGA,

WVGA, WSVGA, WXGA, WSXGA, WUXGA,

and HDTV

Maximum Resolution: 2048 x 1536 @ 85Hz

Peripherals: USB and/or PS/2 keyboard and mouse

USB Common Access Card readers

SwitchView SC240

switch shown

USA Notiﬁcation

Caution: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the

user’s authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Consult the dealer or an experienced radio/TV technician for help.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Canadian Notiﬁcation

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Japanese Approval

Safety and EMC

Approvals and Markings

UL, FCC, cUL, ICES-003, CE, C-Tick, VCCI

Safety certiﬁcations and EMC certiﬁcations for this product are obtained under one or more of the following

designations: CMN (Certiﬁcation Model Number), MPN (Manufacturer’s Part Number) or Sales Level Model

designation. The designation that is referenced in the EMC and/or safety reports and certiﬁcates are printed on the

label applied to this product.

•

To Contact Avocent Technical Support: Visit www.avocent.com
