Avision AD240 Manuel utilisateur
Sheet-fed Scanner
Getting Started Guide
Trademarks
Microsoft is a U.S. registered trademark of Microsoft
Corporation.
Windows, Windows XP, Windows Vista, Windows 7 and Windows
8 are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright©2014 Avision Inc. All rights reserved.
En
g
lish
ii
Table of Contents
1. Introduction................................................. 1
1.1 Package Items.............................................. 1
1.2 Front View ................................................... 2
1.3 Rear View .................................................... 3
2. Scanner Installation..................................... 4
2.1 Installing the Scanner Driver and Connecting
the Cables.................................................... 4
3. Completing Your First Scan .......................... 8
3.1 Loading Your Paper ....................................... 8
3.2 Verifying Your Scanner Installation ................ 13
3.3 A Glance of the Scanner Properties Dialog Box 16
4. ISIS Interface Operation ........................... 17
5. Using the Buttons ...................................... 18
5.1 Installing Button Manager V2........................ 18
5.2 Checking the Button Configurations before
Scanning ................................................... 19
5.3 Scanning From One Touch of the Buttons ....... 21
6. Maintenance .............................................. 22
6.1 Cleaning the ADF ........................................ 22
6.2 Cleaning the Glass ...................................... 23
7. Troubleshooting......................................... 24
7.1 Clearing a Paper Jam ................................... 24
1
1. Introduction
1.1 Package Items
The following figure indicates the package contents. Please
check all the items against your checklist. If you do not
receive all the items, please contact your authorized local
dealer immediately.
1. Scanner Main Unit
2. Quick Guide/CD
3. USB Cable
4. Power Adapter & Power Cord
2
4
1
3
2
1.2 Front View
Part Name Function
Extension Can be pulled out and adjusted to the
size of the document being scanned.
ADF Paper Tray Load the document onto this part
when scanning document.
Paper Guides Adjusts to the width of the documents
to prevent skewing of the scanned
pages.
LCD screen Shows number indicating the scan-to
destination via the software
application, Button Manager V2.
Power Button Press to turn on the power.
Output Tray Open to collect the document after
scanned.
Extension Pull it out. Documents are ejected
from the ADF to the tray.
Paper Stopper Adjust to the length of the documents
to prevent them from falling apart.
Extension
Paper Guide
Paper Stopper
Power Button
Paper Guide
Output Paper Tray
Extension
ADF
Paper Tray
3
1.3 Rear View
Part Name Function
USB Port Connect to your computer.
Power Jack Connect the AC adapter to the
scanner.
Power Jack
USB Port
4
2. Scanner Installation
2.1 Installing the Scanner Driver and Connecting the
Cables
NOTE:
1). To ensure your computer can identify the USB scanner,
please install scanner driver first before connecting the
scanner to your computer.
2). The scanner driver contains TWAIN, ISIS and WIA driver. If
you are running Windows Me, Windows XP, or Windows
Vista, after the installation of scanner driver is completed,
this scanner allows you to scan via a TWAIN, ISIS, or a WIA
interface. Start your TWAIN-compliant image editing
software application to select a TWAIN or WIA user interface
or your ISIS software to select an ISIS user interface. You
may also launch Microsoft’s Scanner and Camera Wizard to
scan via a WIA user interface.
2.1.1 Connecting to Power
Before connecting, make sure the power switch is off.
Plug the small end of the power adaptor into the power jack of
your scanner. Insert the other end to an appropriate power
outlet.
5
2.1.2 Turning on the Power
Press the Power Switch button on the front panel, the Power
LED will flash. When it is finished and ready to scan, the LED
indicator will stop flashing and become steadily on. To turn
off the scanner, press the Power Switch button for about 3
seconds, the Power LED will be off.
2.1.3 Installing the Scanner Driver
1. Place the supplied CD-ROM onto your CD-ROM drive.
2. The software installation graphic appears. If not, run
“setup.exe”.
6
3. Click Install Button Manager V2 to install the Button
Manager V2 and then click Install Scanner Driver to install
the scanner driver on your computer.
2.1.4 Connecting to Computer

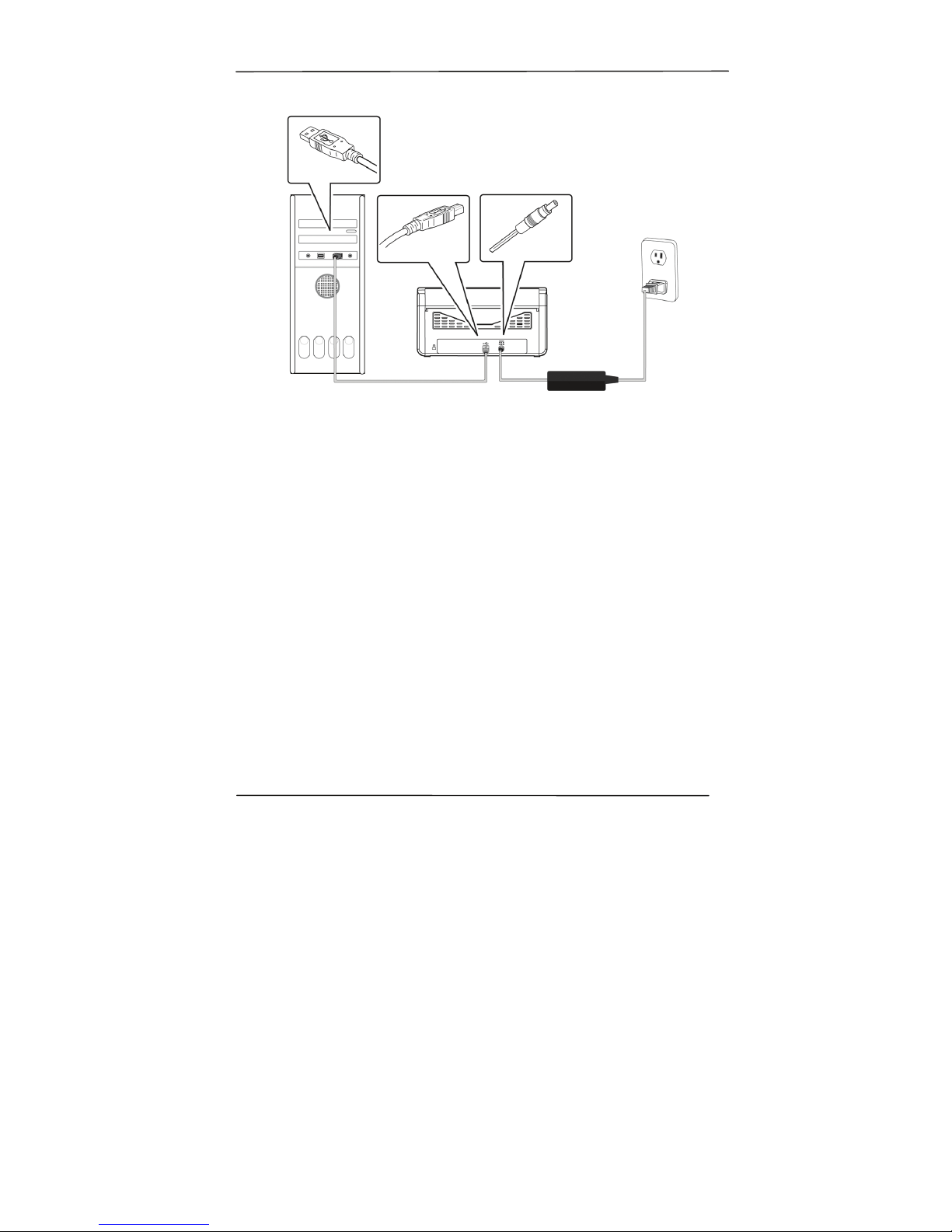

1. Connect the square end of the USB cable to the USB port of
your scanner. Connect the rectangle end to the USB port of
your computer.
7
2. The computer should detect a new USB device and prompt a
“New Hardware Found” message.
3. In Windows XP, click the Next button to continue. When the
XP certification screen appears, click Continue Anyway to
complete the installation.
4. When the Finish dialog is prompted, click the Finish button.
8
3. Completing Your First
Scan
3.1 Loading Your Paper
3.1.1 Notice on Using the ADF
Before using the ADF, please make sure that your paper meets
the following specifications:
Document(s) can range in size from 50 x 50 mm (2” x 2”)
to 240 x 356 mm (9.4” x 14”) (Legal).
Document(s) can range in weight from 28~400 g/m2 (7~
110 lbs)
ID cards up to 1.25 mm (0.05 in.) thick
Document(s) should be square or rectangular and in good
condition (not fragile or worn).
Document(s) should be free of curl, wrinkle, tears, wet ink,
or punch holes.
Document(s) should be free of staples, paper clips, paper
sticky notes.
