REPLACING THE PRINTHEAD

The printhead is sensitive to static electricity, which can damage the

printhead or reduce its life. Ground yourself by touching some metal, such

as the printer's metal base, before touching the printhead.

To replace the printhead:

1. Turn off the printer.

2. Open the cover.

3. Unlock the printhead by turning the retaining latch.

2

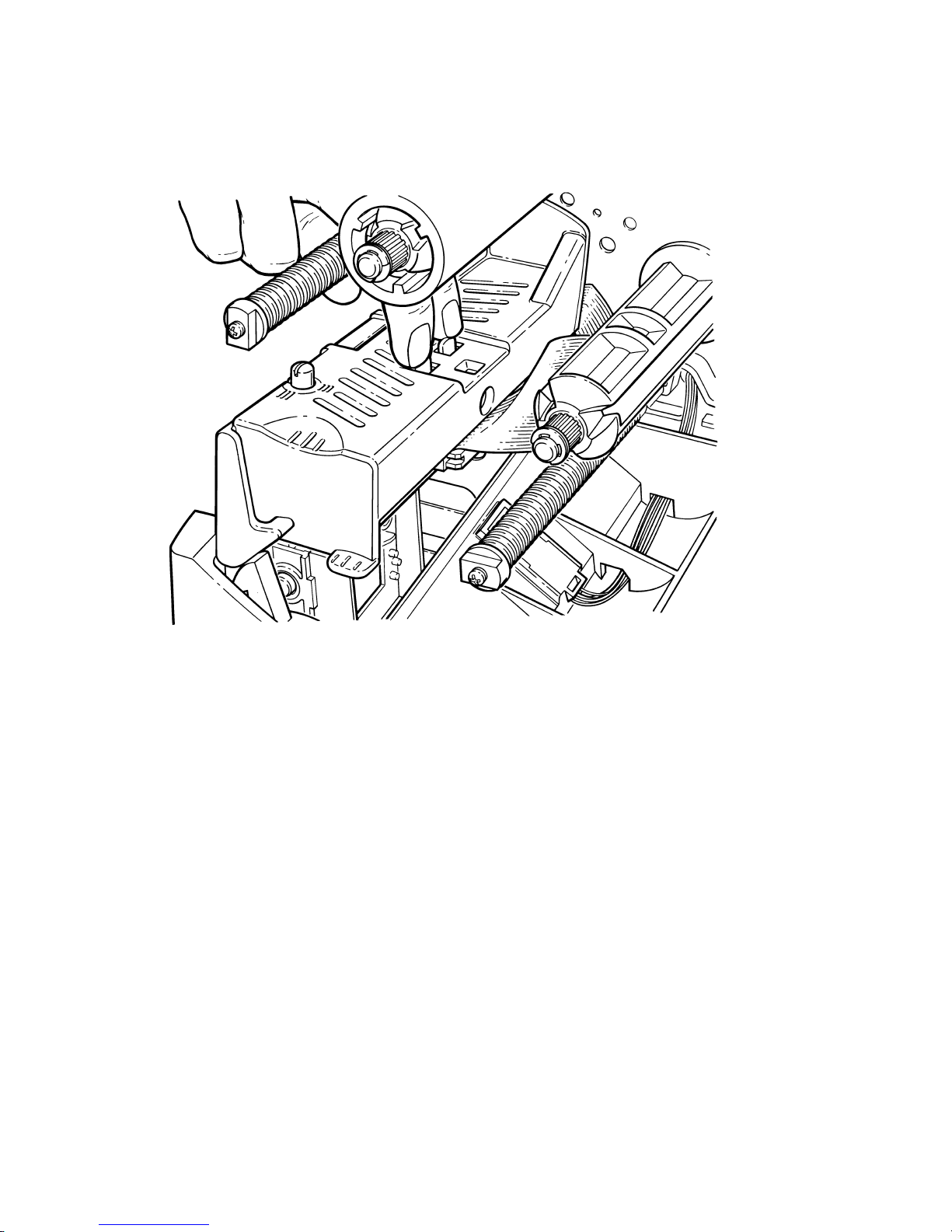

4. Press forward and down on the two latches on top of the printhead

assembly as shown. The printhead will drop out.

5. Lift the printhead assembly using the printhead tab and push back until

the printhead assembly clicks into place.

3

6. Carefully unplug the cable from the printhead as shown. The printhead

is sensitive to static electricity, which can damage the printhead or

reduce its life. Ground yourself by touching some metal, such as the

printer's metal base, before touching the printhead.

7. Carefully plug the cable into the new printhead.

8. Align the new printhead with the tabs.

4

9. Snap the printhead into place.

Note: Make sure the printhead cable does not touch the ribbon roll.

10. Clean the new printhead with a cotton swab dipped in isopropyl alcohol

to remove any salt or oil left from handling.

11. Let the printhead dry and reload your supplies.

12. Push down on the printhead assembly to lock it in place.

13. Close the cover.

14. Turn on the printer and press Feed/Cut to position the supply.

Do not

touch here
