Avery Dennison AP7.t Manuel d'instructions

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL

AP7.t

Technical Data

Device Types, Application .............................2

AP7.t ......................................................... 2

Options ...................................................... 2

Technical Specifications ............................... 3

Dimensions ............................................... 3

Performance Data ..................................... 3

Labelling Material ...................................... 6

Thermotransfer Ribbon ............................. 7

Connections, Interfaces ............................ 7

Electronic Configuration ............................ 8

Environmental Conditions ......................... 8

Index ............................................................. 9

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

Device Types, Application

AP7.t

•Intended purpose: Monotone printing of textile labelling materials for thermal

and thermotransfer processes

•Processing roll material

•Resolution: the AP7.t is optionally available with 203 or 300dpi resolution

•Print speed up to 200mm/sec (8”/s) with the AP7.t (203dpi) or

up to 150mm/s (6“/s) with the AP7.t (300dpi).

•Print width up to 104mm with the AP7.t (203dpi) or

105mm with the AP7.t (300dpi).

•Interfaces: RS-232, USBCentronics, Ethernet

Options

Internal Options …should be factory-fitted or installed by a service engineer:

•ReflexSensorKit: Light barrierfittingthatapart fromthetransmissionsensor,

also contains a reflex sensor.

•I/O board: RS-422/485 interface, signal interface

External

Options …do not require any special alterations to the printer:

•Cutter

•TCS (Textile Cutter-Stacker)

•(External) rewinder for material rolls with 38mm (1.5”), 75mm (3”) or 100mm

(4”) cores

•Keyboard for standalone operation

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

Technical Specifications

Dimensions

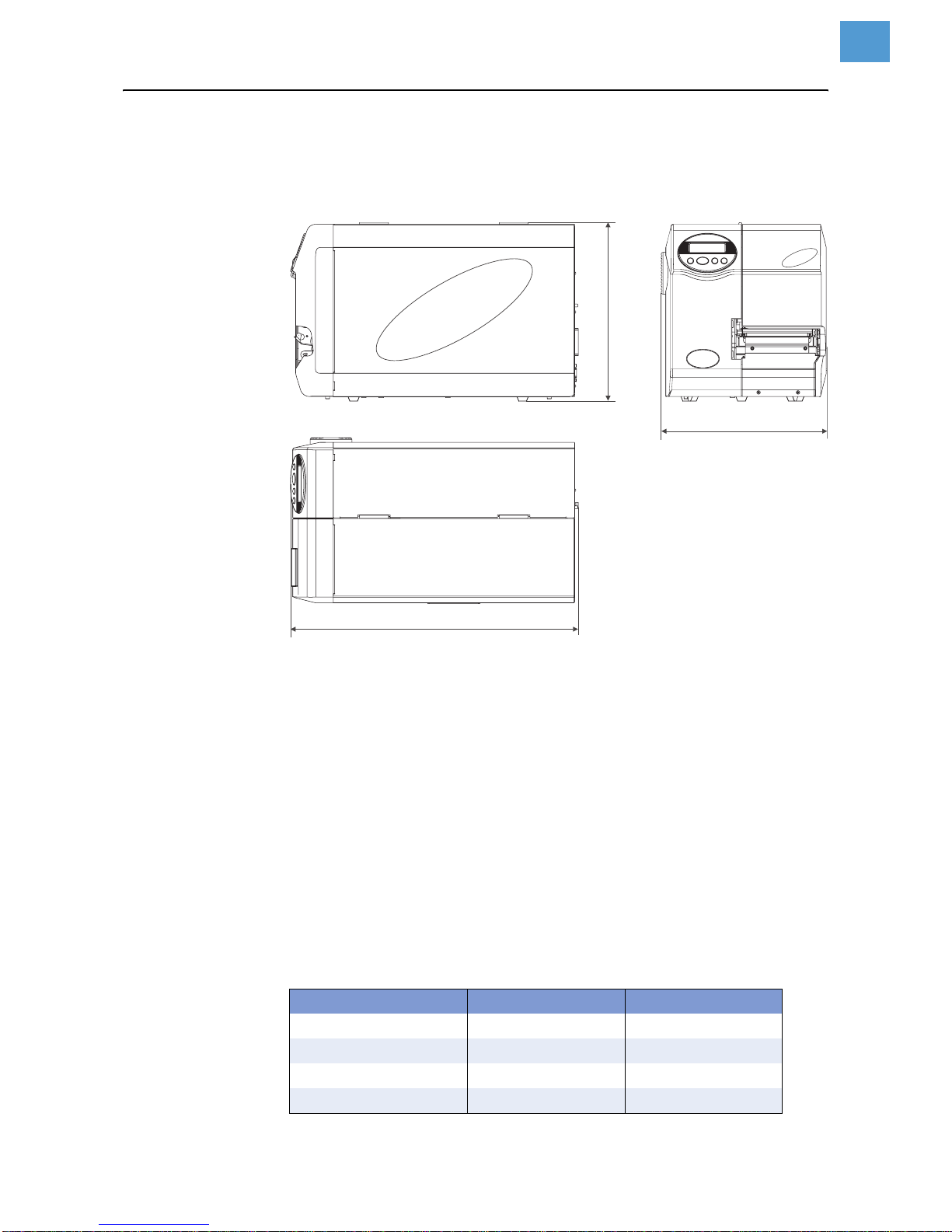

[1] Overall dimensions of the AP7.t (H=Hight, W=Width, D=Depth).

H: 313mm

W: 325mm

D: 492mm

Weight 21kg

Performance Data

Technology Thermodirect and thermotransfer printing

Printer Head

Type •“Flat Head” type (ceramic thin film flat head)

•8.0dot/mm (203dpi): Kyocera KPA 104

•11.8dot/mm (300dpi): Kyocera KPA 106

Printhead

characteristics

B/W

T/D

Z0125.cdr

Characteristic AP7.t (203dpi) AP7.t (300dpi)

Resolution (dot/mm) 8.0 11.8

Print speed. (mm/s) 50-200 50-150

Print speed (Inch/s) 2-8 2-6

Max. print width (mm) 104 105

[Tab. 1] Important printhead characteristics.

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

Punch sensor Transmission sensor, detects punches or gaps in the label material; adjusta-

ble from the left side about half of the material width (Tab. 2).

Reflex sensor •Optional available

•Detects reflex marks on the label material (normally dark marks on light

background)

•Adjustable from the left side about half of the material width.

[2] Measures and setting range of the punch / reflex mark (c = setting range, b = punch

length, a = punch width).

Fonts •19 Fixsize fonts , including OCR-A and OCR-B, including 2 fonts with textile

symbols

•3 scalable fonts (Speedo fonts)

•Truetype fonts are supported

•Optionally can Truetype, Speedo and Fixsize fonts be stored on a CF-card

Modifying Fonts •Up to factor 8 scaling in x/y direction

•Rotation by 0, 90, 180 and 270 degrees

Measure Transmission Reflex

Setting range c Material zero line up to

60mm (Material zero line +

6mm) up to 66mm

Punch length b 0.8–14mm 4mm (recommended)

Punch width a min. 4mm 12mm (recommended)

[Tab. 2] Recommended punch dimensions.

Z0211.cdr

Punch / Reflex markPunch sensor Label webMaterial zero line

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

Impression

accuracy

[3] The impression accuracy depends on the print position on the label: the further away the

printing is from the punch, the less accurate is the impression.

Image formats BMP, PCX, JPEG, TIFF, GIF, Easy Plug logos

Bar codes

All bar codes scalable in 30 different width and in the height.

2-dimensional

bar codes

+0,5

+1,0

+1,5

+2,0

+3,0

Max. misalignment of the printing position

- 0,5

-1,0

-1,5

-2,0

-2,5

-3,0

50 100 150 200 mm 300 Distance

punch - printing position

Punch position

Printing

direction

Printing position 1 Printing position 2

Max. misalignment at

printing position 1

= 1,0 mm

Max. misalignment at

printing position 2

= 2,5 mm

Label

+1%

-1%

Punch

Z00521E.cdr

Bar codes Bar codes

Codabar Code EAN 128

Code 128 Code ITF

Code 2/5 Code MSI

Code 2/5 1 EAN 13 mit Add-On 2

Code 2/5 5 EAN 13 mit Add-On 5

Code 2/5 Interleaved Ratio 1:3 EAN 8

Code 2/5 Matrix Ratio 1:2,5 Postcode (guide and identity code)

Code 2/5 Matrix Ratio 1:3 UPC-A

Code 39 UPC-E

Code 39 Ratio 2,5:1 UPS-Code 128

Code 39 Ratio 3:1

[Tab. 3] Machine internal bar codes

2-dimensional bar codes

Data Matrix Code (code according to ECC200)

Maxi Code

PDF 417

Codablock F

Code 49

[Tab. 4] Machine internal 2-dimensional bar codes

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

RSS & CC

bar codes Reduced Space Symbology (RSS) und Composite Component (CC) bar

codes:

Printer

interpreter Easy-Plug

Labelling Material

Material type Textile ribbons, suitable for printing with the thermal or thermotransfer

process (e.g. Avery Dennison 6860, 9505, 6880, 9660).

Label roll Winding direction: Printable side facing inward or outward.

Label width

Label length 12 up to „max. print length“, where „max. print length“ depends on the

memory assignment of the printer - 1000mm count as standard.

RSS, CC bar codes RSS, CC bar codes

RSS-14 UPC-A + CC-A/CC-B

RSS-14 truncated UPC-E + CC-A/CC-B

RSS-14 stacked EAN 13 + CC-A/CC-B

RSS-14 stacked omnidirectional EAN 8 + CC-A/CC-B

RSS limited UCC/EAN 128 + CC-A/CC-B

RSS expanded UCC/EAN 128 + CC-C

[Tab. 5] Machine internal RSS & CC bar codes

Measure Textile

Max. external Ø 250mm

Core (inside) Ø 38.1/50.8/76.2/

101.6mm

Materialbreite 12a/15a/19/25/30/

35/38/50/102mm

a) Preceding tests are strongly

recommended.

[Tab. 6] Label roll specification.

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

Thermotransfer Ribbon

Ribbon Roll •Winding Direction: Colour-side facing inward or outward.

•Roll dimensions:

•Recommended foil types: Avery Dennison 2670 and 8909.

Connections, Interfaces

Mains Voltage 100-240V (AC)

Mains Freq. 50-60Hz

Power

Consumption •Max. 250W

•In standby mode depending on the equipment 30-40W

Current Cons. max. 3.2 A

Interfaces •Host interface:

–RS-232: Baud: 1200-115200 / 8 bit; suitable connection cord: 1:1 D-Sub 9

extension lead (connector-jack)

–Centronics: Bi-directional; conforms with IEEE 1284; nibble mode;

connector at the printer: type C

–USB slave V1.1: Transmission rate 12MBit/s. If the printer is connected to

a host running under Windows, the hosts OS will search for a matching

printer driver.

–Ethernet: 10/100 Base T with TCP/IP, LPD, RawIP printing, DHCP,

HTTPD, FTPD, SNMP

•Standalone mode:

– CompactFlash card

– PS/2 keyboard

•Peripheraldevices.D-Sub 15 jackatthefront side oftheprinter-can beused

for:

–Cutter

– TCS (Textile Cutter-Stacker)

– External Rewinder

•I/O-board (optional)

– D-Sub 9 jack for RS-232/422/485; Baud: 1200-115200 / 8bit; galvanic

separated

– D-Sub 15 jack providing I/O signals similar to the USI

External Ø max. 80mm

Core Ø 25.4mm (1”)

Width 25-105mm

Lengtha

a) The indicated foil length is a typical value; given

this length, most of the common foil rolls stay

below the max. admissible outer diameter.

max. 540m

[Tab. 7] Dimensions of the ribbon roll.

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

PFor information about pin-assignments of the interfaces, refer to the Service

Manual, topic section Service Electronics paragraph “CPU Boards”, “Plug

Connectors”.

Electronic Configuration

Environmental Conditions

Operating temp. 4 to 38°C

Storage Temp. -4 to 60°C

Relative

Humidity 30- to 85% (non-condensing)

Noise <70dB(A) (also with TCS)

Protection

Class IP21 (Protected against solid objects over 1.0mm; Protection against verti-

cally falling drops of water).

Characteristic Details

Processor 32-bit IDT with 32-bit data bus

SDRAM 16MB

ROM 4MB Flash

Plug-in Cards Slot for CompactFlash cards of type T1 with up to 64MB

storage capacity

Real-time Clock Present; printout of date and time possible

Control Panel 4 buttons; LCD graphics display with 122x32 pixels; typi-

cally used to display two text lines with 16 characters

each.

[Tab. 8] Electronic Configuration

11/07 Rev. 4.03-01 USER-/SERVICE MANUAL Technical Data

AP7.t

Index

BBarcodes 5

CCC 6

Colour side 7

CompactFlash card 8

Control Panel 8

Cutter 2

DDisplay 8

EEAN•UCC 6

Environmental Conditions 8

FFoil roll 7

Fonts 4

II/O board 2

Image formats 5

Interfaces 7

KKeyboard 2

NNoise 8

OOperating Temperature 8

Options 2

PPlug-in cards 8

Power Consumption 7

Printer head type 3

Processor 8

Protection Class 8

Punch sensor 4

RReal-time Clock 8

Reflex sensor 2

Relative Humidity 8

ROM 8

RSS 6

SSDRAM 8

Standby mode, power consumption 7

TTextile symbols 4

Thermotransfer Ribbon 7

UUSB 7

WWinder 2

Winding direction label roll 6

Autres manuels pour AP7.t

Table des matières

Autres manuels Avery Dennison Étiqueteuse

Avery Dennison

Avery Dennison Labelers 1103-1110 Manuel utilisateur

Avery Dennison

Avery Dennison 64 Series Manuel utilisateur

Avery Dennison

Avery Dennison ALX 92x Manuel utilisateur

Avery Dennison

Avery Dennison Monarch 8417 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 204 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 421 Manuel utilisateur

Avery Dennison

Avery Dennison AP3.4 Manuel utilisateur

Avery Dennison

Avery Dennison ALX 92x Manuel utilisateur

Avery Dennison

Avery Dennison Label Printer Manuel utilisateur

Avery Dennison

Avery Dennison Pathfinder 6057 Manuel de service

Avery Dennison

Avery Dennison Monarch 1130 Series Manuel utilisateur

Avery Dennison

Avery Dennison LA-SO Manuel utilisateur

Avery Dennison

Avery Dennison MONARCH 9417+ Manuel utilisateur

Avery Dennison

Avery Dennison AP5.4 Gen II Guide de dépannage

Avery Dennison

Avery Dennison ALS 204 Manuel utilisateur

Avery Dennison

Avery Dennison 230 RH Mode d’emploi

Avery Dennison

Avery Dennison SNAP 700 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 330/430 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 430 Manuel utilisateur

Avery Dennison

Avery Dennison Monarch 9860 Manuel utilisateur

Avery Dennison

Avery Dennison SNAP 500 Manuel utilisateur

Avery Dennison

Avery Dennison ALS 204 Manuel utilisateur

Avery Dennison

Avery Dennison Monarch 9855 Manuel utilisateur

Avery Dennison

Avery Dennison ALX 720 Manuel utilisateur

Manuels Étiqueteuse populaires d'autres marques

Brother

Brother P-Touch 2420PC Manuel utilisateur

newell

newell Dymo LabelManager 210D Manuel utilisateur

Brother

Brother TD-4000 Manuel utilisateur

U-Line

U-Line BROTHER H-8754 Manuel utilisateur

Tharo Systems

Tharo Systems H-435+ Manuel utilisateur

Brother

Brother E300 Manuel utilisateur

Godex

Godex RT700 SERIES Manuel utilisateur

ID Technology

ID Technology 252 Manuel utilisateur

Labelmate

Labelmate MC-11 Manuel utilisateur

CAB

CAB XD4M/300 Manuel utilisateur

Brother

Brother P-touch PT-9700PC Manuel utilisateur

TSC

TSC PEX1000 Series Manuel utilisateur

Adkins

Adkins Label Master Manuel utilisateur

Epson

Epson LabelWorks LW-400 Manuel utilisateur

Primera

Primera 510212 Manuel utilisateur

Brady

Brady BradyPrinter S3100 Manuel utilisateur

DuraLabel

DuraLabel LabPRO Manuel utilisateur

Novexx Solutions

Novexx Solutions XLP 604 Manuel utilisateur
