AVer M90UHD Manuel utilisateur

M90UHD

Quick Start Guide│快速安裝指南

クイック・ガイド│Schnellanleitung

Guide Rapide│Guía rápida

Guida rapida

English……..……………………………………………......….….....1

繁體中文……………………………………………………………....9

日本語…..……………………………..……..……………………...17

Deutsch......................................................................................25

Français……………..………………………………..……….........33

Español...……………………….………………..……….…….…..42

Italiano..........…………………………….….…….…..…...….…...51

English-1

Package Contents

M90UHD Power Adapter

Power Cord*

Remote Control AAA Battery (x2)

USB Cable VGA Cable Warranty Card Quick Start Guide

*The power cord will vary depending on the standard power outlet of the country where it is sold.

Optional Accessories

Carrying Bag Anti-glare Sheet RS-232 Cable

Connecting Plate Microscope Adapter

(28mm and 34mm Rubber Coupler are included)

English-2

Overview

1. Camera Head

2. LED Lighting

3. Arm

4. IR Sensor

5. Control Panel

6. Built-in MIC

7. RS-232 Port (optional)

8. Line Out Port

9. MIC Port

10. Mini USB Port

11. USB Port

12. VGA In Port

13. VGA Out Port

14. HDMI In Port

15. HDMI Out Port

16. DC Power Jack

17. Anti-theft Slot

18. SD Card Slot

Power Indicator

Color Status

Solid green Power on

Solid red Standby

No light Power off

510

1213

614 15 16 17

English-3

Control Panel

Name Function

1. Turn the unit on/off/standby

2. Decrease the brightness.

3. Increase the brightness.

4. Decrease the image magnification in camera and picture playback

mode.

5. Increase the image magnification in the camera and picture

playback mode.

6. ▲▼◄► -Pan and zoom-in image (above digital zoom level) in live mode.

-Select options in OSD menu.

-Use ▲&▼to increase and decrease the video playback volume.

-Use ◄&►to play the video backward and forward.

7. -Make a selection in Playback mode and OSD menu.

-Start/Pause video playback.

-Adjust the focus automatically.

8. MENU Open and exit the OSD menu and submenu.

9. LAMP Turn the overhead light on/off.

10. CAMERA / PC Switch the video signal between camera or computer from the VGA

or HDMI In port.

11. FREEZE/STOP

-Pause or resume image display in Camera mode.

-Stop audio & video playback in Playback mode.

12. PLAYBACK View & playback captured still images and video files.

13. RECORDING Start/Stop audio & video recording. Audio and video recording can

be saved on an SD card or a USB Flash drive only. See External

Memory Storage section in user manual.

English-4

14. CAP/DEL -Capture picture in Camera mode. In continuous capture mode,

press this button again to stop.

-Delete the selected picture/video in Playback mode.

15. Built-in MIC Record audio when recording a video clip. The recorded sound will b

in monophonic.

Device Connection

Power Connection

USB Connection

Plug in power adapter and press “Power” button on control panel to turn on the

M90UHD.

[Note] The power supply is 5V3A.

1 Connect M90UHD to laptop/PC with USB port.

[Note] Use the USB cable included in package.

English-5

HDMI Out and In Connection

Connect M90UHD to HDMI display with HDMI output port.

Connect M90UHD to laptop/PC with HDMI input port.

English-6

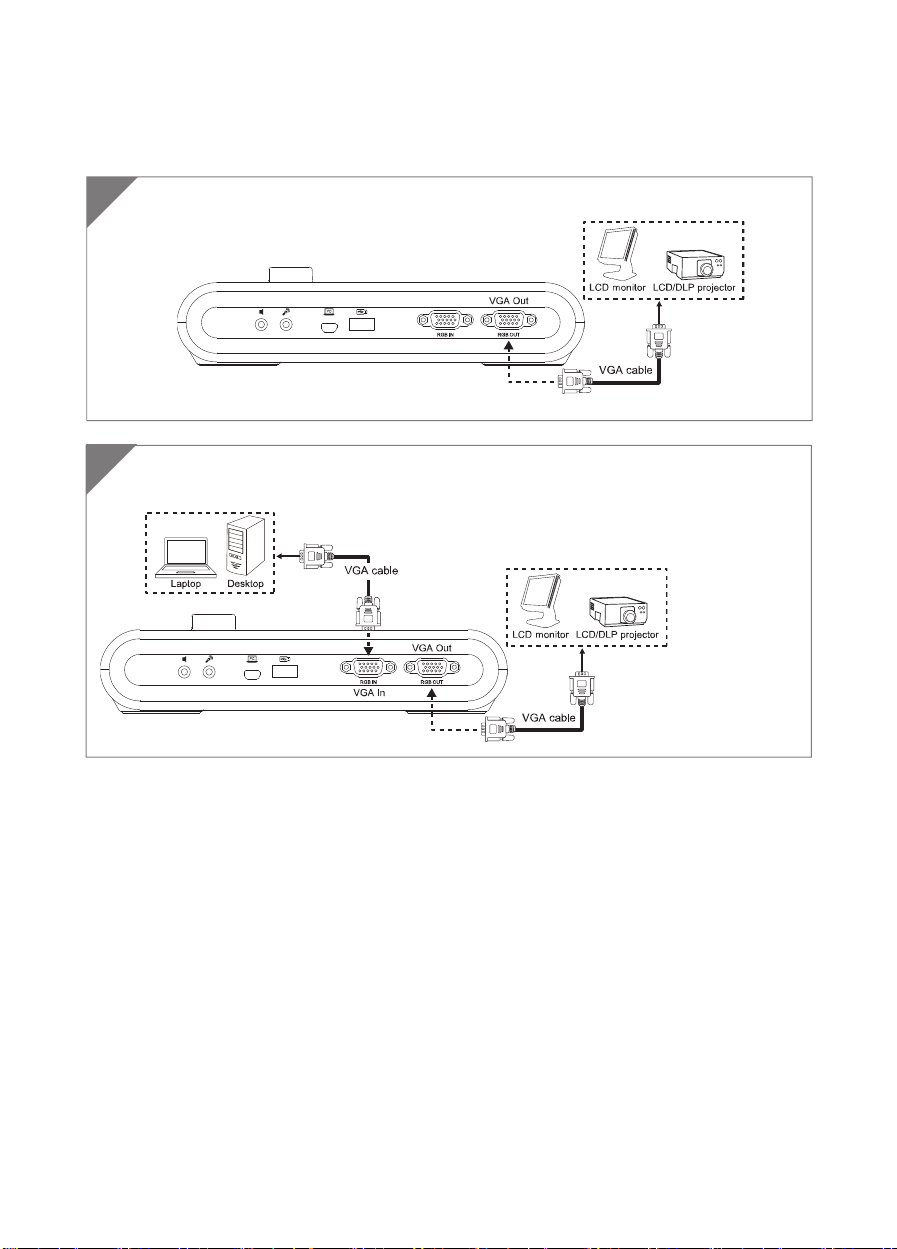

VGA Out and In Connection

1 Connect M90UHD to VGA display with VGA output port.

Connect M90UHD to VGA display with VGA output port and VGA input source device

with VGA input port.
