AVer M11-8M Manuel utilisateur



M11-8M

Instruction Manual

Content

Package Contents................................................................................ 1

Optional Accessories............................................................................ 1

Overview .............................................................................................. 2

Function Buttons .................................................................................. 2

Control Panel.............................................................................. 2

OSD Mode.................................................................................. 3

Compound Key .................................................................................... 3

LED Indicator ....................................................................................... 3

Device Connection ............................................................................... 4

Power Connection to Wall Outlet ................................................ 4

Power Connection to PC/Laptop ................................................ 5

HDMI Connection ....................................................................... 6

USB Connection ......................................................................... 6

Insert a Micro SD Card ............................................................... 7

Operate the Camera with AVerTouch .................................................. 8

Playback Mode..................................................................................... 9

Switch to Playback Mode............................................................ 9

OSD Menu Buttons ......................................................... 10

Playback Menu Buttons .................................................. 10

Slid Show.................................................................................. 10

Interval.......................................................................................11

Storage ......................................................................................11

Delete File .................................................................................11

Delete All ...................................................................................11

Using the Camera .............................................................................. 12

Camera Head Angle ................................................................. 12

Camera Body Angle.................................................................. 12

Shooting Area ........................................................................... 13

Object Position ......................................................................... 14

Storage the Camera ................................................................. 14

Specification ....................................................................................... 15

Package Contents

The items below are included with this product. If any item is missing, contact

the dealer from whom you purchased this product.

M11-8M unit USB Cable QR Code Card

Optional Accessories

Carrying Bag Anti-glare Sheet



Overview

Camera Head

LED Lighting

Arm

Built-in MIC

Functional

Buttons

Status Indicator

Stand Base

Micro SD Card Slot

USB Port

Mini USB/

Power Port

HDMI Out Port



Function Buttons

Control Panel

Button Function



Lamp on/off

Press and hold 3 seconds to call out OSD menu.

Zoom in

Zoom out



Rotate 0/180°

Press and hold 3 seconds to freeze the screen. Un-freeze,

press and hold 3 seconds again.



Auto focus

Press and hold 3 seconds to start recording.

To stop recording, press and hold 3 seconds again

Power on/off

OSD Mode

Button Function



Back to last menu level page

Exit from OSD menu

Up(selection item)

Down(selection item)

Selection enter

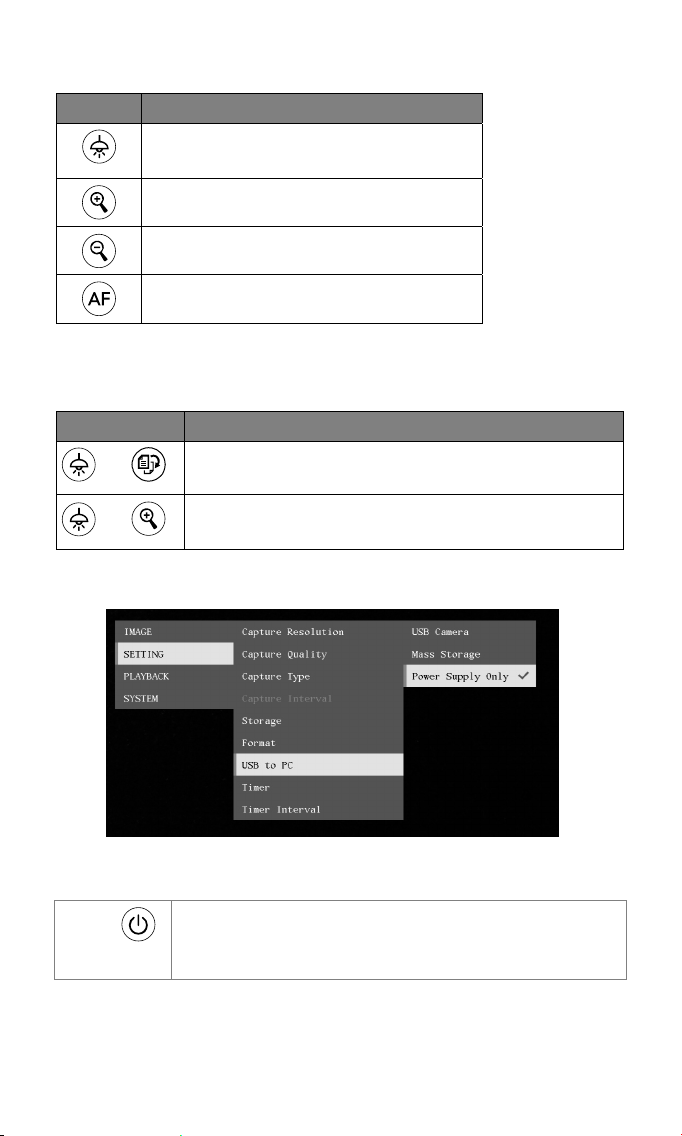

Compound Key

Press keys to operate the compound key function.

Button Function

+Back to factory default settings.

+  Capture image

[Note] For Recording and Capture, please change to “Power Supply only”

mode.

LED Indicator

Power Solid green: Power on

Solid red: Standby

Flashing red: The camera is in start-up process

Device Connection

Power Connection to Wall Outlet

Plug in power and turn on M11-8M.

Wall Outlet

USB Power adapter

(Not included)

USB cable



[Note]

Use the USB cable which included in package connects to mini

USB/ Power port of M11-8M with USB power adapter (not

included)to wall outlet.

User needs to purchase a 5V/1A USB power adapter (not included)

to connect the USB cable to wall outlet.

When the camera is start-up, the power indicator is in flashing red.

Power Connection to PC/Laptop



Connect to USB port of PC/laptop for power supply.

USB cable



[Note]

Use the USB cable which included in package connects to mini

USB/ Power port of M11-8M with laptop/PC.

When the camera is start-up, the power indicator is in flashing

red.

USB power requirement of M11-8M is USB 3.0 5V/0.9A.

For Storage, Format, Capture, Recording and Playback functions,

please change to “Power Supply Only” mode



HDMI Connection



USB Connection



1 Connect M11-8M to HDMI display with HDMI output port.

HDMI cable

(Not included)

Wall Outlet

USB Power adapter

(Not included)

USB cable

1 Connect USB flash drive to USB port to save the capture and

recording file.



[Note]The supported USB flash drive maximum is 32G (FAT32).

Insert a Micro SD Card

1 Insert the card to micro SD card slot.



[Note]

Micro SD card can storage capture images and recording files.

The supported micro SD card capacity maximum is 32G (FAT32).
