AVer M70W Manuel utilisateur
AVerVision M70W
Instruction Manual |使用指南
ユーザーマニュアル| Bedienungsanleitung
Mode d'emploi | Manual de instrucciones
English-1
Package Contents
The items below are included with this product. If any item is missing, contact the dealer from whom
you purchased this product.
M70W unit Remote controller Power Adaptor
Power cord* USB Cable
AAA Batteries Software CD** Quick Guide Warranty card***
*The power cord will vary depending on the standard power outlet of the country where it is sold.
**Only for Japan and Europe
***Only for Europe
Optional Accessories
Carrying Bag
Anti-glare Sheet
Microscope Adapter
( 28mm and 34mm Rubber Coupler are included)
More Help
For FAQs, technical support, software and instruction manual download, please visit:
Global:
http://presentation.aver.com/download-center/
English-2

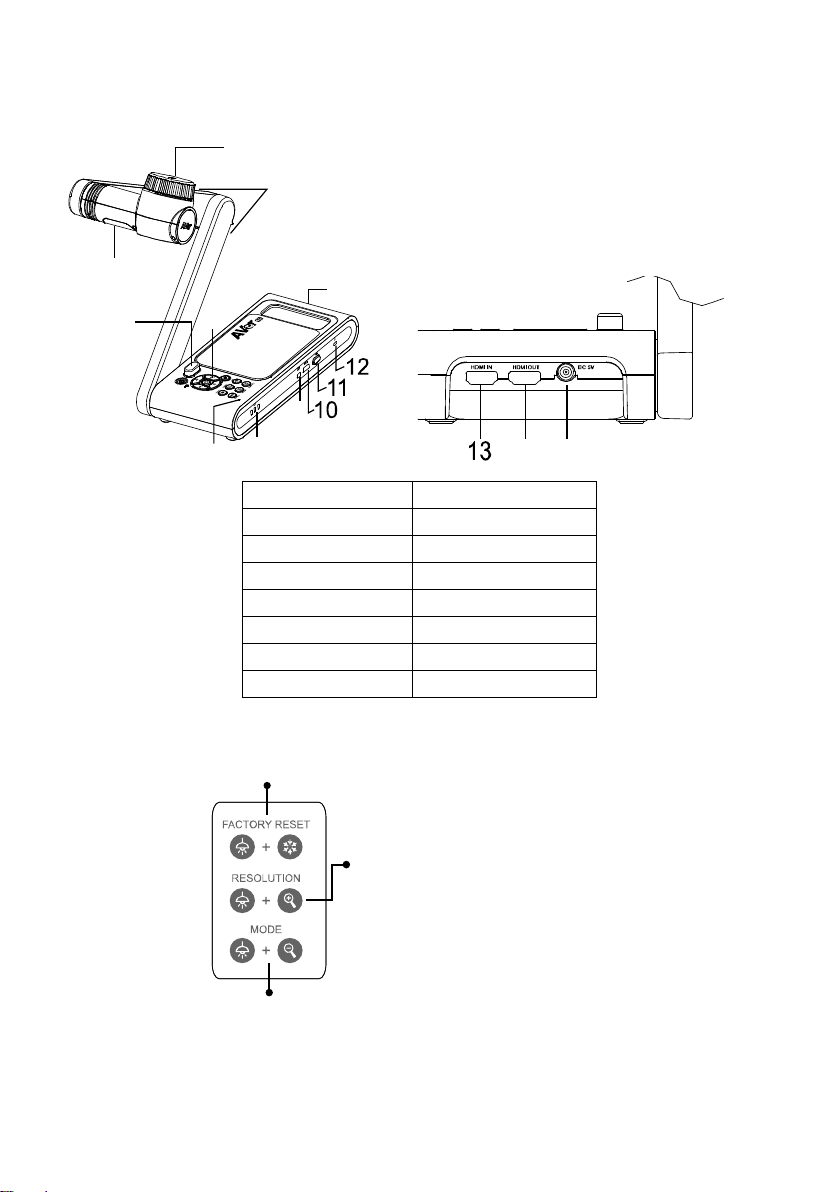

Overview
1
3
2
45
78
9
6
14 15
1. Camera head 2. LED lighting
3. Arm 4. IR sensor
5. Control panel 6. Handle
7. Built-in MIC 8. Battery Indicator
9. USB mini port 10.USB port
11.Wi-Fi dongle 12.Anti-theft Slot
13.HDMI Input 14.HDMI Output
15.DC power jack
Compound Key
Back to factory default settings.
Press to switch between following modes:
- Auto detects the best resolution(4K, 720P, 1080P)
- 1024x768 (If HDMI device support)
- 4K 60Hz (If HDMI device support)
Press to switch between following modes:
Normal, High frame, High quality, Microscope,
Infinity, Marco
English-3
Remote Controller
1
2
3
4
5
6
7
8
9
10
12
11
14
16
17
21
22
19
20
13
15
18
1
9
21
8,19
2
16
4
12
6
23
21
7
9
15
3
Name Function
1. POWER Turn the unit on/off/standby.
2. WiFi/USB Switch between WiFi and USB mode.
3. CAPTURE Capture still image in Camera mode. In
continuous capture mode, press this button
again to stop.
4. FREEZE Freeze live images.
5. ROTATE Rotate the image by 0/180° in Camera
mode.
6. INFO/ Press to view system information and
battery power status.
7. ▲,▼,◄, & ►Pan and zoom-in image in live streaming.
-
8. AUTO FOC Adjust the focus automatically.
9. ZOOM +/- Increase/decrease the image magnification
in camera mode.
10. ZOOM 1X Reset zoom level to 100%.
11. MUTE Set the volume to mute.
12. CAMERA / PC Switch the video signal between camera
and computer from the HDMI Input port
13. RECORD Start/Stop audio & video recording. Video
recording can only be saved in a USB flash
drive.
14. RESOULTION Press to switch between following modes:
- Auto detects the best resolution(4K,
720P, 1080P)
- 1024x768 (If HDMI device support)
- 4K 60Hz (If HDMI device support)
15. AE LOCK Lock the exposure to stop M70W
attempting to find optimal exposure.
16. LAMP Turn the overhead light on/off.
17. DEL Delete the selected picture/video in
Playback mode.
18. MODE Press to switch between Normal, High
frame, and High quality, Microscope,
Infinity, or Marco mode.
19. Make a selection.
20. VOLUME +/- Adjust the volume.
21. BRIGHTNESS +/- Adjust the brightness.
22. RESET +/- Reset to factory default setting.
23. WiFi indicator WiFi status indicator: Please refer to LED Indicator section.
English-4
LED Indicator
Name Status indicator
Power Solid green: Power on
No light: Power off
Solid red: Standby mode
Battery Solid green(x3): Battery is full(100% ~ 60%)
Solid green(x2): Battery is 60% ~ 30%
Solid green(x1): Battery is 30% ~ 5%
Solid red (x1): Battery is 5% ~ 0%
Flashing red (x1): Battery is out of power
Solid orange(x3): Battery is abnormal
WiFi Solid blue: AP Mode Ready / STA connected
Slow flashing blue: Software connection with camera
Short flashing blue: Create AP mode / STA connecting
Solid green: Miracast mode ready
Slow flashing green: Miracast streaming start
Quick flashing green: Miracast device scan / connecting
[Note]
1. The battery will be exhausted for long-term usage. Do not replace the battery yourself. Please
contact your dealer.
2. To complete turn off the camera,press and hold the power button to turn off.
Power Connection and Charging
Please fully charge the camera for the first use.
When the camera is power on, the camera is in “Standby” mode. In standby mode, it can be
charging through the USB connection from other device; but the power supply is required 5V2A and
the charging time will be longer.
The laptop, projector, or monitor cannot provide the power through the USB connection to the
camera while the camera is operating.
When the camera is charging through the wall outlet, the battery indicator is in green flashing.
Press + when the camera doesn't work properly. The camera back to standby mode.
English-5
Devices Connection
USB Connection
PC
HDMI Input/output Connection
English-6
Wi-Fi Connection
1. Power on the camera.
2. Check the Wi-Fi status – Blue light on.
WI-FI SETUP
1. Download and run the software on your device.
2. The software will auto detect the camera on your network. Select the camera that you want to
connect with it.
[Note] The camera name will be “AVer ‘model name’ - WiFi dongle Mac address”. The Mac address will
be different by the device.
3. Then, follow the on-screen instruction to enable Wi-Fi function on the camera.
4. After enabling the Wi-Fi on the camera, select the to make a connection with the camera.
After connected with the camera, select to switch to camera live screen.
English-7
Miracast Connection
1. Make sure M70W and display device (such as Interactive flat panel) are at same Wi-Fi network and
Wi-Fi is connected.
2. The display device needs to install a commercial Miracast Dongle such as the one from Microsoft
(Wireless Adapter).
3. On M70W, press to enter selection menu. Using and button to go to the
selection and press button to confirm the selection.
4. Please select “Wireless” > “Mode” > “Miracast” to enable Miracast mode.
5. Then, press back to menu and select “Miracast” > display device (The display devices will
be list out).
6. Then, the camera image will display on the display device’s screen.
English-8
Using the Camera
Object Position
The icon on top of camera head can help user to place object in positive direction.
The direction adjust wheel can turn 90° to change the icon in 2 positions (refer to figure).
Shooting Area
When camera position is 470mm high, the shooting area will be A3 size.
470mm
PC
English-9
Storage the Camera
Mounting the Camera on a Flat Surface
[Note] M4 screw x2, depth is5mm
75.00
75
.
00
