Avenview HDM3D-C5SP-8 Manuel utilisateur

www.avenview.com

1X8 HDMI 1.3 Extender / Splitter over

Single CAT5 with 3D Support and

Local Output

Model #: HDM3D-C5SP-8

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 5

1.7 Panel Description................................................................................................................... 6

1.7.1 Front Panel ............................................................................................................................ 6

1.7.2 Rear Panel ............................................................................................................................. 6

1.8 EDID Learning......................................................................................................................... 7

1.9 Installation ............................................................................................................................. 7

Section 2: Specifications......................................................................................................................... 8

2.1 HDMI Pin Definition ............................................................................................................... 9

2.2 CAT5/6 Pin Definition............................................................................................................. 9

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview HDM3D-C5SP-8 HDMI 1.3 Extender / Splitter over CAT5 with Full 3D Support and Local Output

has been tested for conformance to safety regulations and requirements, and has been certified for

international use. However, like all electronic equipment’s, the HDM3D-C5SP-8 should be used with care. Read

the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to

the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

The Avenview HDM3D-C5SP-8 HDMI 1.3 over Single CAT5 Splitter Extender with 3D Support and Local Output

provides the most flexible solution by which the high definition video and high quality audio can be

transmitted to different locations over a long distance. These devices can cascade, allowing you to extend

HDMI compliant displays almost anywhere. The input HDMI source can be duplicated and distributed to up to

8 HDMI enable displays through cost effective Cat-5/5e cables and RJ-45 to HDMI mini-extenders

HDM3D-C5-R-M or Long Range HDM-C53X-R. With the built in equalization, the input HDMI cable can be

extended up to 20 meters (66 feet) long under Full HD, and make the overall transmission distance superior

than regular HDMI splitters or matrix switches in the market. With use of Long Range Receiver, HDMI signal

can be extended to 50 meters (165 feet).

-Supports HDMI Deep Color & Full 3D

-HDMI 1.3c compliant

-HDCP compliant

-Regenerates the HDMI signal

-HDMI local output

-Supports default HDMI EDID and has the ability to learn the EDID of the displays

-Extends up to 20m (66ft) of input HDMI cable with Mini Receiver

-Extends up to 60m (200ft) (720p / 1080i) of output CAT5/6 cable with Long Range Receiver

-Extends up to 40m (130ft) (1080p) of output CAT5/6 cable

-Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission

-Allows cascading

-Perfectly integrated with other HDM-C5XD Series products

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-HDM3D-C5SP-8 x 1

-Power Adapter (+5VDC, 4A) x 1

-Rack-mounting Ear Set x 1

-User’s Manual x 1

www.avenview.com

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

* 0 = [Video] –2D / Full-HD 24bit 1080p@60 [Audio] –up to 7.1ch surround sound

1 = [Video] –2D / Full-HD 24bit 1080p@60 [Audio] –up to 2.0ch surround sound

2 = [Video] –2D / Full-HD 36bit 1080p@60 [Audio] –up to 7.1ch surround sound

3 = [Video] –2D / Full-HD 36bit 1080p@60 [Audio] –up to 2.0ch surround sound

4 = [Video] –2D / HD 24bit (1080p@30)(1080i@60)(720p@60) [Audio] –up to 7.1ch

surround sound

5 = [Video] –2D / HD 24bit (1080p@30)(1080i@60)(720p@60) [Audio] –up to 2.0ch

surround sound

6 = [Video] –3D / Full-HD 36bit (1080p@60) [Audio] –up to 2.0ch surround sound

7 = [EDID Learning Mode] –learns EDID from the display

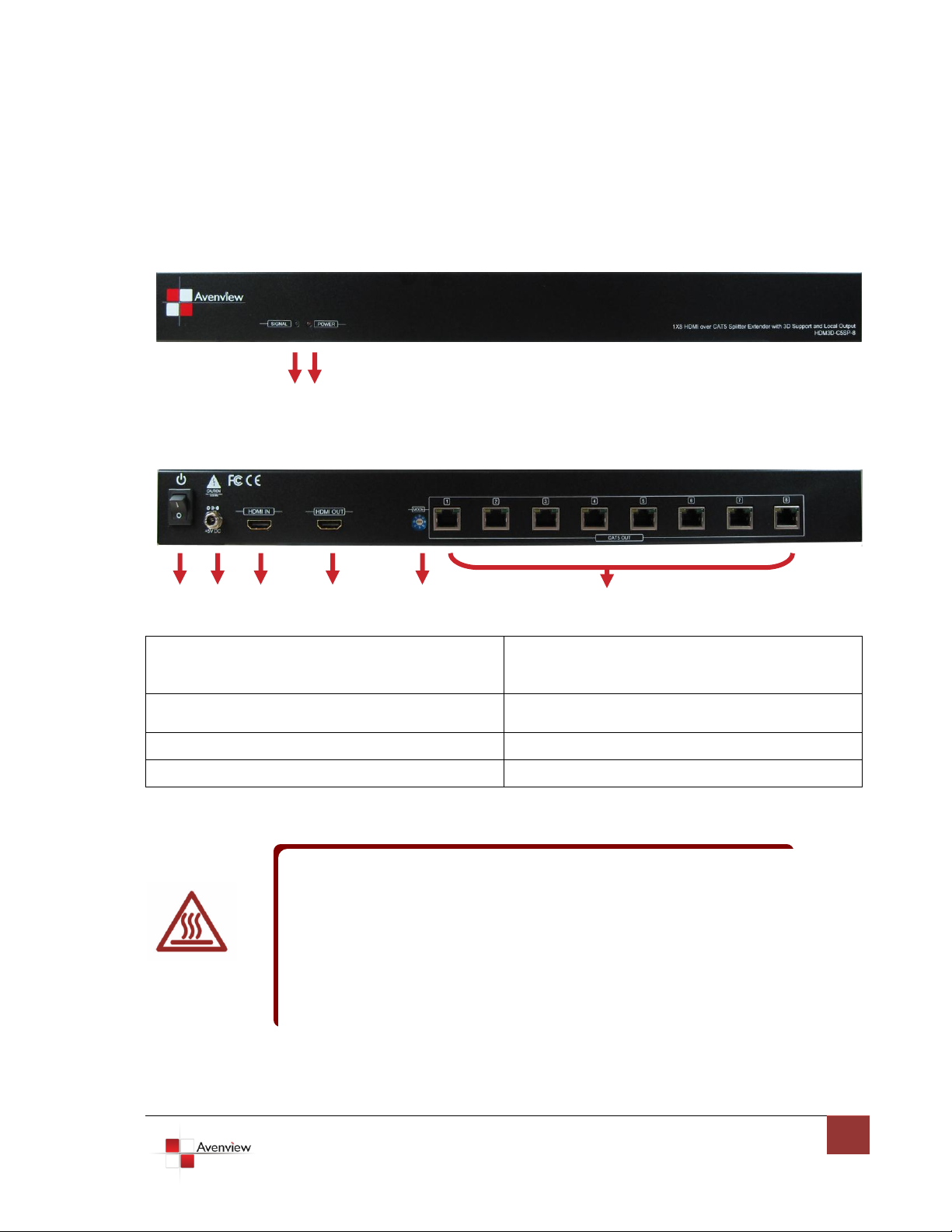

1.7 Panel Description

1.7.1 Front Panel

1.7.2 Rear Panel

1. Signal:

Bright = HDMI Source Signal is Detected

Dark = No HDMI Signal

2. Power:

Bright = Power On

Dark = Power Off

3. Power: On / Off Switch

4. +5V DC: Interlocking Power Jack for 5V

DC Power Supply

5. HDMI Input

6. HDMI Local Output

7. Mode*

8. HDMI CAT5/6 Output

Mode*

www.avenview.com

1.8 EDID Learning

1. Power on the HDM3D-C5SP-8. Connect to HDMI OUTPUT with a HDMI Cable to the display you want the

HDM3D-C5SP-8 to learn its EDID.

2. To learn the display's EDID from the source device, connect to HDMI OUTPUT. Set the mode to position”7”.

Power on and wait for about 6-8 seconds to complete the EDID learning process;

NOTE: Not necessary to power cycle again or even twice while plugging on different displays.

1.9 Installation

To setup Avenview HDM3D-C5SP-8 follow these steps for connecting to a device:

1. Turn off all devices including monitors / TV

2. Connect to a HDMI source (such as a Blu-Ray Disc player) to HDMI Input of HDM3D-C5SP-8

3. Connect the receiver HDM-C53X-R or HDM-C5-R-M to HDM3D-C5SP-8 from RJ45 Out with CAT5 /

CAT6 cable

4. Plug in 5V 4A DC Power (supplied).

5. Power on the HDMI display

6. Power on HDMI Sources.

www.avenview.com

Section 2: Specifications

Item

Description

Units

HDM3D-C5SP-8

Unit Description

1 X8 HDMI Transmitter / Splitter over CAT5 / CAT6 with Full 3D Support

HDMI Compliance

HDMI Deep Colour & Full 3D

HDCP Compliance

Yes

Video Bandwidth

Single Link 225 MHz (6.75Gbps)

Supported Resolutions

480i / 480p / 720p / 1080i / 1080p60

Resolution and Distance

Full HD: (1080p) ~ 40meter (130feet) (CAT5e) / 50meter (165feet) (CAT6)

HD: (720p/1080i) ~ 50meter (165feet) (CAT5e) / 60meter (200feet) (CAT6)

Audio Support

Surround Sound (up to 7.1 Ch) or Stereo Digital Audio

Equalization

Built-in

Input TMDS Signal

1.2 Volts (peak-to-peak)

Input DDC Signal

5 Volts (peak-to-peak, TTL)

ESD Protection

-Human body model —±15kV (air-gap discharge) & ±8kV (contact discharge)

- Core chipset —±8kV

Input

1 x HDMI

Output

8 x Rj45

1 x HDMI

HDMI Connector

Type A (19 pin female)

RJ45 Connector

WE/SS 8P8C

Dimensions (L x W x H)

6.2” x 17.2” x 1.7”

Power Supply

5V 4A DC

Power Consumption

13 Watt (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

www.avenview.com

2.1 HDMI Pin Definition

Type A (Receptacle) HDMI

Pin 1

TMDS Data2+

Pin 11

TMDS Clock Shield

Pin 2

TMDS Data2 Shield

Pin 12

TMDS Clock–

Pin 3

TMDS Data2–

Pin 13

Pin 4

TMDS Data1+

Pin 14

Reserved (N.C. on device)

Pin 5

TMDS Data1 Shield

Pin 15

SCL

Pin 6

TMDS Data1–

Pin 16

SDA

Pin 7

TMDS Data0+

Pin 17

DDC/CEC Ground

Pin 8

TMDS Data0 Shield

Pin 18

+5V Power

Pin 9

TMDS Data0–

Pin 19

Hot Plug Detect

Pin 10

TMDS Clock+

2.2 CAT5/6 Pin Definition

www.avenview.com

Notice

Performance Guide for HDMI over CAT 5/6 Cable Transmission

Performance rating

Type of category cable

Wiring

Shielding

CAT5

CAT5e

CAT6

Solid

Unshielded (UTP)







Shielded (STP)





Stranded

Unshielded (UTP)





Shielded (STP)





Termination

Please use EIA/TIA-568-B termination (T568B) at any time

1. The length depends on the characteristics and quality of the cables. Higher resolutions and longer

transmission distances require low skew cables (<25ns/100m) for best performance. Unshielded

CAT6 with metal RJ-45 connectors is recommended.

Table des matières

Autres manuels Avenview Extenseur

Avenview

Avenview W-HD3DIR-50M Manuel utilisateur

Avenview

Avenview HDM3D-C53X-SET Manuel utilisateur

Avenview

Avenview VGA-C5RS-SET Manuel utilisateur

Avenview

Avenview HDM-C6IPX-SET Manuel utilisateur

Avenview

Avenview HBT-C6PLT-R Manuel utilisateur

Avenview

Avenview HDM-C6IP-SET Manuel utilisateur

Avenview

Avenview WL-VGA-EXT Manuel utilisateur

Avenview

Avenview HDM3D-C53X-SET Manuel utilisateur

Avenview

Avenview FO-HDM2-T4K-SET Manuel utilisateur

Avenview

Avenview FO-DVI-1080LC-Set Manuel utilisateur

Avenview

Avenview FO-DVI-1000M-EMI Manuel utilisateur

Avenview

Avenview FO-HDM-SET Manuel utilisateur

Avenview

Avenview HDMI-C5SP-4 Manuel utilisateur

Avenview

Avenview HDM-C5-3X-SET Manuel utilisateur

Avenview

Avenview DVI-C5-M-SET Manuel utilisateur

Avenview

Avenview HDSD FO-HDSDI-L-SET Manuel utilisateur

Avenview

Avenview DVI-C5-M-SET Manuel utilisateur

Avenview

Avenview FO-DVI-XX-MM Manuel utilisateur

Avenview

Avenview HBT2-C6BPOC-SET Manuel utilisateur

Avenview

Avenview DVI-C5-R Manuel utilisateur

Avenview

Avenview HDMI-C5-IR-SET Manuel utilisateur

Avenview

Avenview WL-VGA-EXT Manuel utilisateur

Avenview

Avenview HBT-C6BPOC-SET Manuel utilisateur

Avenview

Avenview HDM-SHAREPRO-IP Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
