Avenview VGA-C5RS-SET Manuel utilisateur

www.avenview.com

VGA & RS232 Extender SET over Single

CAT5 with RGB Delay Control

Model #: VGA-C5RS-SET

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 6

1.6 Before Installation.................................................................................................................. 6

1.7 Panel Description................................................................................................................... 7

1.8 Installation ............................................................................................................................. 9

Section 2: Specifications....................................................................................................................... 10

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview VGA-C5RS-SET, VGA & RS232 Extender over Single CAT5 has been tested for conformance to

safety regulations and requirements, and has been certified for international use. However, like all electronic

equipment’s, the VGA-C5RS-SET should be used with care. Read the following safety instructions to protect

yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

With only one cost effective CAT-5e cable, the Avenview VGA-C5RS-SET lets you extend VGA (WUXGA) to

cover the distance up to 300m (1,000ft). The system consists of Transmitter (VGA-C5RS-S) and Receiver

(VGA-C5RS-R). With built-in EQ and GAIN control, the transmission path can be adjusted to adapt the cable

quality and video bandwidth. Furthermore, the VGA RGB delay control [de-skew] function provides the

compensation among R, G, B signals due to long transmission or through normal LAN cable. In order to extend

the control patch, VGA-C5RS-SET also has RS232 half-duplex long range extender.

-Supports up to WUXGA [1920x1200@60] or UXGA [1600x1200@60] to 330m (1,000ft)

-Supports RS-232 half-duplex

-Adjustable equalization and gain control on RX unit

-De-skew compensation available for RGB delay control

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-VGA-C5RS-S x 1

-VGA-C5RS-R x 1

-Power Adapter (+5VDC, 2A) x 2

-User’s Manual x 1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

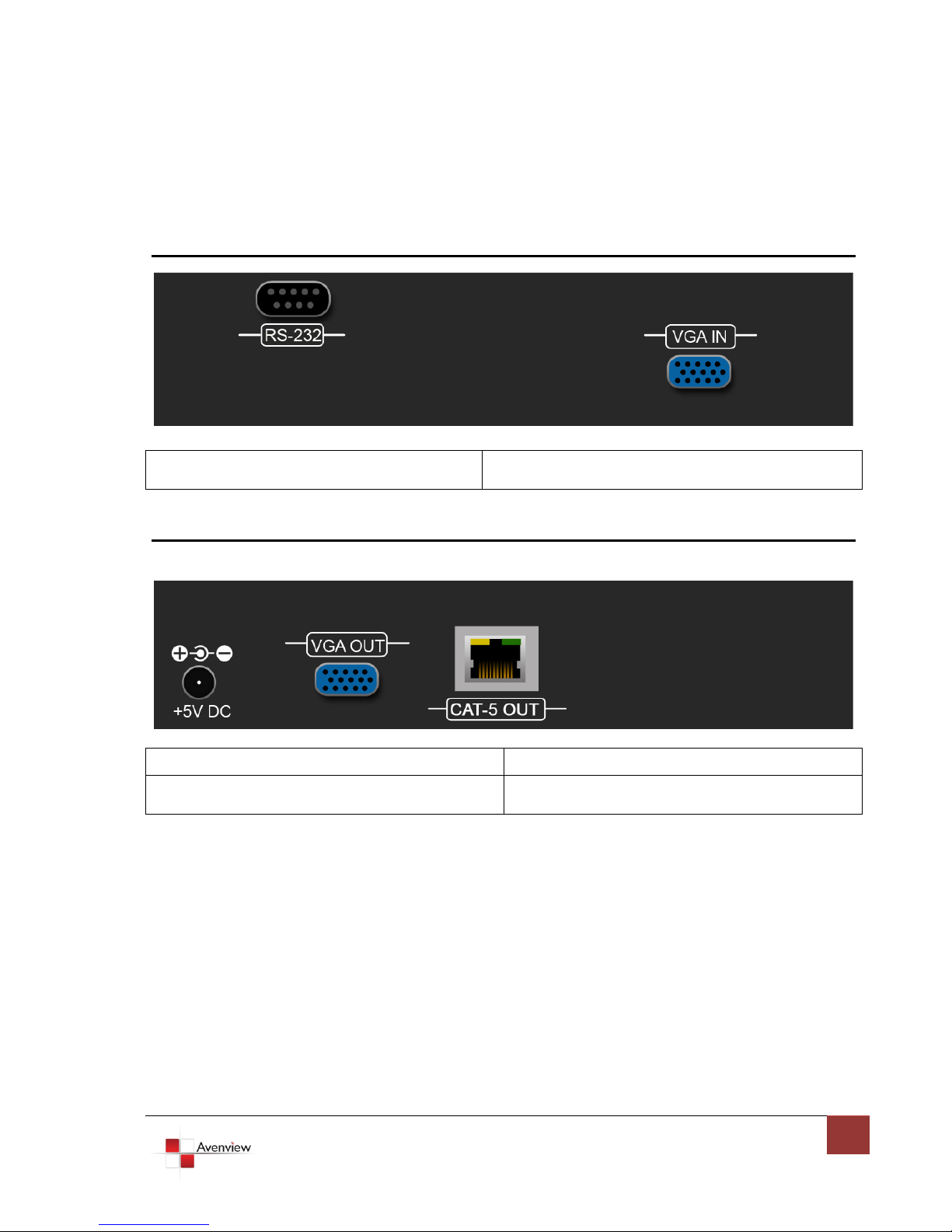

1.7 Panel Description

FRONT PANEL (Transmitter, VGA-C5RS-S)

REAR PANEL (Transmitter, VGA-C5RS-S)

1. 5V DC Power Jack

2. VGA OUT: Local VGA OUT

3. CAT-5 OUT: CAT5/CAT6 cable for

extending the signal

1. RS-232: Connect a RS-232 Serial

Command Device

2. VGA IN: VGA Input from Video Source

www.avenview.com

FRONT PANEL (Receiver, VGA-C5RS-R)

1. RS-232: Connect to a RS-232 Serial

Command Device

VGA OUT: Connect to a remote VGA display

REAR PANEL (Receiver, VGA-C5RS-R)

1. 5V 2A DC Power Connector

2. RJ45 IN

3. EQ: Rotary Control for equalization of R,

G, B respectively

4. GAIN: Rotary control for Gain Control of

R, G, B respectively

5. Rotary Control: R=0~2, G=3~5, B=6~7

for de-skew compensation on respective

color channel

6. Push button to decrease level of

de-skew compensation

7. Push button to increase level of de-skew

compensation

www.avenview.com

1.8 Installation

To setup Avenview VGA-C5RS-SET follow these steps for connecting to a device:

1. Connect VGA source to VGA-C5RS-S

2. Connect VGA display to VGA-C5RS-R

3. Connect CAT5/CAT6 cable between Transmitter (VGA-C5RS-S) and Receiver (VGA-C5RS-R)

4. Ensure that cables are tightly connected

5. Plug in 5V DC power cord to the power jack of the Receiver VGA-C5RS-R.

6. Plug in 5V DC power cord to the power jack of the Transmitter VGA-C5RS-S.

1. If a blurred video is seen or even worse, not displayed at all, try to adjust the EQ and Gain

rotary controls to improve the cable skew. GAIN rotary controls are designed for gain control,

and EQ rotary controls are designed for equalizing the wave form of the receiving video signal.

It is suggested to begin with adjusting the rotary control of EQ to get the input video displayed

first, and then the GAIN according to the video you see on the screen.

2. RGB delay control [De-skew] offers the flexible functionality to allow skew compensation

among VGA R, G, B signals due to long transmission or thru low quality cable. By adjusting the

rotary switch to choose R, G or B color channel at first, then use the push buttons to increase or

decrease the delay in the corresponding color channel. There are totally 31 steps, each step

with 2ns difference, for adjusting the delay between each color individually. Then the graphics

quality can be further assured.

www.avenview.com

Section 2: Specifications

Item

Description

Units

VGA-C5RS-S

VGA-C5RS-R

Unit Description

VGA Transmitter with Audio

VGA Receiver with RGB Delay Control

Video Bandwidth

350MHz

Video Support

VESA

Supported Resolutions

Up to WUXGA (1920 x1200)

Resolution and Distance

WUXGA 1920x 1200 at 300 meters (1000 feet)

Audio Support

Equalization

Continuous Analog Control

Input Video Signal

1.2 Volts (peak-to-peak)

RGB Delay Control

Yes

ESD Protection

-Human body model —±15kV (air-gap discharge) & ±8kV (contact discharge)

- Core chipset —±8kV

Input

1 x VGA

1 x RS232

1 x RJ45

Output

1 x RJ45

1 x VGA

1 x RS232

VGA Connector

HD-15 (15 pin D-sub Female)

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

Dimensions (L x W x H)

4.8” x 3.7” x 1”

Power Supply

5V 2A DC

Power Consumption

5 Watt (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Tempearture

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)
